ABS(diag)-13
ABS (DIAGNOSTICS)
Control Module I/O Signal
NOTE:

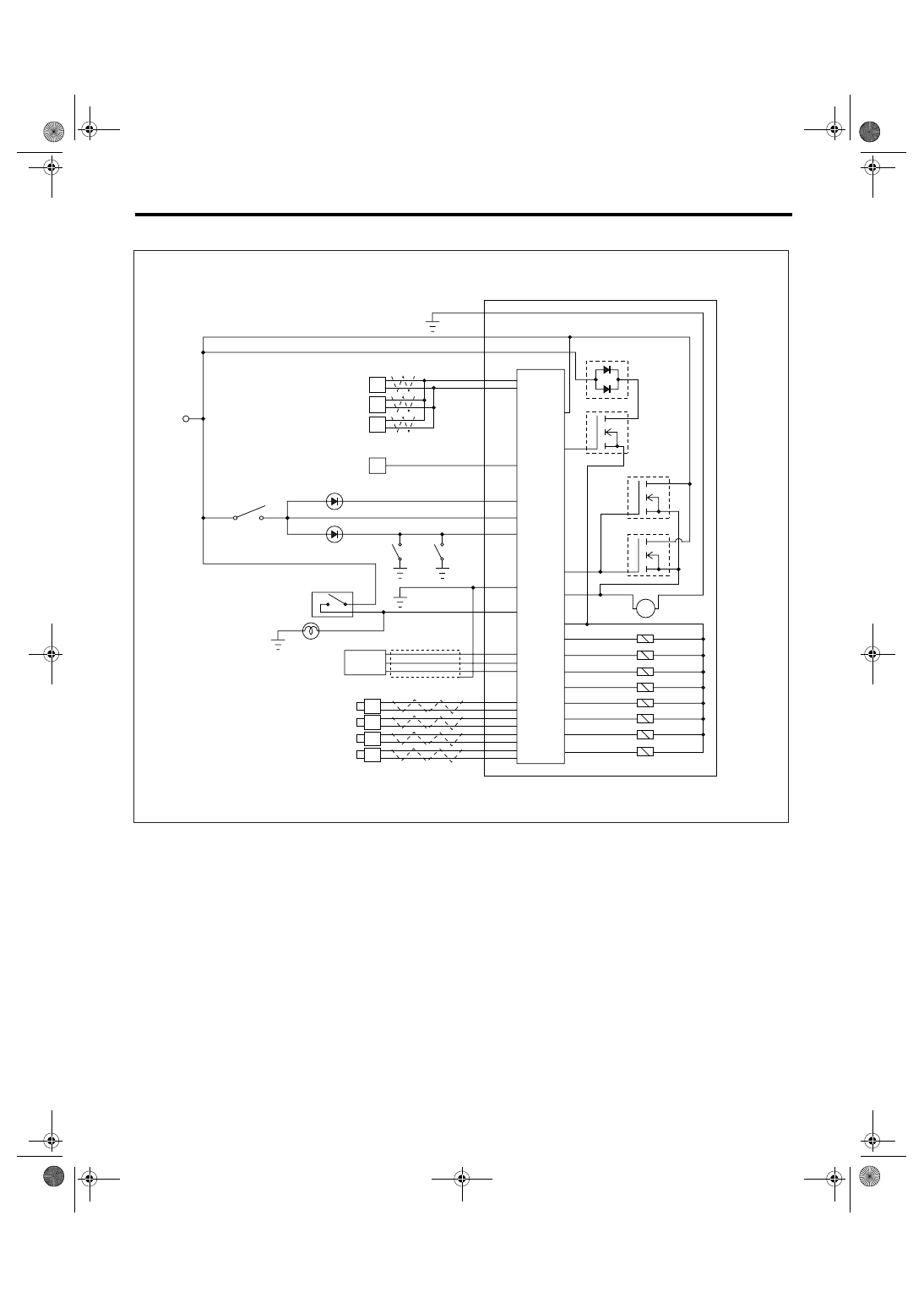

• Terminal numbers in ABSCM&H/U connector are as shown in the figure.
• ABS warning light is illuminates when the connector is removed from ABSCM&H/U.
*1: Measure the I/O signal voltage after disconnecting the connector from the ABSCM&H/U terminal.
Description
Terminal
No.
(+) — (
−)
Input/Output signal
Measured value and measuring conditions
ABS wheel speed sen-
sor
(Wheel speed sensor)
Front LH wheel
Power
supply
16 — 15
4.5 — 16.5 V
Signal
1
5.9 — 16.8 mA: Rectangle waveform
Front RH wheel
Power
supply
5 — 15
4.5 — 16.5 V
Signal
6
5.9 — 16.8 mA: Rectangle waveform
Rear LH wheel
Power
supply
2 — 15
4.5 — 16.5 V
Signal
17
5.9 — 16.8 mA: Rectangle waveform
Rear RH wheel
Power
supply
3 — 15
4.5 — 16.5 V
Signal
4
5.9 — 16.8 mA: Rectangle waveform
CAN communication line (+)
26
2.5 — 1.5 V pulse signal
CAN communication line (
−)
11
3.5 — 2.5 V pulse signal
Valve relay power supply *1
14 — 15
10 — 15 V
Motor relay power supply *1
13 — 15
10 — 15 V
G sensor
Power supply
24 — 10
4.75 — 5.25 V
Ground
10
—
Output
21 — 10
2.1 — 2.5 V when the vehicle is on a level surface
Stop light switch *1
20 — 15
Less than 1.5 V when the stop light is OFF; otherwise,
10 — 15 V when the stop light is ON.
ABS warning light
22 — 15
After turning the ignition switch to ON, 10 — 15 V during
1.5 seconds and less than 1.5 V after 1.5 seconds
passed.
Brake warning light (EBD warning light)
8 — 15
After turning the ignition switch to ON, 10 — 15 V during
1.5 seconds and less than 1.5 V after 1.5 seconds
passed.

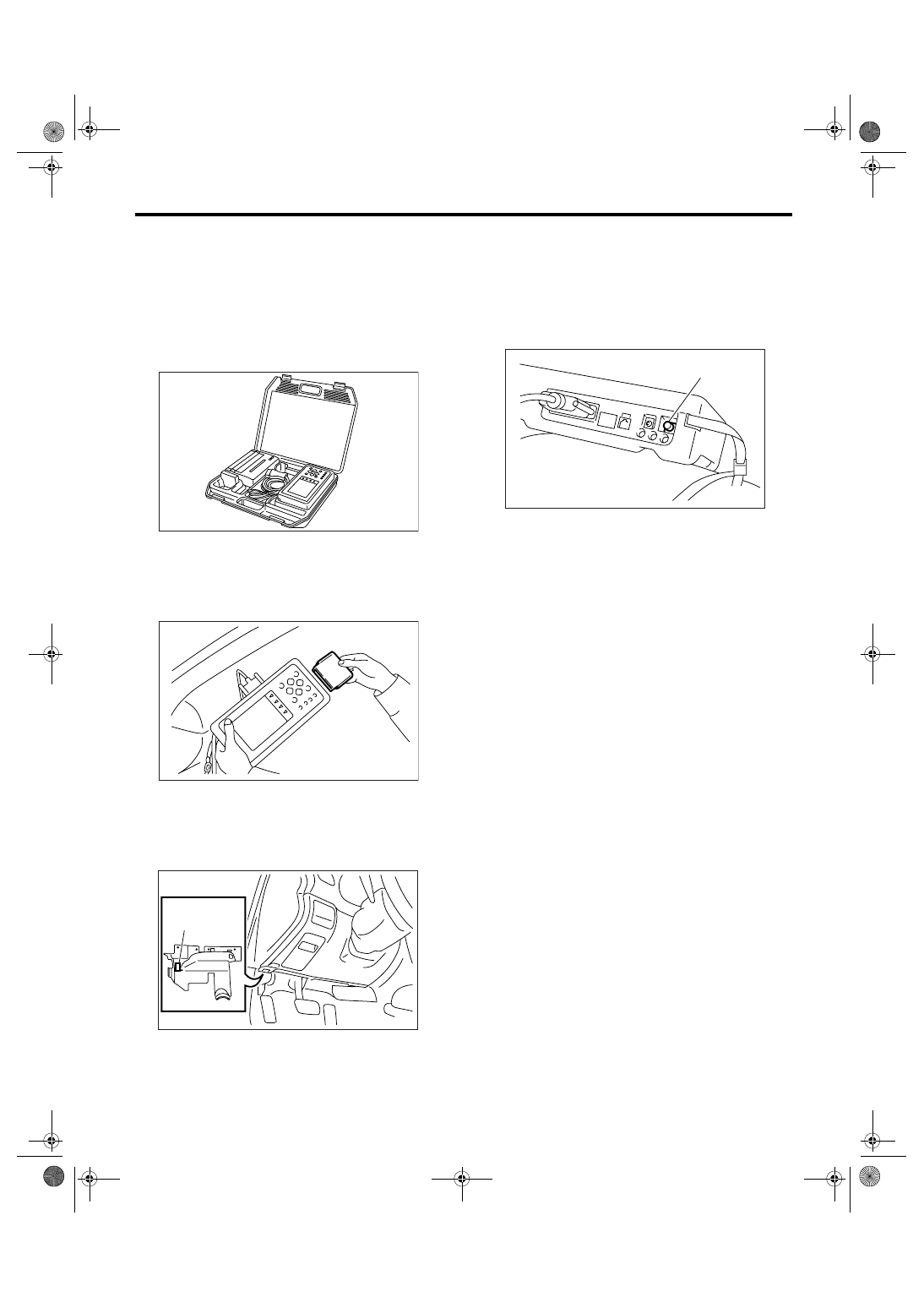

Subaru Select Monitor
7 — 15
Less than 1.5 V when no data is received.
0
←→ 12 V pulse (in communication)
Power supply *1
18 — 15
When the ignition switch is ON, 10 — 15 V.
Grounding line
15
—
Vehicle speed output signal
23 — 15
0
←→ 12 V pulse
