ABS (DIAGNOSTICS)

General Description

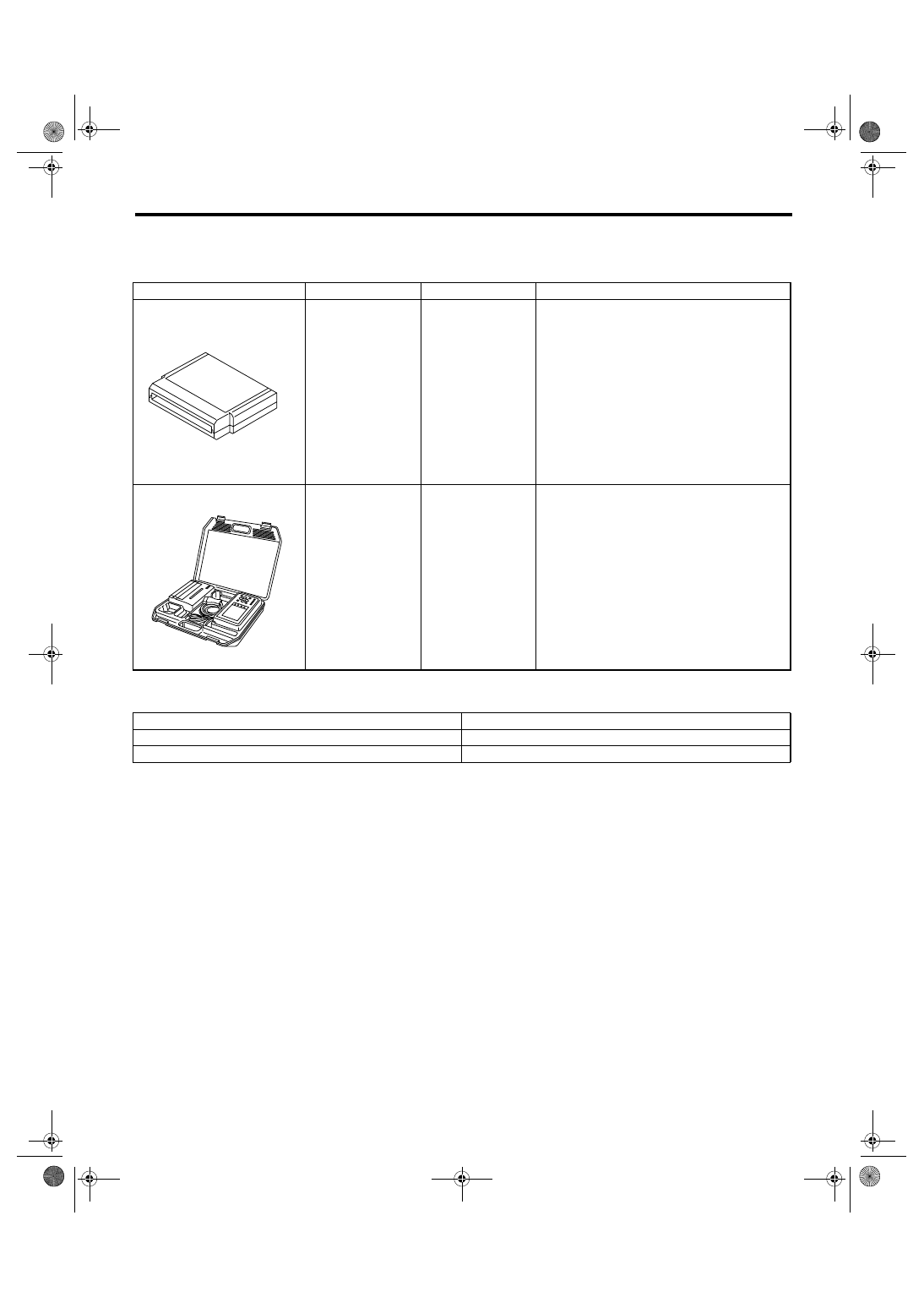

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

18482AA000

(Newly adapted fool)

CARTRIDGE

Troubleshooting for electrical system.

22771AA030

SUBARU SELECT
MONITOR KIT

Troubleshooting for electrical system.
• English: 22771AA030 (Without printer)
• German: 22771AA070 (Without printer)
• French: 22771AA080 (Without printer)
• Spanish: 22771AA090 (Without printer)

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance, voltage and ampere.

Oscilloscope

Used for measuring sensor.

ST18482AA000

ST22771AA030

ABS(diag)-10

ABS (DIAGNOSTICS)

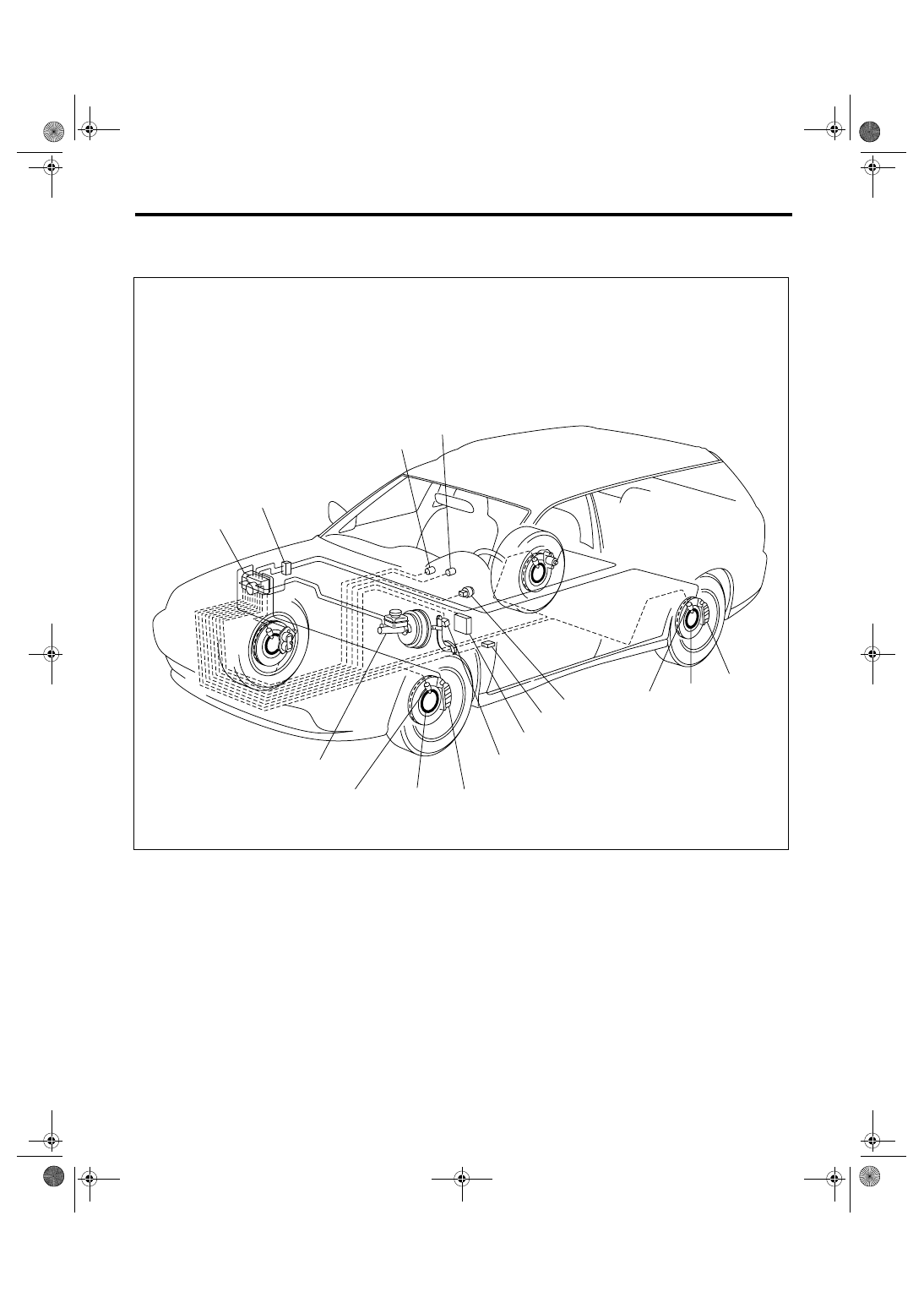

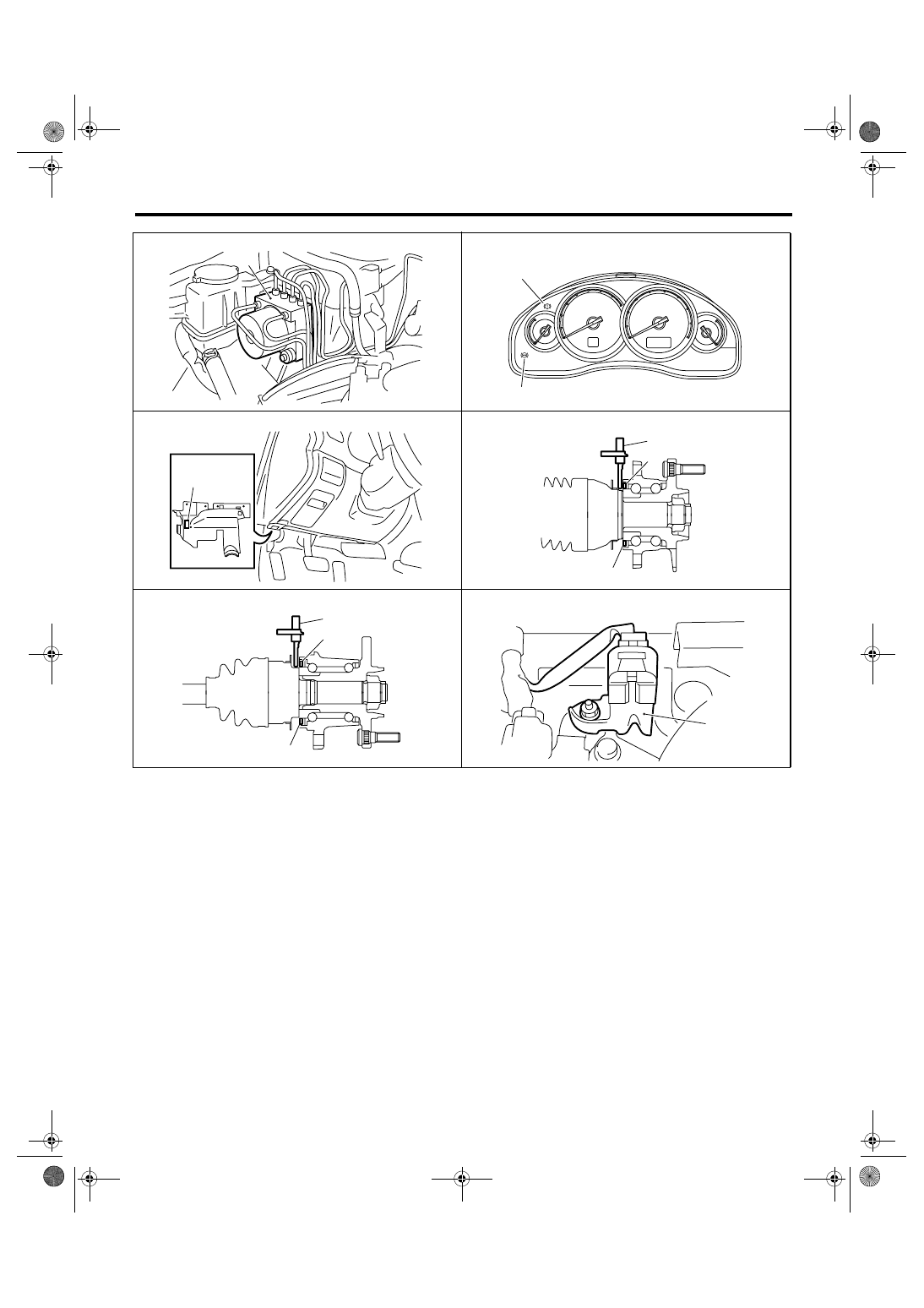

Electrical Component Location

4. Electrical Component Location

A: LOCATION

(1)

ABS control module and hydraulic
control unit (ABSCM&H/U)

(4)

ABS warning light

(9)

G sensor

(5)

Brake and EBD warning light

(10)

Transmission control module
(TCM) (AT model)

(2)

Two-way connector

(6)

Caliper body

(3)

Data link connector
(For Subaru Select Monitor)

(7)

Magnetic encoder seal

(11)

Stop light switch

(8)

ABS wheel speed sensor

(12)

Master cylinder

ABS00591

(1)

(12)

(2)

(10)

(4)

(5)

(11)

(8)

(7)

(6)

(9)

(3)

(8)

(7)

(6)

ABS(diag)-11

ABS (DIAGNOSTICS)

Electrical Component Location

ABS00405

(1)

ABS00598

(5)

(4)

ABS00600

(3)

ABS00408

(8)

(7)

(7)

FRONT

(8)

(7)

(7)

ABS00407

REAR

(9)

ABS00599

ABS(diag)-12

ABS (DIAGNOSTICS)

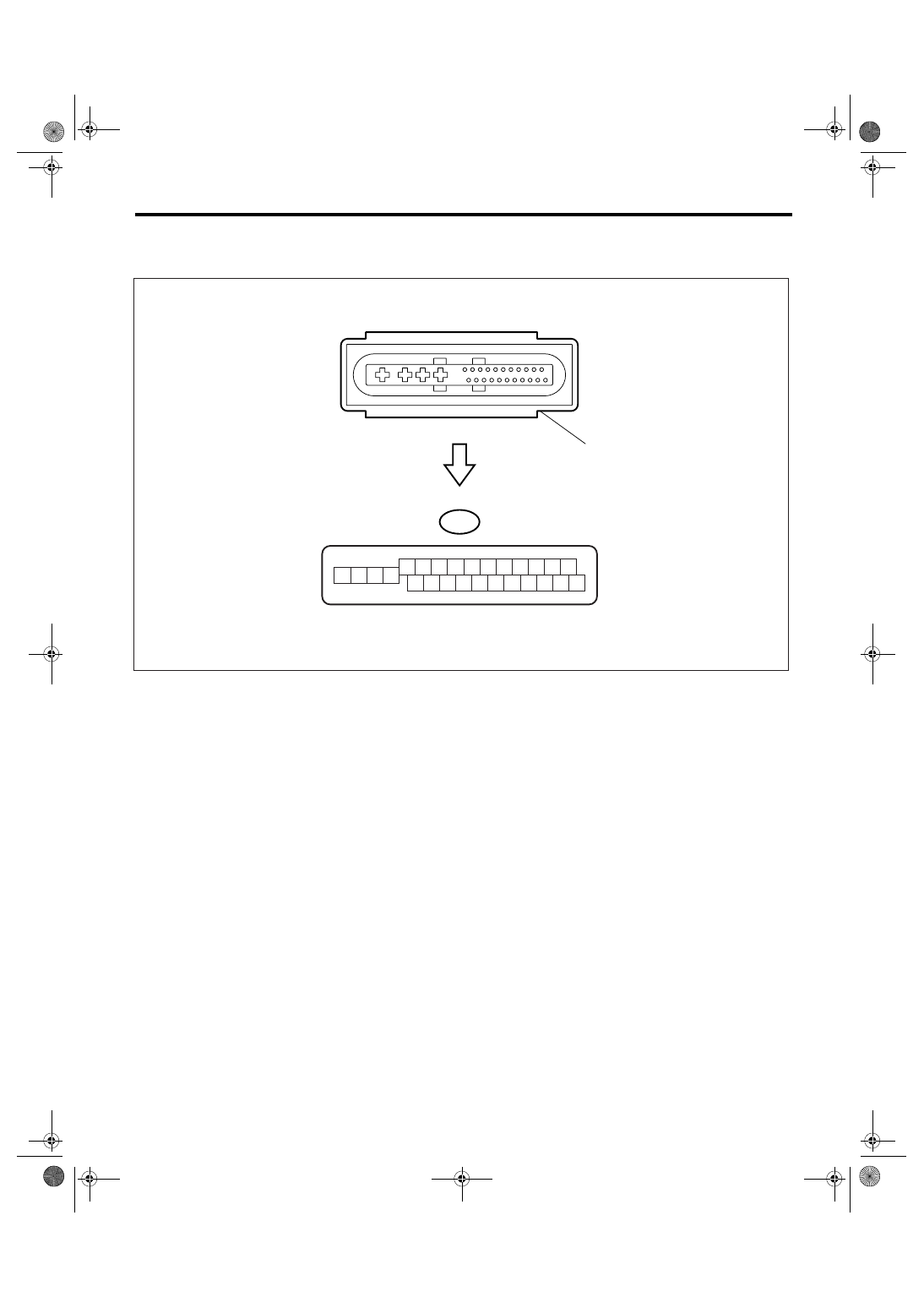

Control Module I/O Signal

5. Control Module I/O Signal

A: ELECTRICAL SPECIFICATION

(1)

ABS control module and hydraulic
control unit (ABSCM&H/U) con-
nector

ABS00409

B301

7 8 9 10 11

6

5

4

1

15

14

13

12

2 3

22 23 24 25 26

21

20

19

16 17 18

(1)
