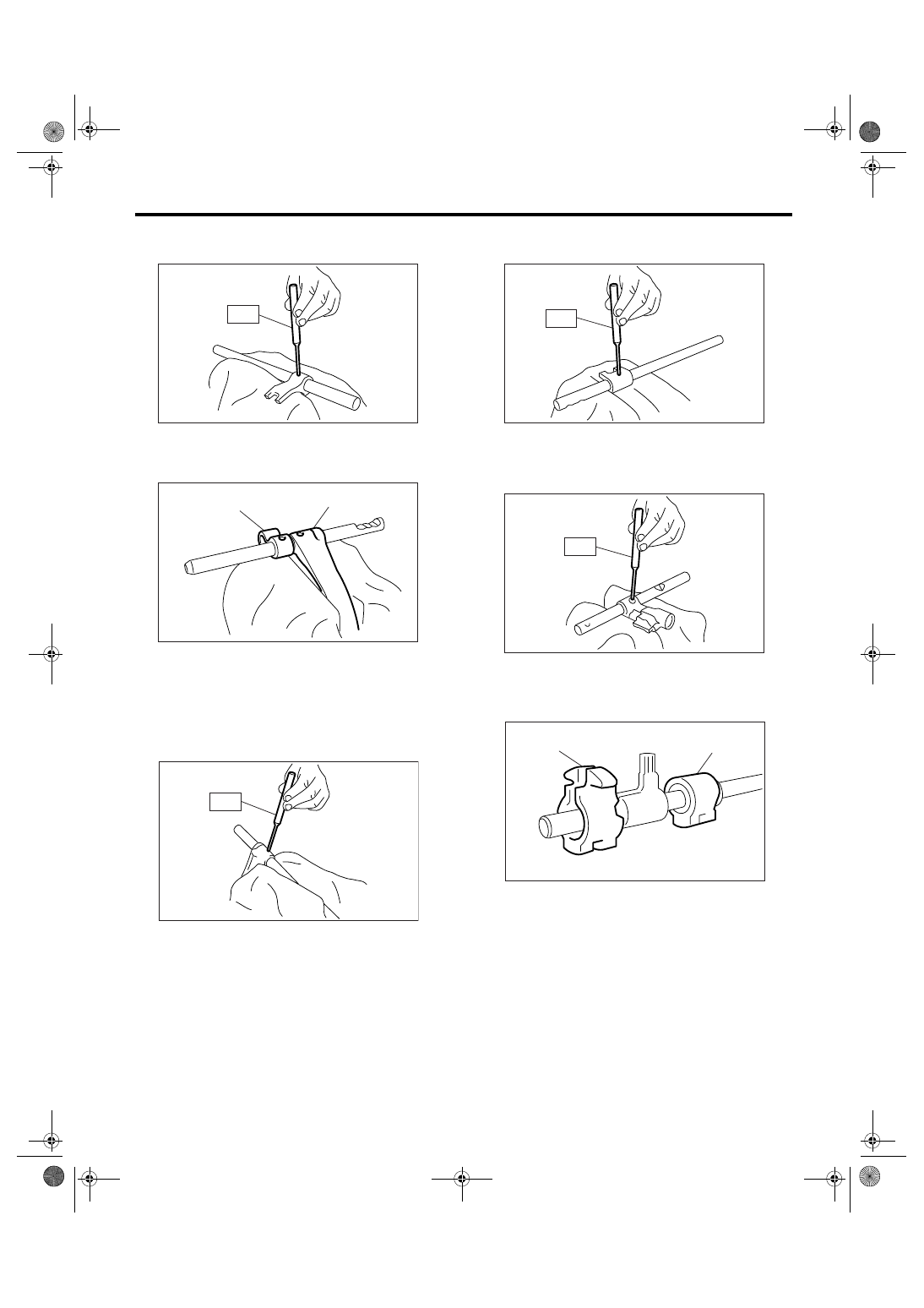

6MT-111

MANUAL TRANSMISSION AND DIFFERENTIAL

Shifter Fork and Rod

2) Using the ST, remove the 3rd-4th shifter arm.
ST

398791700

REMOVER

3) Using the ST, remove the 1st-2nd shifter arm
and 1st-2nd shifter fork.
ST

398791700

REMOVER

3. 5TH-6TH SHIFTER FORK

1) Using the ST, remove the 5th-6th shifter fork.
ST

398791700

REMOVER

2) Using the ST, remove the 5th-6th shifter arm.
ST

398791700

REMOVER

4. SHIFT ARM SHAFT

Using the ST, remove the selector arm.
ST

398791700

REMOVER

5. STRIKING ROD

1) Remove the reverse interlock block and interlock
block from striking rod.

(A) 1st-2nd shifter arm

(B) 1st-2nd shifter fork

MT-00683

ST

(A)

(B)

MT-00684

MT-00685

ST

(A) Reverse interlock block

(B) Interlock block

MT-00686

ST

MT-01095

ST

(A)

(B)

MT-00688

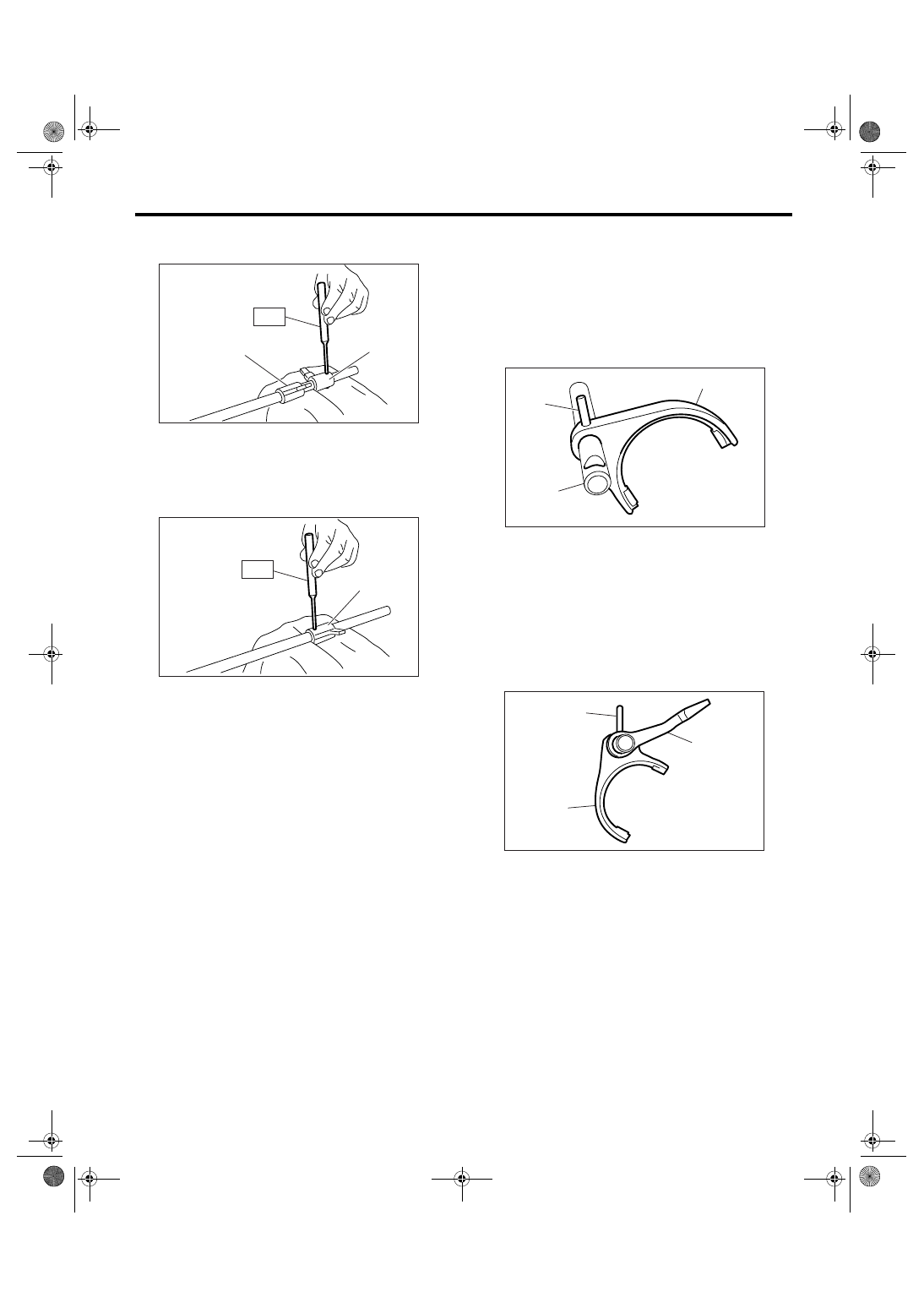

6MT-112

MANUAL TRANSMISSION AND DIFFERENTIAL

Shifter Fork and Rod

2) Using the ST, remove the reverse interlock arm.
ST

398791700

REMOVER

3) Using the ST, remove the interlock arm.
ST

398791700

REMOVER

D: ASSEMBLY

1. REVERSE SHIFTER FORK

1) Using the ST, install the reverse fork.
ST

398791700

REMOVER

NOTE:
Be sure the reverse fork and rod are installed in
proper direction.

2) Using the ST, install the reverse arm.
ST

398791700

REMOVER

NOTE:
Be sure the reverse arm and rod are installed in
proper direction.

(A) Reverse interlock arm

(B) Interlock arm

(A) Interlock arm

MT-00689

(A)

(B)

ST

MT-00690

(A)

ST

(A) Reverse fork

(B) Reverse fork rod

(C) Spring pin

(A) Reverse fork

(B) Reverse shifter arm

(C) Spring pin

(C)

(B)

(A)

MT-00691

(C)

(B)

(A)

MT-00692

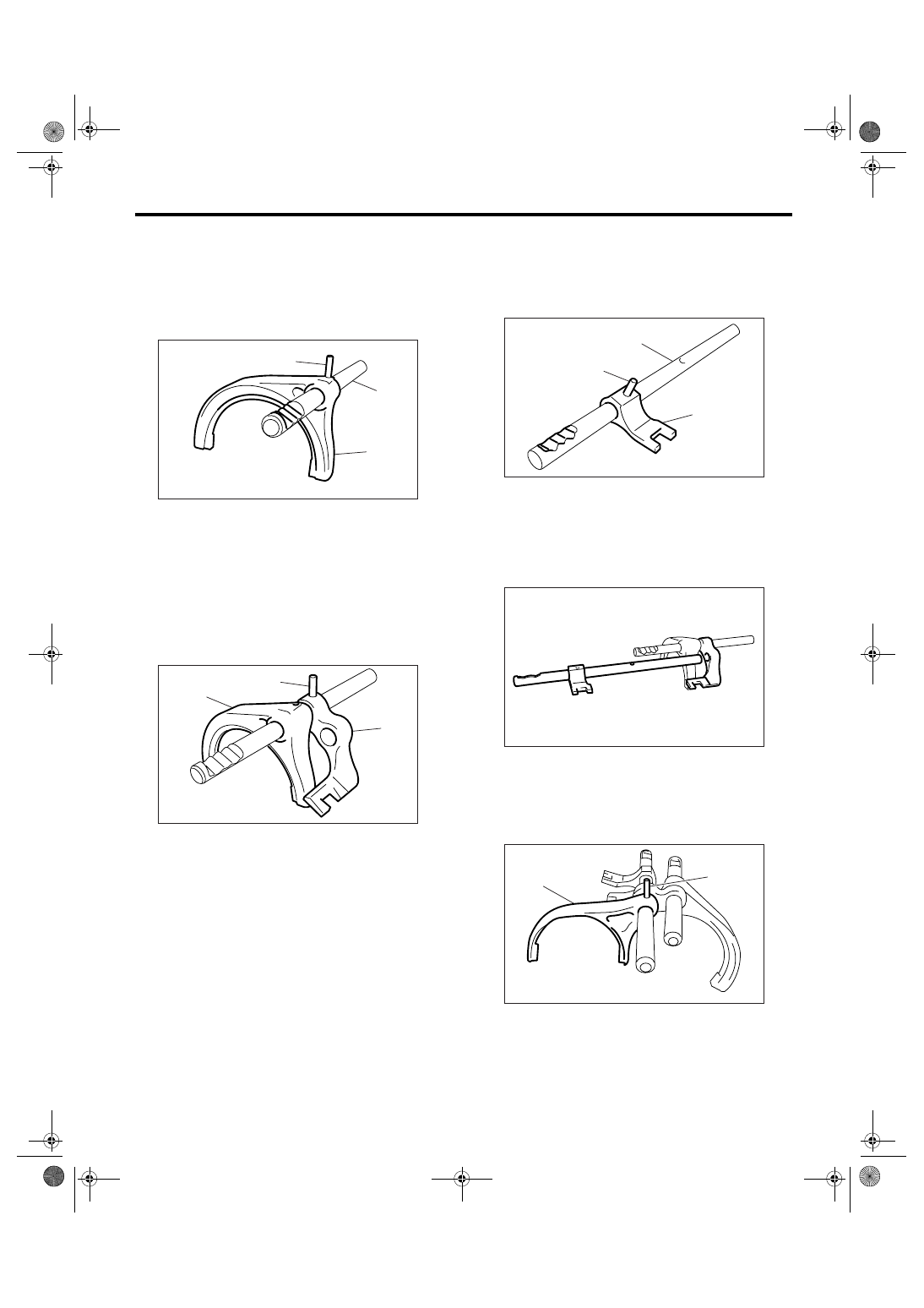

6MT-113

MANUAL TRANSMISSION AND DIFFERENTIAL

Shifter Fork and Rod

2. 1ST-2ND, 3RD-4TH SHIFTER FORK

1) Using the ST, install the 1st-2nd shifter fork.
ST

398791700

REMOVER

NOTE:
Be sure the 1st-2nd shifter fork and rod are in-
stalled in proper direction.

2) Using the ST, install the 1st-2nd shifter arm.
ST

398791700

REMOVER

NOTE:
Be sure the 1st-2nd shifter arm and fork are in-
stalled in proper direction.

3) Using the ST, install the 3rd-4th shifter arm.
ST

398791700

REMOVER

NOTE:
Be sure the 3rd-4th shifter arm and rod are installed
in proper direction.

4) Install the 3rd-4th fork rod into 1st-2nd shifter
arm.

5) Using the ST, install the 3rd-4th shifter fork.
ST

398791700

REMOVER

NOTE:
Be sure the 3rd-4th shifter fork is installed in proper
direction.

(A) 1st-2nd shifter fork

(B) 1st-2nd shifter rod

(C) Spring pin

(A) 1st-2nd shifter fork

(B) 1st-2nd shifter arm

(C) Spring pin

(C)

(B)

(A)

MT-00693

(C)

(B)

(A)

MT-00694

(A) 3rd-4th shifter rod

(B) 3rd-4th shifter arm

(C) Spring pin

(A) 3rd-4th shifter fork

(B) Spring pin

(C)

(B)

(A)

MT-00695

MT-00696

(B)

(A)

MT-00697

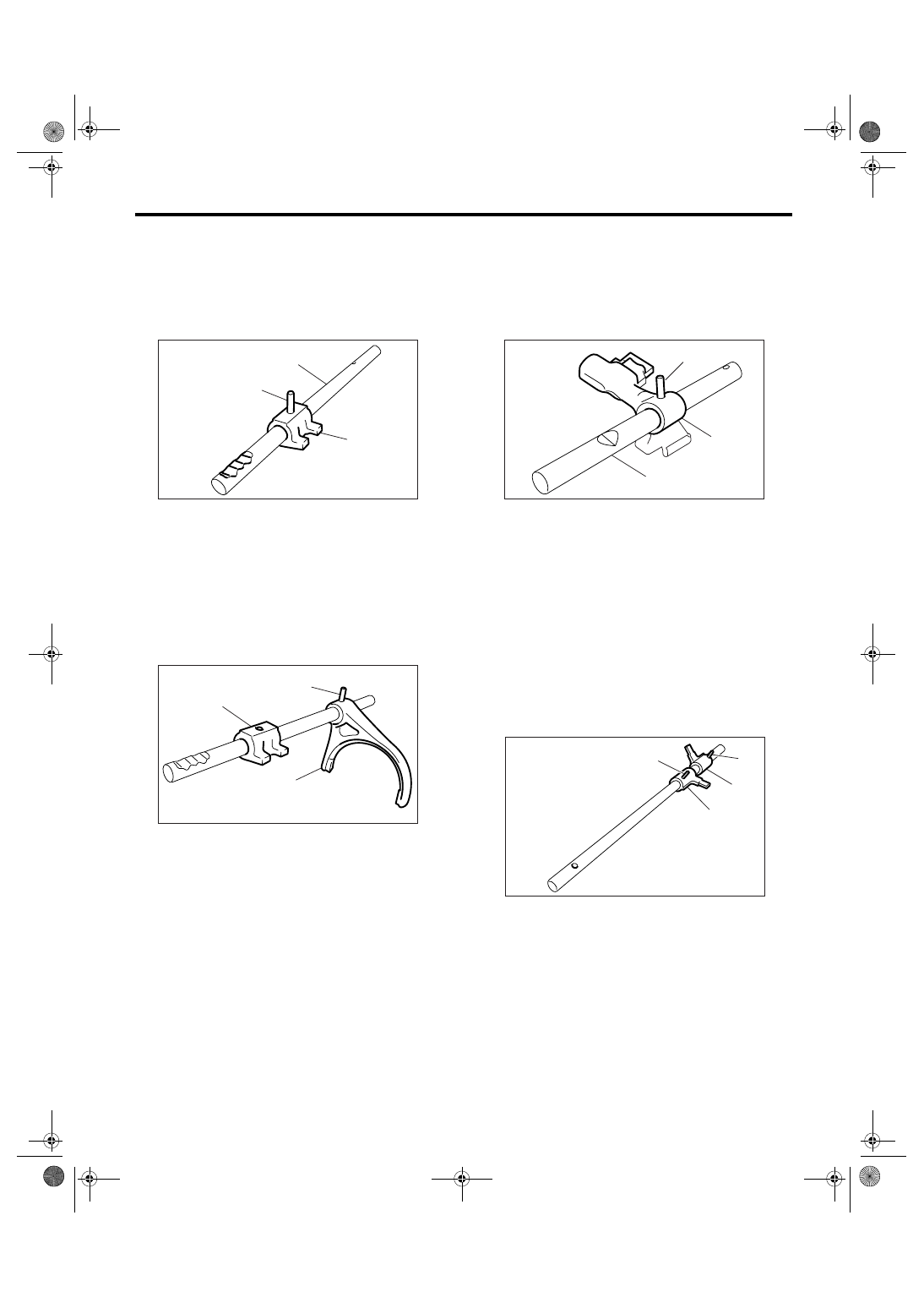

6MT-114

MANUAL TRANSMISSION AND DIFFERENTIAL

Shifter Fork and Rod

3. 5TH-6TH SHIFTER FORK

1) Using ST, install the 5th-6th shifter arm.
ST

398791700

REMOVER

NOTE:
Be sure the 5th-6th shifter arm and rod are installed
in proper direction.

2) Using the ST, install the 5th-6th shifter fork.
ST

398791700

REMOVER

NOTE:
Be sure the 5th-6th shifter fork and arm are in-
stalled in proper direction.

4. SHIFT ARM SHAFT

Using the ST, install the selector arm.
ST

398791700

REMOVER

NOTE:
Be sure the selector arm and rod are installed in
proper direction.

5. STRIKING ROD

1) Using the ST, install the reverse interlock arm
and interlock arm.
ST

398791700

REMOVER

NOTE:
• Be sure the reverse interlock arm and rod are in-
stalled in proper direction.
• Be sure the interlock arm and rod are installed in
proper direction.

(A) 5th-6th shifter arm

(B) 5th-6th shifter rod

(C) Spring pin

(A) 5th-6th shifter fork

(B) 5th-6th shifter arm

(C) Spring pin

(C)

(B)

(A)

MT-00698

(C)

(B)

(A)

MT-00699

(A) Selector rod

(B) Selector arm

(C) Spring pin

(A) Reverse interlock arm

(B) Interlock arm

(C) Spring pin

(B)

(A)

(C)

MT-01096

(C)

(C)

(B)

(A)

MT-00701
