6MT-39

MANUAL TRANSMISSION AND DIFFERENTIAL

Manual Transmission Assembly

26) Install the air intake chamber. <Ref. to
IN(H6DO)-7, INSTALLATION, Air Intake Cham-
ber.>
27) Install the collector cover.
28) Connect the ground cable to battery.

6MT-40

MANUAL TRANSMISSION AND DIFFERENTIAL

Preparation for Overhaul

7. Preparation for Overhaul

A: PROCEDURE

1) Clean oil, grease, dirt and dust from transmis-
sion.
2) Attach the transmission to ST.
ST

18632AA000

STAND ASSY

3) Rotating parts should be coated with oil prior to
assembly.
4) All disassembled parts, if to be reused, should
be assembled in the original positions and direc-
tions.
5) Always use new ones for gaskets, lock washers
and lock nut.
6) Liquid gasket should be used where specified to
prevent leakage.

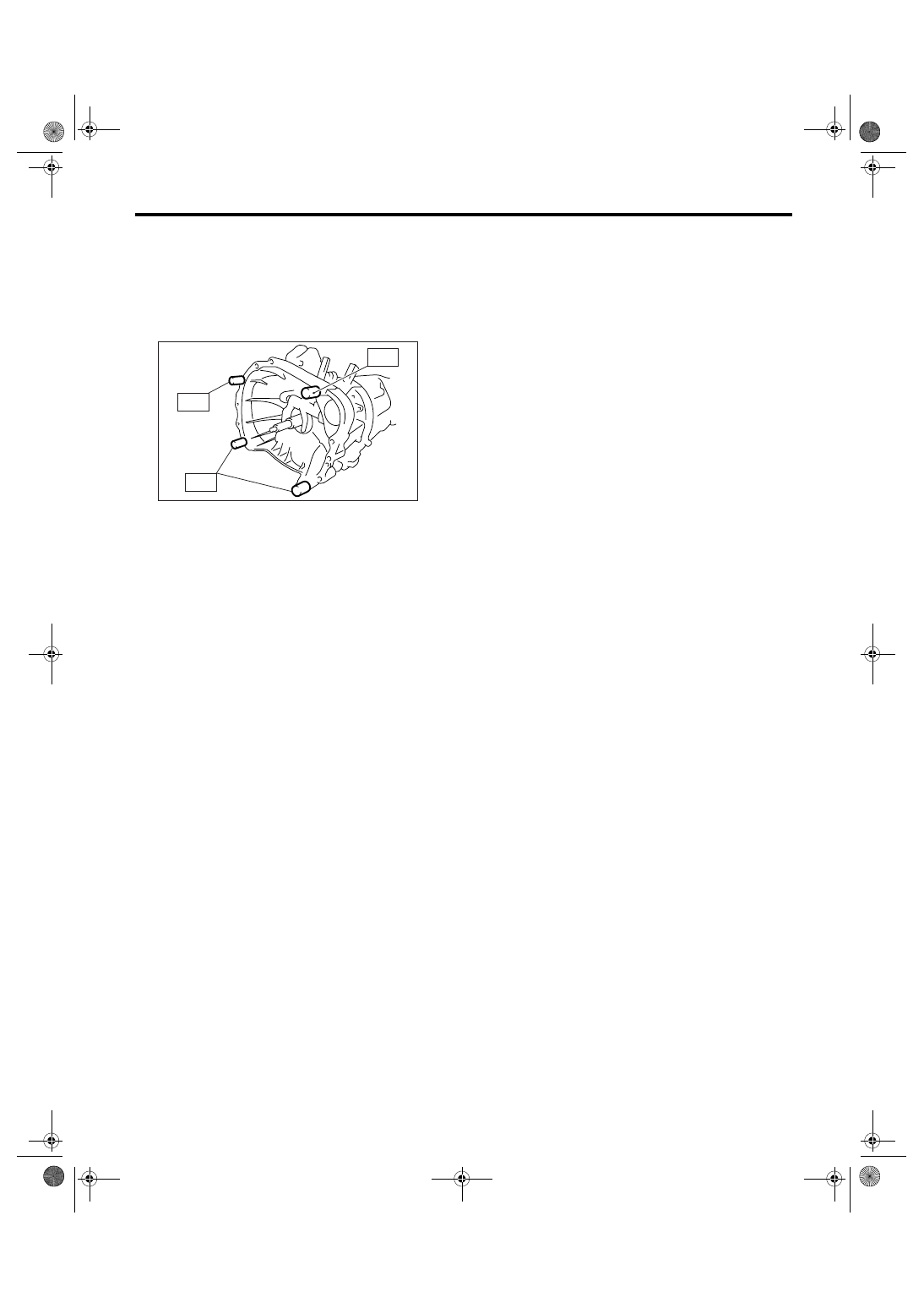

MT-00468

ST

ST

ST

6MT-41

MANUAL TRANSMISSION AND DIFFERENTIAL

Air Breather Hose

8. Air Breather Hose

A: REMOVAL

Disconnect the air breather hose.

B: INSTALLATION

Connect the air breather hose.

C: INSPECTION

Check that the hose is not cracked or clogged.

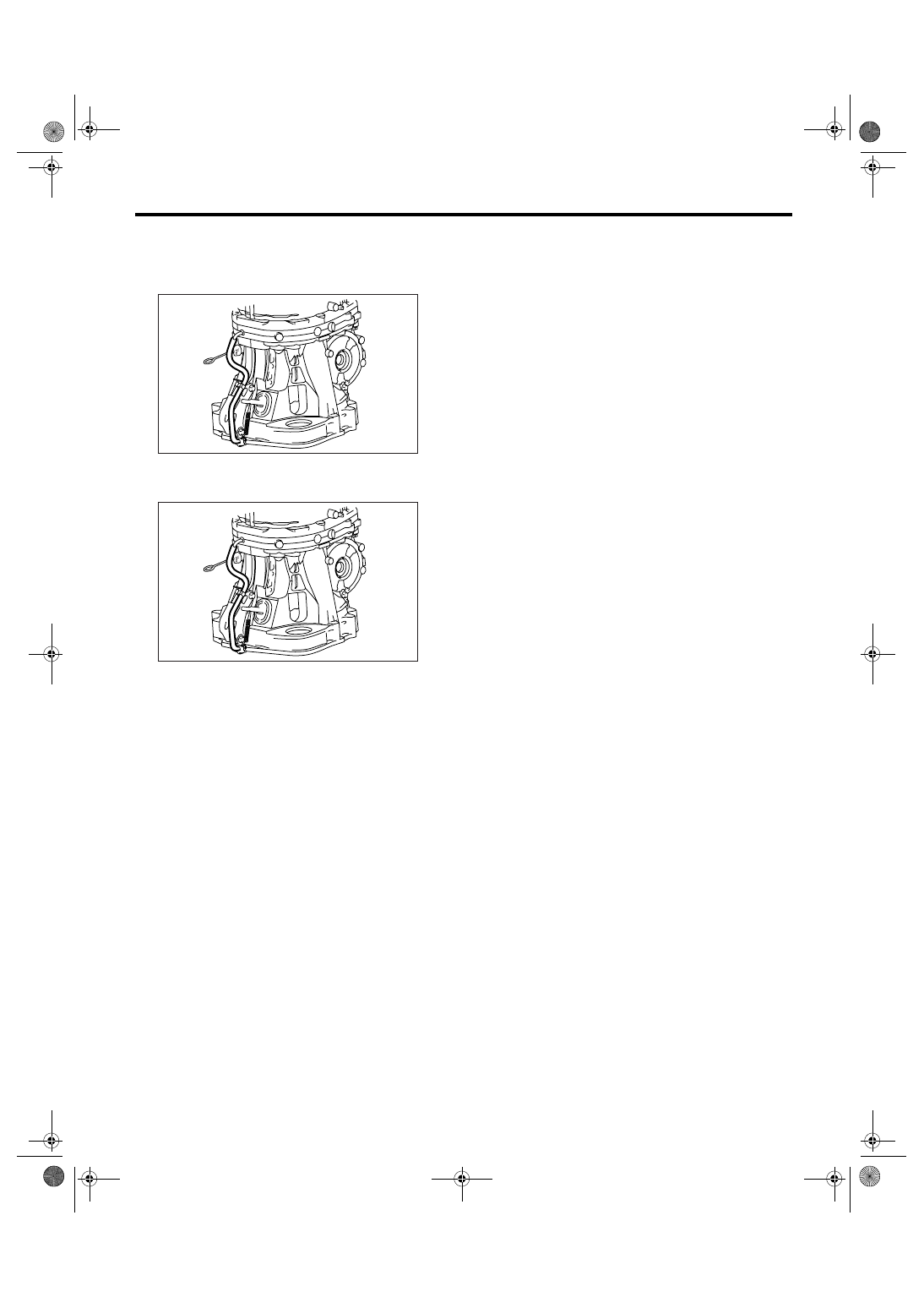

MT-01091

MT-01091

6MT-42

MANUAL TRANSMISSION AND DIFFERENTIAL

Oil Pipe

9. Oil Pipe

A: REMOVAL

Remove the oil pipe.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Use a new gasket.

Tightening torque:

32 N

⋅

m (3.3 kgf-m, 23.6 ft-lb)

C: INSPECTION

1) Check there is no damage on pipe. If there is
damage, replace the pipe.
2) Check the connection of pipe for oil leakage. If
there is oil leakage, replace the gasket.

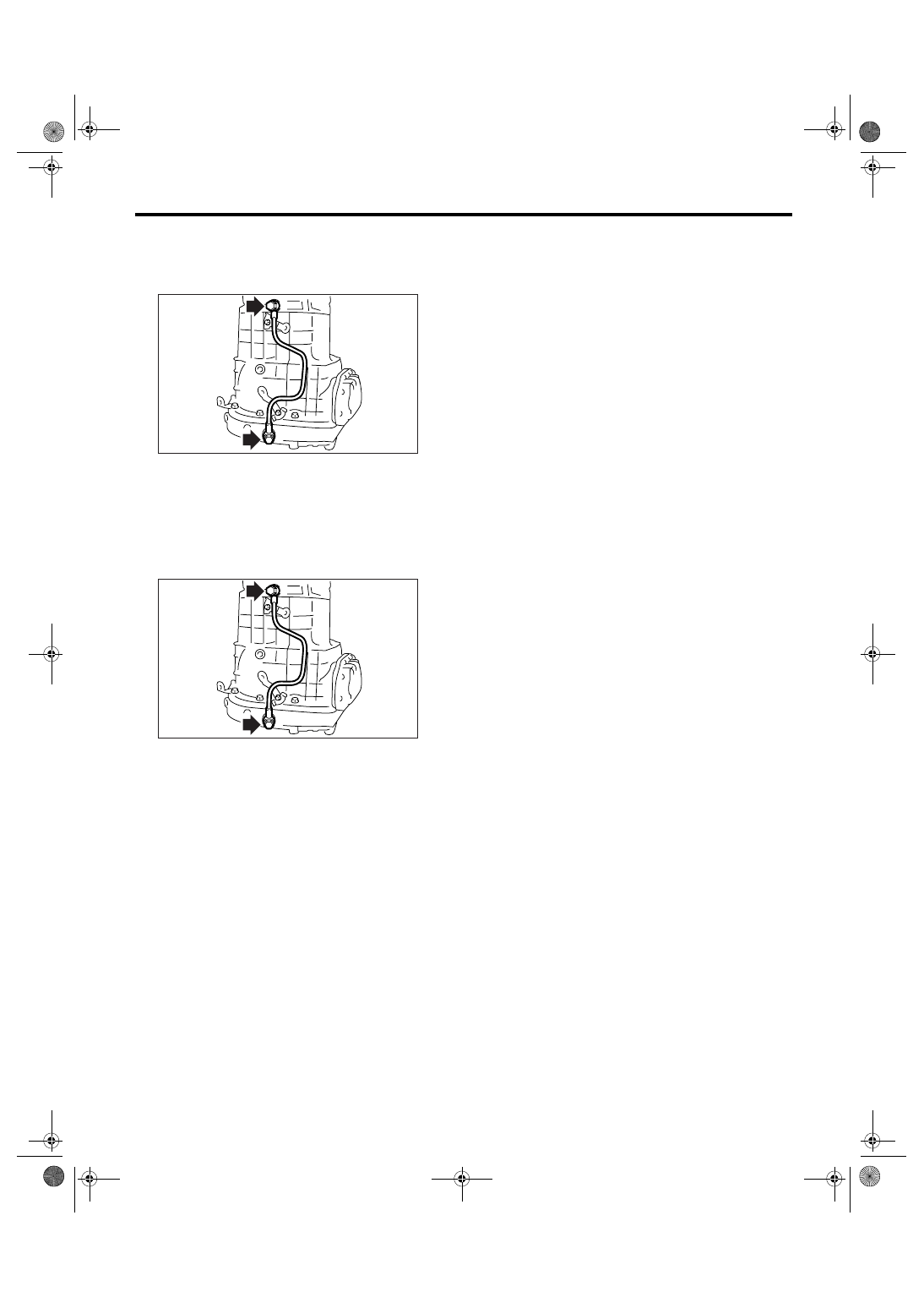

MT-00470

MT-00470
