5MT-19

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

498247001

MAGNET BASE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with DIAL GAUGE (498247100).

498247100

DIAL GAUGE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with MAGNET BASE (498247001).

498427100

STOPPER

Used for securing drive pinion shaft assembly
and driven gear assembly when removing lock
nut of drive pinion shaft assembly.

498787100

MAIN SHAFT
STOPPER

Used for removing and installing lock nut of
transmission main shaft.

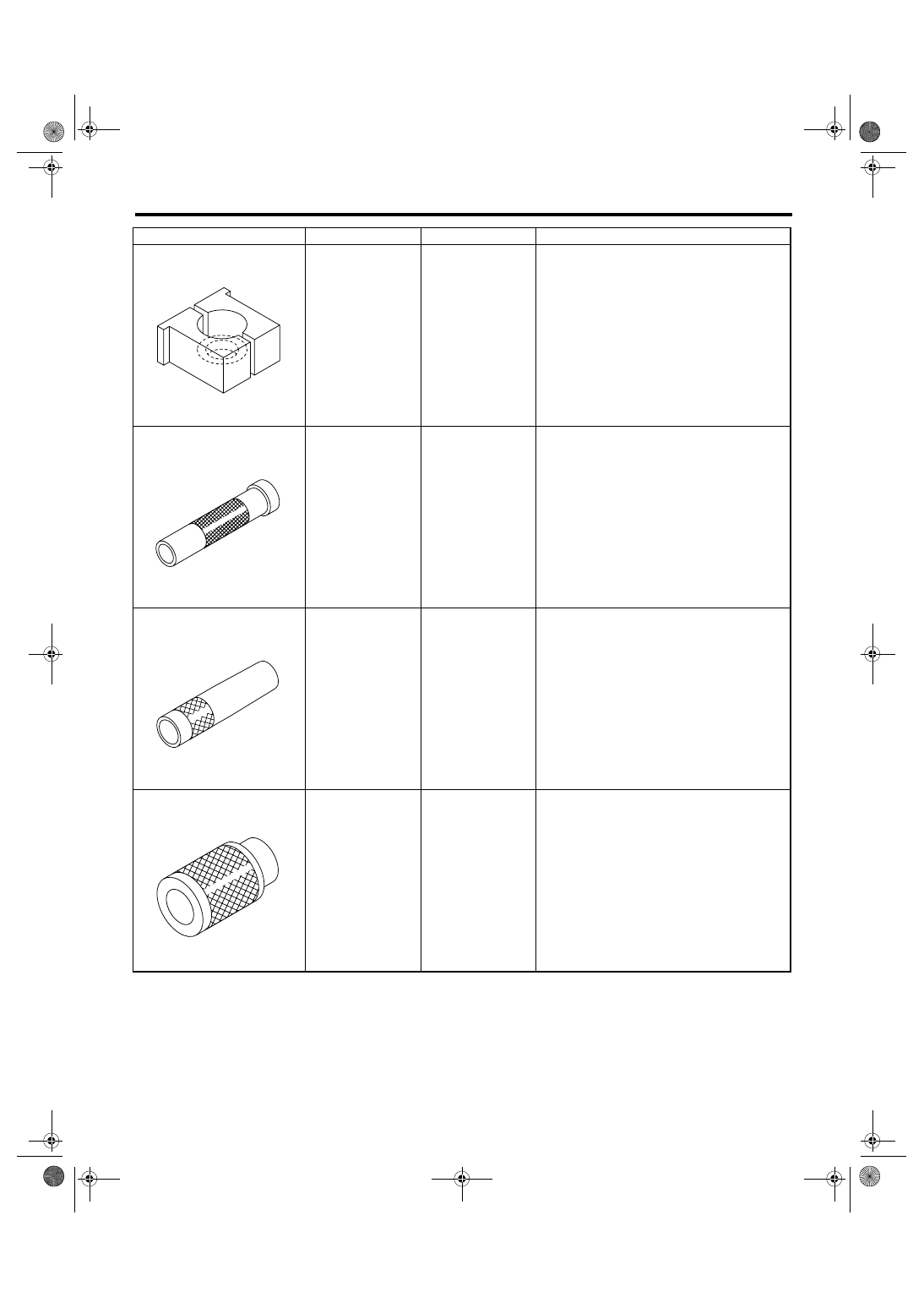

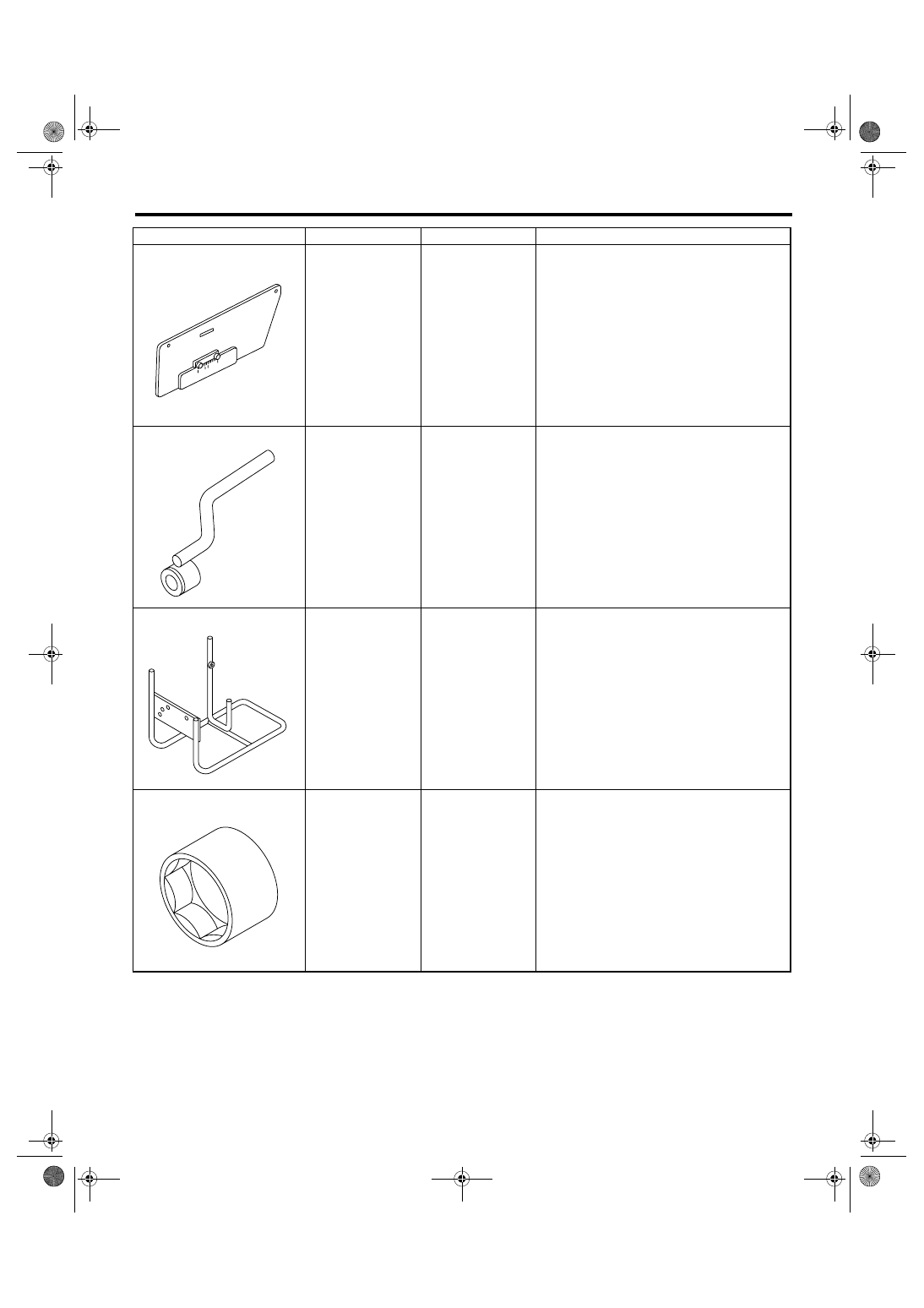

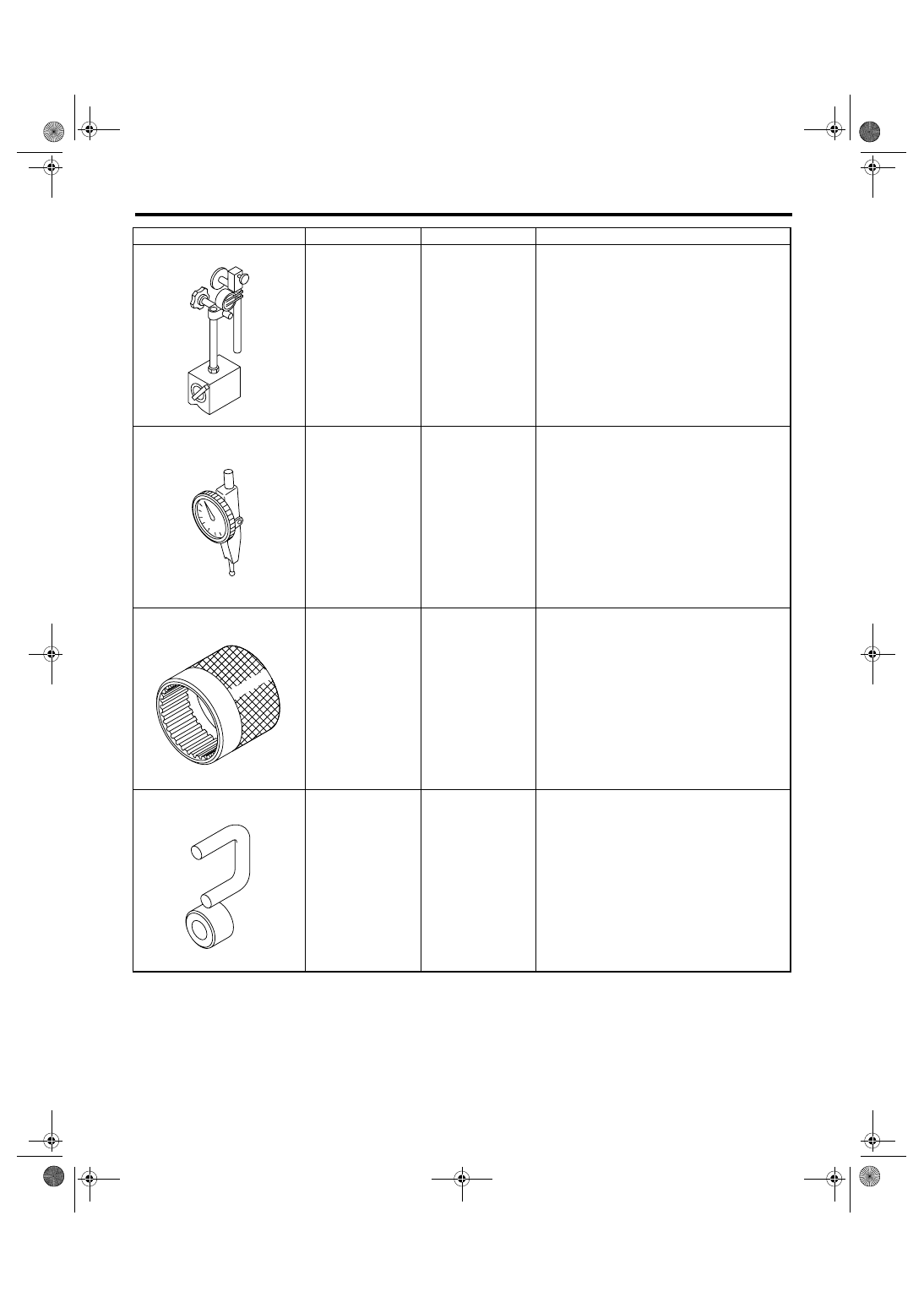

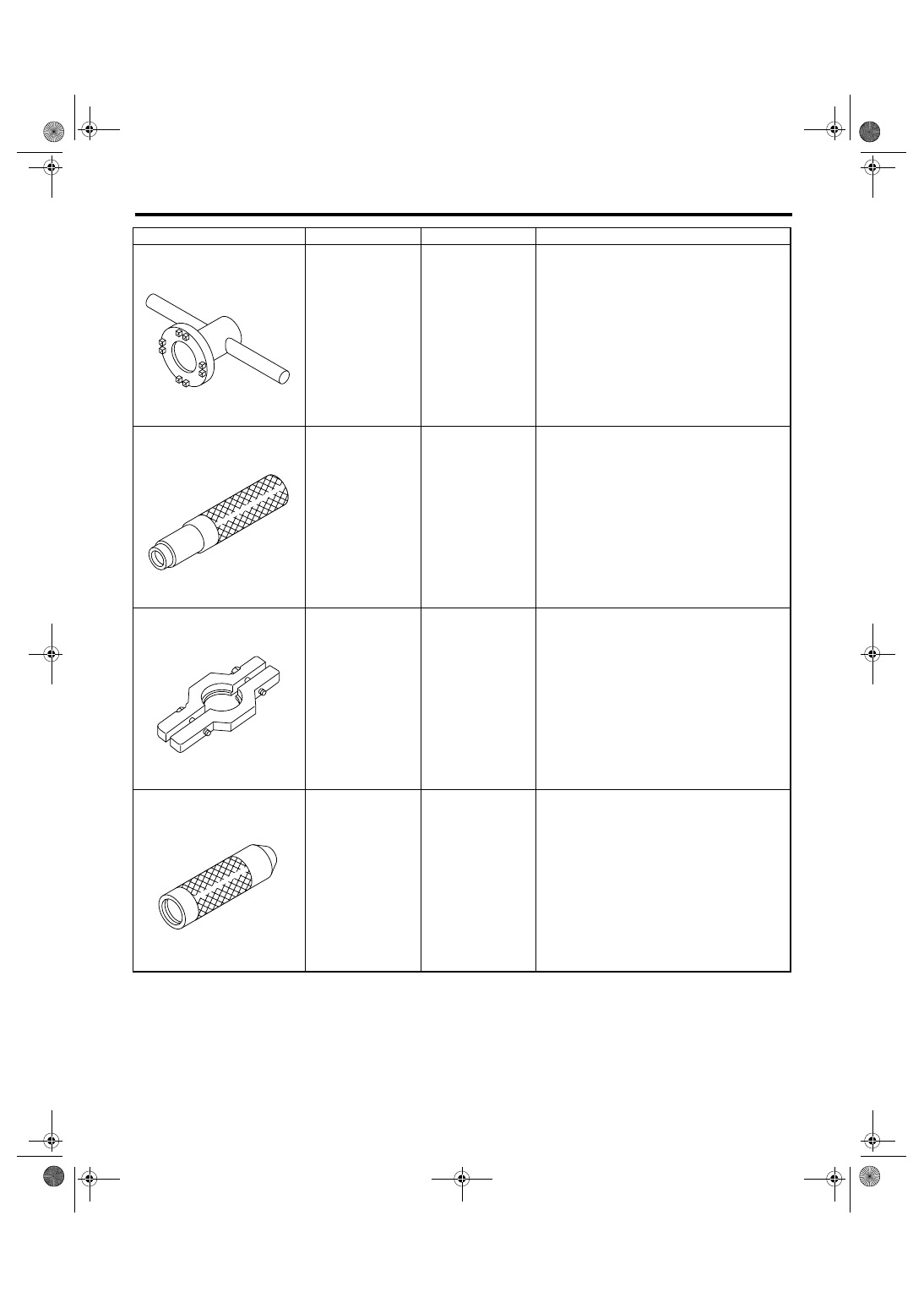

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498247001

ST-498247100

ST-498427100

ST-498787100

5MT-20

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

498937000

TRANSMISSION
HOLDER

Used for removing and installing transmission
main shaft lock nut.

499277100

BUSHING 1-2
INSTALLER

• Used for installing 1st driven gear thrust plate
and 1st-2nd driven gear bushing.
• Used for installing roller bearing outer races to
differential case.

499277200

INSTALLER

Used for press-fitting 2nd driven gear, roller
bearings, and 5th driven gear onto driven shaft.

499757002

INSTALLER

• Used for installing snap ring (OUT 25), and
ball bearing (25

× 26 × 17).

• Used for installing bearing cone of transfer
driven gear (extension core side).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498937000

ST-499277100

ST-499277200

ST-499757002

5MT-21

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

499787000

WRENCH ASSY

Used for removing and installing differential side
retainer.

499827000

PRESS

Used for installing speedometer oil seal when
installing speedometer cable to transmission.

499857000

5TH DRIVEN GEAR
REMOVER

Used for removing 5th driven gear.

499877000

RACE 4-5
INSTALLER

• Used for installing 4th needle bearing race and
ball bearing onto transmission main shaft.
• Used with REMOVER (899714110).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499787000

ST-499827000

ST-499857000

ST-499877000

5MT-22

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

499917500

DRIVE PINION
GAUGE ASSY

Used for adjusting drive pinion shim.

499927100

HANDLE

Used for fitting transmission main shaft.

499937100

TRANSMISSION
STAND SET

Used for transmission disassembly and assem-
bly.

499987003

SOCKET WRENCH
(35)

Used for removing and installing main shaft lock
nut.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499917500

ST-499927100

ST-499937100

ST-499987003
