5MT-23

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

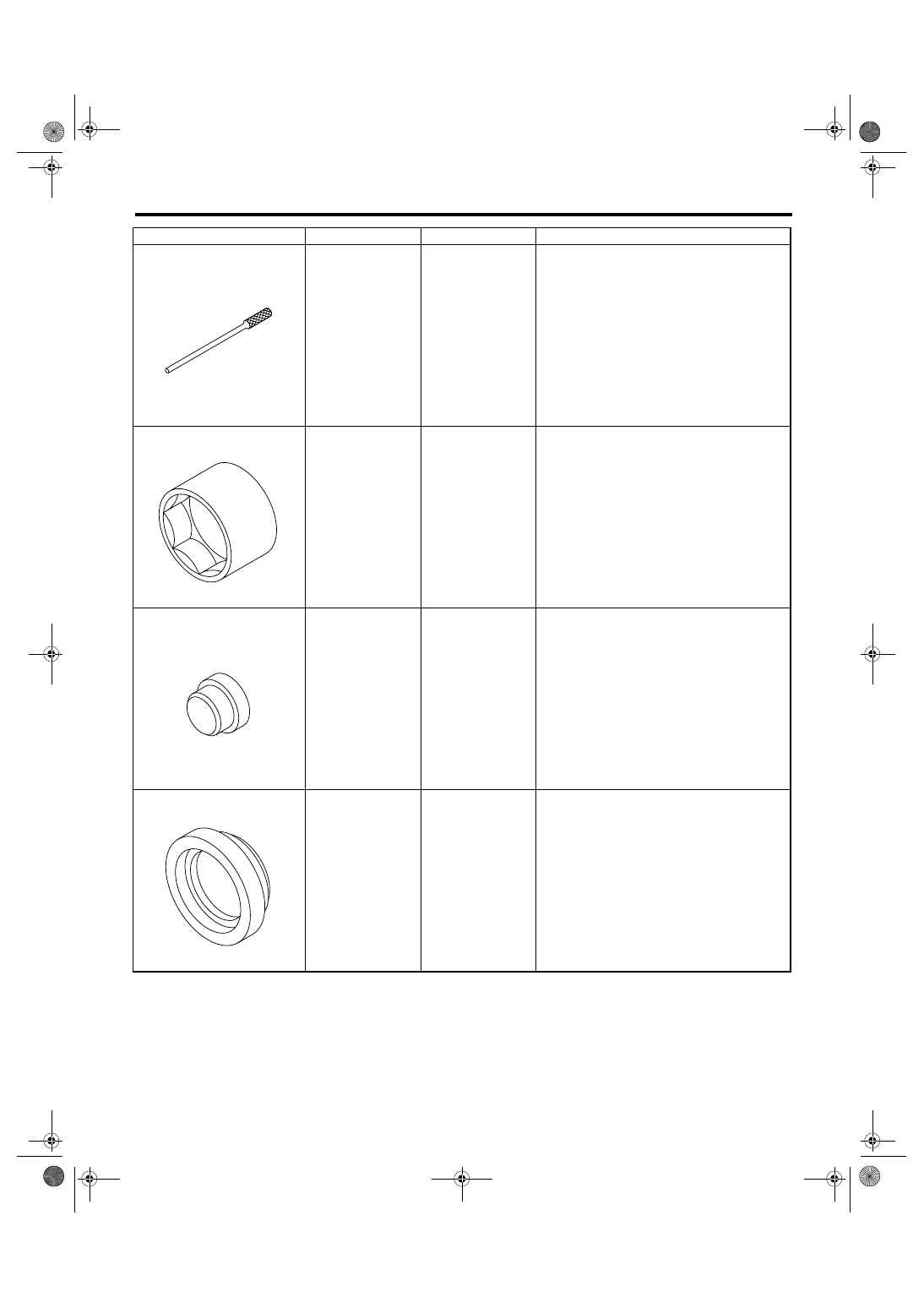

499987300

SOCKET WRENCH
(50)

Used for removing and installing driven gear
assembly lock nut.

899714110

REMOVER

Used for installing transmission main shaft drive
pinion and rear drive shaft.

899864100

REMOVER

Used for removing parts on transmission main
shaft and drive pinion.

899884100

HOLDER

Used for tightening lock nut on sleeve.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499987300

ST-899714110

ST-899864100

ST-899884100

5MT-24

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

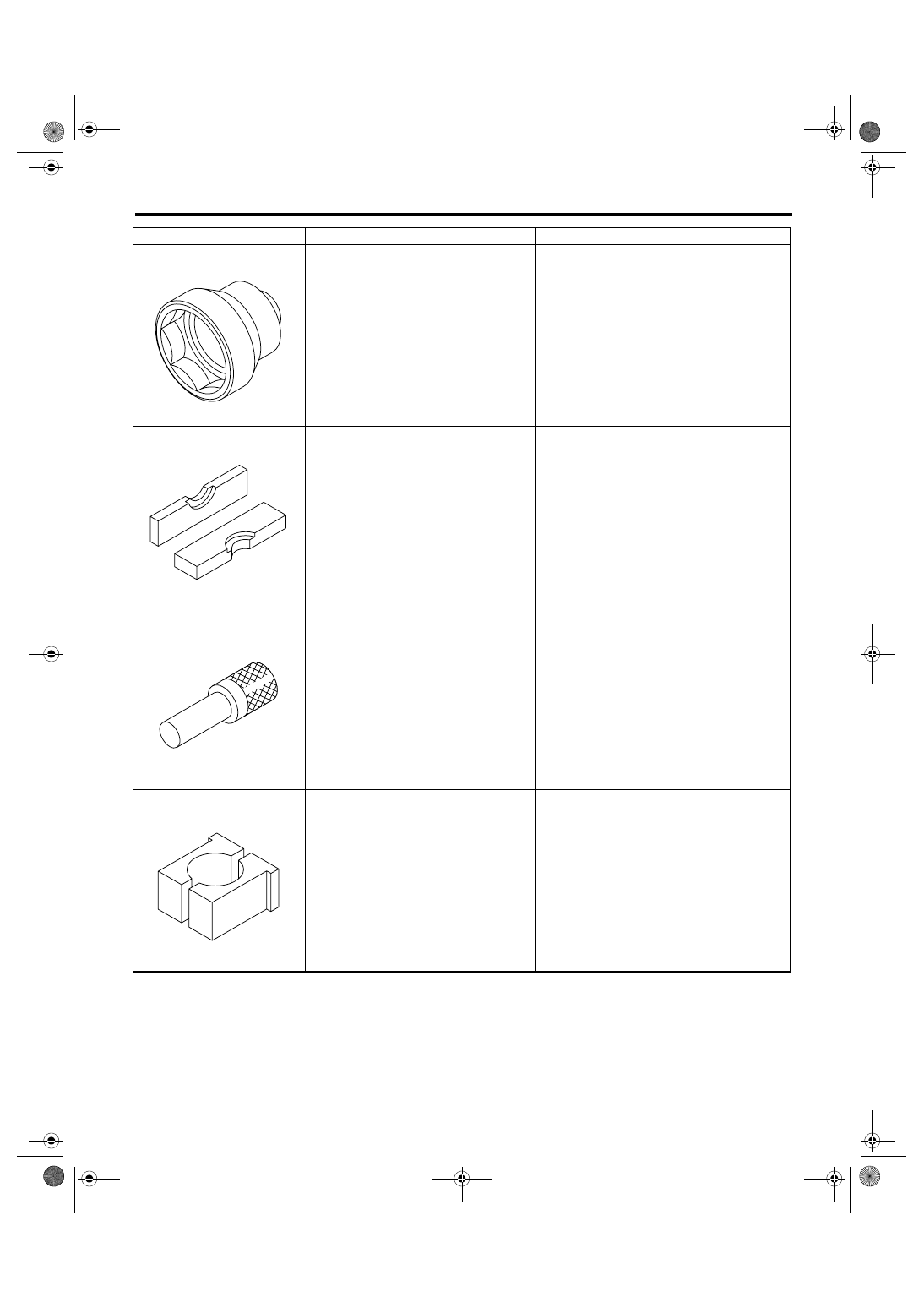

899904100

REMOVER

Used for removing and installing straight pin.

899988608

SOCKET WRENCH
(27)

Used for removing and installing drive pinion lock
nut.

398497701

ADAPTER

• Used for installing roller bearing onto differen-
tial case.
• Used with INSTALLER (499277100).

499587000

INSTALLER

Used for installing driven gears to driven shaft.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-899904100

ST-899988608

ST-398497701

ST-499587000

5MT-25

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

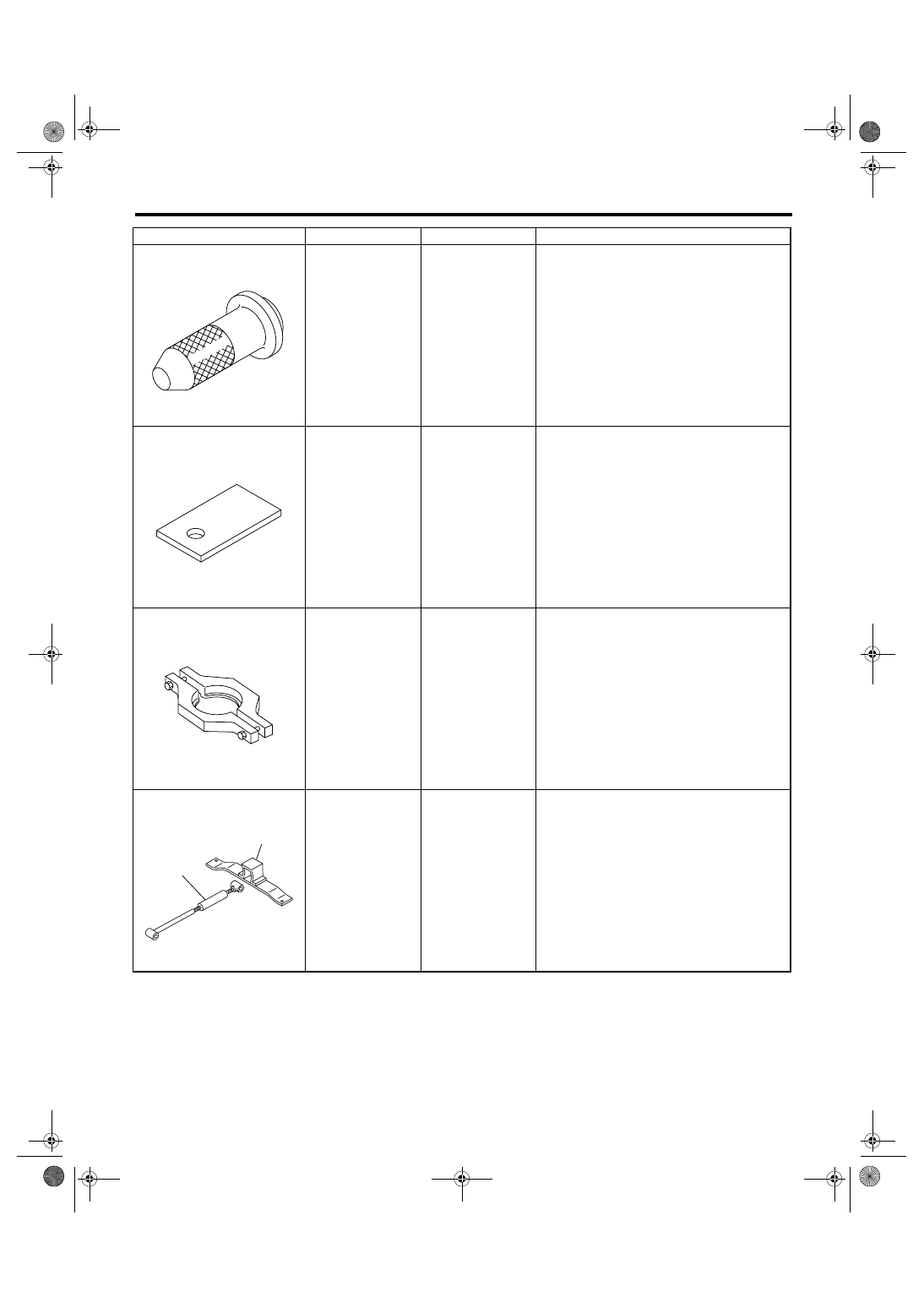

498057300

INSTALLER

Used for installing extension oil seal.

498255400

PLATE

Used for measuring backlash.

498077400

SYNCHRONIZER
CONE REMOVER

• Used for removing synchronizer cone of main
shaft.
• Used for removing 5th driven gear of drive pin-
ion shaft.

41099AA000

ENGINE SUPPORT
BRACKET

Used for supporting engine.
(1) ENGINE SUPPORT BRACKET
(41099AA010)
(2) ENGINE SUPPORT (41099AA020)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498057300

ST-498255400

ST-498077400

(2)

(1)

ST41099AA000

5MT-26

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

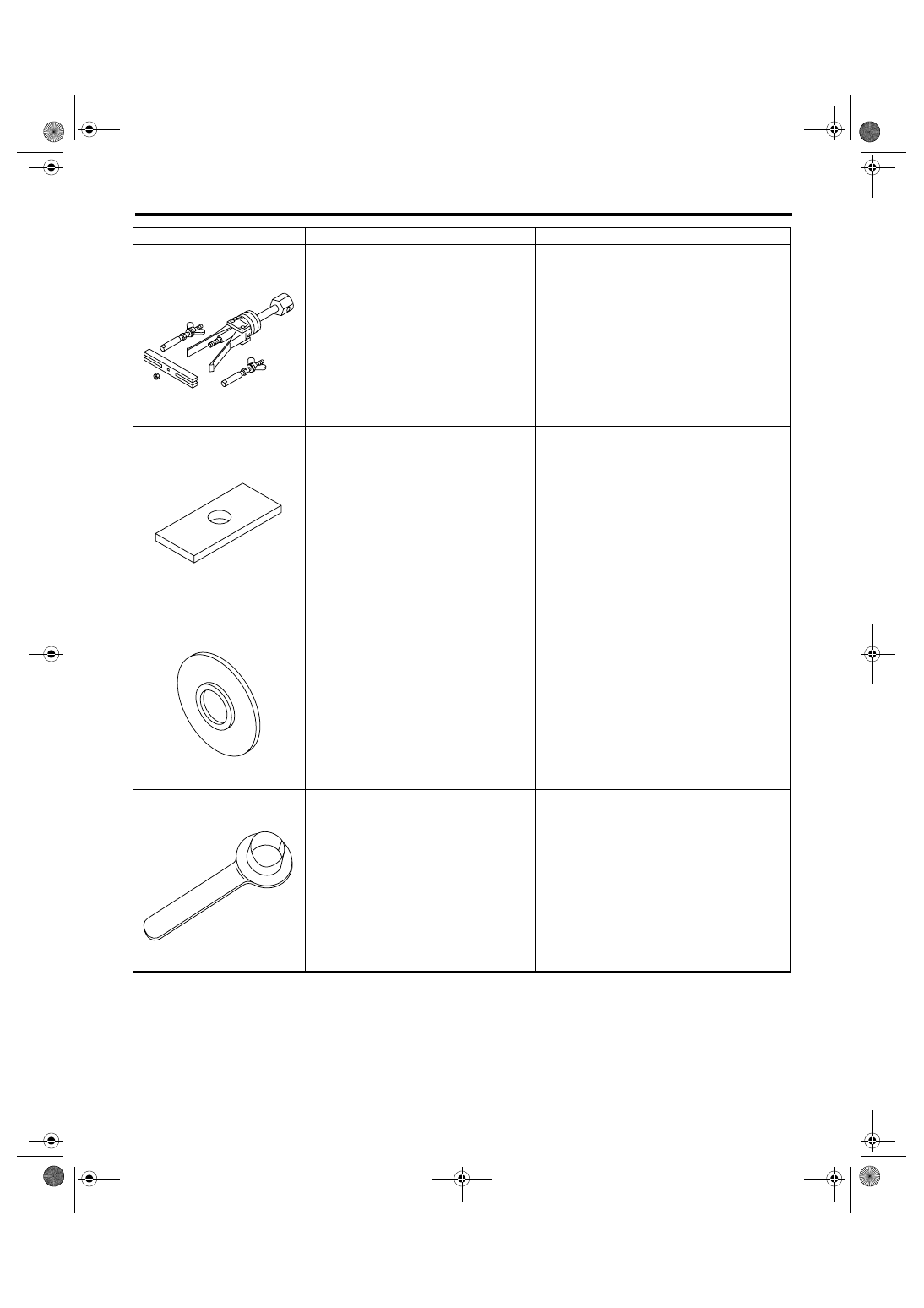

398527700

PULLER ASSY

Used for removing extension case roller bearing.

398643600

GAUGE

Used for measuring total end play, extension end
play and drive pinion height.

398177700

INSTALLER

• Used for installing bearing cone of transfer
driven gear (transfer case side).
• Used for installing ball bearing of transfer drive
gear.

28399SA010

FRONT DRIVE
SHAFT OIL SEAL
PROTECTOR

Used for protecting oil seal from damage when
inserting front drive shaft.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398527700

ST-398643600

ST-398177700

ST28399SA010
