MT Gear Shift Lever

8. MT Gear Shift Lever

A: REMOVAL

1. 5MT MODEL

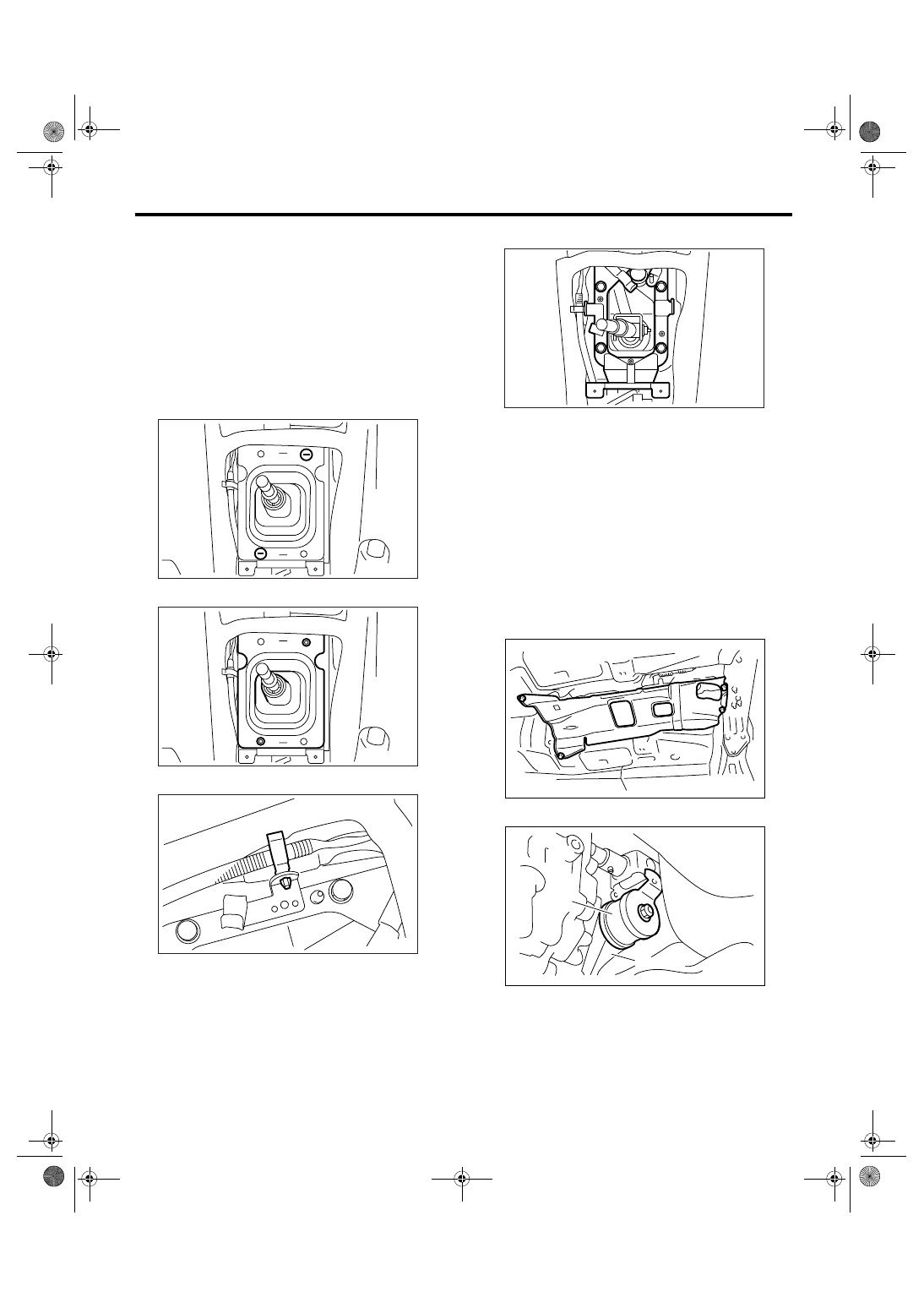

1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Remove the gear shift knob.
4) Remove the console box. <Ref. to EI-53, RE-
MOVAL, Console Box.>
5) Remove the front cover assembly.
6) Remove the clamp.

7) Remove the boot and insulator assembly.

8) Remove the harness clamp from plate.

9) Remove the plate assembly from vehicle body.

10) Lift-up the vehicle.
11) Remove the rear exhaust pipe and muffler.
• SOHC model
<Ref. to EX(H4SO 2.0)-10, REMOVAL, Rear Ex-
haust Pipe.> <Ref. to EX(H4SO 2.0)-12, REMOV-
AL, Muffler.>
• DOHC non-turbo model
<Ref. to EX(H6DO)-7, REMOVAL, Rear Exhaust
Pipe.> <Ref. to EX(H6DO)-9, REMOVAL, Muffler.>
• DOHC turbo model
<Ref. to EX(H4DOTC)-11, REMOVAL, Rear Ex-
haust Pipe.> <Ref. to EX(H4DOTC)-10, REMOV-
AL, Joint Pipe.>
12) Remove the heat shield cover.

13) Remove the stay from transmission bracket.

CS-00311

CS-00312

CS-00313

(A) Stay

(B) Transmission bracket

CS-00563

AT-01331

CS-00050

(A)

(B)

CS-38

CONTROL SYSTEMS

MT Gear Shift Lever

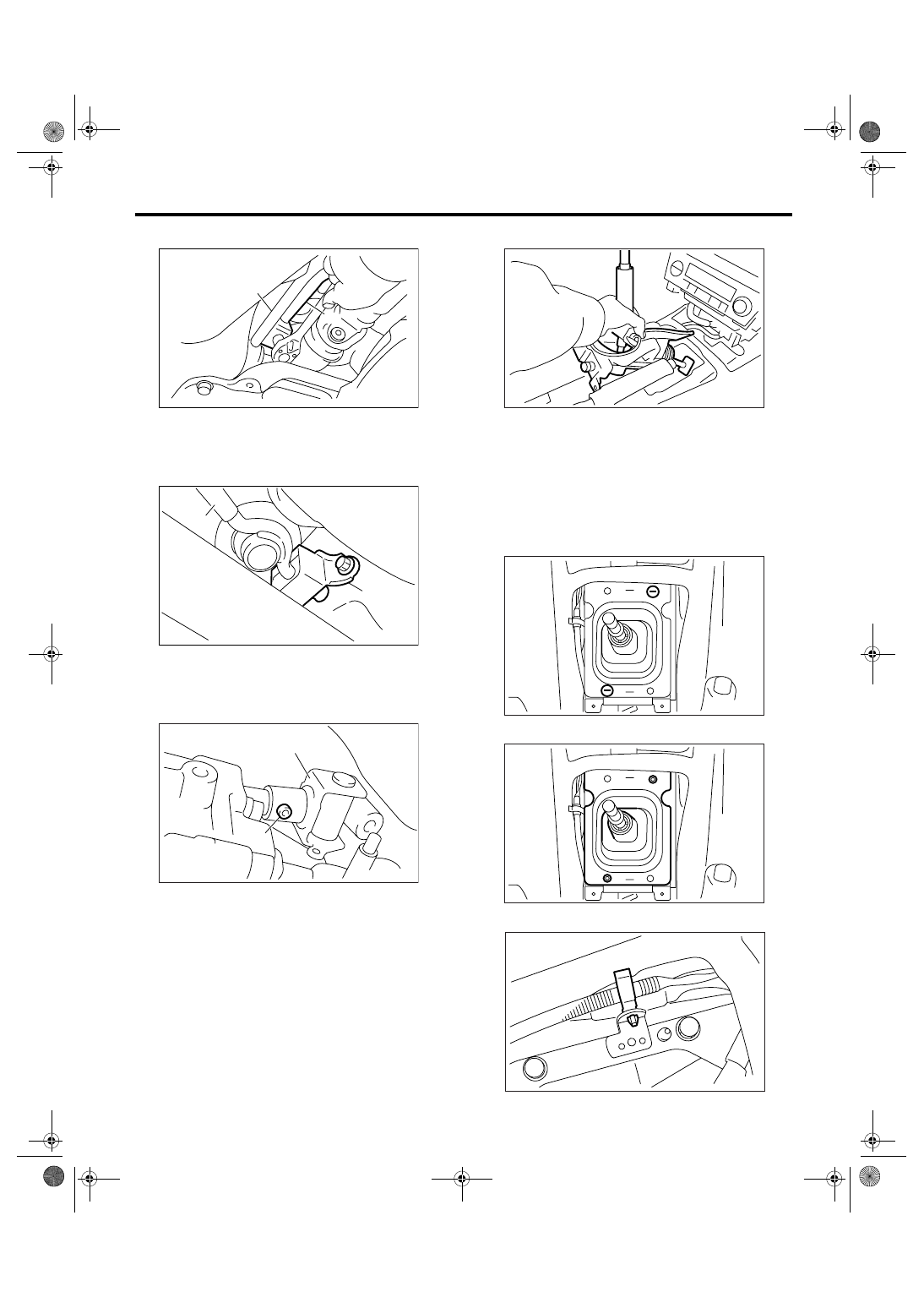

14) Remove the rod from joint.

15) Remove the cushion rubber from vehicle body.

16) Extract the spring pin and remove the joint.

17) Lower the vehicle.

18) Remove the gear shift lever.

2. 6MT MODEL

1) Lift-up the vehicle.
2) Disconnect the ground cable from battery.
3) Remove the gear shift knob.
4) Remove the console box front. <Ref. to EI-53,
REMOVAL, Console Box.>
5) Remove the front cover assembly.
6) Remove the clamp.

7) Remove the boot and insulator assembly.

8) Remove the harness clamp from plate.

(A) Stay

(B) Rod

(A) Stay

(B) Cushion rubber

(A) Joint

(B) Spring pin

CS-00051

(A)

(B)

CS-00052

(A)

(B)

CS-00053

(A)

(B)

CS-00315

CS-00311

CS-00312

CS-00581

CS-39

CONTROL SYSTEMS

MT Gear Shift Lever

9) Remove the plate assembly from vehicle body.

10) Lift-up the vehicle.
11) Remove the under cover.
12) Remove the rear exhaust pipe and muffler.
<Ref. to EX(H6DO)-7, REMOVAL, Rear Exhaust
Pipe.> <Ref. to EX(H6DO)-9, REMOVAL, Muffler.>
13) Remove the heat shield cover.

14) Remove the crossmember. <Ref. to 6MT-32,
REMOVAL, Transmission Mounting System.>

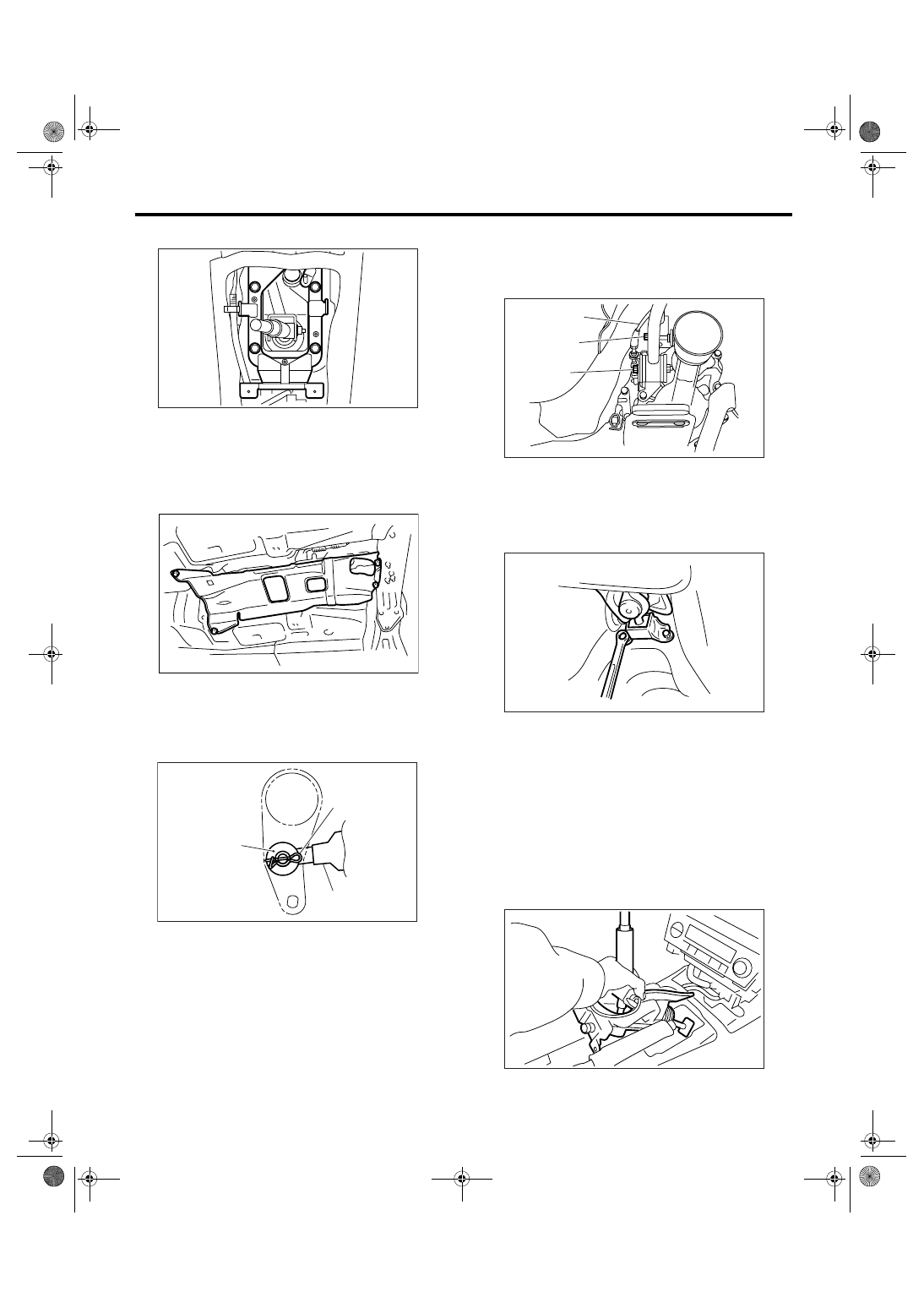

15) Remove the snap pin and washer, and then re-
move the reverse check cable from reverse check
lever.

16) Move the transmission to the right side, then re-
move the joint COMPL, stay bolt and reverse check
cable.

NOTE:
If the transmission is not moved, joint COMPL and
stay bolt may contact the body. It will cause dam-
age.

17) Remove the cushion rubber from body.

18) Lower the vehicle.
19) Remove the gear shift lever.

B: INSTALLATION

1. 5MT MODEL

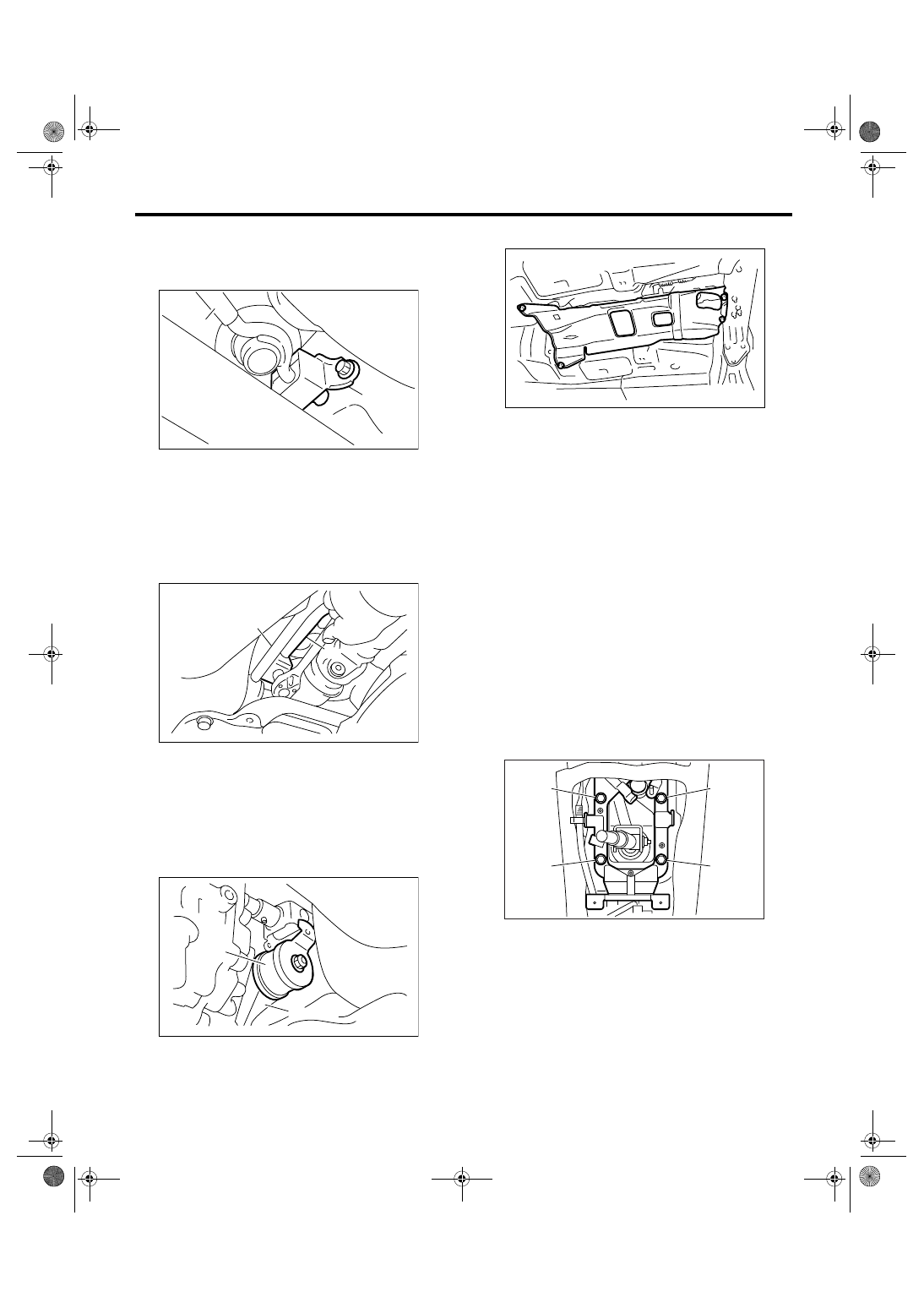

1) Install the joint to transmission and secure with
spring pin.
2) Insert the gear shift lever from the room side.

NOTE:
Insert the rod and the stay, and then temporarily set
them onto transmission mounting.

3) Lift-up the vehicle.

(A) Snap pin

(B) Washer

(C) Reverse check cable

CS-00584

AT-01331

CS-00220

(B)

(A)

(C)

(A) Joint COMPL bolt

(B) Stay bolt

(C) Reverse check cable

CS-00221

(C)

(A)

(B)

CS-00222

CS-00315

CS-40

CONTROL SYSTEMS

MT Gear Shift Lever

4) Mount the cushion rubber on the vehicle body.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13.3 ft-lb)

5) Using new self-locking nuts, connect the rod to
the joint.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13.3 ft-lb)

6) Using new self-locking nuts, connect the stay to
transmission bracket.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13.3 ft-lb)

7) Install the heat shield cover.

8) Install the rear exhaust pipe and muffler.
• SOHC model
<Ref. to EX(H4SO 2.0)-10, INSTALLATION, Rear
Exhaust Pipe.> <Ref. to EX(H4SO 2.0)-12, IN-
STALLATION, Muffler.>
• DOHC non-turbo model
<Ref. to EX(H6DO)-7, INSTALLATION, Rear Ex-
haust Pipe.> <Ref. to EX(H6DO)-9, INSTALLA-
TION, Muffler.>
• DOHC turbo model
<Ref. to EX(H4DOTC)-11, INSTALLATION, Rear
Exhaust Pipe.> <Ref. to EX(H4DOTC)-12, IN-
STALLATION, Muffler.>
9) Install the plate assembly to body.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13.3 ft-lb)

(1) Set the plate assembly to vehicle.
(2) Temporarily tighten the bolt (A).
(3) Tighten the bolt (B).
(4) Tighten the bolt (A).
(5) Tighten the bolts (C) and (D).

10) Install the harness clamp to plate.

(A) Stay

(B) Cushion rubber

(A) Stay

(B) Rod

(A) Stay

(B) Transmission bracket

CS-00052

(A)

(B)

CS-00051

(A)

(B)

CS-00050

(A)

(B)

AT-01331

CS-00314

(B)

(A)

(C)

(D)
