EB-13

EXTERIOR BODY PANELS

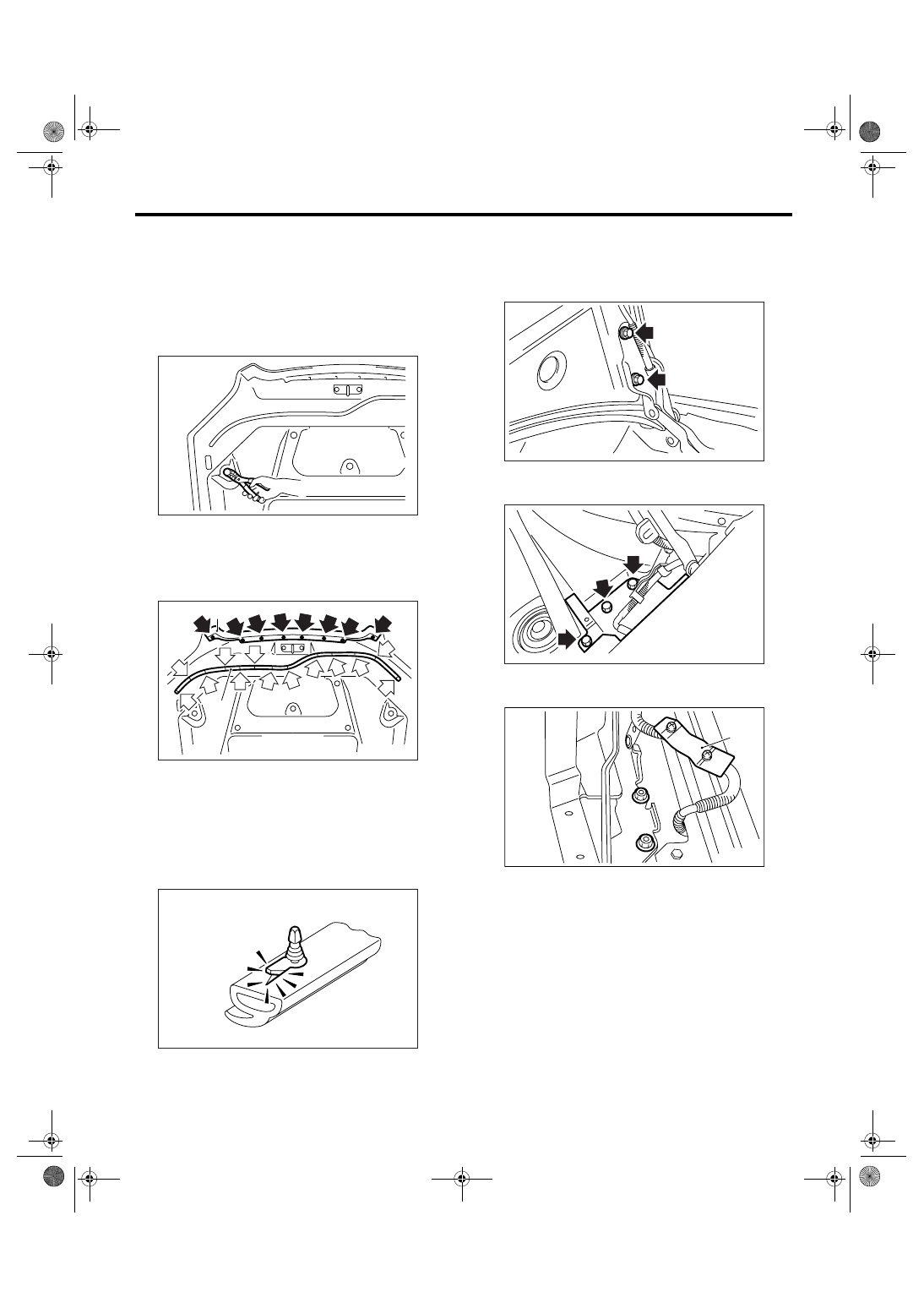

Front Hood

2. Front Hood

A: REMOVAL

1. FRONT HOOD INSULATOR

1) Open the hood.
2) Release the clips to remove the front hood insu-
lator.

2. FRONT HOOD WEATHER STRIP

1) Open the hood.
2) Remove the clips, and remove the front hood
weather strip (A) and intake duct weather strip (B).

NOTE:
If the weather strip clip is removed with excessive
force, the weather strip may be damaged. Be sure
to use clip remover to remove.

3. FRONT HOOD HINGE

1) Remove the bolts, and remove the front hood
panel. <Ref. to EB-14, FRONT HOOD PANEL, RE-
MOVAL, Front Hood.>

2) Remove the clips, and remove the cowl side
panel front.

3) Remove the clamp (A) of the window washer
hose, and remove bolt of the front hood hinge.

(C) Clip

(D) Weather strip clip

EB-00139

EB-00140

(D)

(C)

(A)

(B)

EB-00141

EB-00138

EB-00142

EB-00143

(A)

EB-14

EXTERIOR BODY PANELS

Front Hood

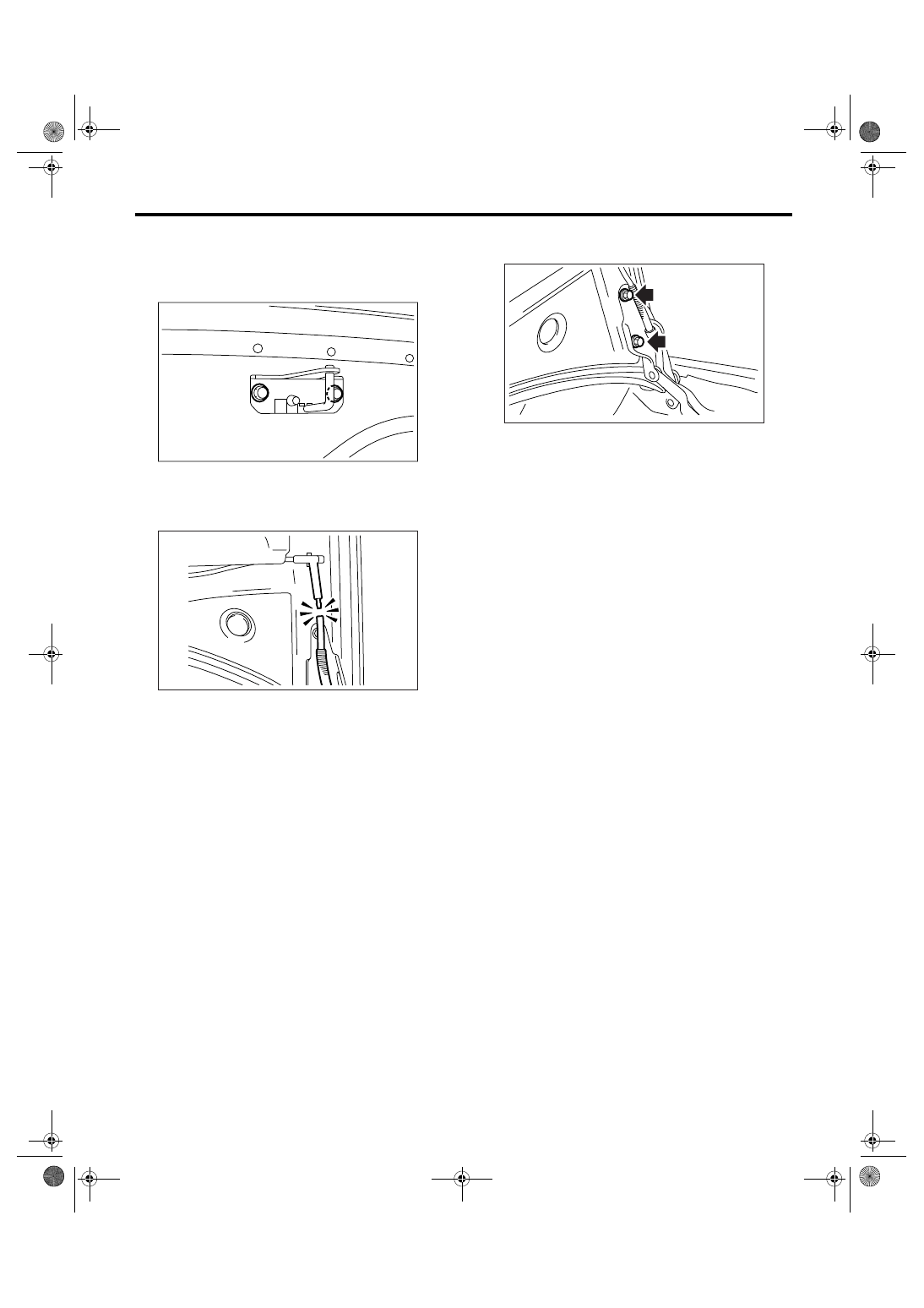

4. FRONT HOOD STRIKER

1) Open the hood.
2) Remove the bolt, and remove the front hood
striker.

5. FRONT HOOD PANEL

1) Open the front hood to remove the window
washer hose.

2) Remove the front hood insulator.
<Ref. to EB-13, FRONT HOOD INSULATOR, RE-
MOVAL, Front Hood.>
3) Remove the front hood weather strip.
<Ref. to EB-13, FRONT HOOD WEATHER STRIP,
REMOVAL, Front Hood.>
4) Remove the front hood striker.
<Ref. to EB-14, FRONT HOOD STRIKER, RE-
MOVAL, Front Hood.>
5) Remove the front hood duct. (Turbo model)
<Ref. to EI-25, REMOVAL, Front Hood Grille.>
6) Remove the window washer hose and nozzle.
<Ref. to WW-20, REMOVAL, Front Washer Noz-
zle.>

7) Remove the bolts, and remove the front hood
panel from front hood hinge.

B: INSTALLATION

1. FRONT HOOD INSULATOR

Install in the reverse order of removal.

NOTE:
Be careful not to catch the window washer hose in.

2. FRONT HOOD WEATHER STRIP

Install in the reverse order of removal.

3. FRONT HOOD HINGE

Install in the reverse order of removal.

Tightening torque:

24.5 N

⋅

m (2.5 kgf-m, 18.1 ft-lb)

4. FRONT HOOD STRIKER

Install in the reverse order of removal.

Tightening torque:

33.0 N

⋅

m (3.4 kgf-m, 24.5 ft-lb)

5. FRONT HOOD PANEL

Install in the reverse order of removal.

Tightening torque:

24.5 N

⋅

m (2.5 kgf-m, 18.1 ft-lb)

EB-00144

EB-00137

EB-00138

EB-15

EXTERIOR BODY PANELS

Front Hood

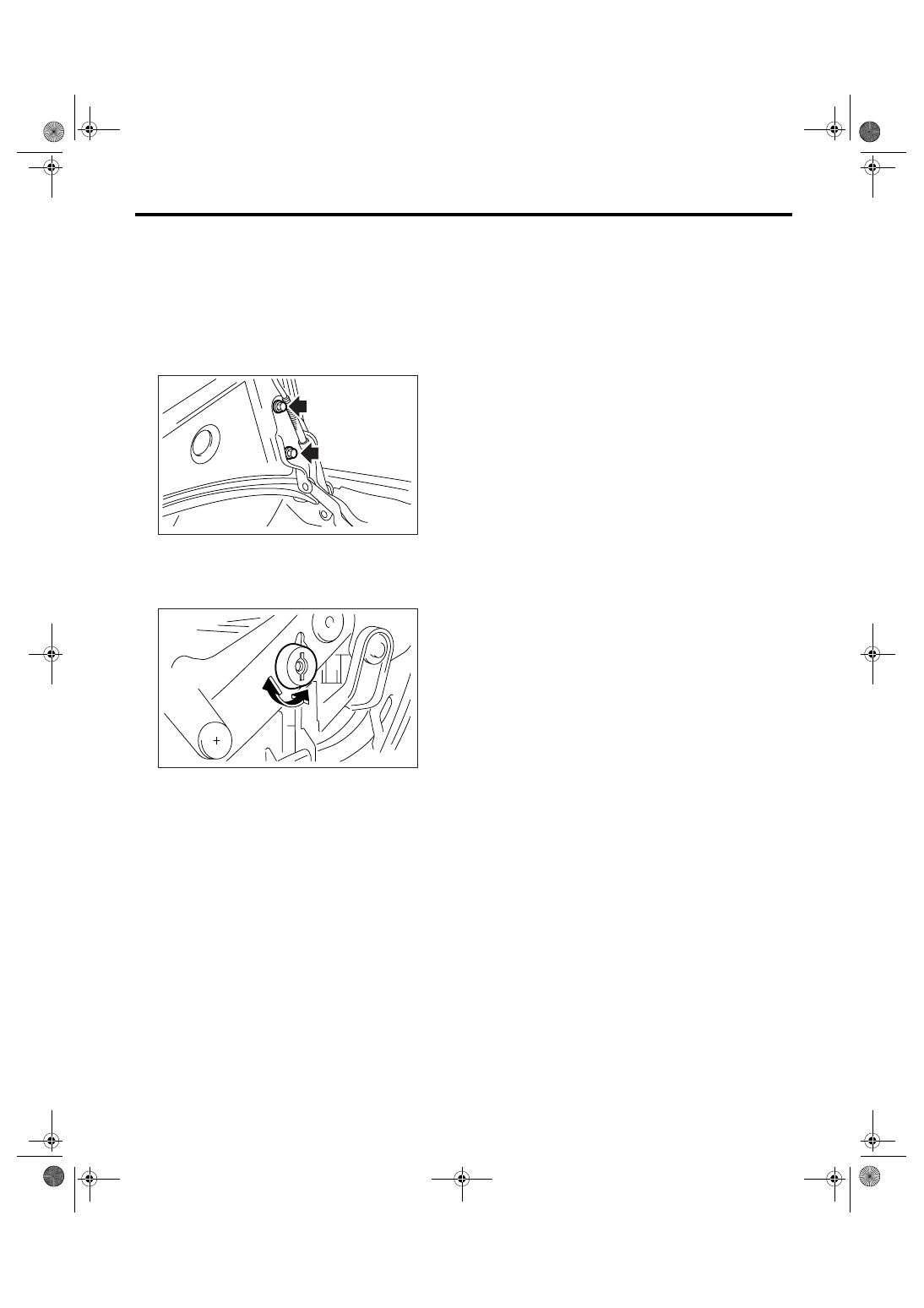

C: ADJUSTMENT

1) Adjust the clearance between front hood panel
and front fender panel. Clearance must be equal at
both sides. For the dimension of clearance, refer to
“SPECIFICATIONS” in “General Description”.
<Ref. to EB-2, SPECIFICATION, General Descrip-
tion.>
2) Use a hinge mounting bolts to align the front
hood longitudinally and laterally.

3) Adjust the height at the front end of hood. <Ref.
to SL-38, ADJUSTMENT, Front Hood Lock Assem-
bly.>
4) Rotate the hood buffer to adjust lateral height.

EB-00138

EB-00164

EB-16

EXTERIOR BODY PANELS

Front Fender

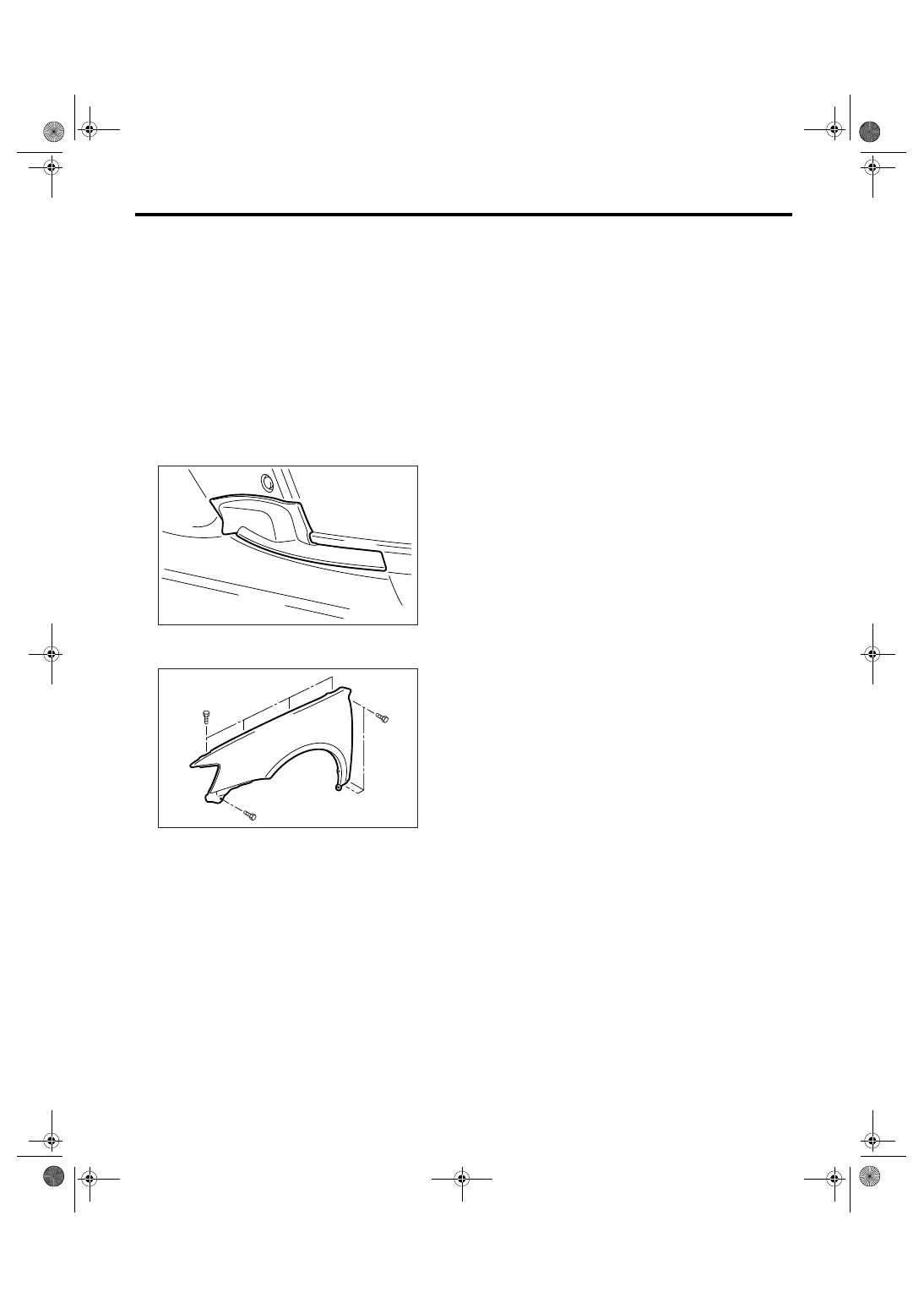

3. Front Fender

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the side sill spoilers. <Ref. to EI-41, RE-
MOVAL, Side Sill Spoiler.>
3) Remove the front grille. <Ref. to EI-24, REMOV-
AL, Front Grille.>
4) Remove the front bumper face. <Ref. to EI-30,
REMOVAL, Front Bumper.>
5) Remove the headlight assembly. <Ref. to LI-14,
REMOVAL, Headlight Assembly.>
6) Remove the mud guard. <Ref. to EI-29, RE-
MOVAL, Mud Guard.>
7) Remove the cowl side panel.

8) Remove the bolt, and remove the front fender
panel.

B: INSTALLATION

1) Install in the reverse order of removal.
2) Install with attention to make uniform clearance
between front fender panel and front hood panel.
For the dimension of clearance, refer to “SPECIFI-
CATIONS” in “General Description”. <Ref. to EB-2,
SPECIFICATION, General Description.>

Tightening torque:

7.4 N

⋅

m (0.75 kgf-m, 5.5 ft-lb)

EB-00147

EB-00146
