SsangYong Rexton. Manual - part 506

REAR BRAKE 4C-15

SSANGYONG Y200

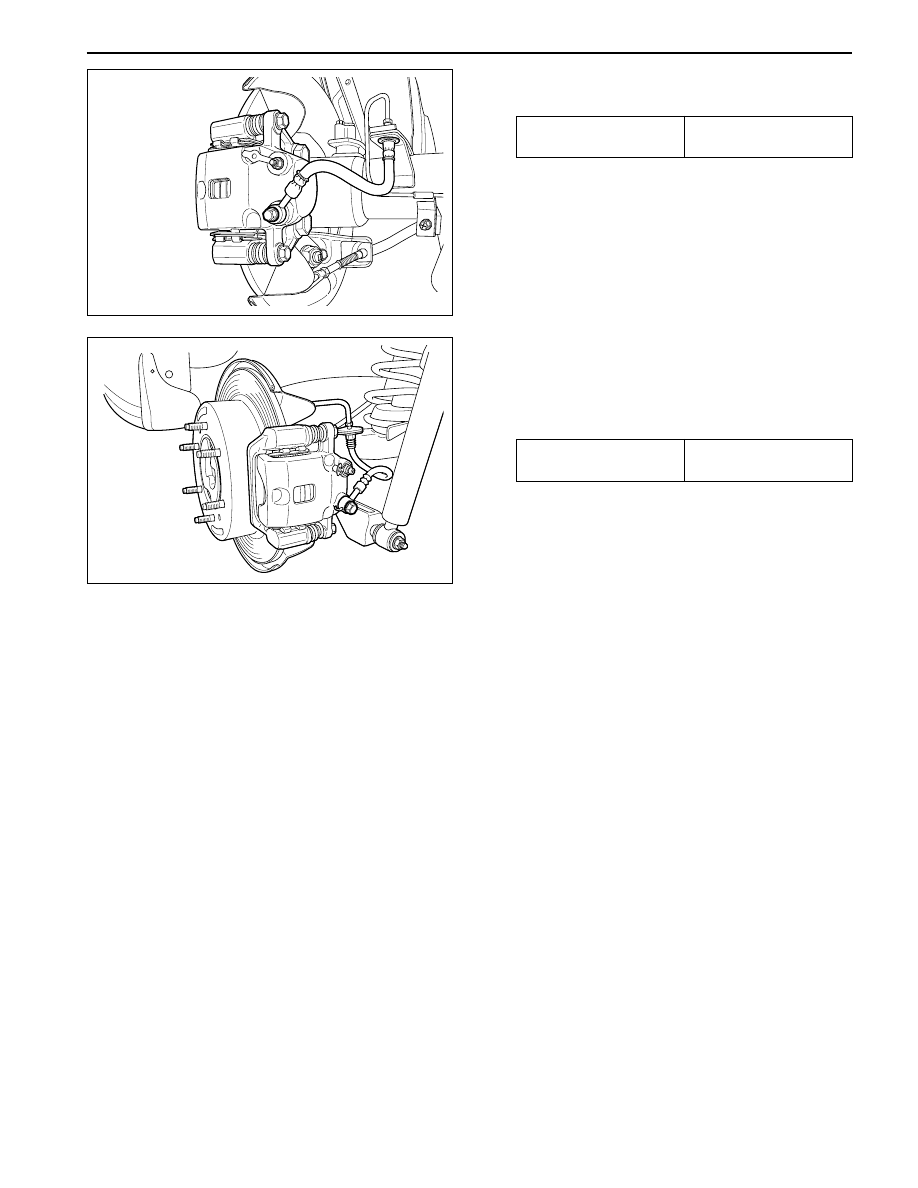

3. Install the caliper to the brake disc.

Installation Notice

Tightening Torque

4 - 8 N•m

(35 - 71 lb-in)

4. Install the brake hose.

Notice: The washer should be replaced new part.

5. Tighten the air bleeder screw.

Installation Notice

Tightening Torque

7 - 13 N•m

(62 - 115 lb-in)

6. Bleed the brake system after replacement.

YAD4C260

YAD4C270

SSANGYONG Y200

4C-16 REAR BRAKE

;;;;;;;

yyyyyyy

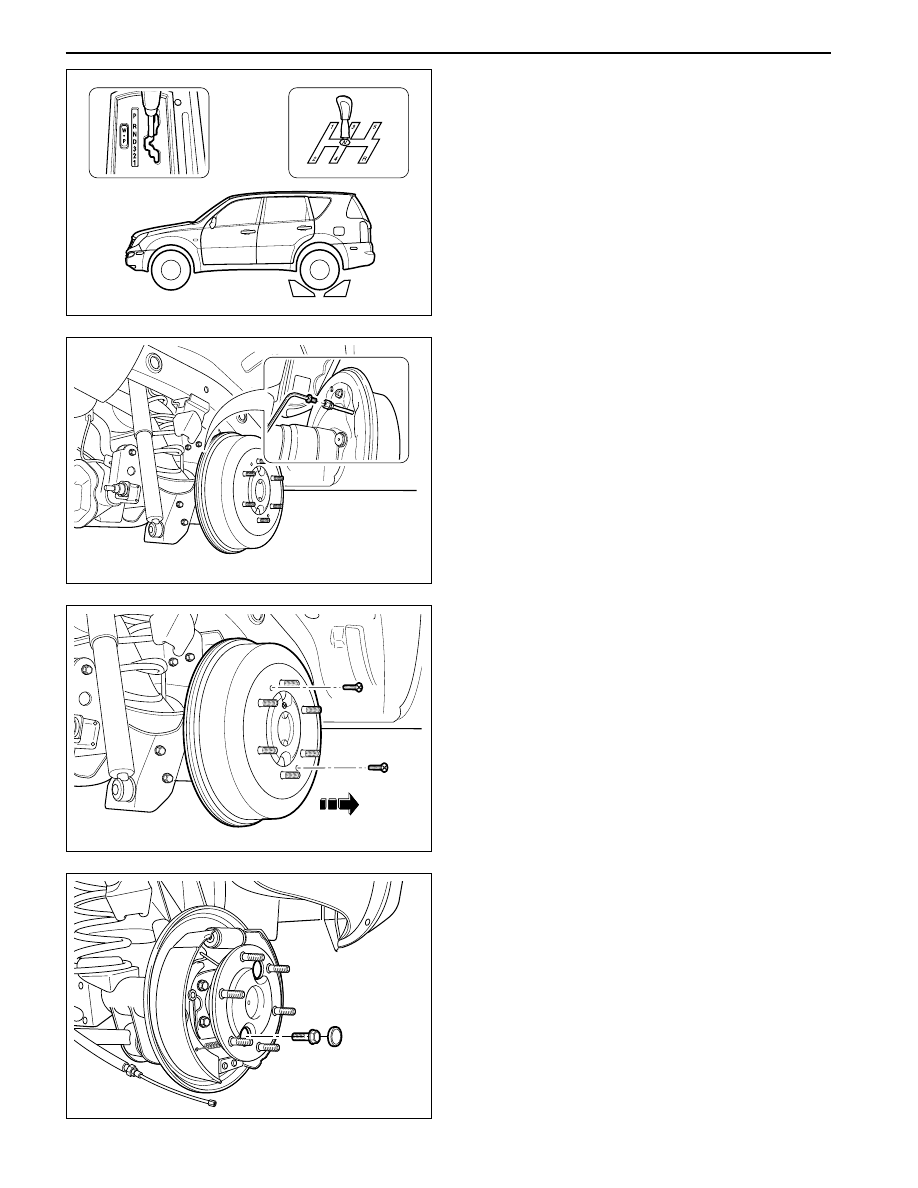

DRUM BRAKE ASSEMBLY

1. Remove the tires

Notice:

•

Park the vehicle on the flat ground and fix the
vehicle not to move it.

•

Position the transmission in NEUTRAL.

2. Disconnect the brake pipe from the rear brake.

Notice: Be carefully to prevent the brake fluid loss
and contamination.

3. Insert the bolt (M8) to the service hole of the brake

drum and remove the brake drum.

4. Remove the service hole plug of the axle shaft.

YAD4C120

YAD4C290

YAD4C300

YAD4C310

REAR BRAKE 4C-17

SSANGYONG Y200

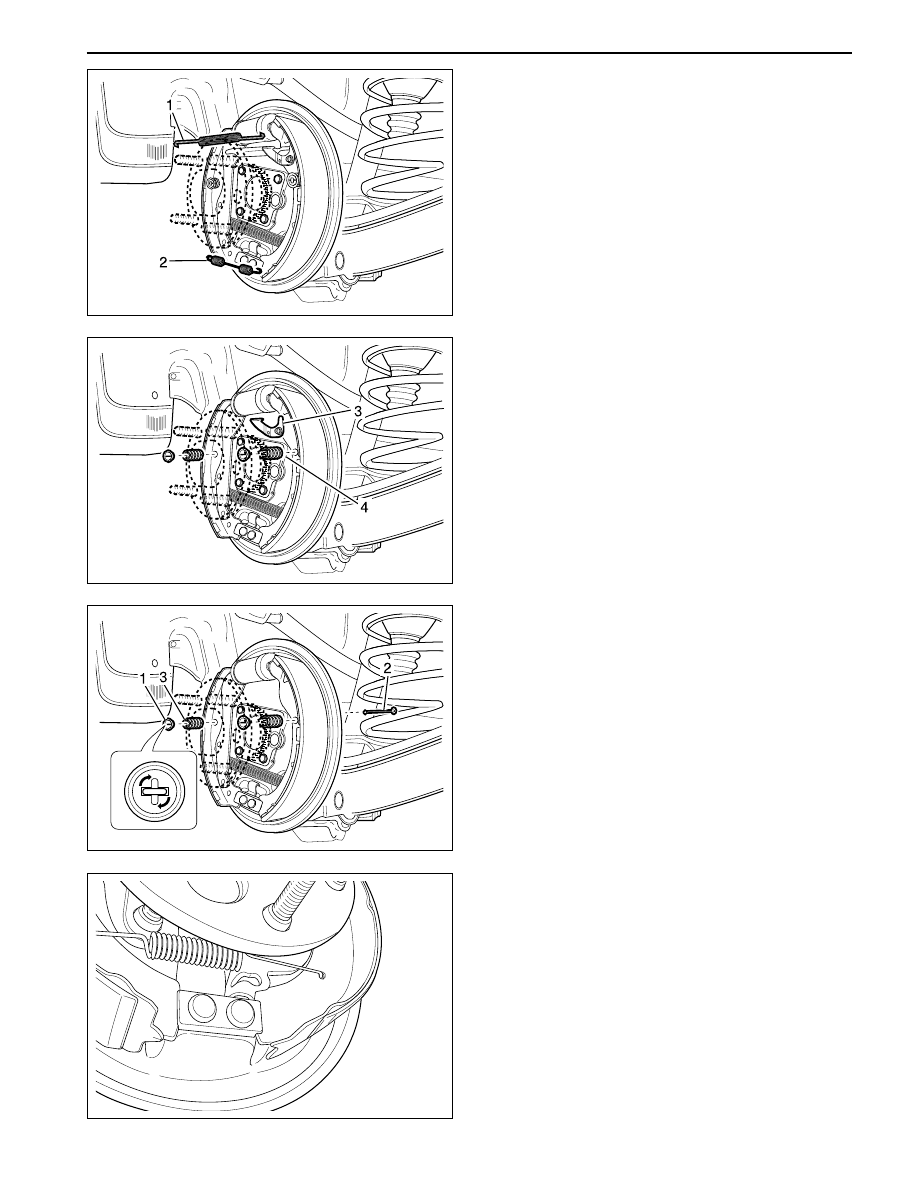

5. Remove the return spring.

(1) Disconnect the upper return spring.

(2) Disconnect the lower return spring.

(3) Disconnect the lever spring.

(4) Disconnect the adjuster lever from the adjuster.

6. Rotate the lining shoe hold down-washer in the

plug hole of the axle shaft flange and disconnect
the pin and the spring.

7. Disconnect the parking cable from the parking

lever.

YAD4C320

YAD4C330

YAD4C340

YAD4C350

SSANGYONG Y200

4C-18 REAR BRAKE

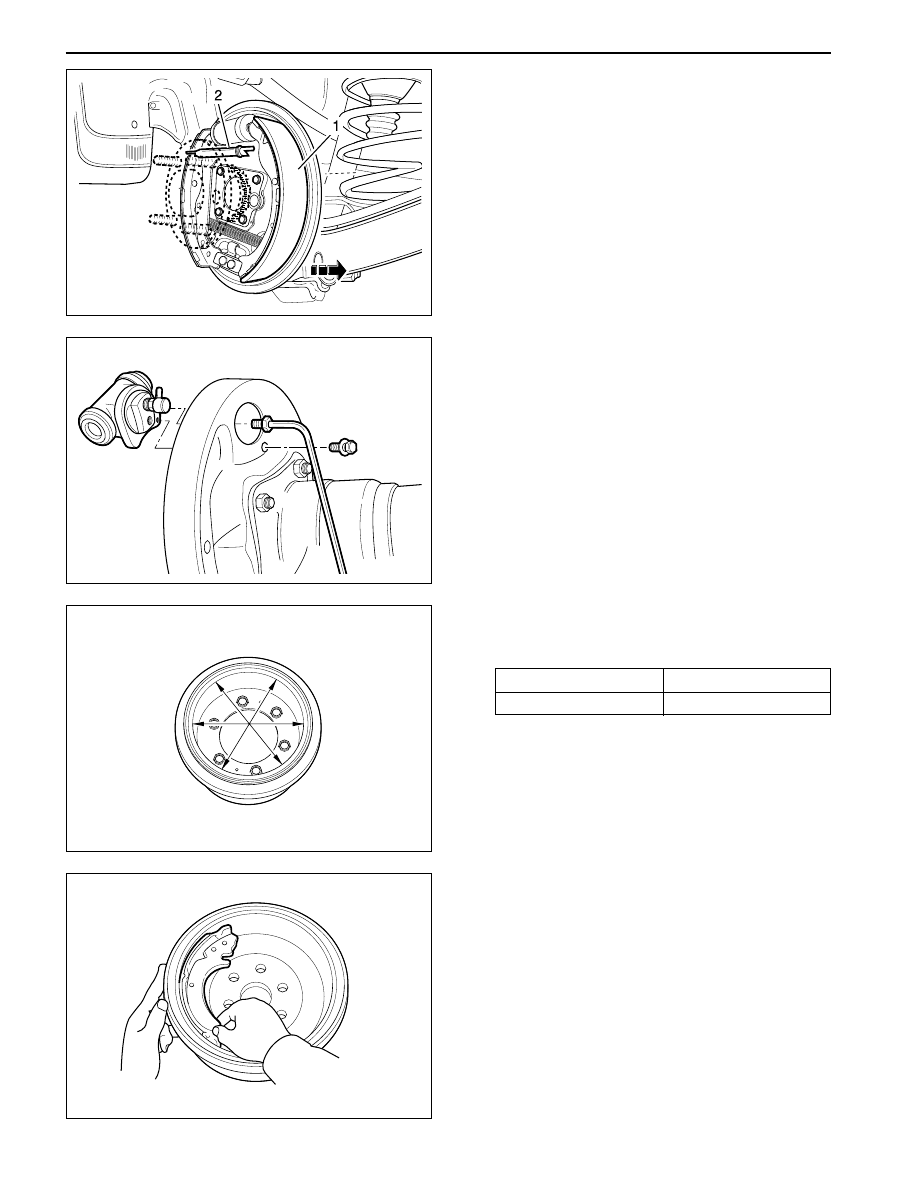

8. Disconnect the brake lining and adjuster lever.

9. Remove the wheel cylinder mounting bolt and

remove the wheel cylinder.

Inspection

1. Measure the inside diameter of the brake drum

and replace as needed.

I.D.

Ø 254 mm

Wear Limit

Ø 255.5 mm

Notice: Measure two more position.

2. Inspect the surface between the lining and brake.

Mark the brake drum inside using chalk and scrub
the shoe & lining assembly. If there is excessive
contact problem, replace the shoe & lining
assembly or the brake drum.

Notice: Clean any chalk mark after inspection
complete.

YAD4C360

YAD4C370

YAD4C380

YAD4C390
