REAR BRAKE  4C-7

SSANGYONG  Y200

YAD4C040

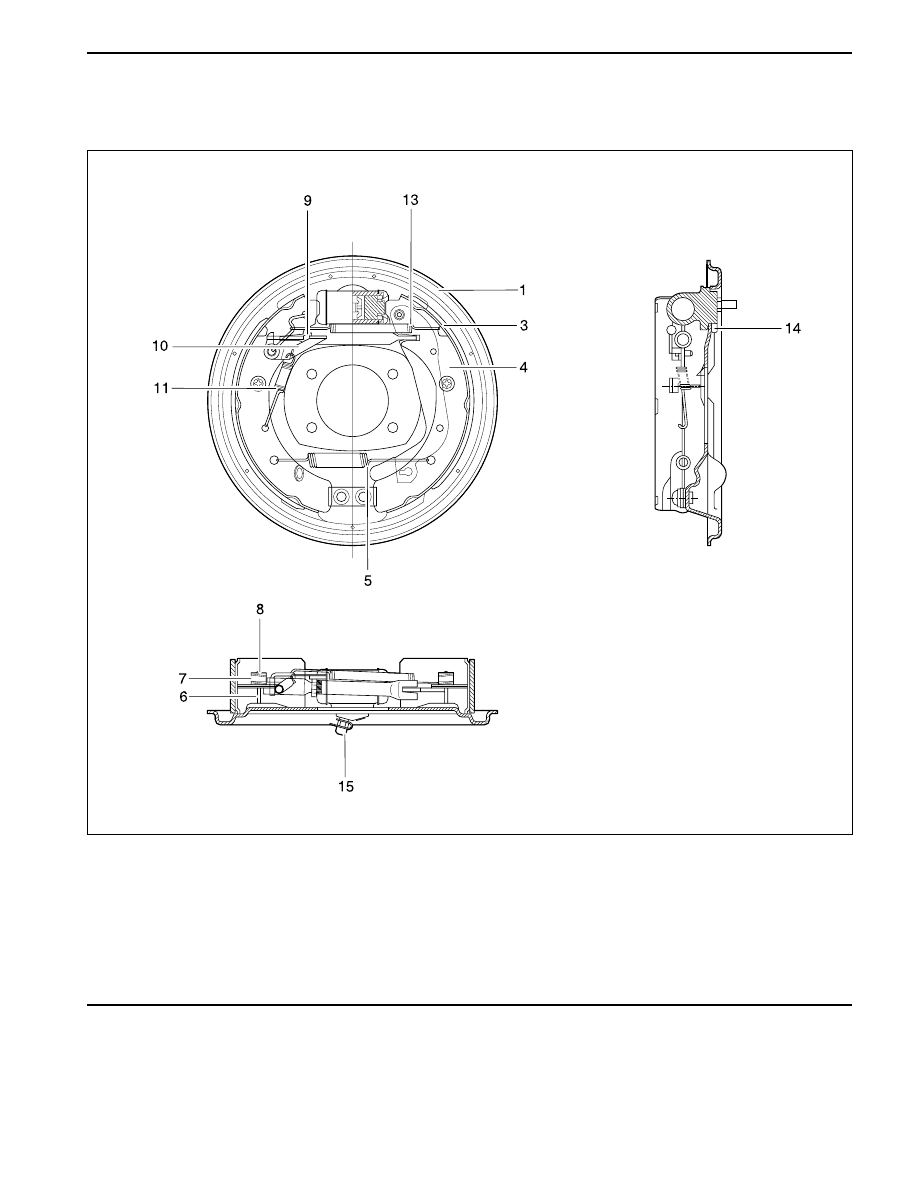

CROSS SECTIONAL VIEW

DRUM BRAKE (KDAC)

1 Backing Plate
2 Wheel Cylinder
3 Brake Shoe Lining
4 Brake Shoe
5 Lower Return Spring (Lower Shoe Spring)
6 Retainer Spring Pin
7 Compression Spring

8 Retainer Spring Plate
9 Adjuster Assembly

10 Adjuster Lever
11 Return Spring (Adjuster)
13 Upper Return Spring (Upper Shoe Spring)
14 Bolt
15 Air Bleeder Nipple

SSANGYONG  Y200

4C-8  REAR BRAKE

YAD4C050

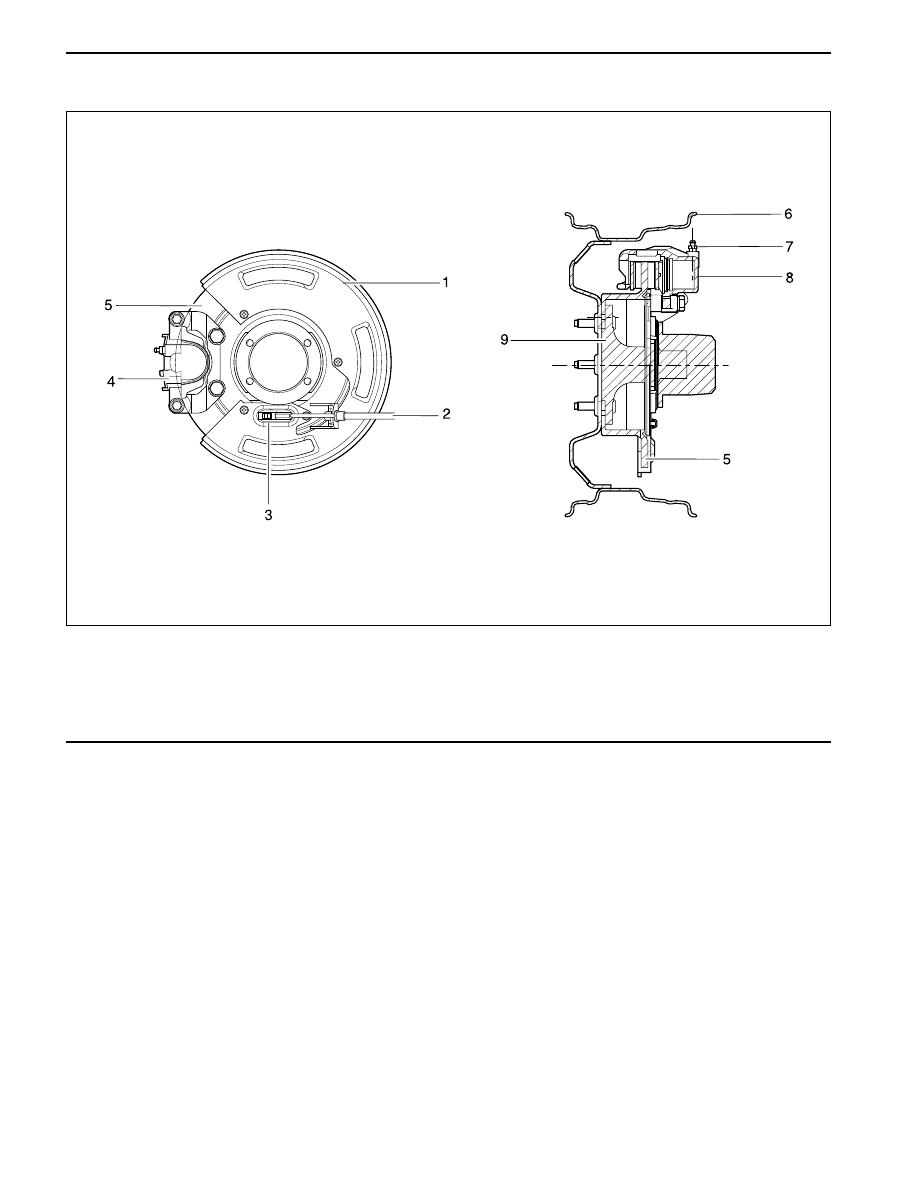

DISC BRAKE

1 Backing Plate
2 Parking Cable
3 Parking Cable Lever
4 Caliper Assembly

5 Disc
6 Wheel
7 Air Bleeder Nipple
9 Shaft Assembly

REAR BRAKE  4C-9

SSANGYONG  Y200

YAD4C280

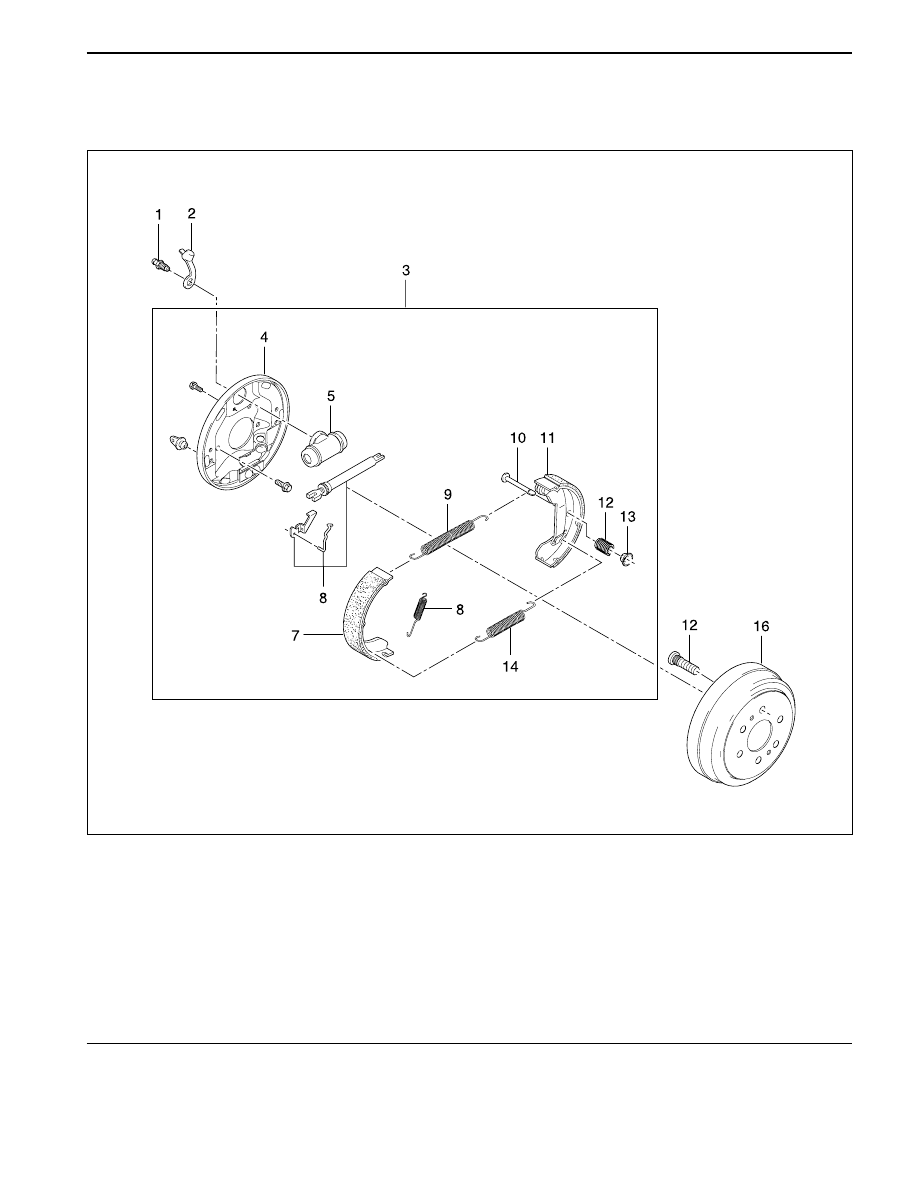

COMPONENT LOCATOR

DRUM BRAKE

1 Bleeder Screw
2 Bleeder Screw Cap
3 Rear Brake Assembly
4 Rear Brake Plate
5 Wheel Cylinder
6 Strut Assembly (Clearance Automatic Control

System)

7 Brake Leading Shoe
8 Middle Return Spring

9 Upper Return Spring

10 Brake Shoe Retaining Spring Pin
11 Trailing Shoe
12 Brake Shoe Retaining Spring
13 Brake Shoe Retaining Spring Cap
14 Lower Return Spring
15 Hub Bolt
16 Rear Brake Drum

SSANGYONG  Y200

4C-10  REAR BRAKE

YAD4C110

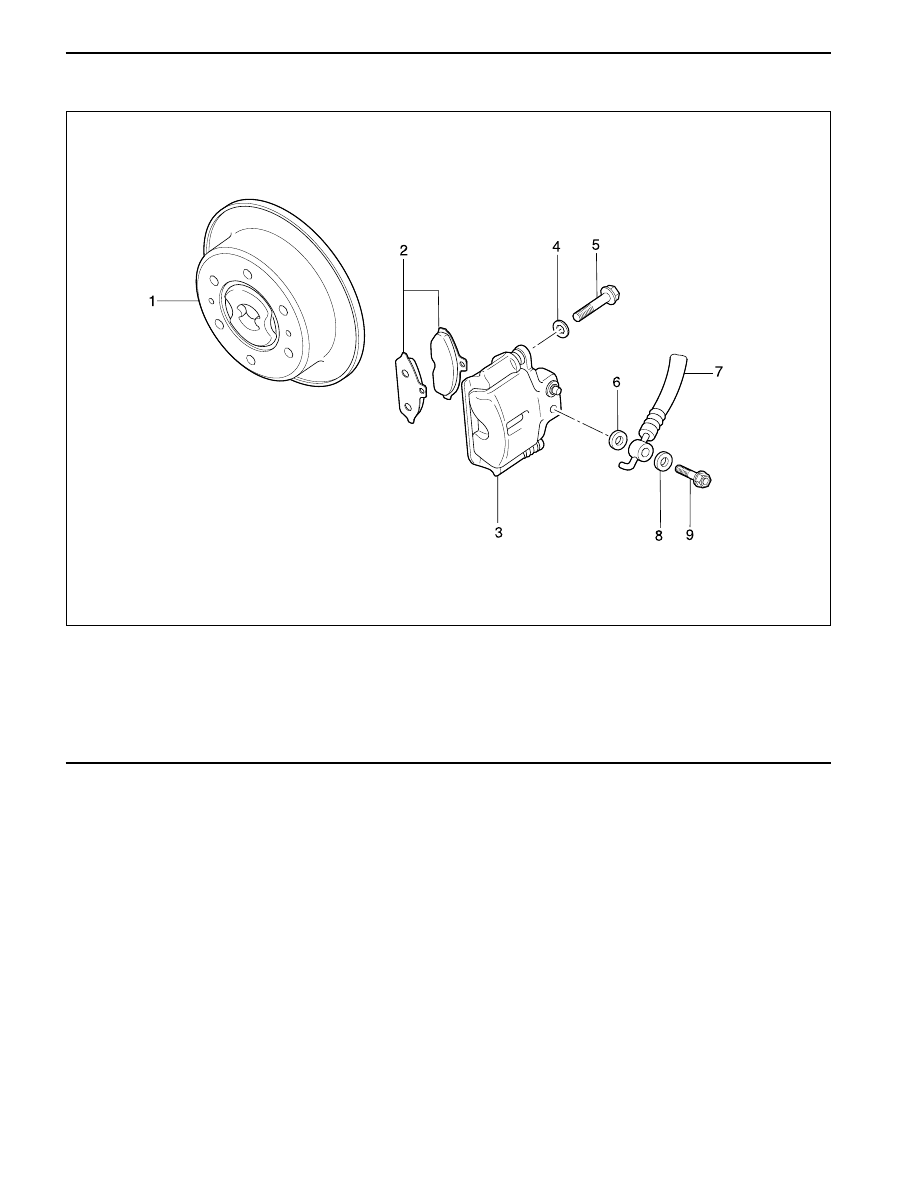

DISC BRAKE

1 Rear brake disc assembly
2 Brake pad
3 Brake caliper
4 Gasket .................................................... Replace
5 Bolt ........................................... 20 N•m (15 lb-ft)

6 Gasket.................................................... Replace
7 Brake hose
8 Gasket.................................................... Replace
9 Hose bolt ........................................... 8 - 18 N•m
