ELECTRICAL WIRING DIAGRAMS  5-181

SSANGYONG  REXTON XDi (LHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-182  ELECTRICAL WIRING DIAGRAMS

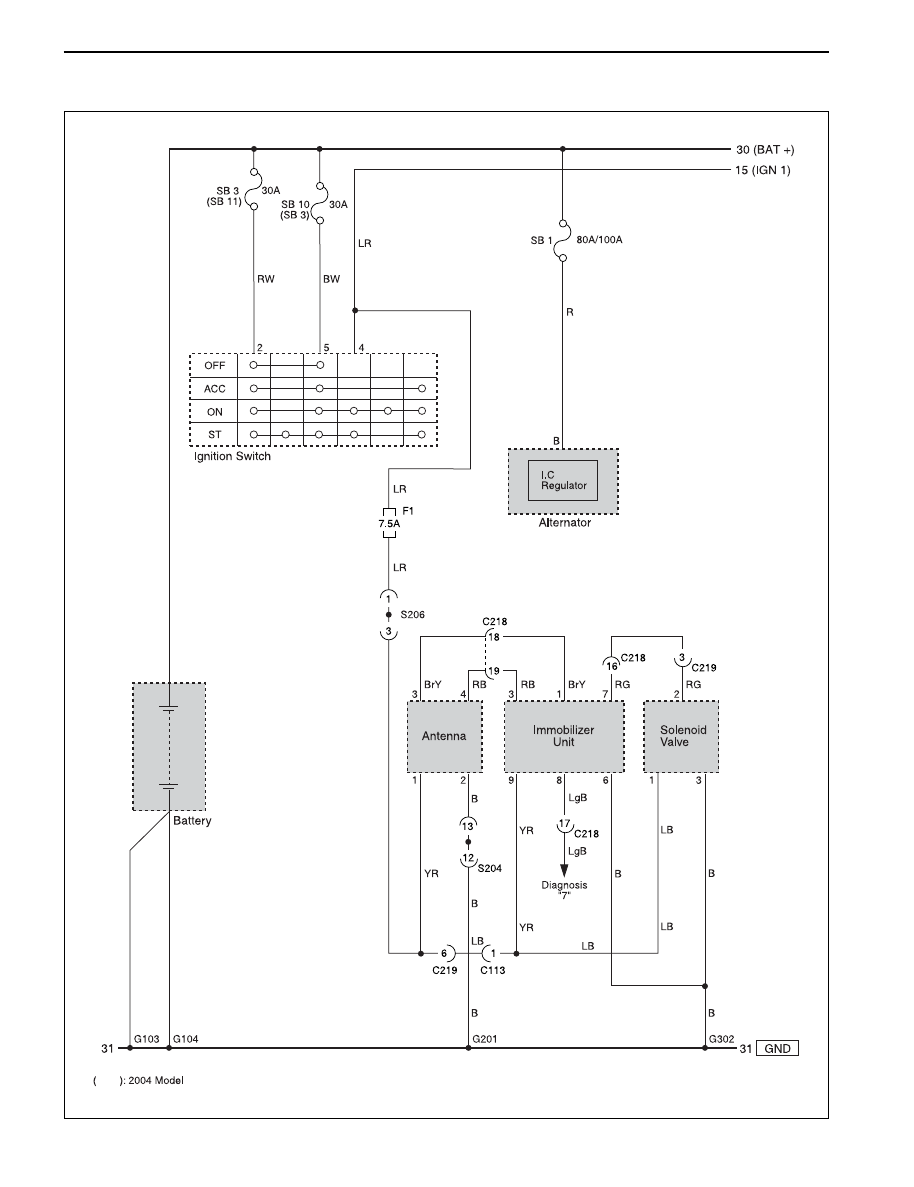

46. IMMOBILIZER (DSL)

ELECTRICAL WIRING DIAGRAMS  5-183

SSANGYONG  REXTON XDi (LHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

A. CONNECTOR INFORMATION

C113 (12Pin, Black)

C218 (22Pin, Yellow)

C219 (13Pin, Green)

S204 (14Pin, Black)

S206 (14Pin, Black)

G201

G302

Connector Number

(Pin Number, Color)

Engine - Engine Control

Main - Floor (RH)

Engine - Main (RH)

W/H Main

W/H Main

W/H Main

W/H Floor

Connecting Wiring

Harness

Right Engine Room Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Behind the Left the FATC

Behind the Left the FATC

Inside Driver Side Cowl PNL

Under Driver Seat

DSL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-184  ELECTRICAL WIRING DIAGRAMS

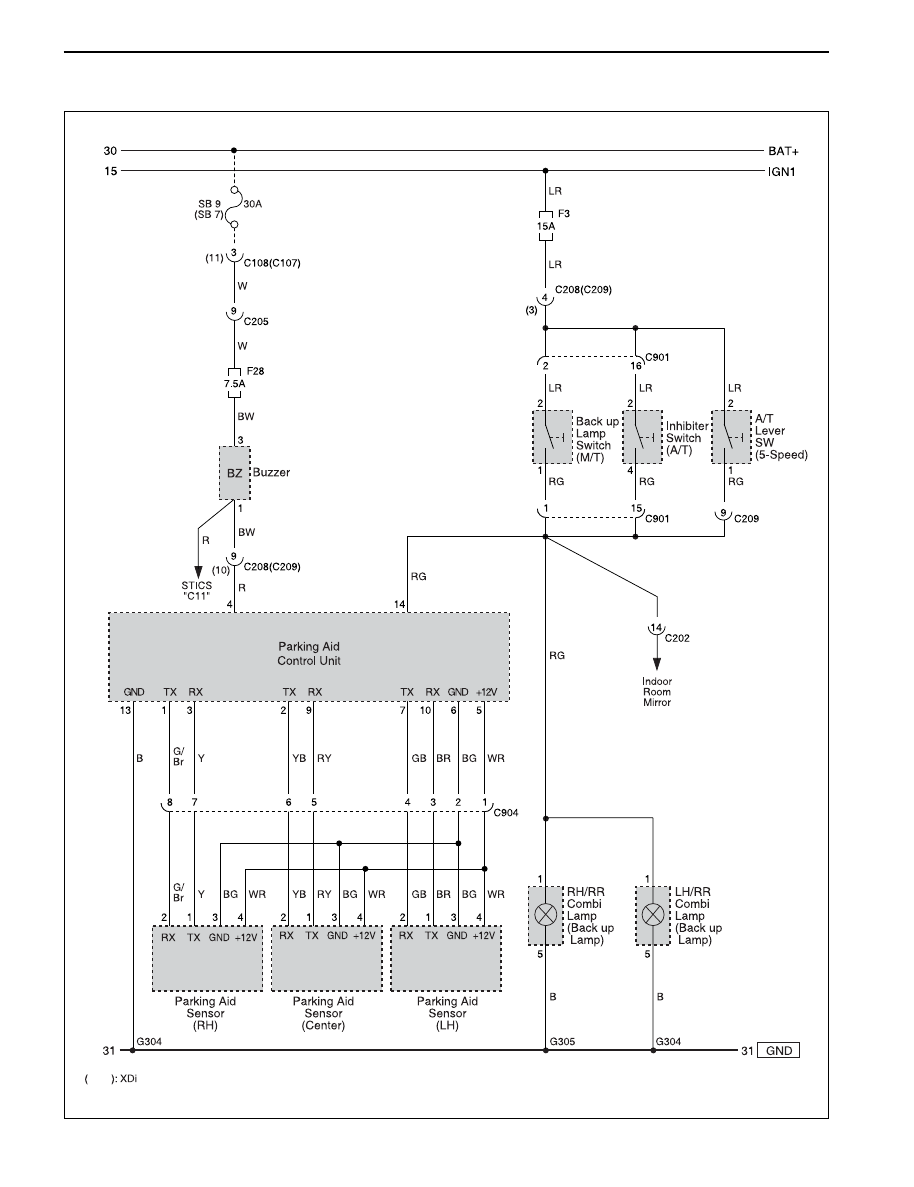

47. PARKING AID CIRCUIT
