ELECTRICAL WIRING DIAGRAMS  5-173

SSANGYONG  REXTON XDi (LHD)

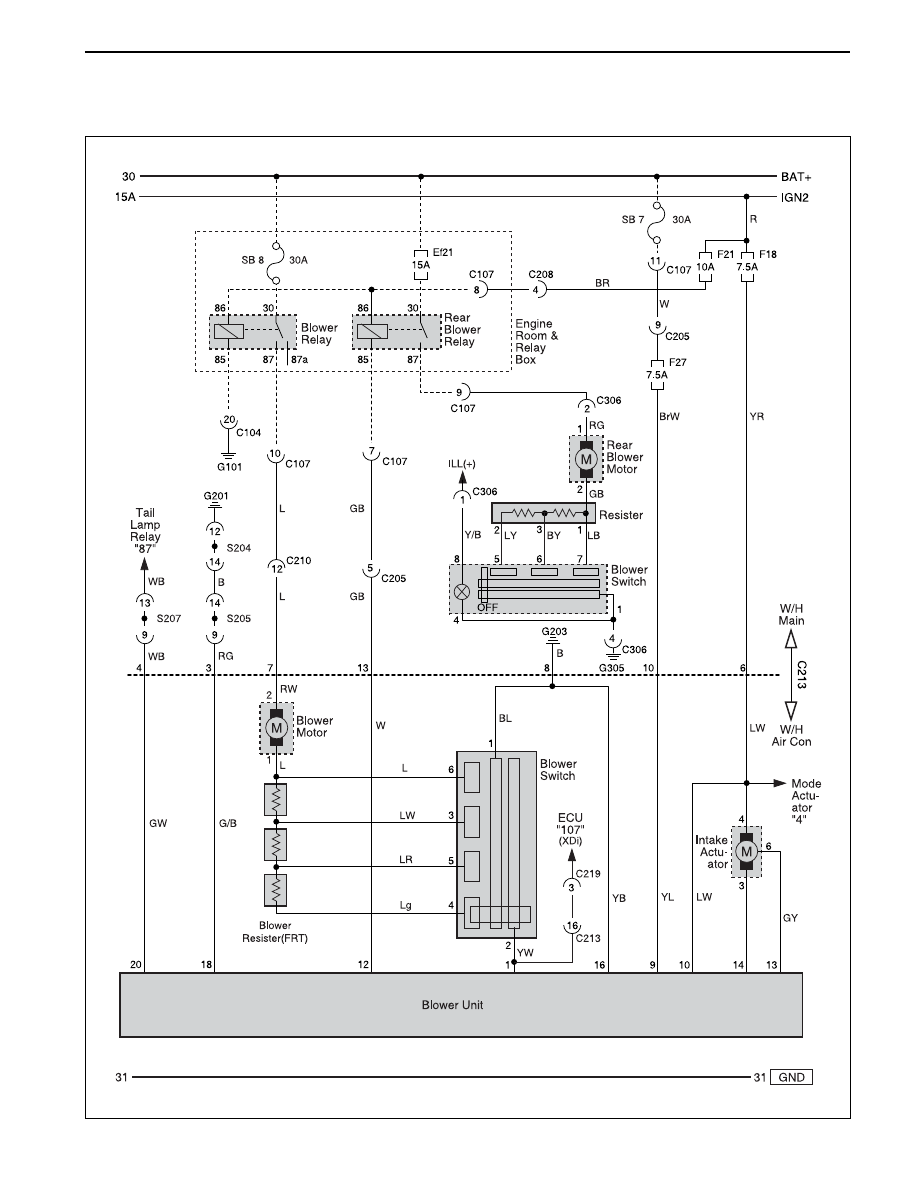

(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-174  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (C) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Air-Con

W/H Air Bag - W/H Blower

Engine - Main (RH)

Floor - RR Air Con

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Main

C102 (20Pin, White)

C103 (6Pin, Colorless)

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C203 (13Pin, Green)

C205 (11Pin, White)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

C213 (16Pin, White)

C213A (13Pin, White)

C219 (13Pin, Green)

C306 (4Pin, Colorless)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

G101

G105

G201

G203

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Dash PNL

Inside Dash PNL

Inside Co-Driver Side Cowl PNL

Right Side 3rd Seat

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center the Engine Room Fuse Box

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

Under the Seat Heating SW

XDi

A/C

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-175

SSANGYONG  REXTON XDi (LHD)

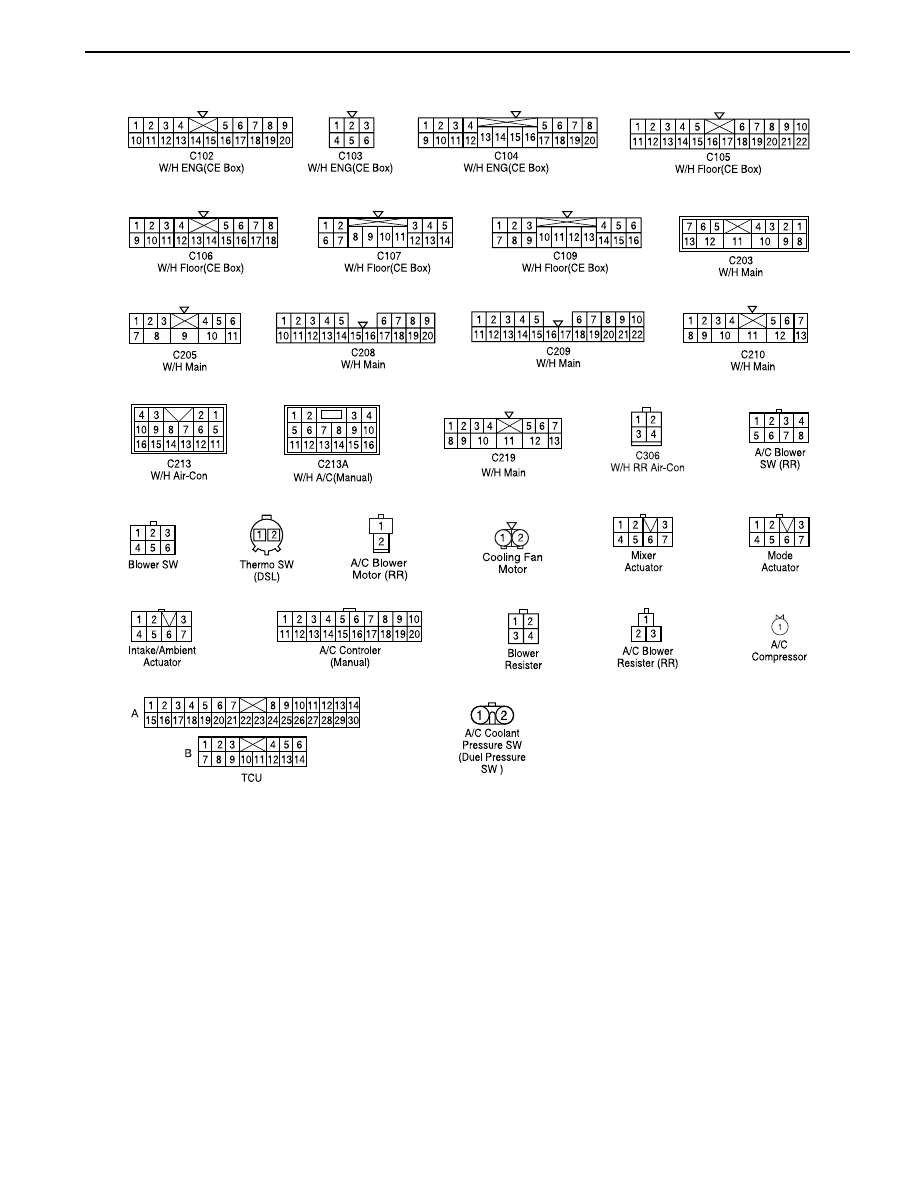

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-176  ELECTRICAL WIRING DIAGRAMS

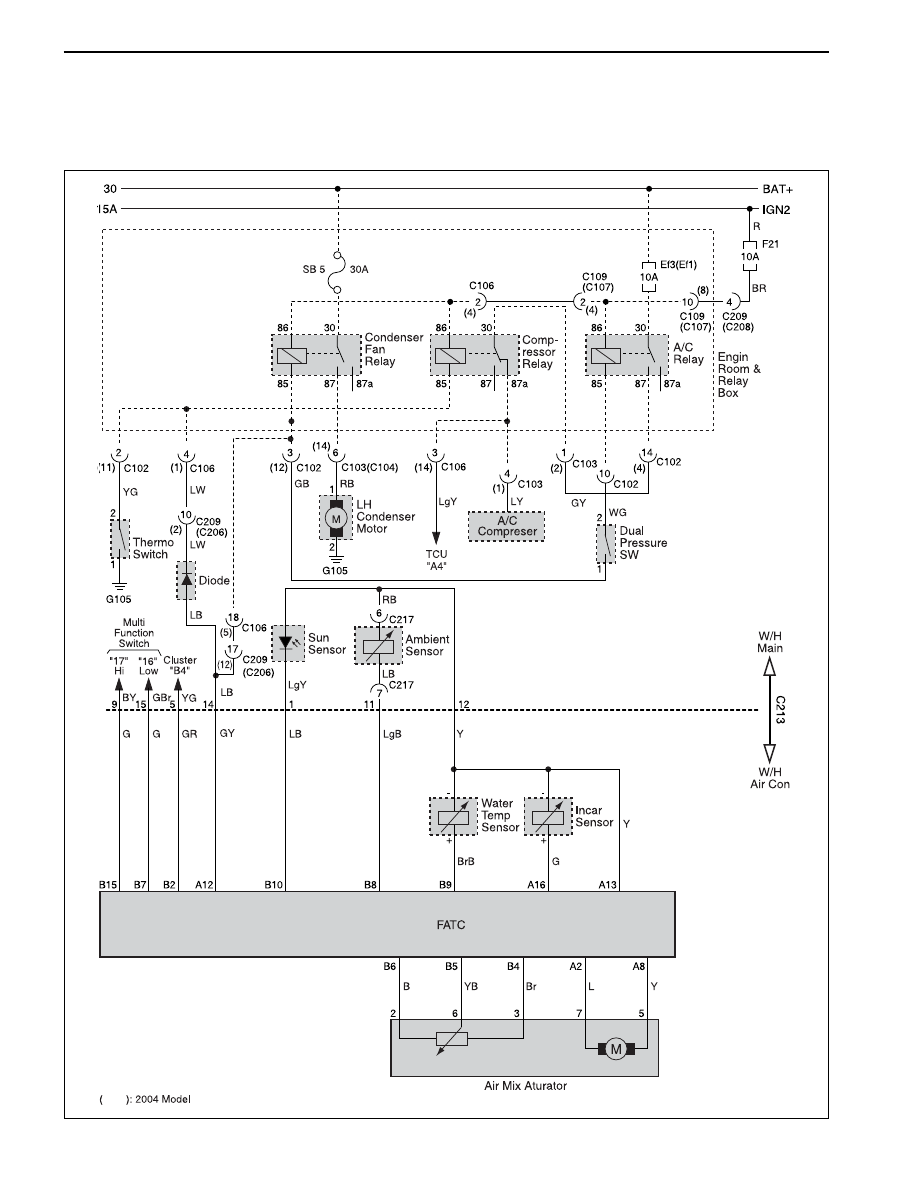

45. FATC (FULL AUTO TEMPERATURE CONTROL) CIRCUIT

1) DIESEL

(1) AIR MIX ACTUCTOR, SENSOR (SUN, AMBIENT, INCAR, WATER TEMP) CIRCUIT
