ELECTRICAL WIRING DIAGRAMS  5-177

SSANGYONG  REXTON XDi (LHD)

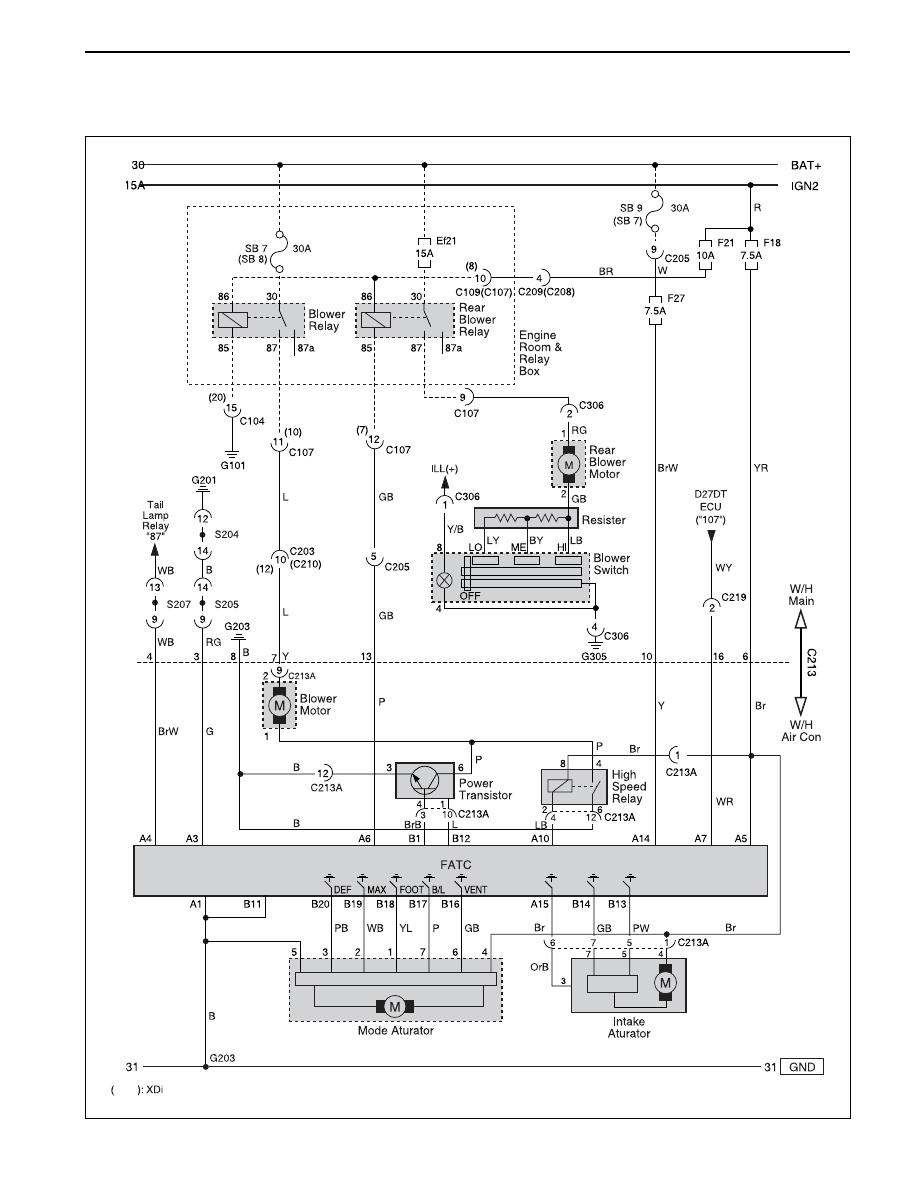

(2) ACTURATOR (MODE, INTAKE) CIRCUIT



SSANGYONG  REXTON XDi (LHD)

5-178  ELECTRICAL WIRING DIAGRAMS

2) GASOLINE & XDi

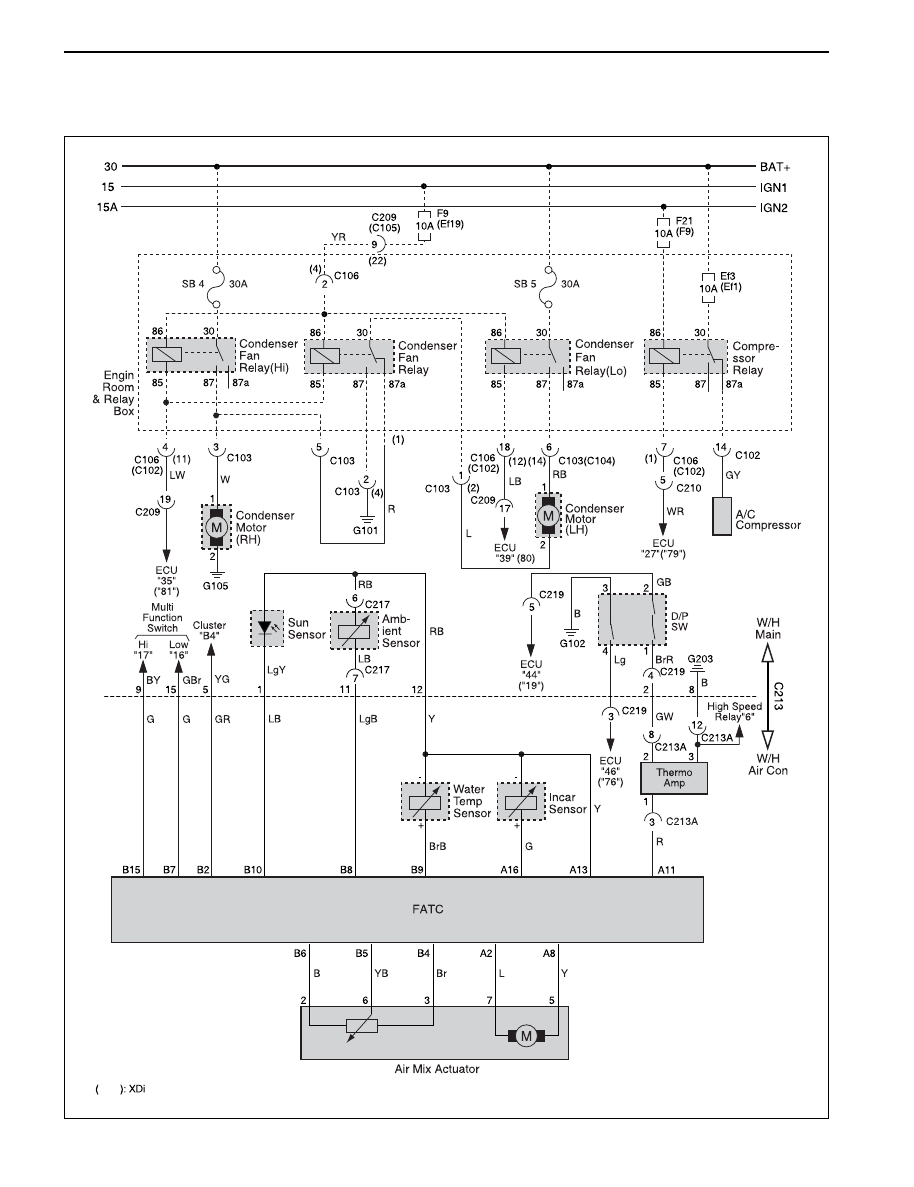

(1) AIR MIX ACTUCTOR, SENSOR (SUN, AMBIENT, INCAR, WATER TEMP) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-179

SSANGYONG  REXTON XDi (LHD)

(2) ACTURATOR (MODE, INTAKE) CIRCUIT



SSANGYONG  REXTON XDi (LHD)

5-180  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (C) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Air-Con

W/H Air Bag - W/H Blower

Engine - Main (RH)

Engine - Main (RH)

Floor - RR Air-Con

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Main

W/H Floor

C102 (20Pin, White)

C103 (6Pin, Colorless)

C104 (20Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C203 (13Pin, Green)

C205 (11Pin, White)

C206 (20Pin, Black)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

C213 (16Pin, White)

C213A (13Pin, White)

C217 (20Pin, Black)

C219 (13Pin, Green)

C306 (4Pin, Colorless)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

G101

G105

G201

G203

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Dash PNL

Inside Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Right Side 3rd Seat

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center the Engine Room Fuse Box

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Behind the Quarter Grass #1

XDi

A/C

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position
