SSANGYONG  REXTON XDi(RHD)

5-176  ELECTRICAL WIRING DIAGRAMS

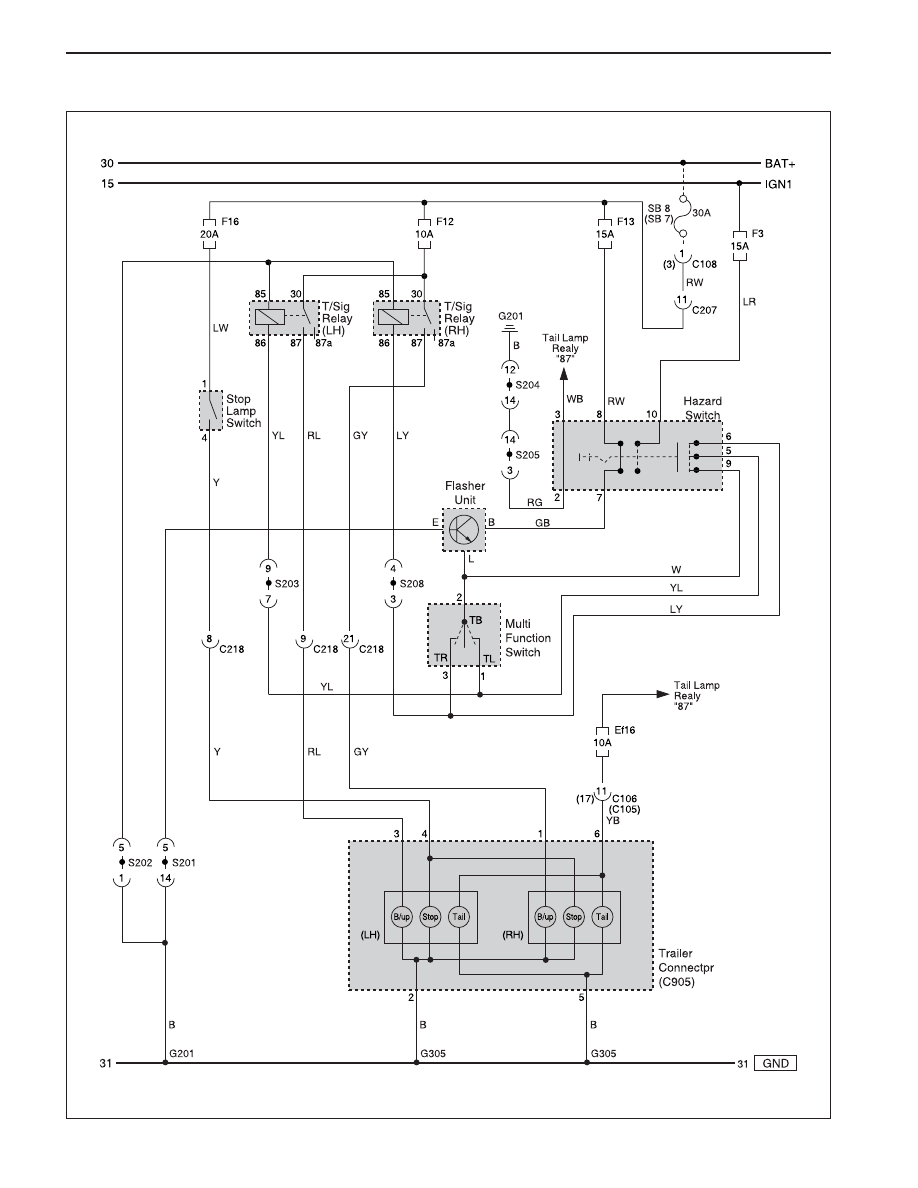

48. TRAILER CONNECTOR CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-177

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Floor(RH)

Floor - Trailer

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

C105(22Pin, White)

C106(18Pin, White)

C108(4Pin, Colorless)

C207(15Pin, Blue)

C218(22Pin, Yellow)

C905(6Pin, White)

S201(14Pin, Black)

S202(14Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S208(14Pin, Black)

G201

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Left the RR Bumper

Upper the I/P Relay Box

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left FATC

Behind the Left FATC

Behind the Right FATC

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

GND

GND

GND

Remark

Connector Position

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi(RHD)

5-178  ELECTRICAL WIRING DIAGRAMS

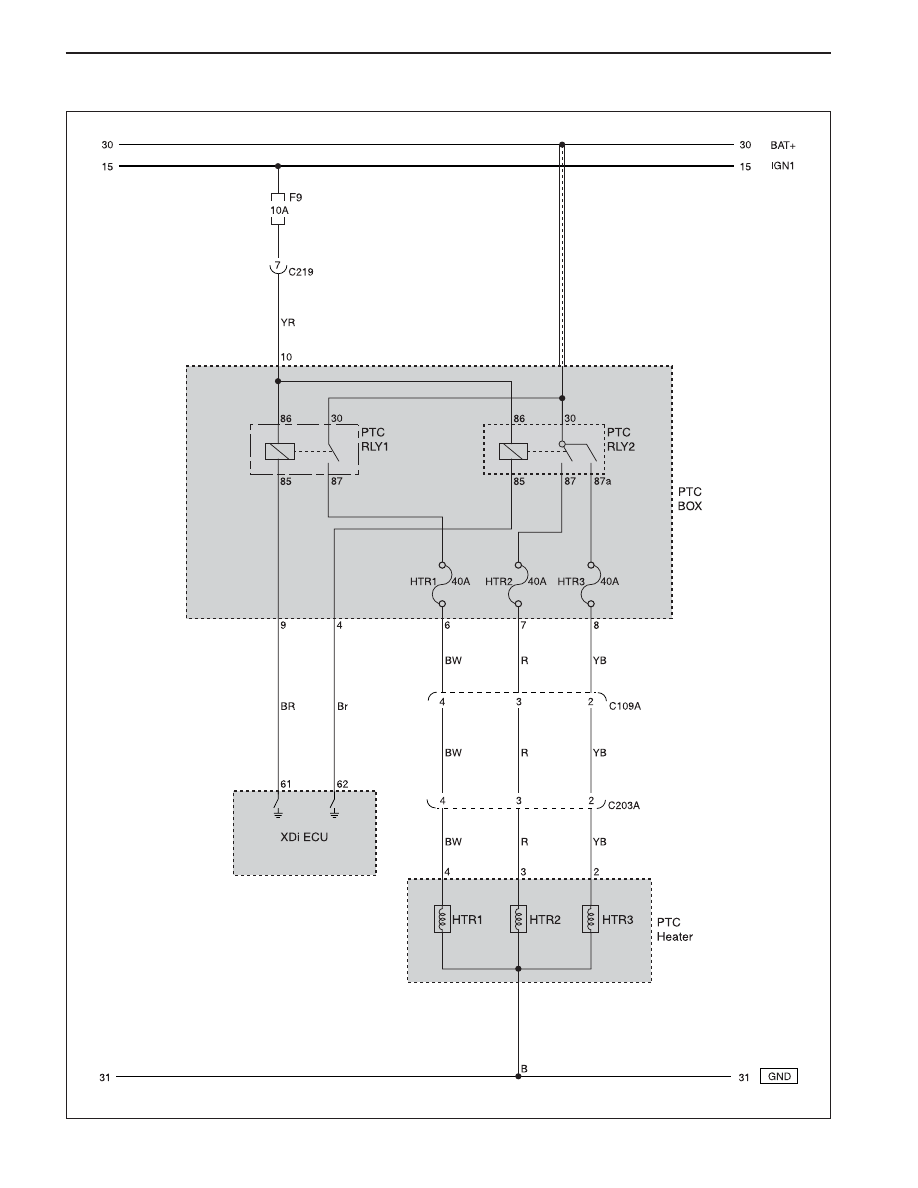

49. P.T.C HEATER(POSITIVE TEMPERATURE COEFFICIENT)

ELECTRICAL WIRING DIAGRAMS  5-179

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine - Starter “ST”

Main - Floor(LH)

Engine - Main(RH)

C110(1Pin, Gray)

C204(20Pin, Black)

C219(13Pin, Green)

Connecting Wiring

Harness

FRT Pre-Heating Unit

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

A/T

Remark

Connector Position

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
