SsangYong Rexton. Manual - part 217

SSANGYONG  REXTON XDi(RHD)

5-172  ELECTRICAL WIRING DIAGRAMS

46. IMMOBILIZER(DSL)

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-173

SSANGYONG  REXTON XDi(RHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

A. CONNECTOR INFORMATION

C113(12Pin, Black)

C211(14Pin, White)

C211(18Pin, White)

C218(22Pin, Yellow)

S204(14Pin, Black)

S206(14Pin, Black)

G103

G104

G201

G302

Connector Number

(Pin Number, Color)

Engine - Engine Control

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Floor(RH)

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

Connecting Wiring

Harness

Right Engine Room Dash PNL

Upper the Diagnosis

Upper the Diagnosis

Inside Driver Side Cowl PNL

Behind the Left the FATC

Behind the Left the FATC

Behind the Left Head Lamp

Beside the Engine Mounting Bracket

Inside Driver Side Cowl PNL

Under Co-Driver Seat

DSL

XDi

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-174  ELECTRICAL WIRING DIAGRAMS

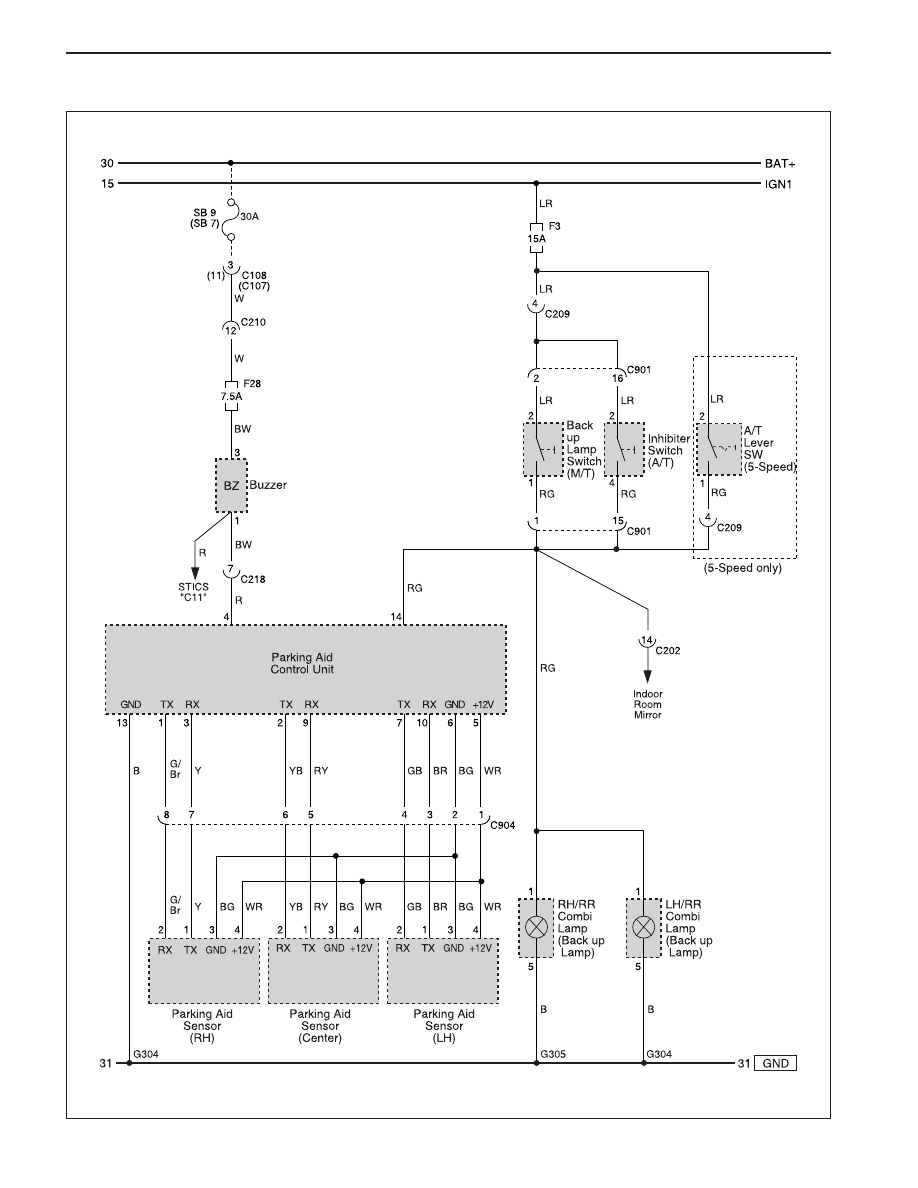

47. PARKING AID CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-175

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(K) - Engine

Main - Roof

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Floor - T/M

Floor - T/M

Floor - Parking Aid

W/H Floor

W/H Floor

C108(4Pin, Colorless)

C202(15Pin, White)

C209(22Pin, Yellow)

C210(13Pin, Green)

C218(22Pin, Yellow)

C307(16Pin, Black)

C307(2Pin, Black)

C904(8Pin, Black)

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Inside the Left the RR Bumper

Behind the Quarter Grass #1

Behind the Quarter Grass #1

A/T

A/T

M/T

Parking Aid

Remark

Connector Position
