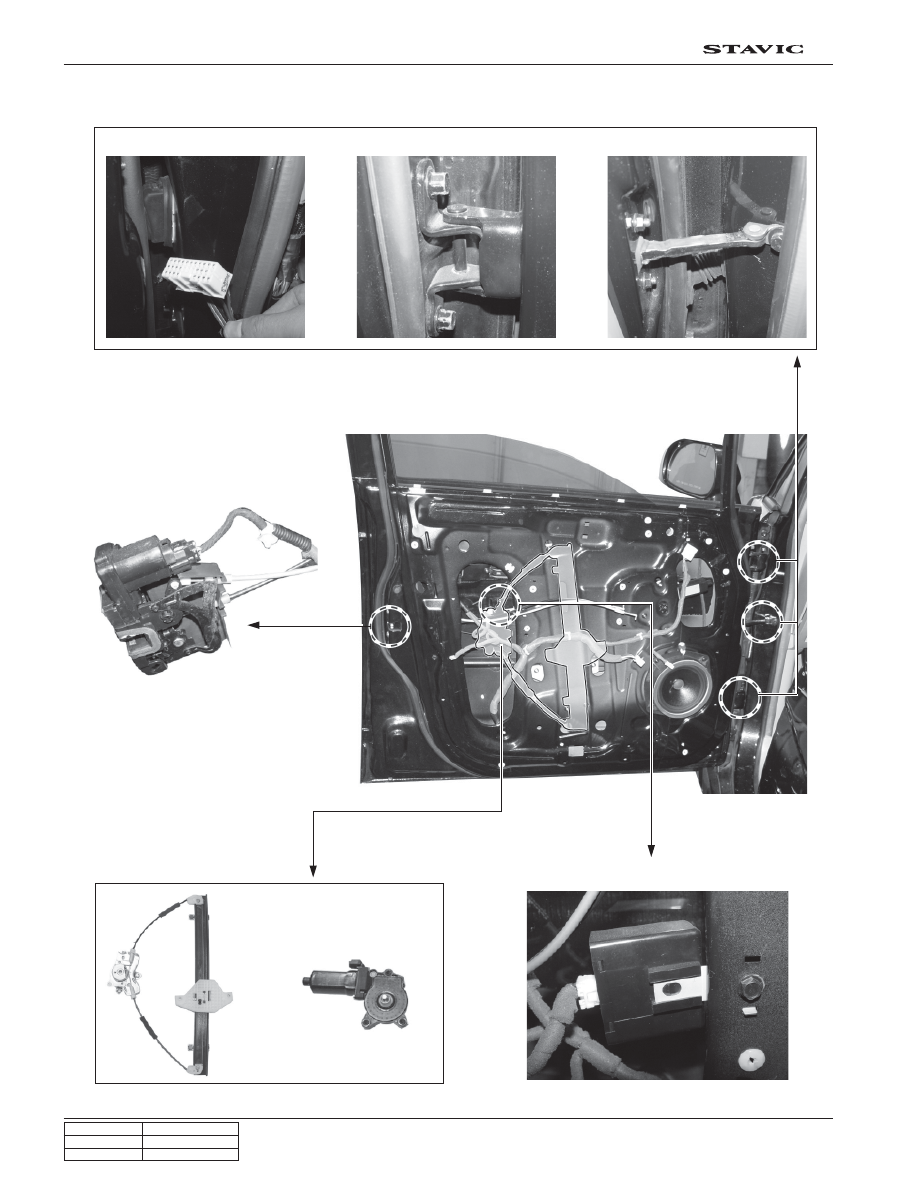

Window regulator & motor

Rear view mirror folding unit

Door connector

○

○○○○○○○○○○○○○○○

○

○○○○○○○○○○○○○○○

Door hinge

Check linkage

Door latch & crank

○

○

○

○○○○○○○○○○○○○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

7

5B

2. LAYOUT - REAR DOOR

○○○○○○○○○○

○○○○

○○○○○○○○○○

○○○○

○○○○○○○○○○

○○○○

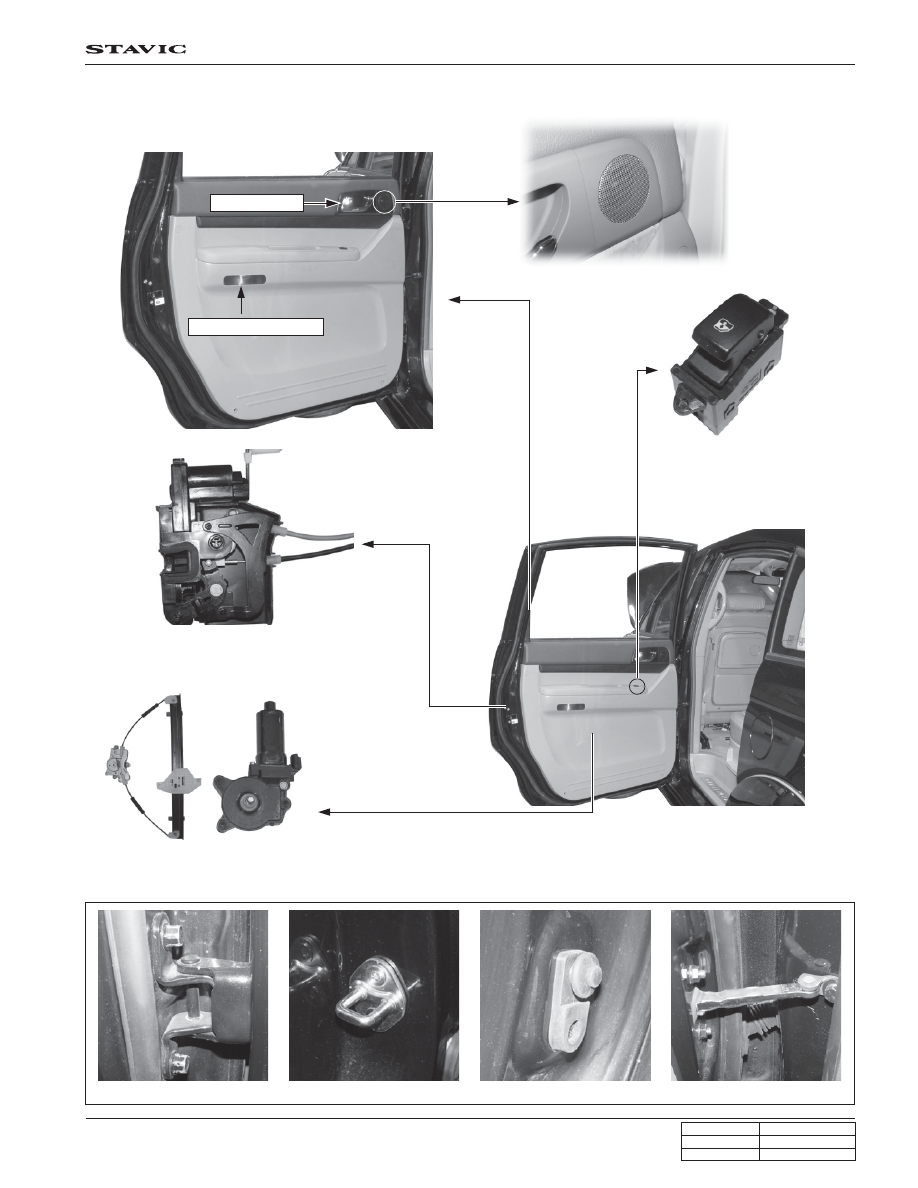

Door courtesy lamp

Window regulator & Motor

Door latch & crank

Power window switch

Twitter speaker

Door check linkage

Contact switch

Door striker

Door hinge

Inside handle

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

8

5B

Window regulator

Guide rail

Regulator operating cable

Window motor

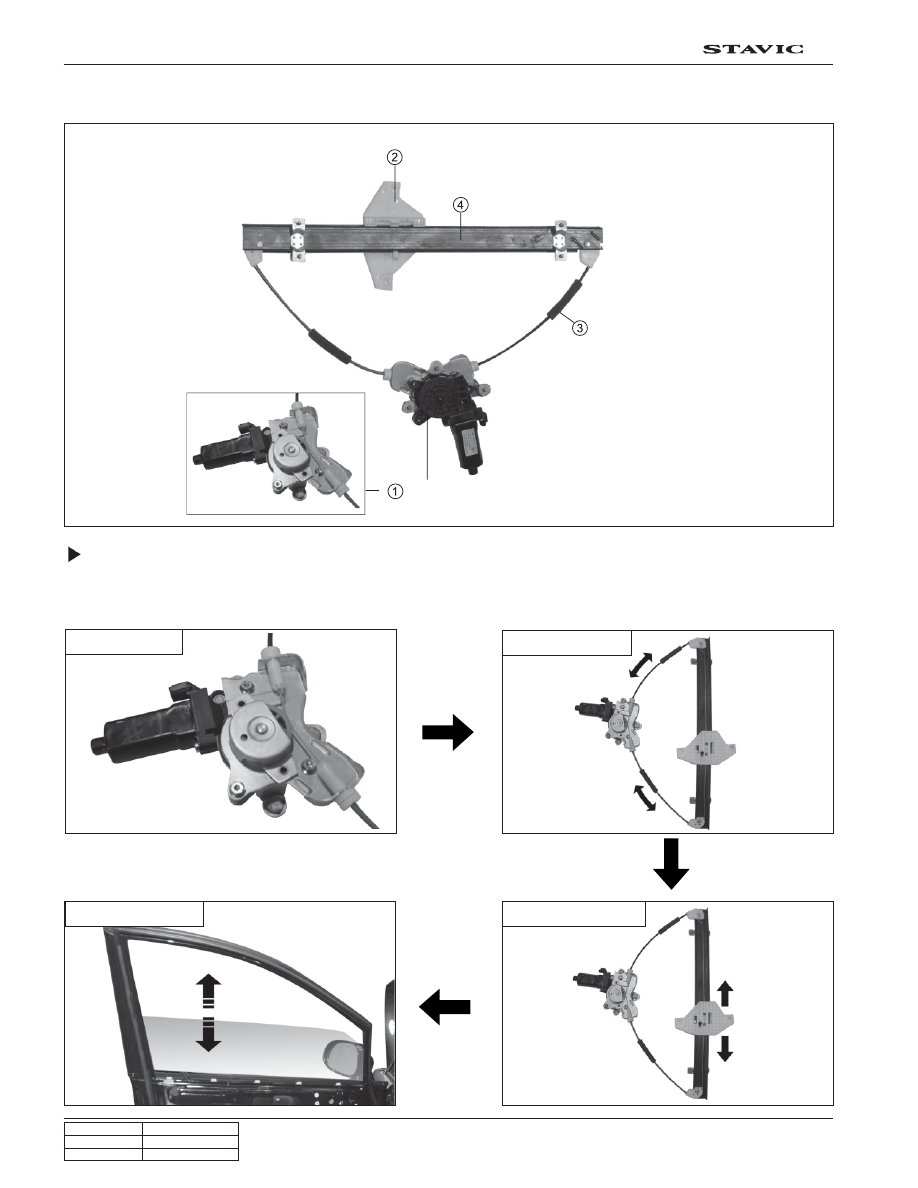

3. OPERATION - WINDOW

Operating Process

Power window motor (1) which is controlled by the window switch draws up and down the window regulator (2) and
operating cable. The window glass move up and down with the window regulator.

Window motor

Operating cable

Window up/down

Window regulator

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

9

5B

4. OPERATION - DOOR LOCK / UNLOCK

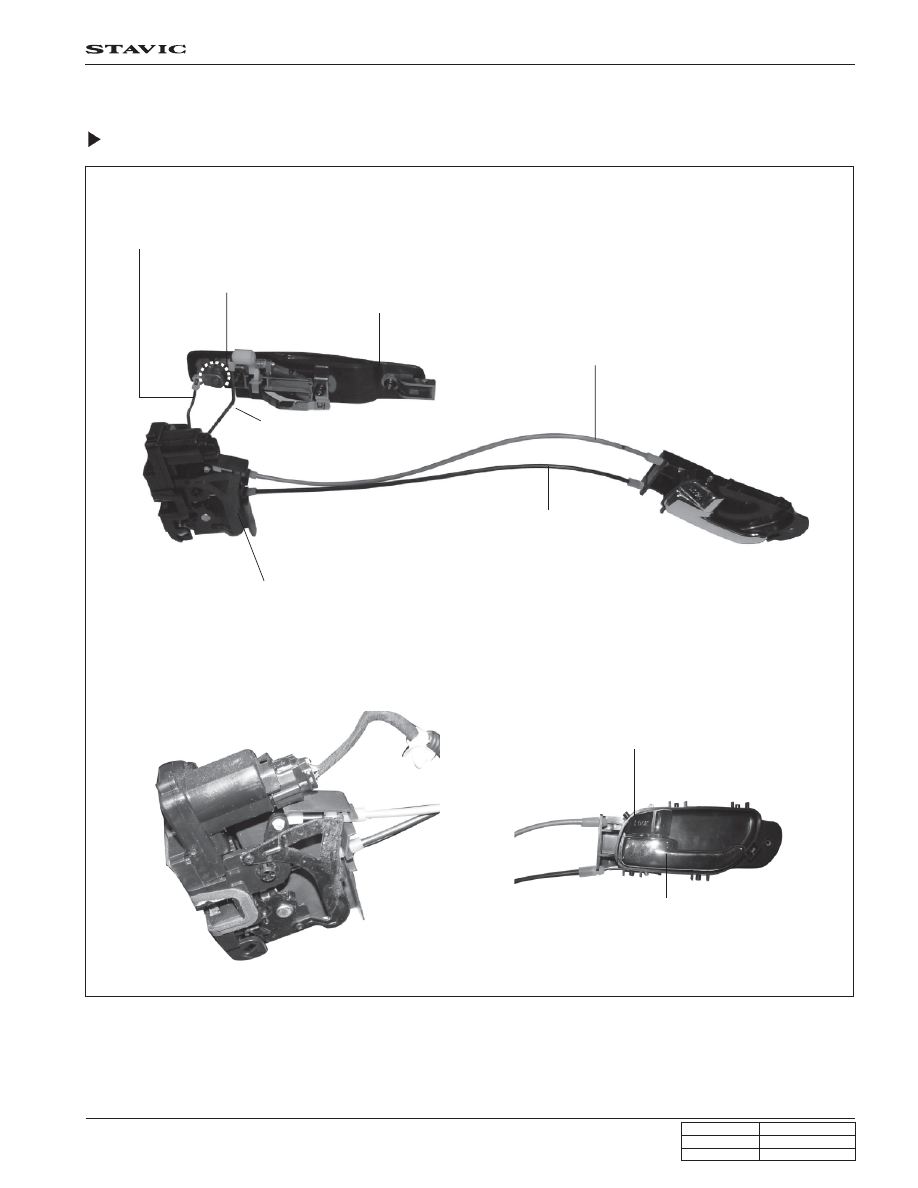

Front Door

Lock / Unlock cable

Door key cylinder

Connecting rod - outside handle

Operating cable - Inside handle

Outside door handle

Door latch

Connecting rod - key cylinder

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○○○○○○○○

○○○○○○○○○○○○○○○○

Inside door handle

Lock / Unlock
