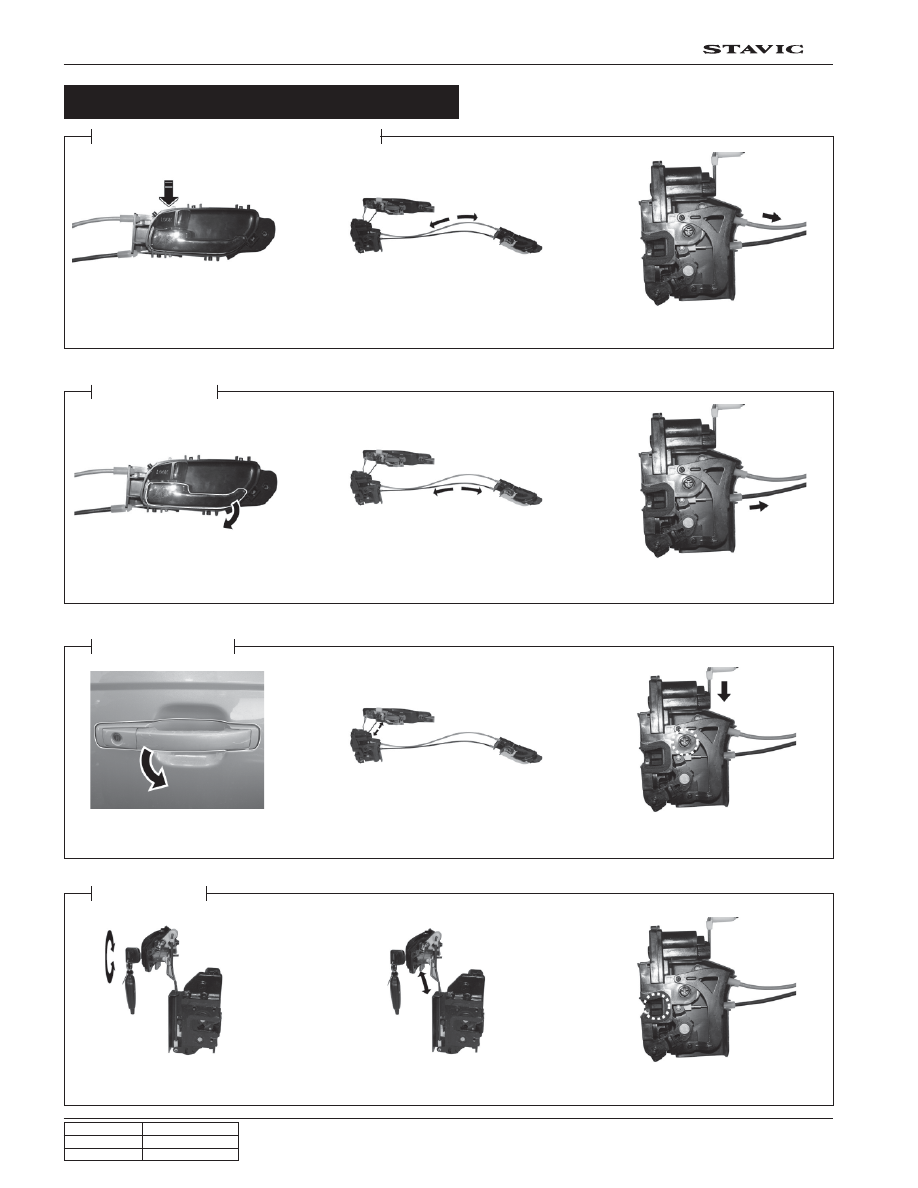

¢º Operating  Process

Operation of lock button

Operating cable

Latch lock / Unlock

Operation of Inside handle

Operating  cable

Latch  open  mode

Operation of outside handle

Connecting rod - outside handle

Latch open mode

Insert key & operation

Connecting rod - key cylinder

Latch lock / Unlock

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

→

Lock / Unlock (Inside door handle)

Inside handle

Outside handle

Key cylinder

Operating Process

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

11

5B

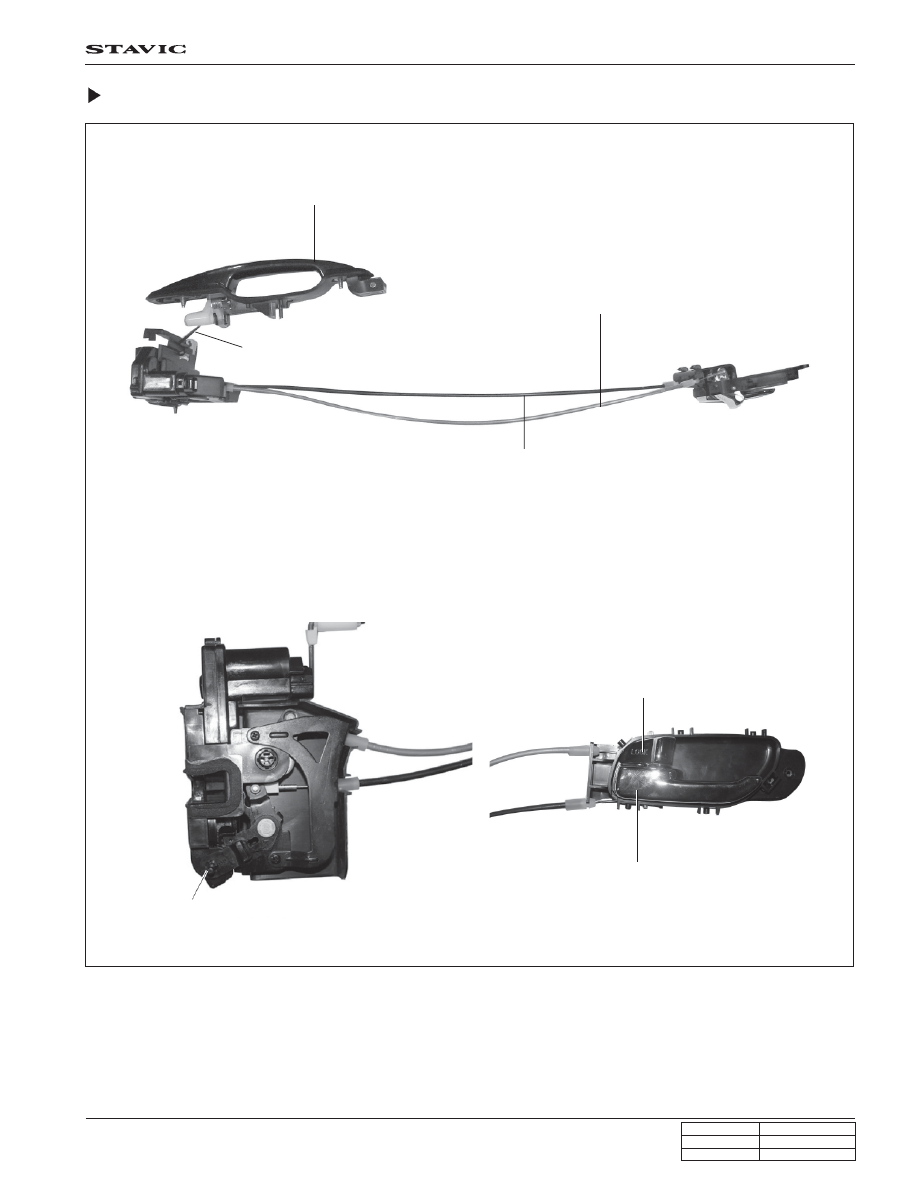

Rear Door

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○○○○○○○○○○○○○○○○○○○○○○

○○○○○

Inside door handle

Rock / Unlock cable

Outside door handle

Lock / Unlock

Connecting rod - Outside handle

Operating cable - Inside handle

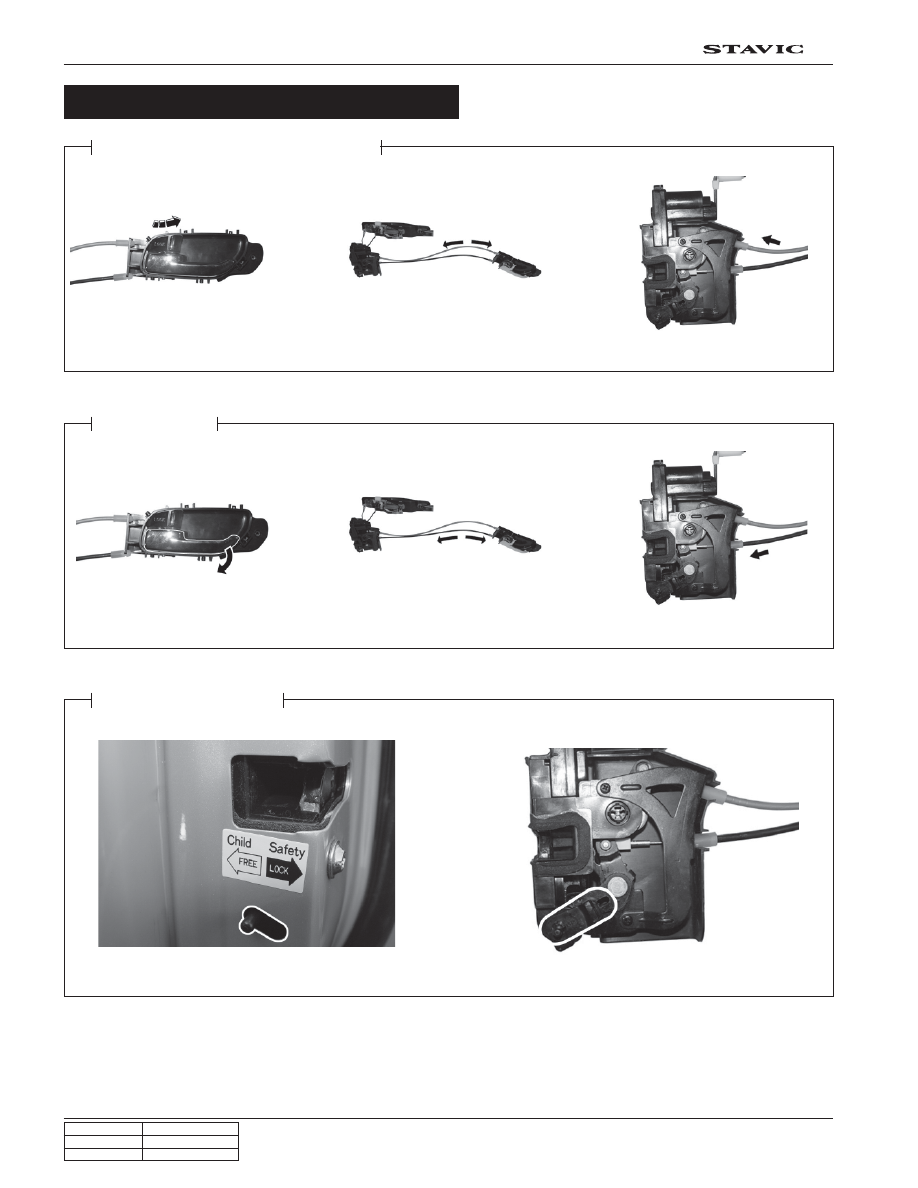

CHILD / SAFETY mode

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

12

5B

→

→

→

→

→

→

→

→

→

→

Lock button

Operating cable

Latch lock / Unlock

→

→

→

→

→

→

→

→

→

→

Inside handle

Operation of handle

Operating  cable

Open mode - Latch

Safety  (FREE)  mode

Latch & Crank in operation

→

→

→

→

→

Lock / Unlock (Inside door handle)

CHILD / SAFETY mode

Operating Process

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

13

5B

5. REMOVAL AND INSTALLATION

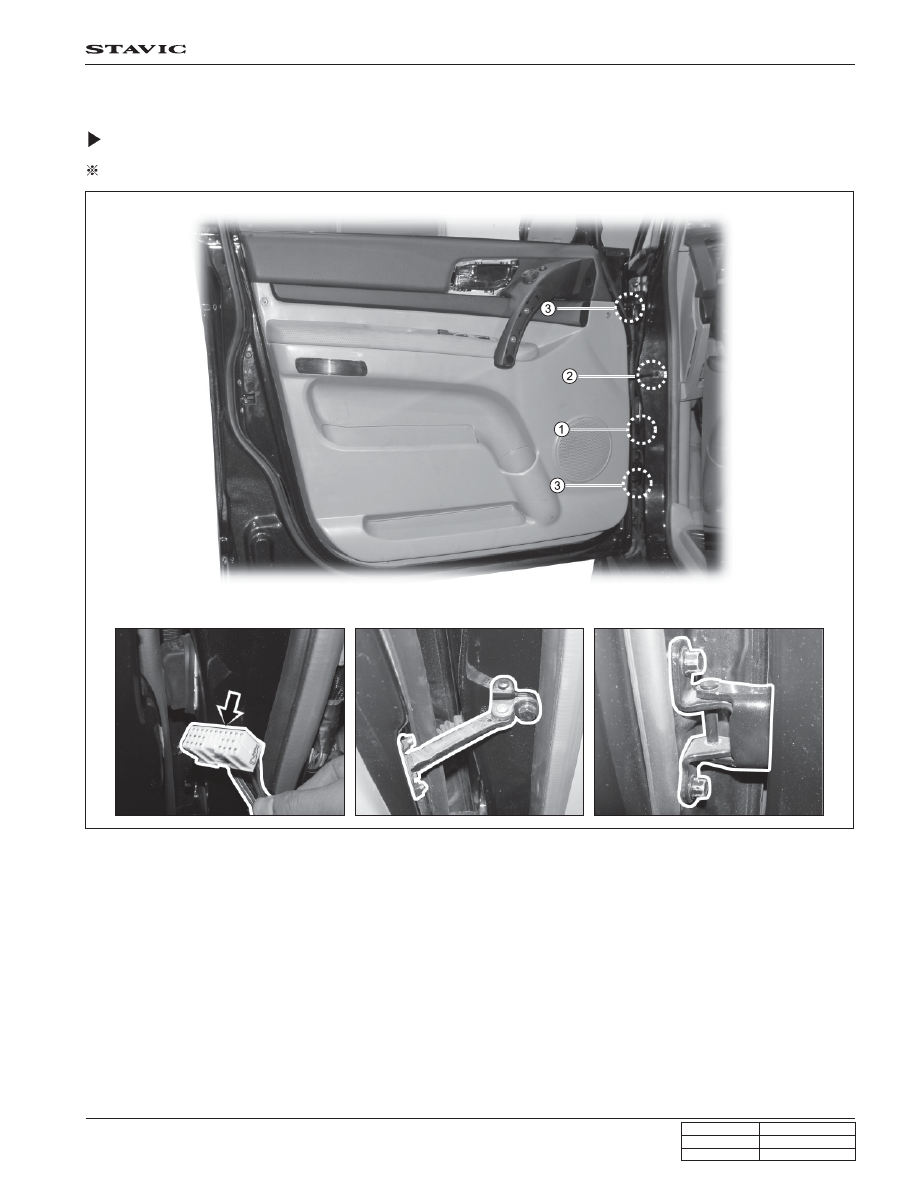

Front Door Assembly

Preceding Work: Disassembly of battery cable (-)

1. Disconnect the door connector (1).

2. Unscrew the check linkage bolt (2) at body side.

3. Unscrew the upper and the lower door hinge bolts (3).

4. Remove the door assembly.

5. Install in the reverse order of removal.

2. Door check link

3. Door hinge

1. Door connector
