BODY INTERIOR

STAVIC - 2004.09

78

5A

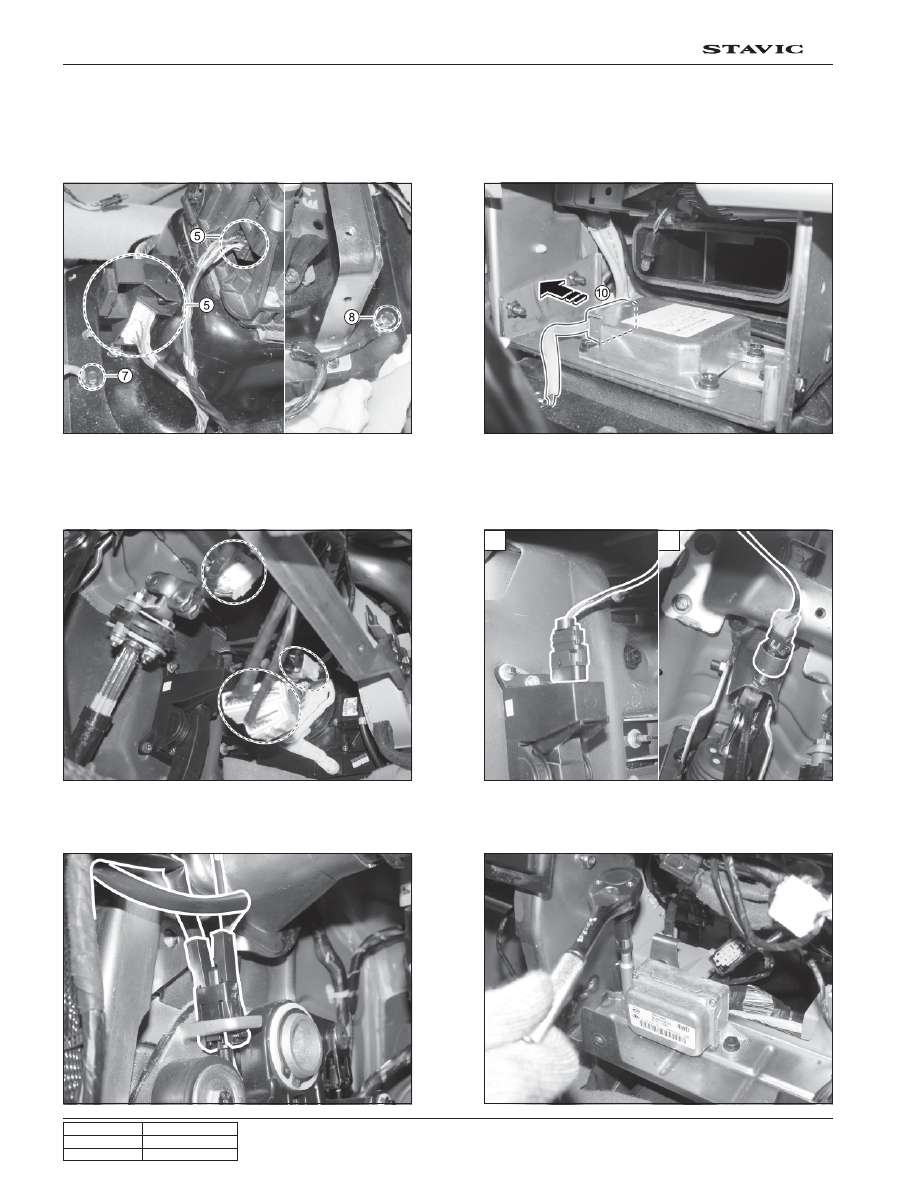

3) Center

5. T/M control connector

7. Earth

8. Earth

4) ETC

Aircon module connector (3 point)

A

B

10. SDM connector

12. Accelator pedal connector (A)

13. Brake pedal connector (B)

11. Parking brake connector.

14. Sensor cluster

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

79

5A

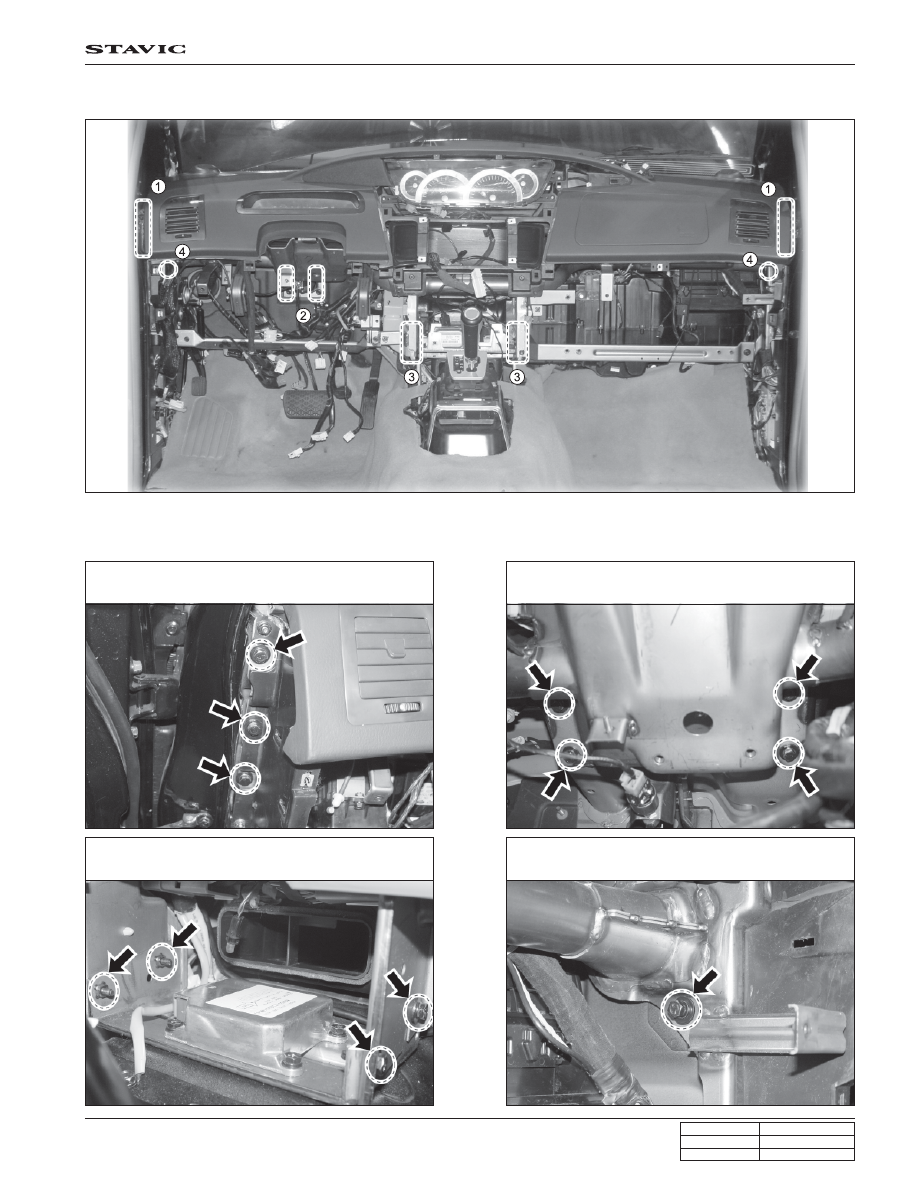

2. Remove bolt and nut on the instrument panel.

1. I/P side mounting bolts

(12 mm - 3 EA: LH/RH)

2. Driver’s side I/P inner bolts

(12 mm - 3 EA: LH/RH)

3. Center facia lower bolts

(10 mm - 2 EA: LH/RH)

4. I/P inner side mounting bolts

(12 mm - 1 EA: LH/RH)

* ICM Box assembly

(10 mm - 3 EA: Nut)

* Driver’s side I/P lower braket

(10 mm - 2 EA:Bolt)

* To remove I/P panel, unscrew the steering wheel
mounting bolts (12 mm - 2 EA) and remove the wheel.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

80

5A

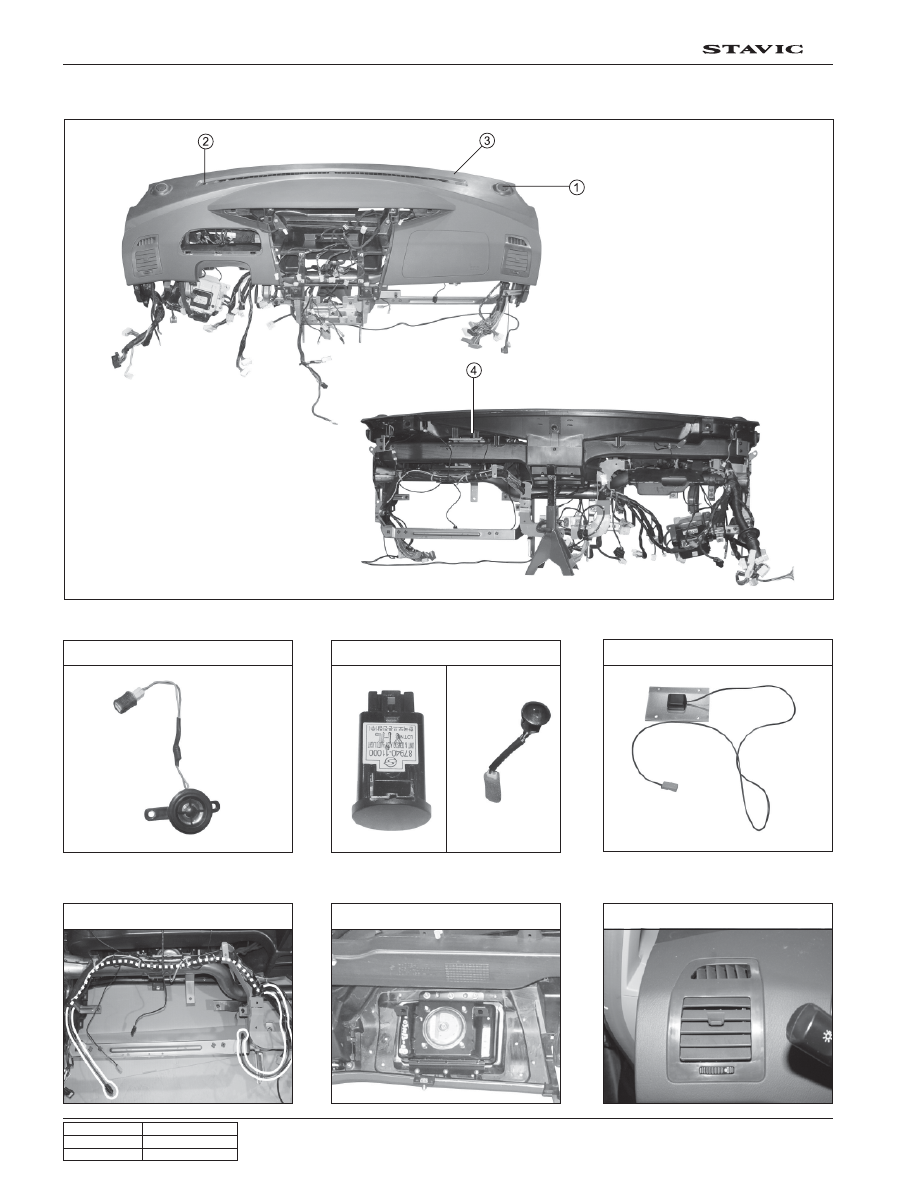

3. Remove the following parts from the instrument panel.

5. Optical cable

6. Passenger’s airbag module

7. I/P wind blow nozzle housing

1. Tweeter speaker

4. GPS

2. Auto light unit / 3. Sun sensor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

81

5A

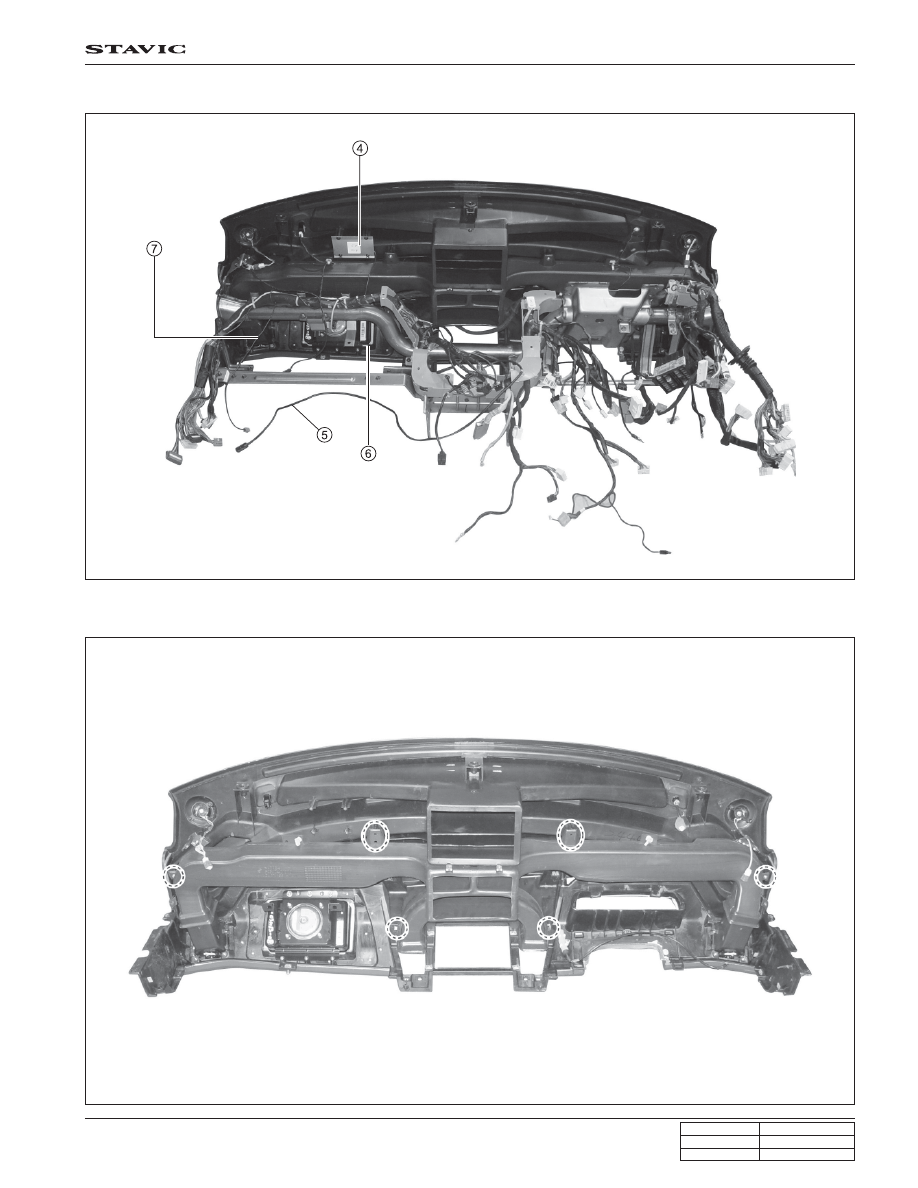

4. Remove the panel bracket from the instrument panel.

5. Remove front dust from the instrument panel.
