BODY INTERIOR

STAVIC - 2004.09

70

5A

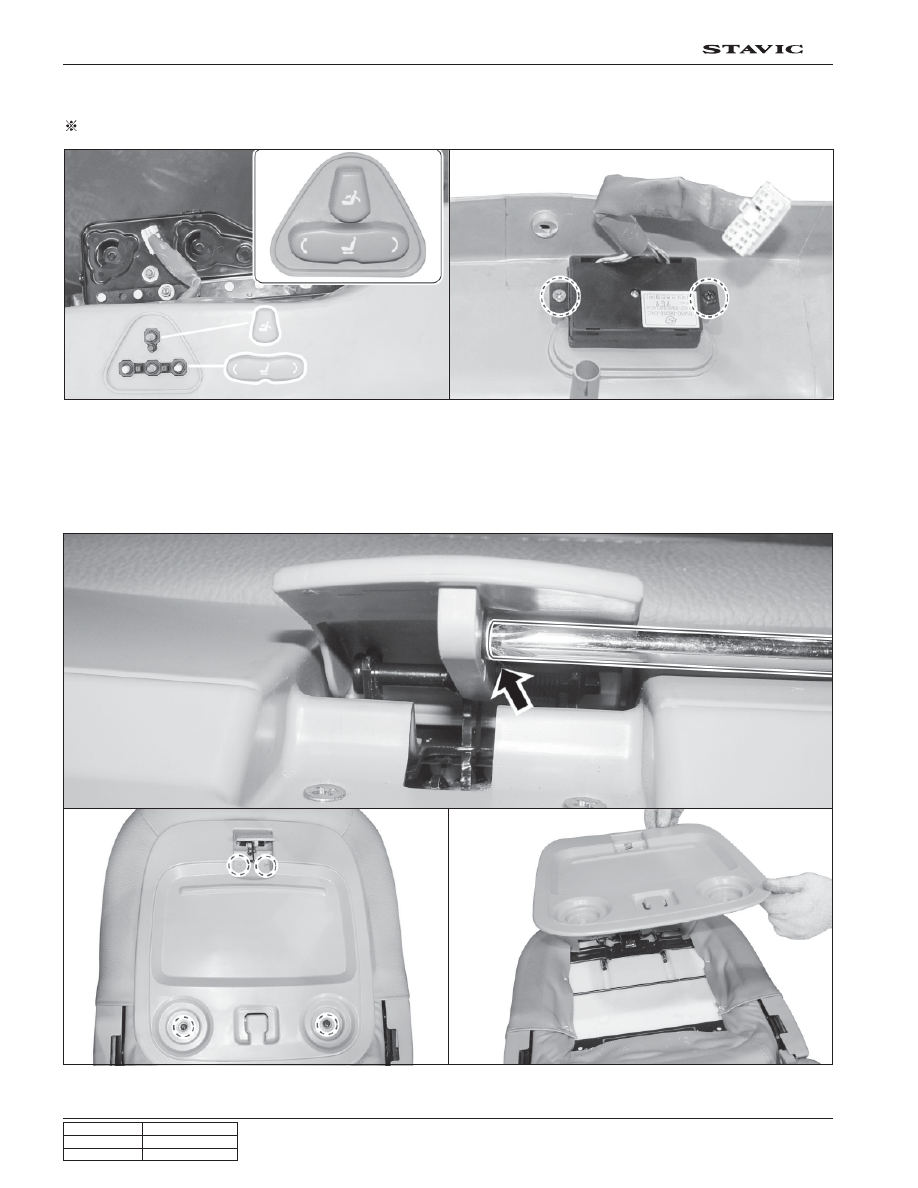

5) Power Seat Switch Assembly (Driver’s Seat)

Preceding Work: Removal of driver’s seat

1. Remove the power seat nob with a proper tool.

2. Remove seat side cover and unscrew the power seat switch unit mounting screw on the rear.

3. Disconnect the connector.

6) Back Table & Folding Lever

- Unscrew table mounting screws (4 EA).

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

71

5A

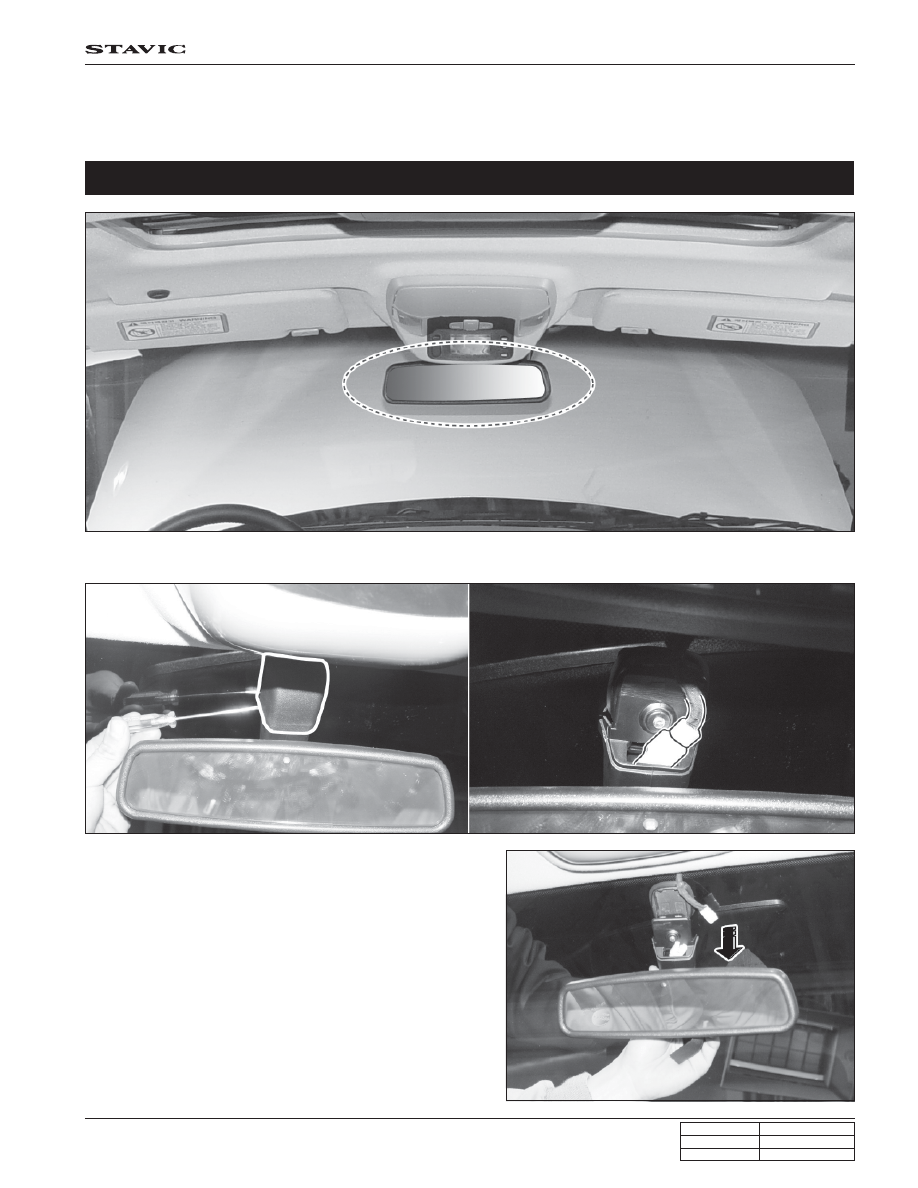

1. Remove room mirror cover with a screw driver.

3. ETC

1) ECM Room Mirror

2. Disconnect the connector.

3. Pull the room mirror downward to disassemble.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

72

5A

2) Rain Sensing Unit

Rain sensing unit detect the rain fall and control the speed of
wiper operation. This system is operated only when the wiper
switch is put on “Auto” mode.

[Refer th the electrical part] of this manual.

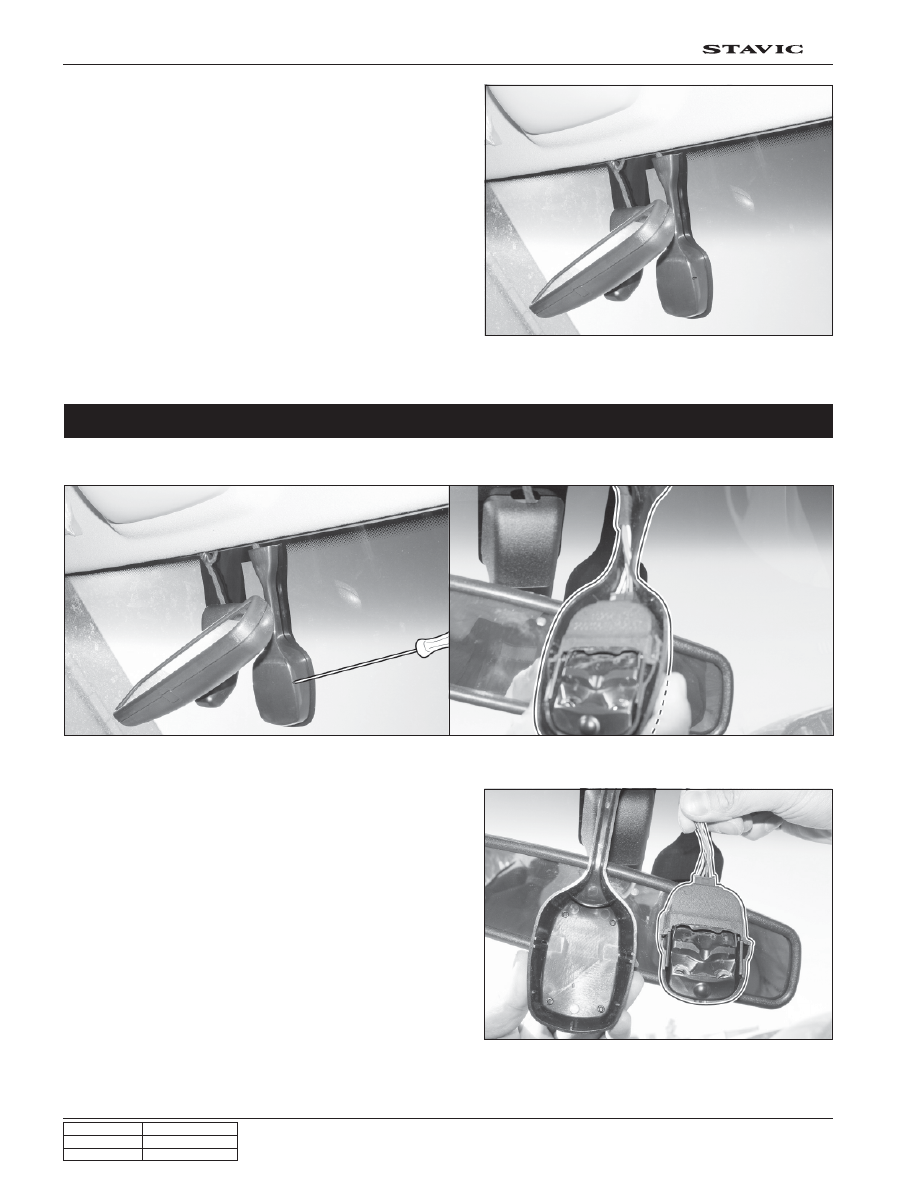

2. Disconnect the connector and disassemble the rain

sensing unit.

1. Remove the unit with a tool refering the picture below.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

73

5A

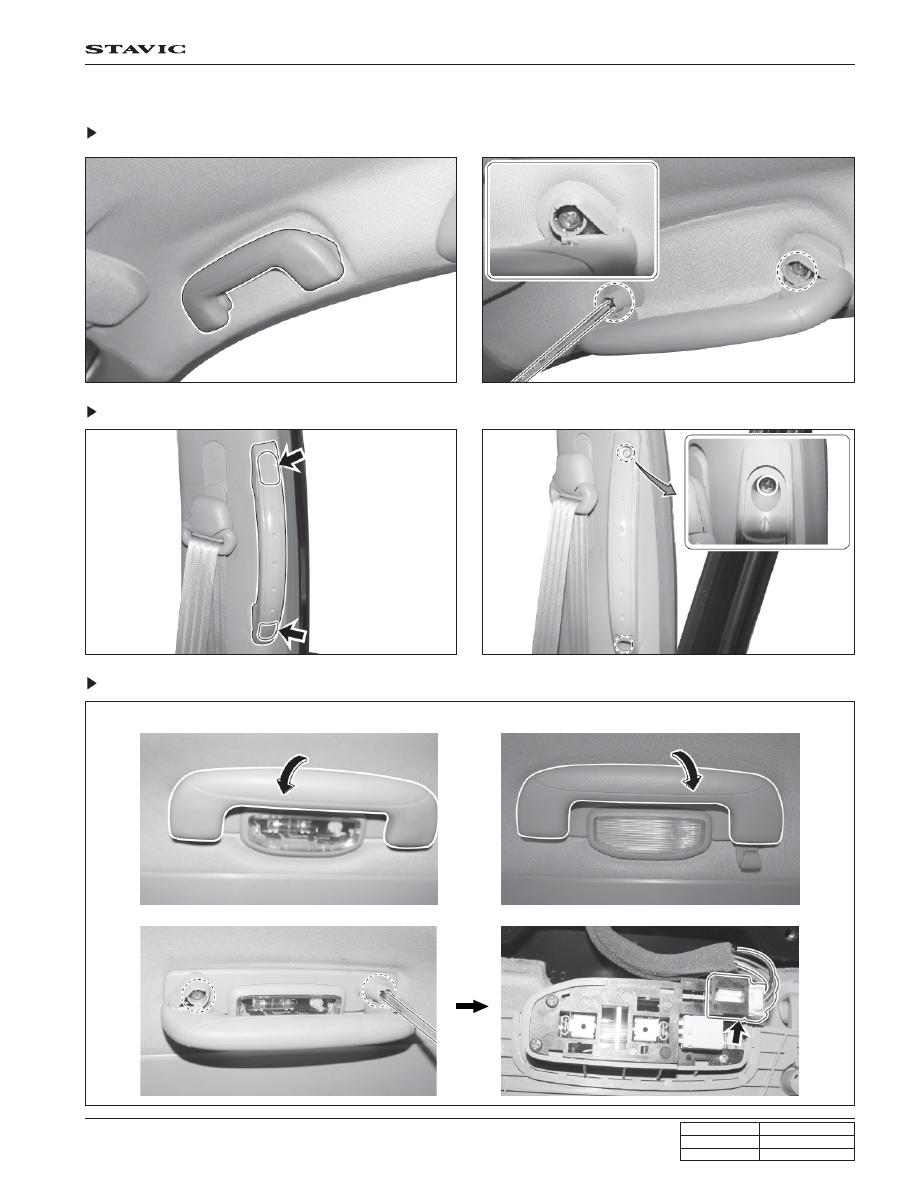

3) Hand Grip

Passenger’s Overhead

“B” Piller

Rear 1st & 2nd Seat

Rear 1st seat

Rear 2nd seat

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○
