SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 438

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

66

5A

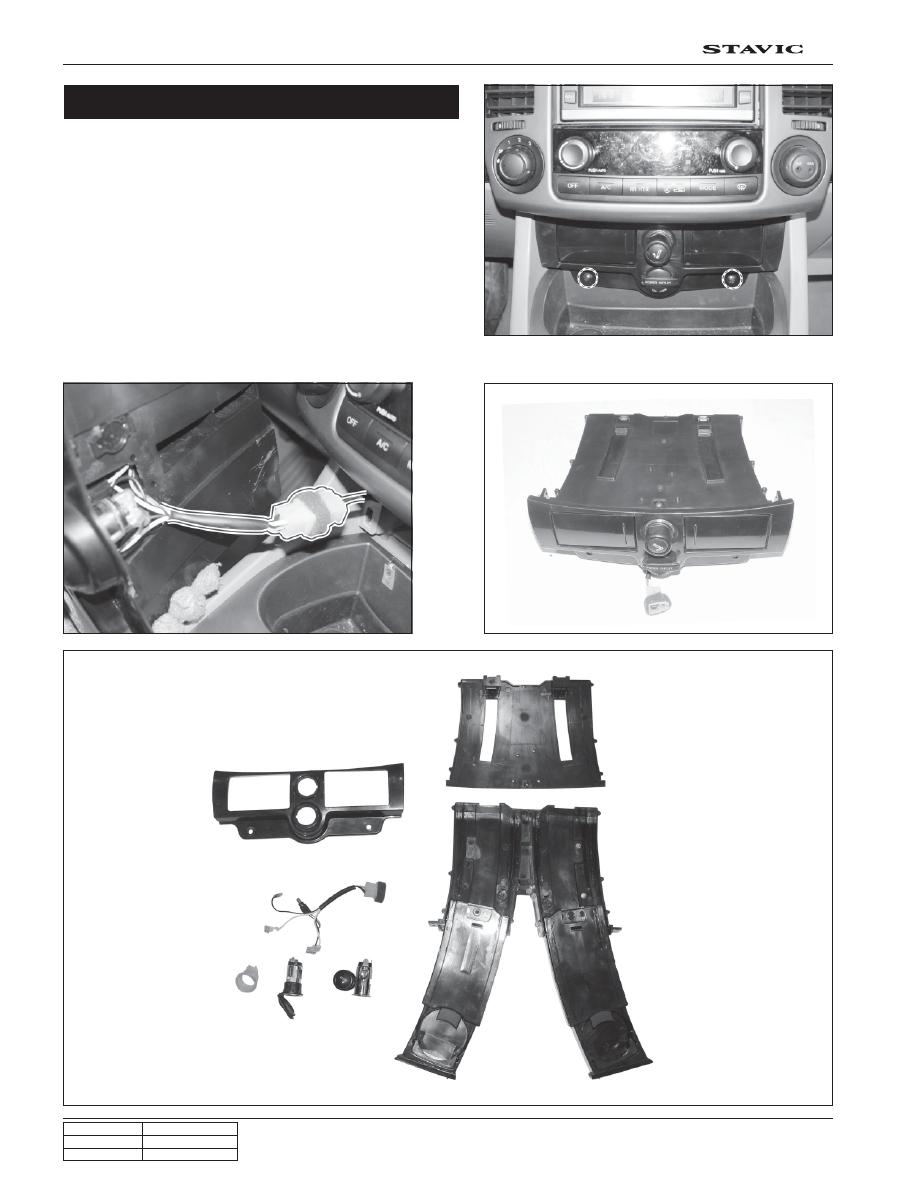

1. Remove cup holder mounting screws (2 EA).

2. Disconnect power outlet and cigar lighter lighter connector and remove the assembly.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

67

5A

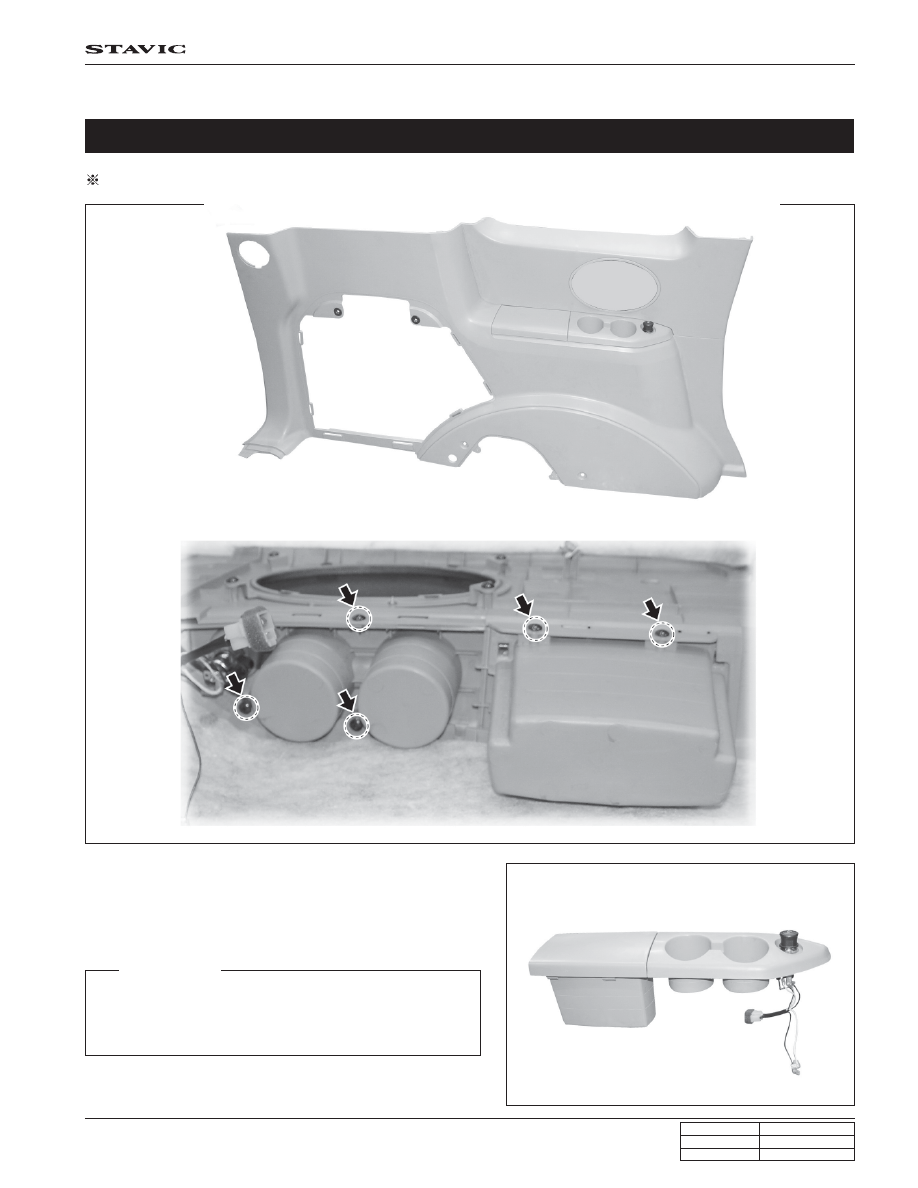

1. Remove the trim mounting screws shown in the above

picture.

2. Disconnect the cigar lighter and remove the cup holder

assembly.

2) Rear Cup Holder and Rear Cigar Lighter

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

 [Reference]

When to remove rear cigar lighter only, remove the lower
quarter trim and remove the cigar lighter from inside of the
trim.

Removal and Installation

Preceding Work: Removal of lower quarter trim and rear 2nd / 3rd seats.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

68

5A

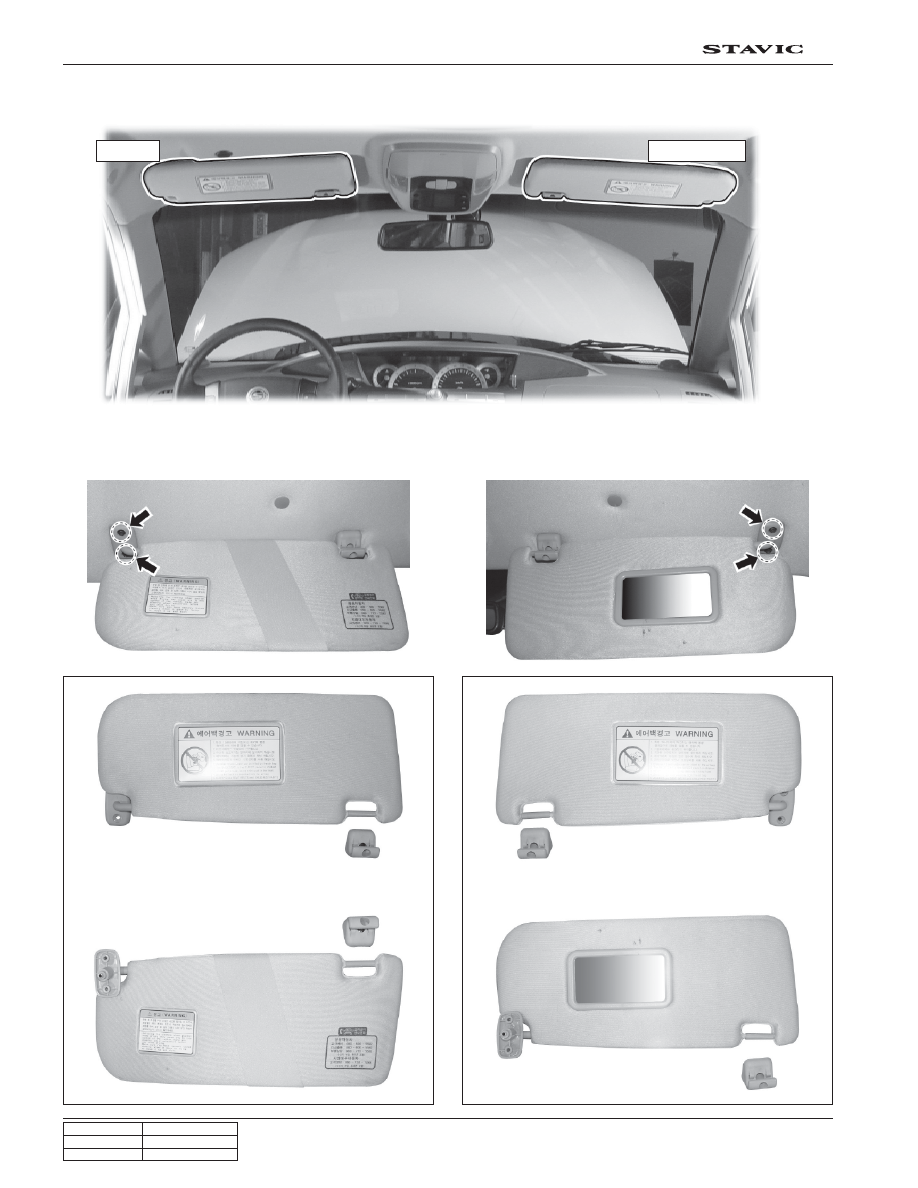

3) Sunvisor

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

- Unscrew the mounting screw and remove it.

- Remove the sunvisor.

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

Passenger’s

Driver’s

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

69

5A

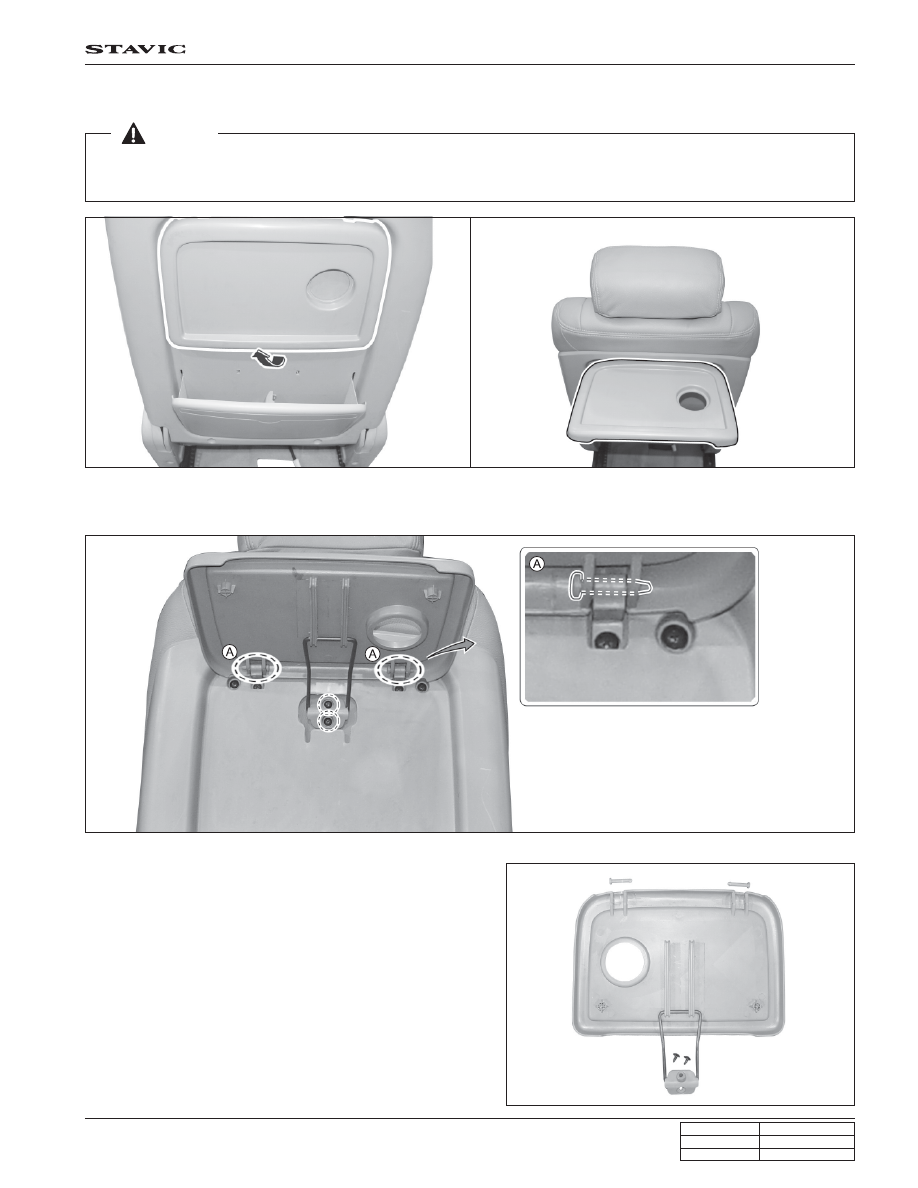

4) Tea Table

1. Remove two upper mounting screws.

2. Remove the tea table.

 [Notice]

• Don’t put a load heavier than 3.5kg on the tea table.

• Don’t use the table while driving to prevent body injury.

Removal and Installation
