SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 380

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

31

REAR SUSP & AXLE

STAVIC - 2004.09

4F

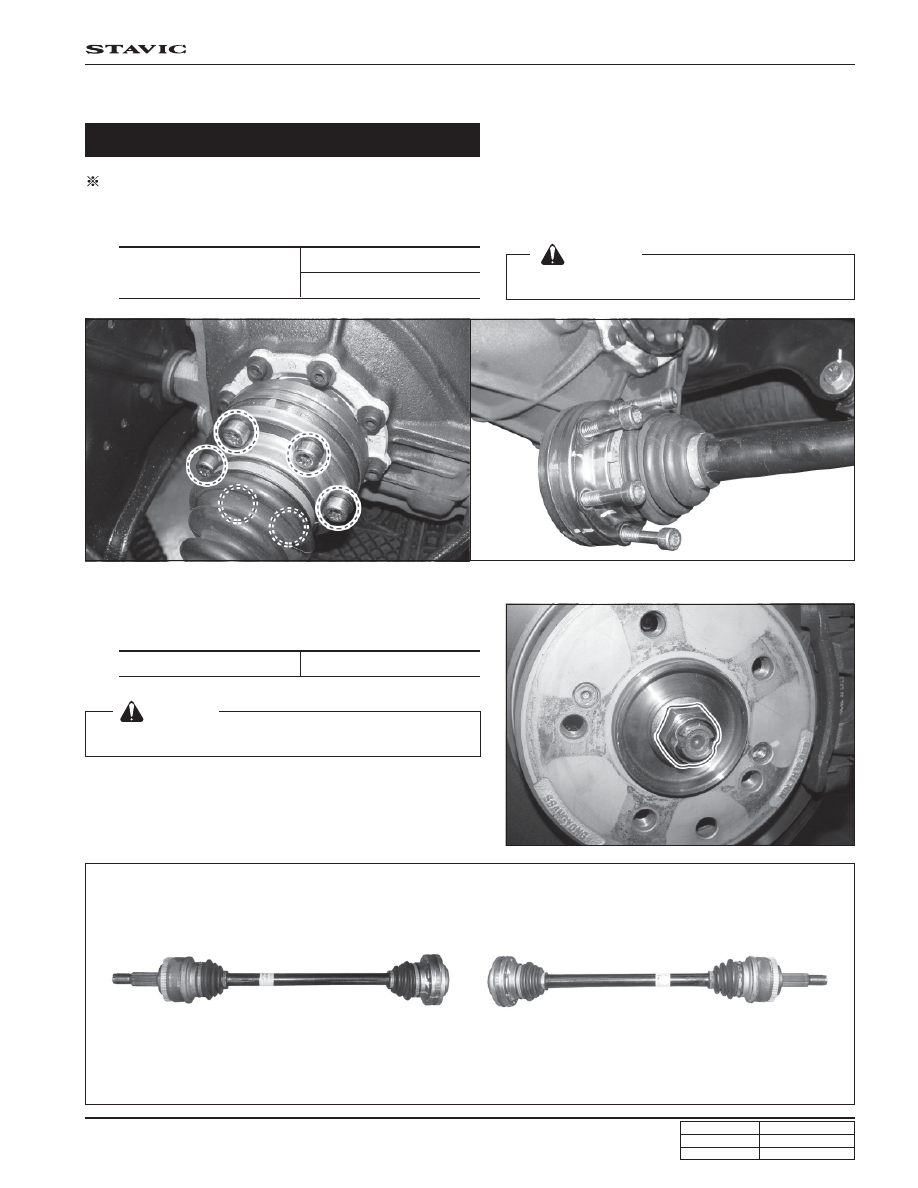

Rear Axle Shaft

 Preceding work: Removal of wheel and tire

1. Unscrew rear axle shaft mounting bolts from axle housing

(6 EA).

2. Unscrew lock nut (30 mm) from wheel disk side and

remove the axle shaft.

3. REMOVAL AND INSTALLATION

Tightening torque

Initial: 70 ~ 80 Nm

Secondary: 90 ± 5°

 [Notice]

Replace the lock nut to new one by every disassembly.

Tightening torque

200 ~ 240 Nm

 [Notice]

Replace the bolts by every removal

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

32

REAR SUSP & AXLE

STAVIC - 2004.09

4F

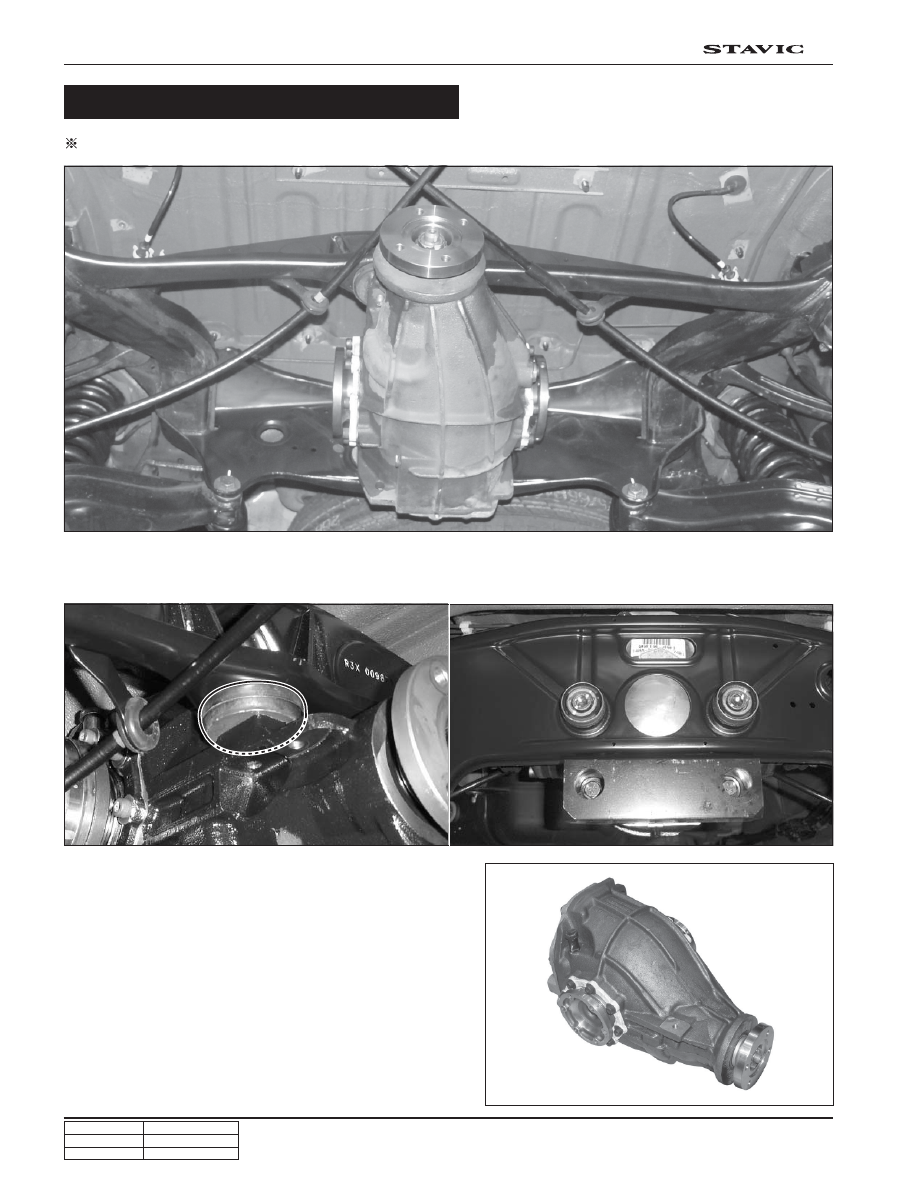

Rear Axle Housing

 Preceding work: Removal of rear axle shaft

1. Support the axle housing with mounting jack.

2. Unscrew one front mounting bolt and two rear mounting bolts to remove the axle housing from the rear sub frame.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

33

REAR SUSP & AXLE

STAVIC - 2004.09

4F

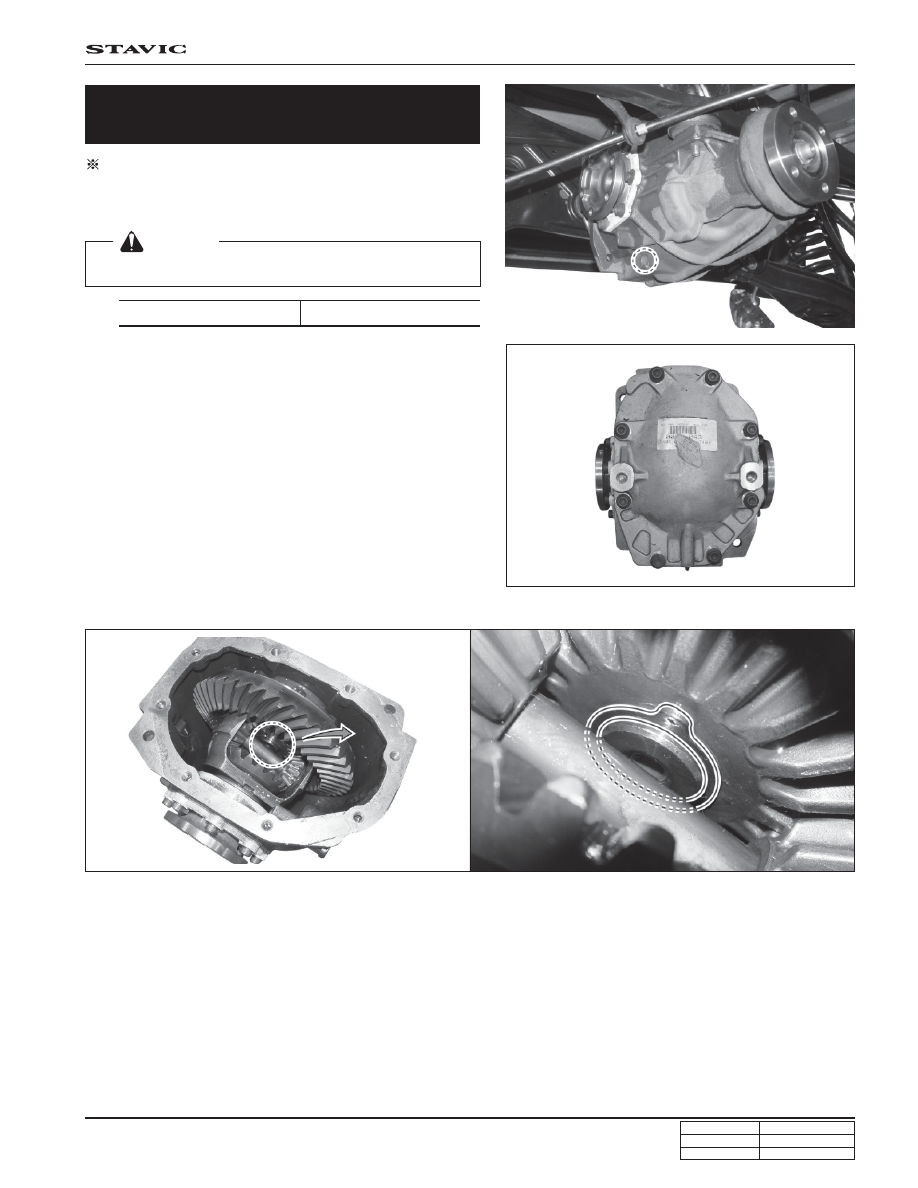

Replacement of Radial Sealing and
O-ring

 Preceding work: Removal of rear axle housing

1. Drain oil in the axle housing.

2. Remove the axle mounting damper

4. Remove the connecting flange snap ring with special tool.

3. Remove the axle housing cover and damper bracket.

 [Notice]

Damper bolt should be replaced by ecery removal.

Tightening torque

90 ± 110 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

34

REAR SUSP & AXLE

STAVIC - 2004.09

4F

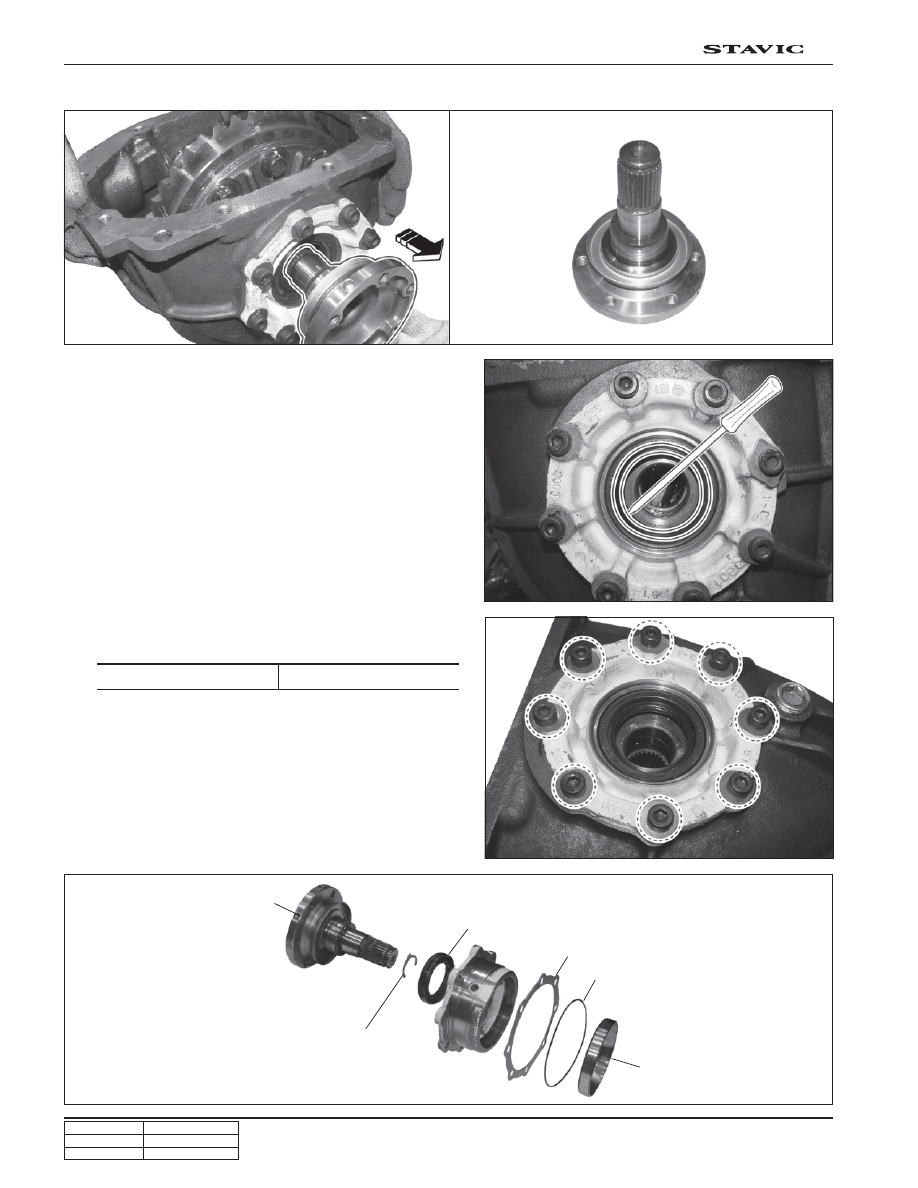

Inner flange

Snap ring

Back lash adjust shim

O-ring

Shim

Radial sealing

5. Pull out the inner flange.

6. Remove the radial sealing with a tool.

7. To replace the O-ring, unscrew the side bearing cover

mounting bolts.

8. Remove shim and replace the O-ring.

Tightening torque

20 ± 4 Nm
