23

REAR SUSP & AXLE

STAVIC - 2004.09

4F

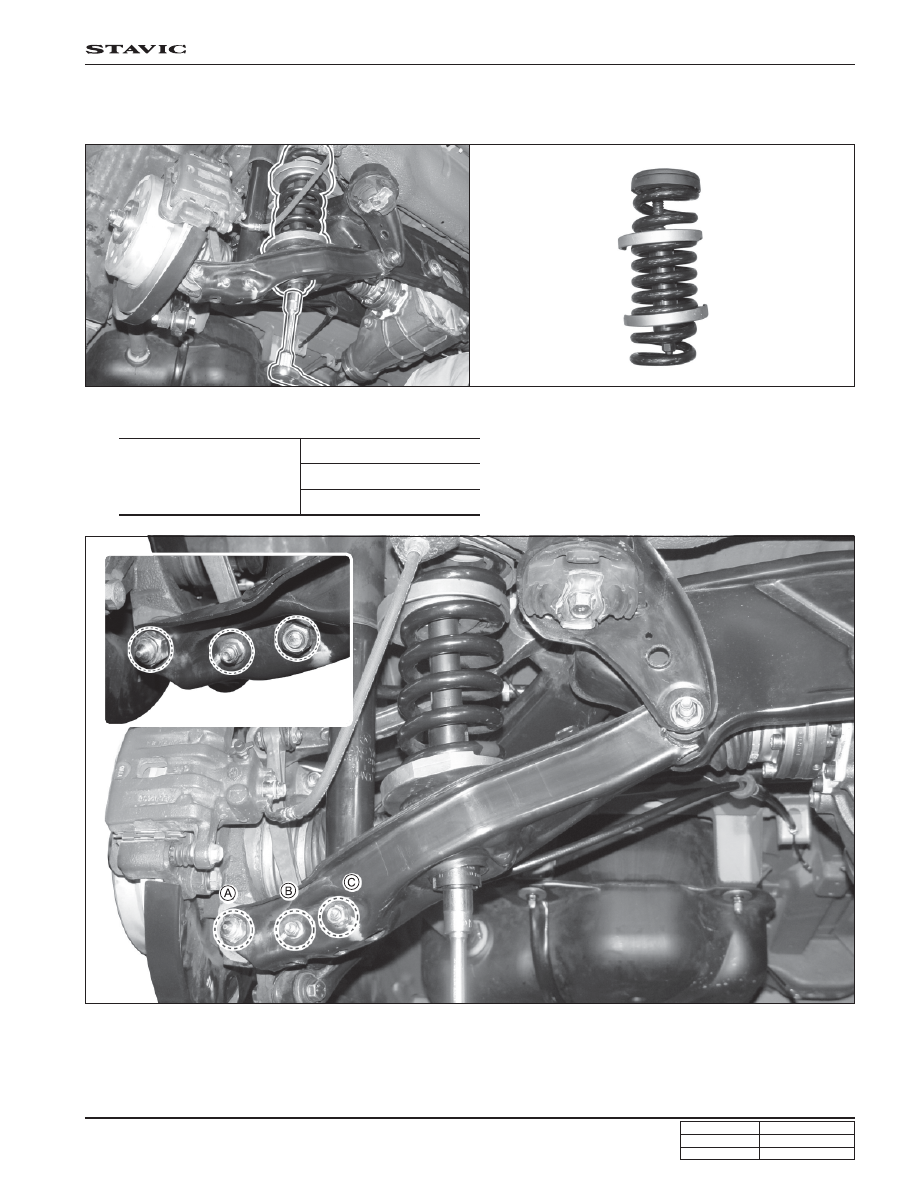

7) Spring Link

1. Compress the spring with special tool for easier removal and installation.

2. Unscrew the wheel carrier mounting bolt (A), stabilizer link mounting nut (B) and shock absorber mounting nut (C).

Tightening torque

Wheel carrier: 20 Nm

Stabilizer link: 120 Nm

Shock absorber: 55 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

24

REAR SUSP & AXLE

STAVIC - 2004.09

4F

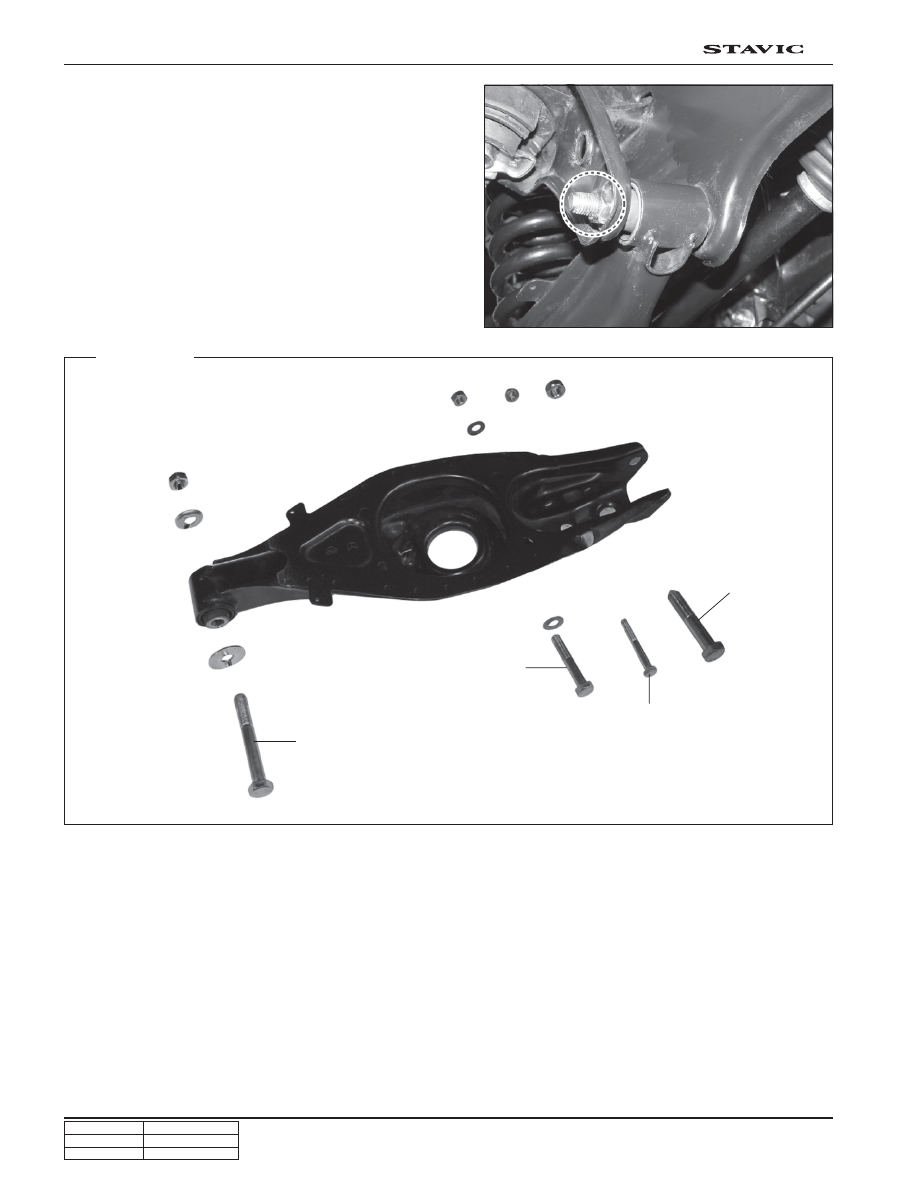

3. Unscrew the spring link mounting bolt on the rear axle

carrier and remove the spring link.

Body

Shock absorber

Stabilizer link

Wheel carrier

Spring Link

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

25

REAR SUSP & AXLE

STAVIC - 2004.09

4F

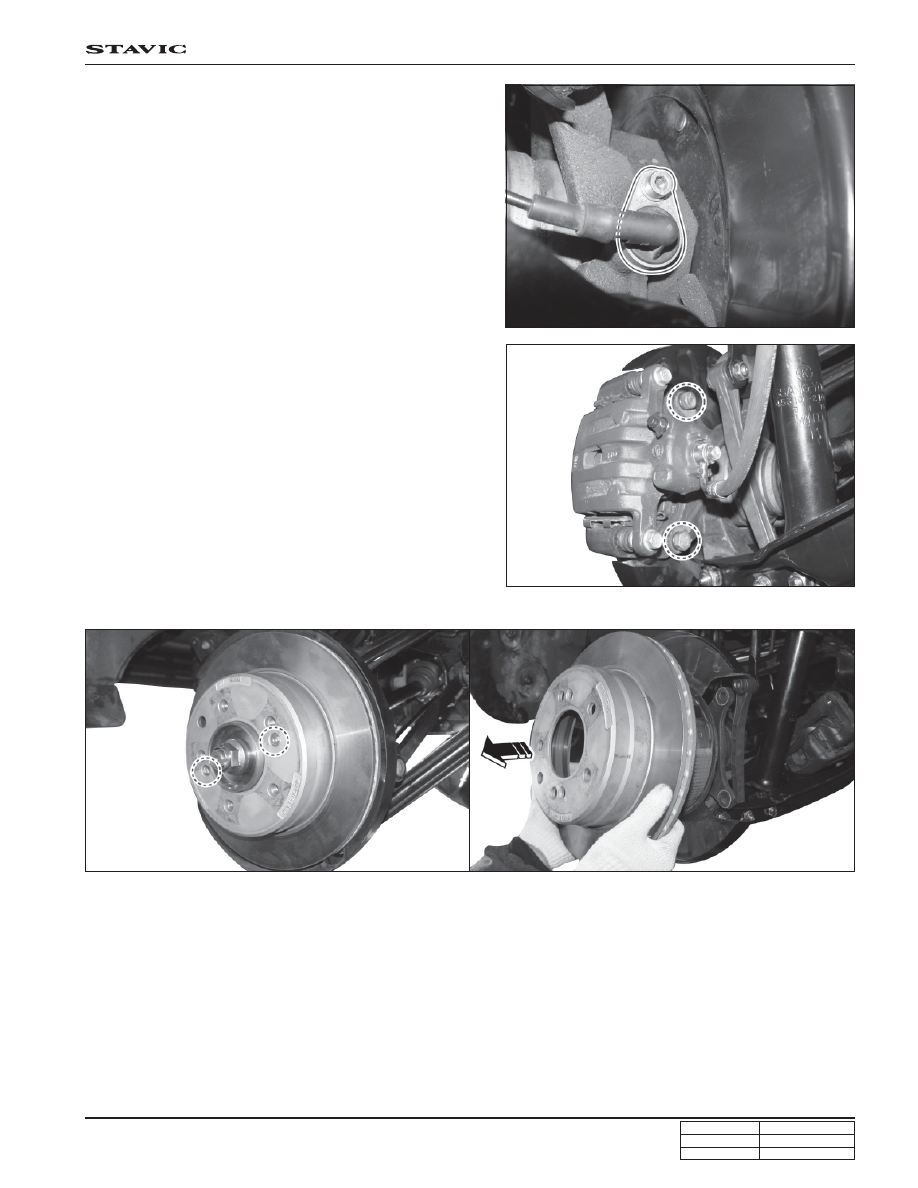

3. Unscrew the brake disk mounting unt (2 EA) and remove the disk.

8) Wheel Carrier Assembly

1. Remove the wheel speed sensor.

2. Remove the brake caliper.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

26

REAR SUSP & AXLE

STAVIC - 2004.09

4F

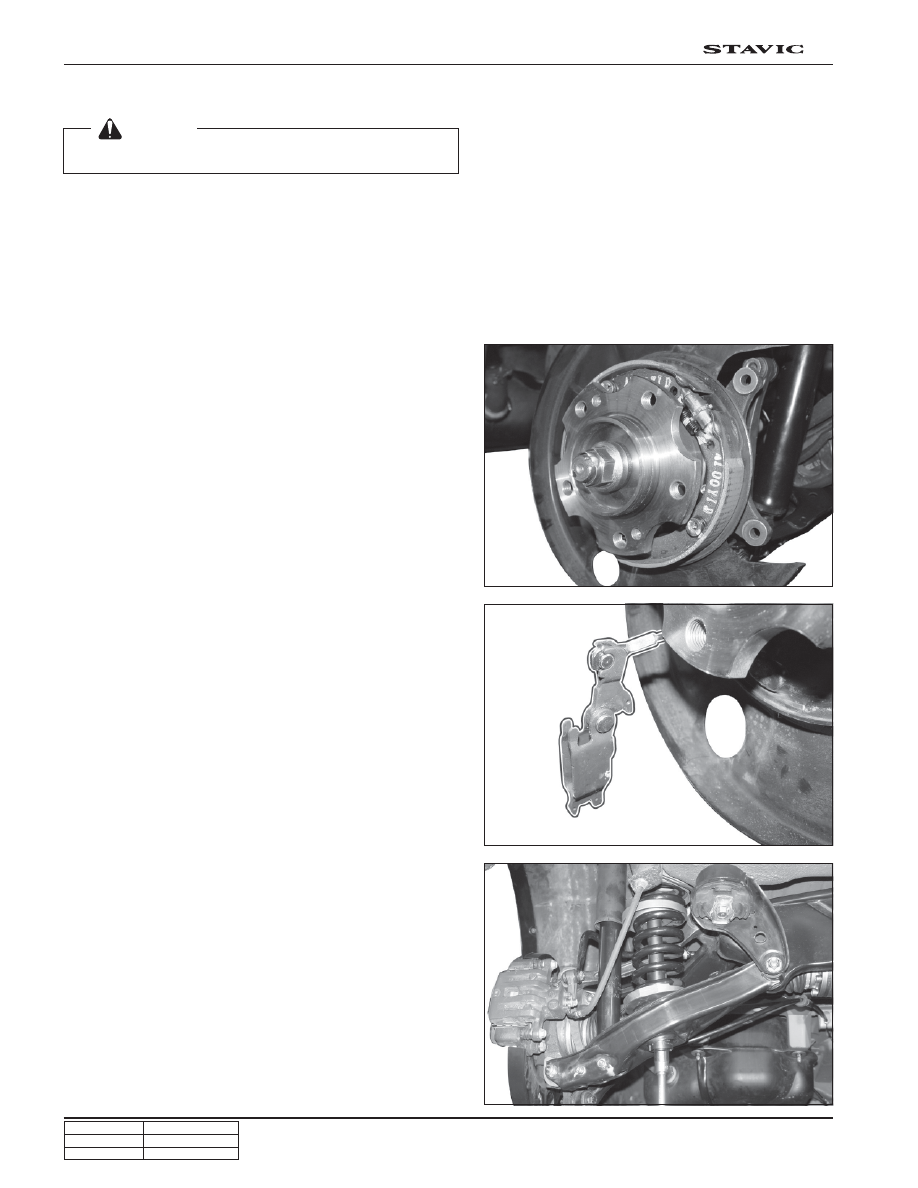

4. Remove the lock nut (30 mm).

 [Notice]

Lock nut can not be reused. Replace by every disassembly.

5. Remove the parking brake shoe (Refer to the wheel &

tire).

6. Remove the parking brake cable from the wheel carrier.

7. Unscrew the wheel carrier mounting nut and remove it

from the spring link.

8. unscrew the tension link, track rod, thrust link mounting

nuts on wheel carrier.
