SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 379

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

27

REAR SUSP & AXLE

STAVIC - 2004.09

4F

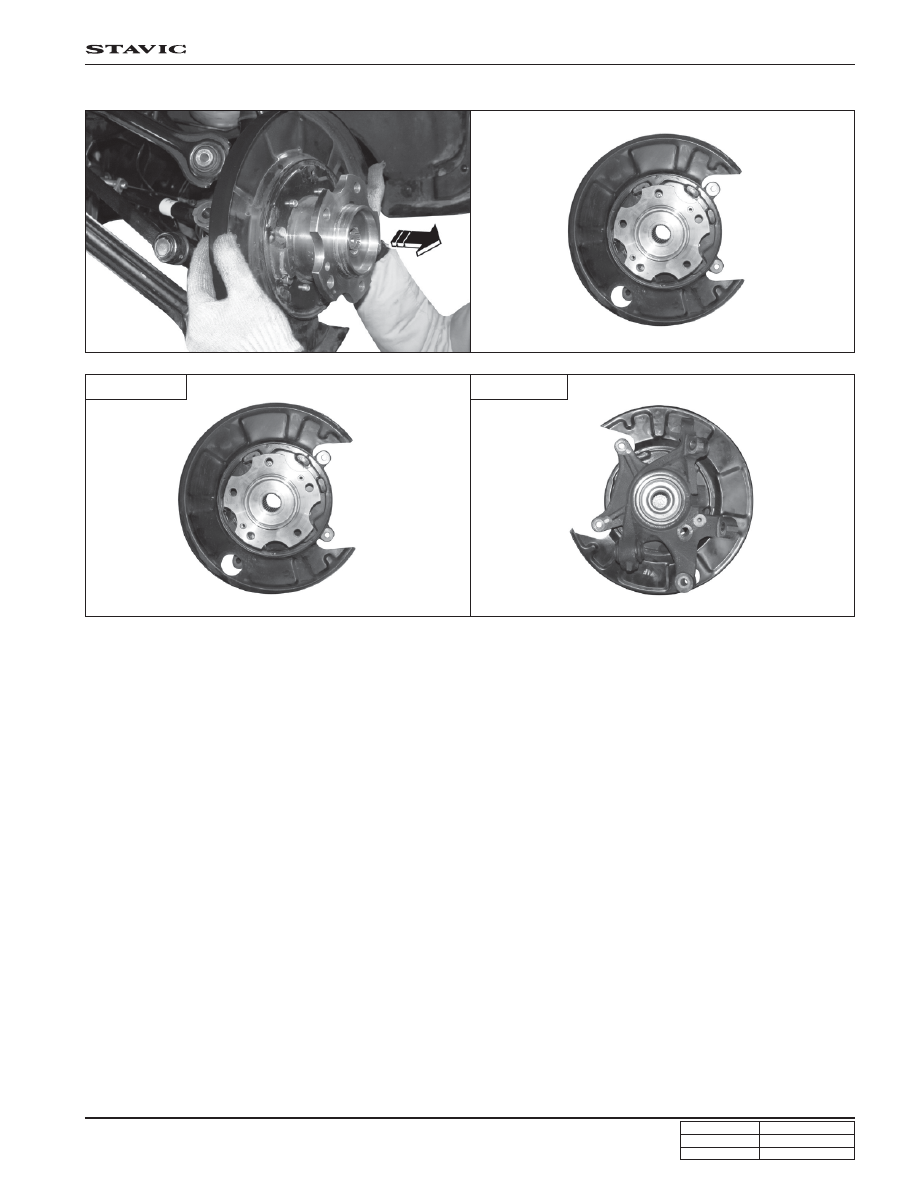

9. Remove the wheel carrier from drive shaft.

A. Front view

B. Rear view

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

28

REAR SUSP & AXLE

STAVIC - 2004.09

4F

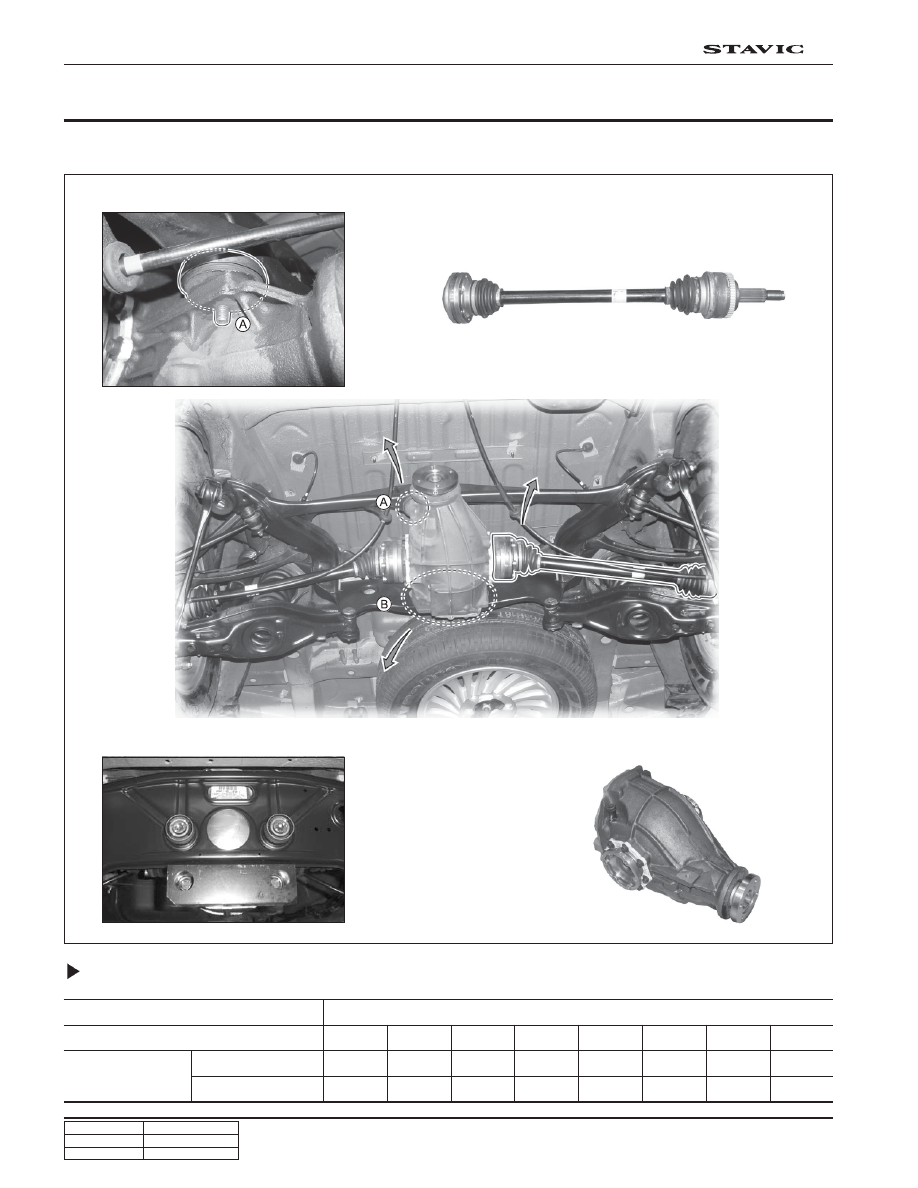

REAR AXLE HOUSING & AXLE SHAFT

1. SYSTEM OVERVIEW

Specification

Axle size

Gear ratio

Ø 214

3.3

13

43

3.9

11

43

4.1

9

37

4.3

11

47

4.6

9

41

4.9

9

44

5.4

8

43

5.9

7

41

Number of tooth

Pinion

Gear

Front mounting point

Drive shaft

Rear mounting point

Axle housing

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

29

REAR SUSP & AXLE

STAVIC - 2004.09

4F

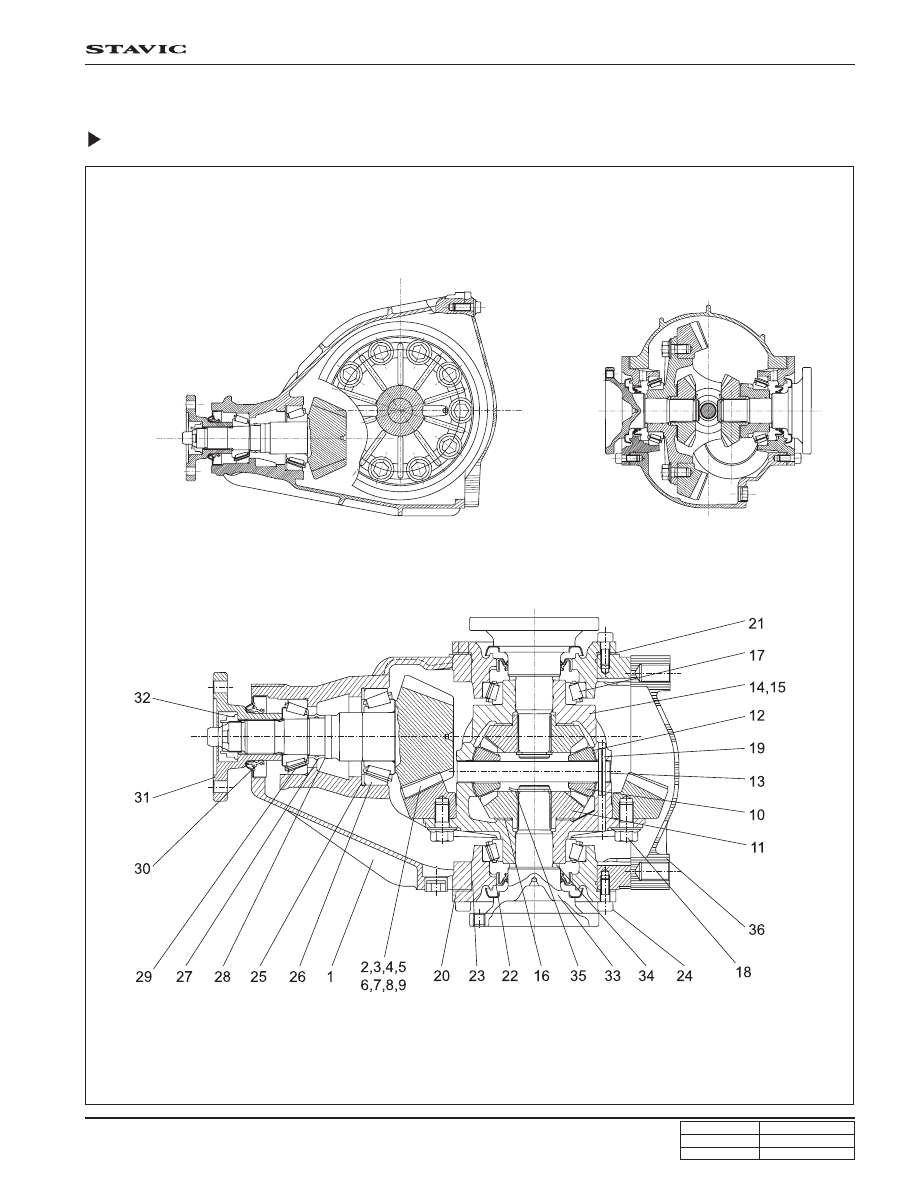

2. REAR AXLE DIFFERENTIAL ASSEMBLY

Sectional Diagram

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

30

REAR SUSP & AXLE

STAVIC - 2004.09

4F

1. Rear axle housing

2. Gear set (HAG 230, i = 3.31)

3. Gear set (HAG 230, i = 3.54)

4. Gear set (HAG 230, i = 3.73)

5. Gear set (HAG 230, i = 3.91)

6. Gear set (HAG 230, i = 4.11)

7. Gear set (HAG 230, i = 4.27)

8. Gear set (HAG 230, i = 4.56)

9. Gear set (HAG 230, i = 4.89)

10. Differential spider gear

11. Differential side gear

12. Spiral washer

13. Differential spider shaft

14. Differential case - i = 3.31 - 3.73

15. Differential case - i = 3.91 - 4.89

16. Differential thrust washer

17. Differential side bearing assembly

18. Ring gear safety bolt

19. Spring pin

20. Bearing cover

21. Bearing cover shim

22. Differential side seal

23. Bearing cover O-ring

24. SOC/HD bolt

25. Drive pinion shim

26. Rear drive pinion bearing assembly

27. Drive pinion tube spacer

28. Drive pinion support disk

29. Drive pinion front bearing assembly

30. Drive pinion seal

31. Drive pinion flange assembly

32. Two-welled side lock nut

33. Inner flange assembly

34. Inner axle shaft shim

35. Differential assembly snap ring & shaft

36. Rear axle housing cover
