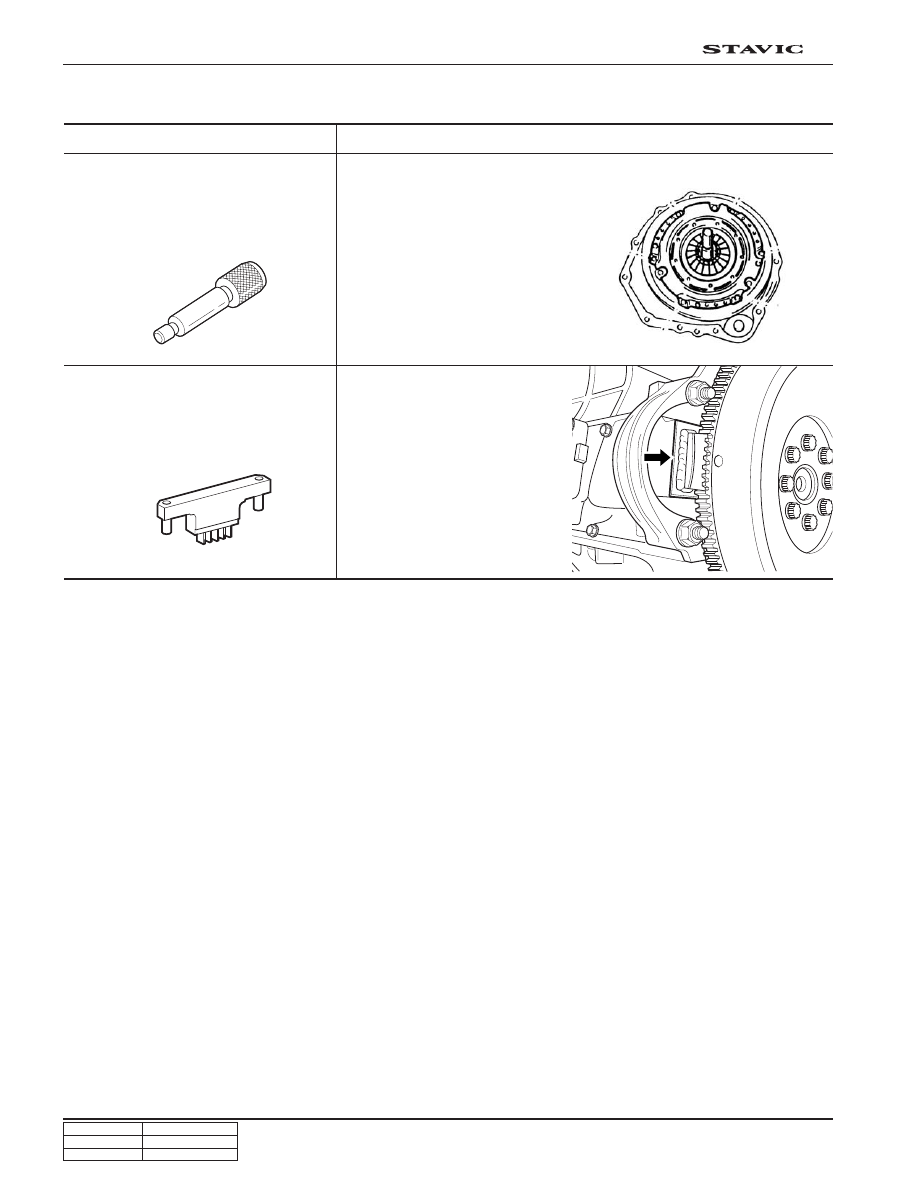

CLUTCH ASSEMBLY
STAVIC - 2004.09
4C

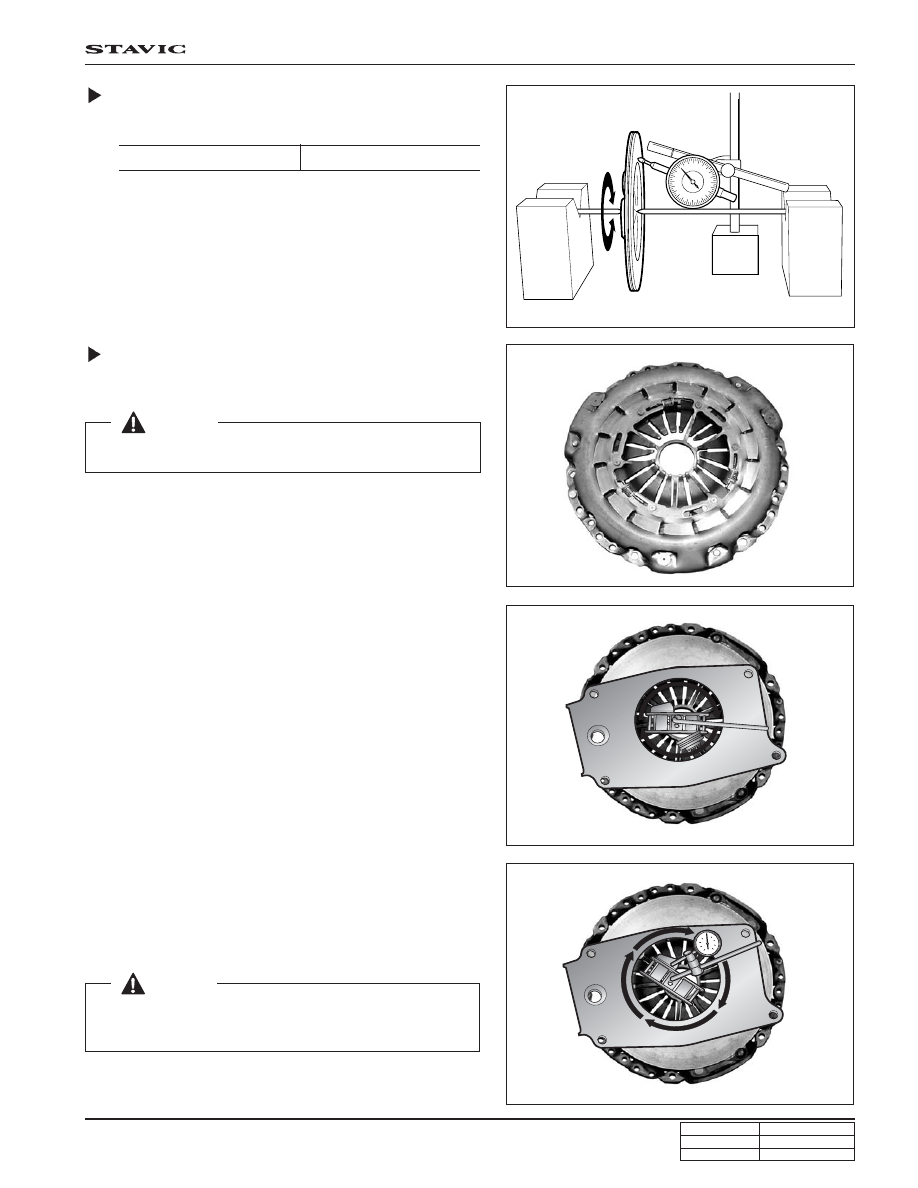

Clutch Disc Run-Out
• Measure the clutch disc run-out and replace if necessary.
Pressure Plate
1) Check the pressure spring for wear.
2) Check the alignment conditions of clutch housing as
follows:
• Install the magnetic holder on pressure spring.
• Alignment check for housing bore
A. Install a dial gauge in the housing bore.
B. Measure and record the pointer value while
rotating the crankshaft.
• Alignment check for clutch housing surface
A. Install a dial gauge on the clutch housing surface.
B. Measure and record the pointer value while
rotating the crankshaft.
[Notice]
The excessively worn components should be replaced.
[Notice]
If the pointer indicates beyond 0.010 inch, align the clutch
housing by inserting shims between the housing and clutch.
Run-out limit
0.7 mm
