14

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

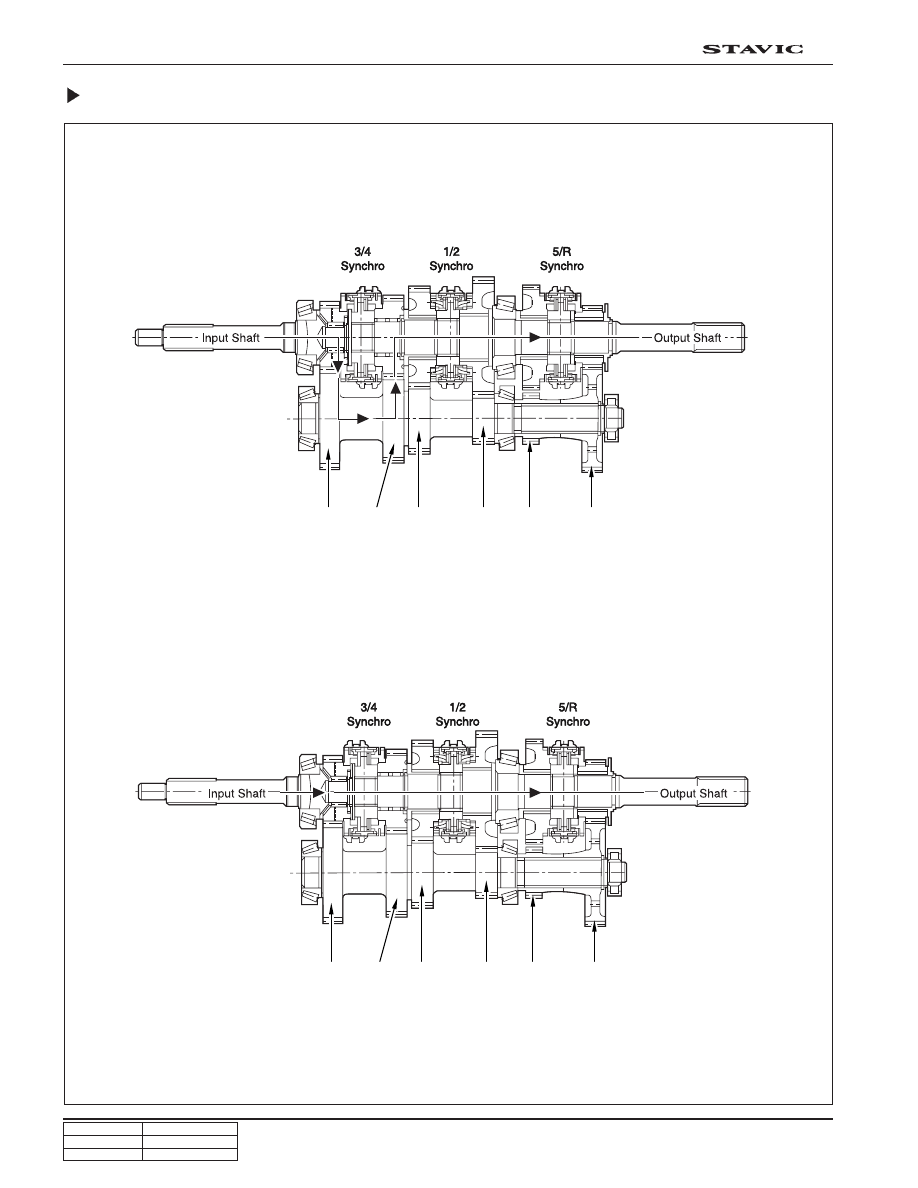

Power Flows (Cont’d)

3rd gear

4th

gear

3rd

gear

2nd

gear

1st

gear

Reverse

gear

5th

gear

4th

gear

3rd

gear

2nd

gear

1st

gear

Reverse

gear

5th

gear

4th gear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

15

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

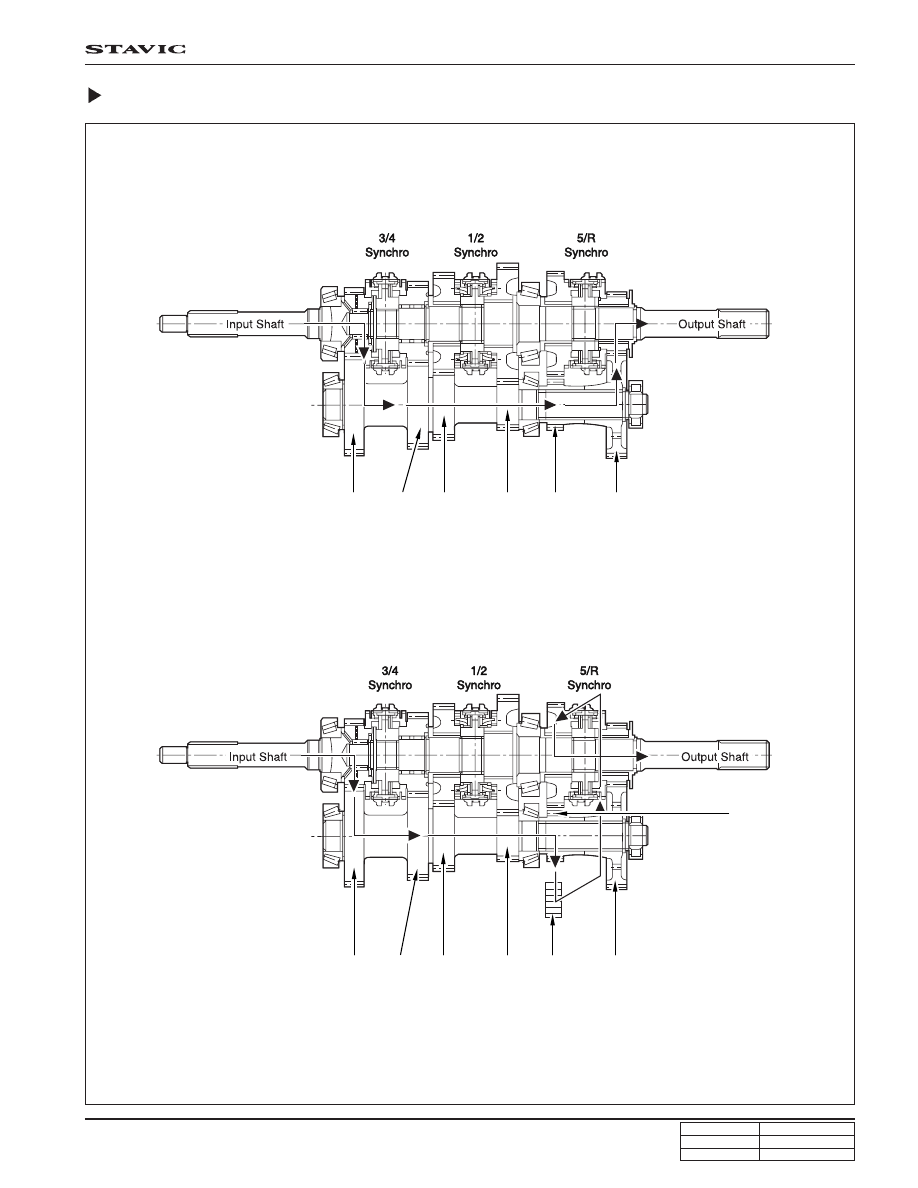

Power Flows (Cont’d)

5th gear

Reverse gear

4th

gear

3rd

gear

2nd

gear

1st

gear

Reverse

gear

5th

gear

4th

gear

3rd

gear

2nd

gear

1st

gear

Reverse

idler

gear

5th

gear

Reverse
gear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

16

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

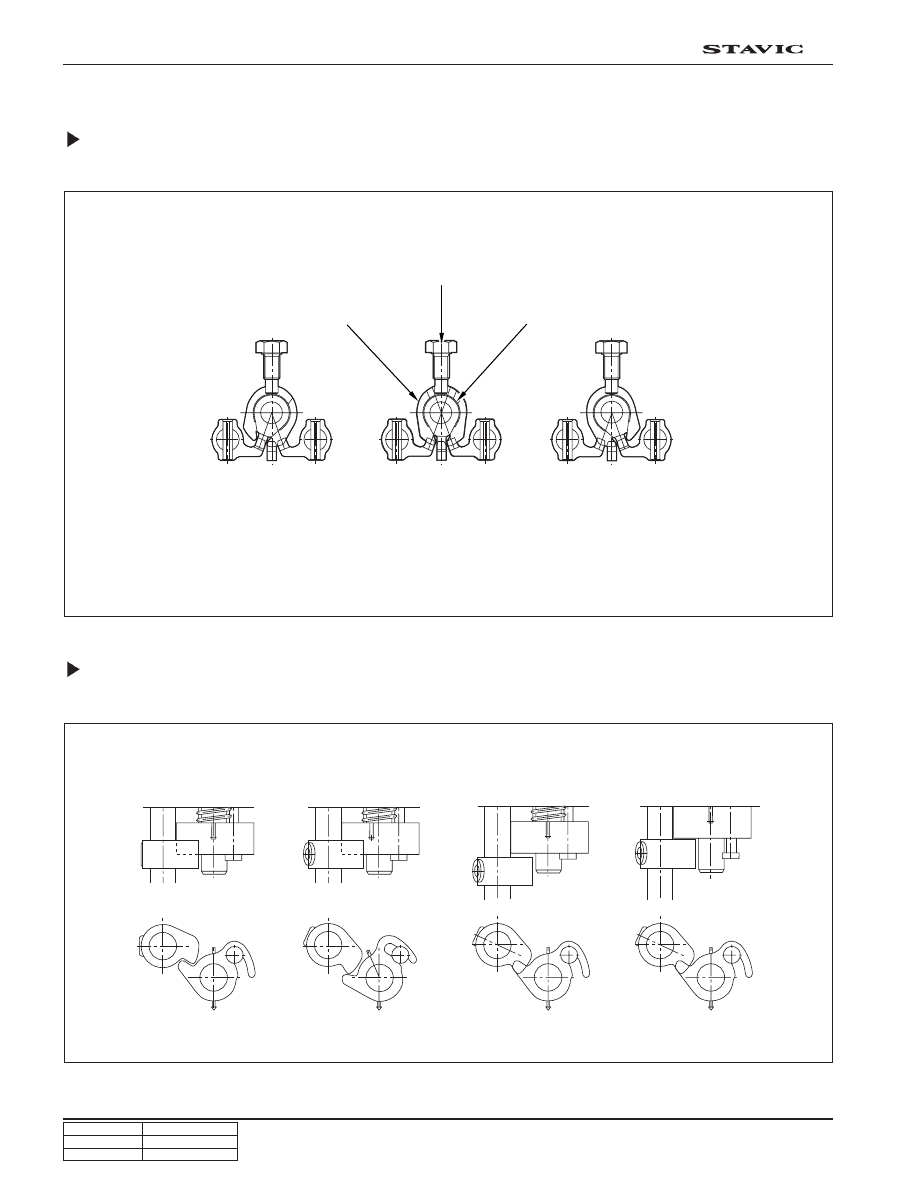

4. SHIFTING MECHANISM

Interlock System

Interlock system prevents the gears from meshing over two sets.

Reverse Interlock System

Reverse interlock system prevents the gear from shifting to reverse driving position while driving forward.

Neutral

5/R select

5/R shift

5th gear disengaged

Interlock plate

Interlock bolt

Inner shift lever

1/2

(3/4 & 5/R lock)

3/4

(1/2 & 5/R lock)

5/R

(1/2 & 3/4 lock)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

17

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

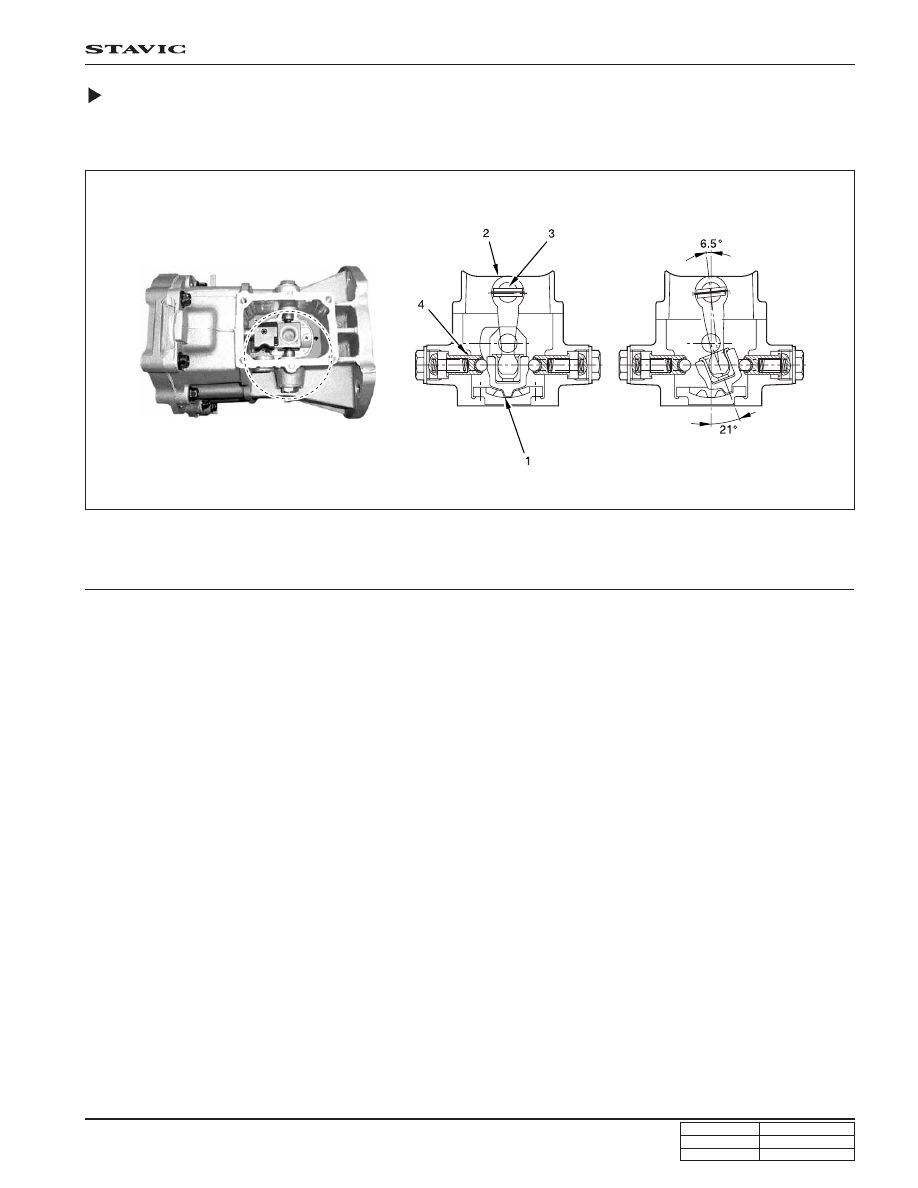

Offset Lever and Rolling Plunger

To make the next shift easier, the offset lever applies a reaction force to shift lever toward center position of gear
selection gate after a gear has been selected.

1. Offset lever

2. Shift lever

3. Shift shaft

4. Rolling plunger (rolling plunger return spring and ball)
