SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 327

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

6

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

Input gear

5/R shift fork

1st gear

1/2 shift fork

2nd gear

3/4 shift fork

Input shaft

4th gear

3rd gear

Counter shaft

5th gear

Output shaft

Transmission adaptor

Interlock plate

Speedometer gear (2WD)

Reverse lock plate

3. SYSTEM COMPONENTS

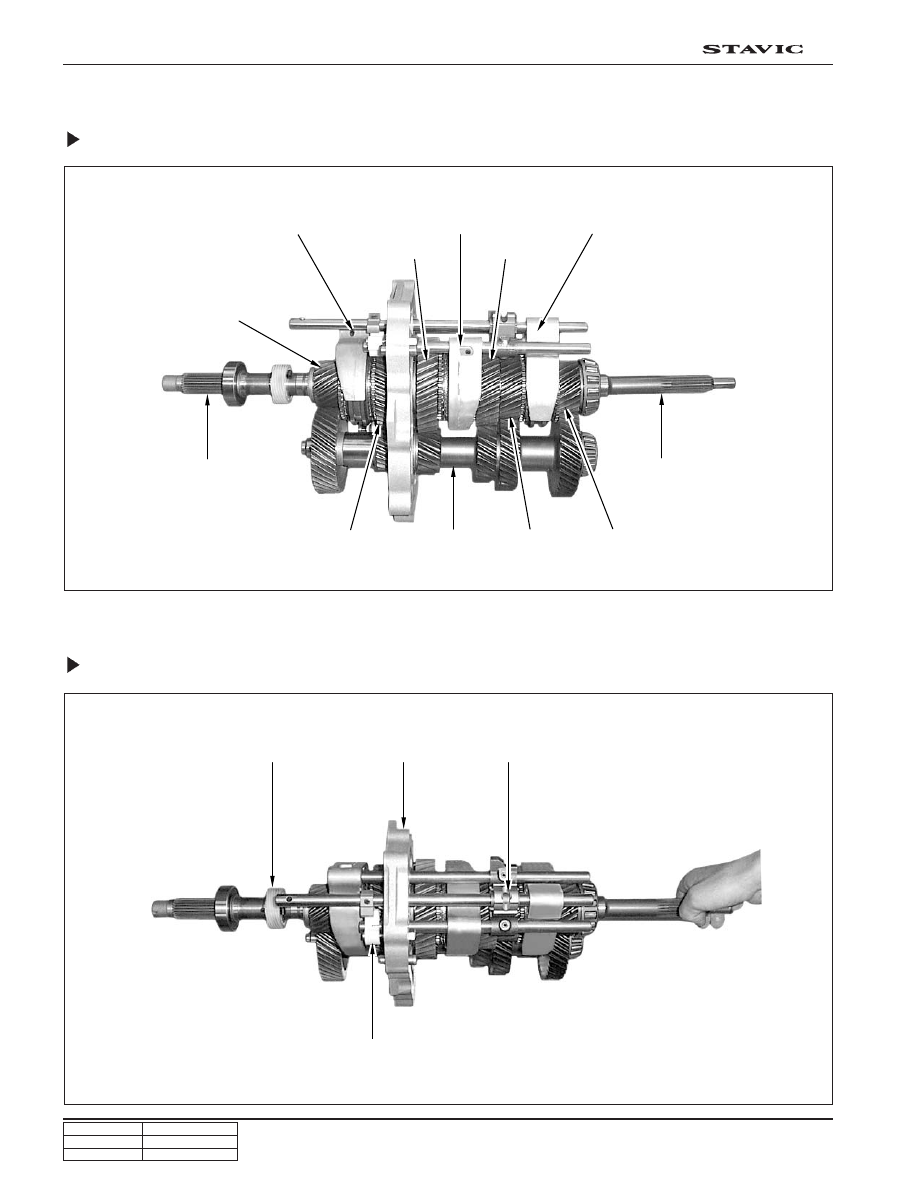

Gear Combinations

Shift Fork and Rail Combinations

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

7

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

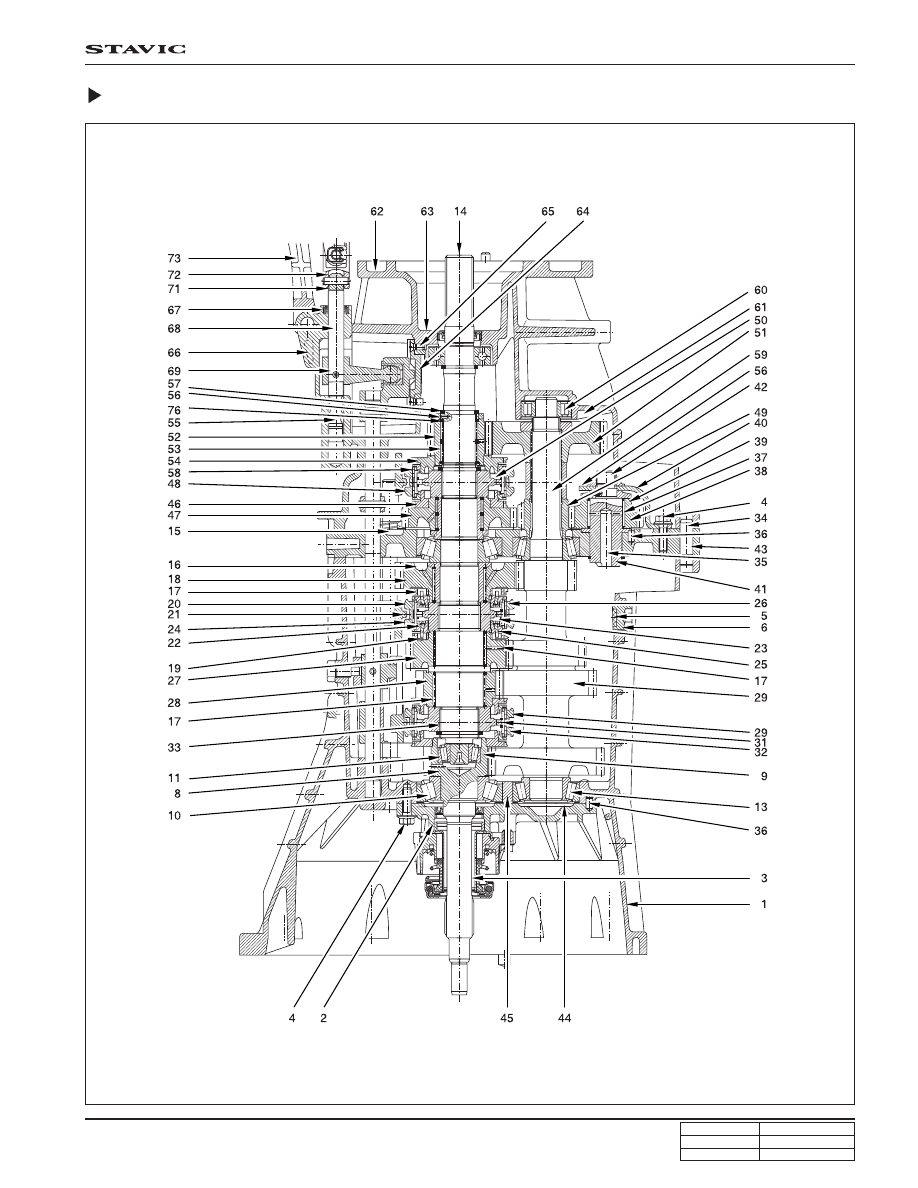

Sectional View

4WD

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

8

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

1. Transmission front housing

2. Input shaft oil seal

3. Front cover

4. Hexagon flange bolt (17 ~ 26 Nm)

5. Oil drain plug

6. Sealing

7. Pin

8. Input shaft

9. Clutch 4th gear

10. Taper roller bearing (main)

11. Taper roller bearing

12. Counter shaft

13. Taper roller bearing (counter)

14. Output shaft

15. Inner race (reverse)

16. Inner race (1st)

17. Needle bearing

18. 1st gear

19. 1st clutch gear

20. Synchro outer ring

21. Synchro - middle cone

22. Synchro inner ring

23. Synchro spring

24. Synchro key

25. Synchro hub

26. Double synchro sleeve

27. 2nd gear

28. 3rd gear

29. 3rd clutch gear

30. Synchro hub (3 & 4th)

31. Synchro ring (4/5/R)

32. Single synchro sleeve

33. Retainer ring

34. Adaptor dowel pin

35. Reverse idler shaft

36. Dowel pin

37. Needle bearing

38. Reverse idler gear

39. Reverse idler spacer

40. Reverse idler bracket

41. Retainer ring

42. Reverse lock nut

43. Transmission adaptor

44. Input shaft spacer

45. Counter spacer

46. Reverse needle bearing

47. Reverse gear

48. Reverse clutch gear

49. Reverse counter gear

50. Synchro hub

51. Counter 5th gear

52. 5th needle bearing

53. 5th gear

54. 5th clutch gear

55. Thrust washer

56. Spring pin

57. 5th outside retainer ring

58. 5th retainer ring

59. Counter shaft bushing

60. Counter roller bearing assembly

61. Retainer ring

62. Extension housing

63. Output shaft oil seal

64. Offset plate

65. Counter screw

66. Top cover

67. Counter oil seal

68. Shift shaft

69. Shift lever

70. Detent pin

71. Joint pin

72. Retainer ring

73. Semi remote lever assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

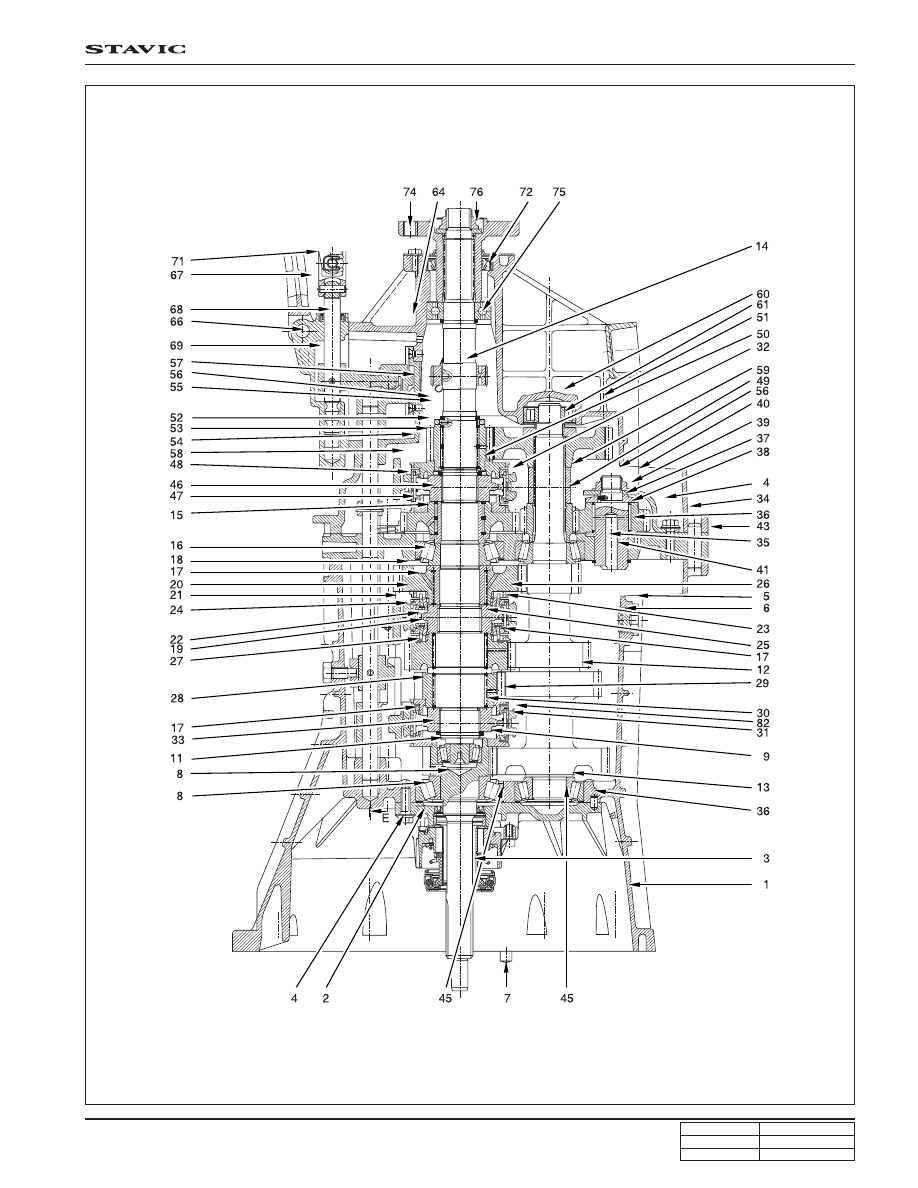

2WD
