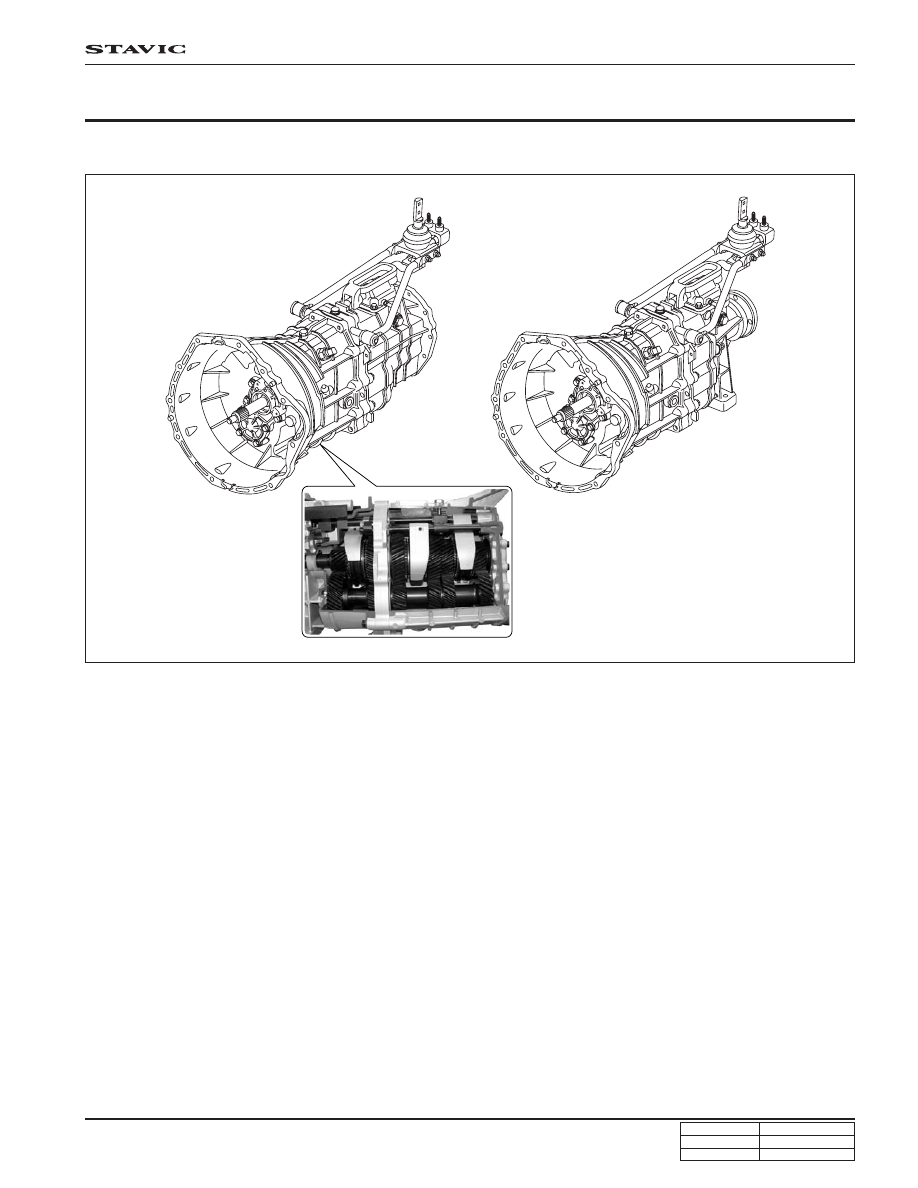

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

4WD

2WD

1. TSM54/52 transmission is designed to link the gear ratio, installation dimensions and shapes with current T5

transmission and BTRA automatic transmission. It provides maximum drivability by the optimized engine torque
and gear ratio.

2. TSM54/52 transmission uses linkage type shift elements directly connected to the transmission. It prevent the

transmission from shifting to the reverse gear from 5th gear when shifting to reverse gear. It also prevents the break
and wear.

GENERAL INFORMATION

1. OVERVIEW

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

4

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

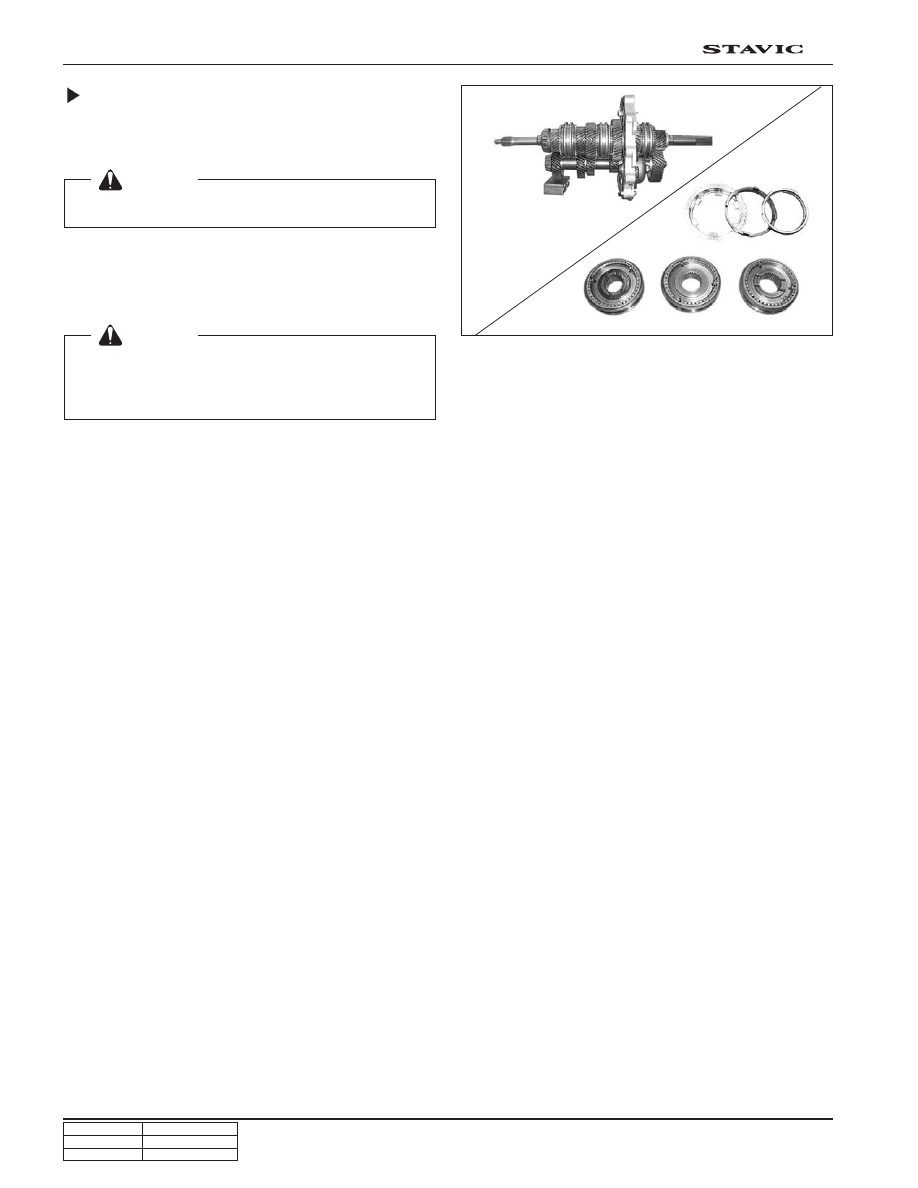

Features

3. All gears use the helical type and high strength

materials.

4. The synchronizing devices are installed in 1/2,

3/4, 5/R gears. To prevent the double engagement,
the independent interlock devices are installed.

5. The clutch release system is available to use CSC

(Concentric Slave Cylinder) or Fork type according
to the vehicle model. New Rexton uses the fork type
clutch release system.

6. The semi-remote control type gear shift mechanism

is used to prevent incorrect shifting.

 [Notice]

The helical type gear provides less noise.

 [Notice]

TSM54/52 transmission uses the inertia lock type key to
make smooth gear engagement and to provide silent gear
engagement.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

5

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

2. SPECIFICATIONS

General Specifications

Tightening Torque

Description

Length

(mm)

Distance between shafts

(mm)

Input torque

(kg

xm)

Transmission control type

Weight (kg) - not including transmission fluid (kg

xm)

Gear ratio/Gear teeth

(input gear: main gear)

Transmission fluid

1st gear

2nd gear

3rd gear

4th gear

5th gear

Reverse gear

Specification

Capacity

( )

Change interval

4WD: 628.3, 2WD: 672

81

34.7 (340 Nm)

Semi-remote

4WD: 44, 2WD: 45

4.315

2.475

1.536

1.000

0.807

3.591

ATF DEXRON II or III

4WD: 3.6, 2WD: 3.4

Inspect at every 10,000 km, replace at every

60,000 km (add or replace if necessary)

DI ENGINE

Description

Tightening Torque

4 ~ 5 kgf

xm

3 ~ 4 kgf

xm

4.2 ~ 5.7 kgf

xm

1.7 ~ 2.6 kgf

xm

7 ~ 10 kgf

xm

0.4 ~ 0.6 kgf

xm

Oil drain plug

Backup lamp switch (24mm)

Extension housing bolt (14mm)

Shift top cover bolt (12mm)

Extension housing spring plug (19mm)

Offset plate countersunk screw

39.22 ~ 49.03 Nm

29.42 ~ 39.22 Nm

41.18 ~ 55.89 Nm

16.67 ~ 25.48 Nm

68.6 ~ 98 Nm

3.92 ~ 5.88 Nm
