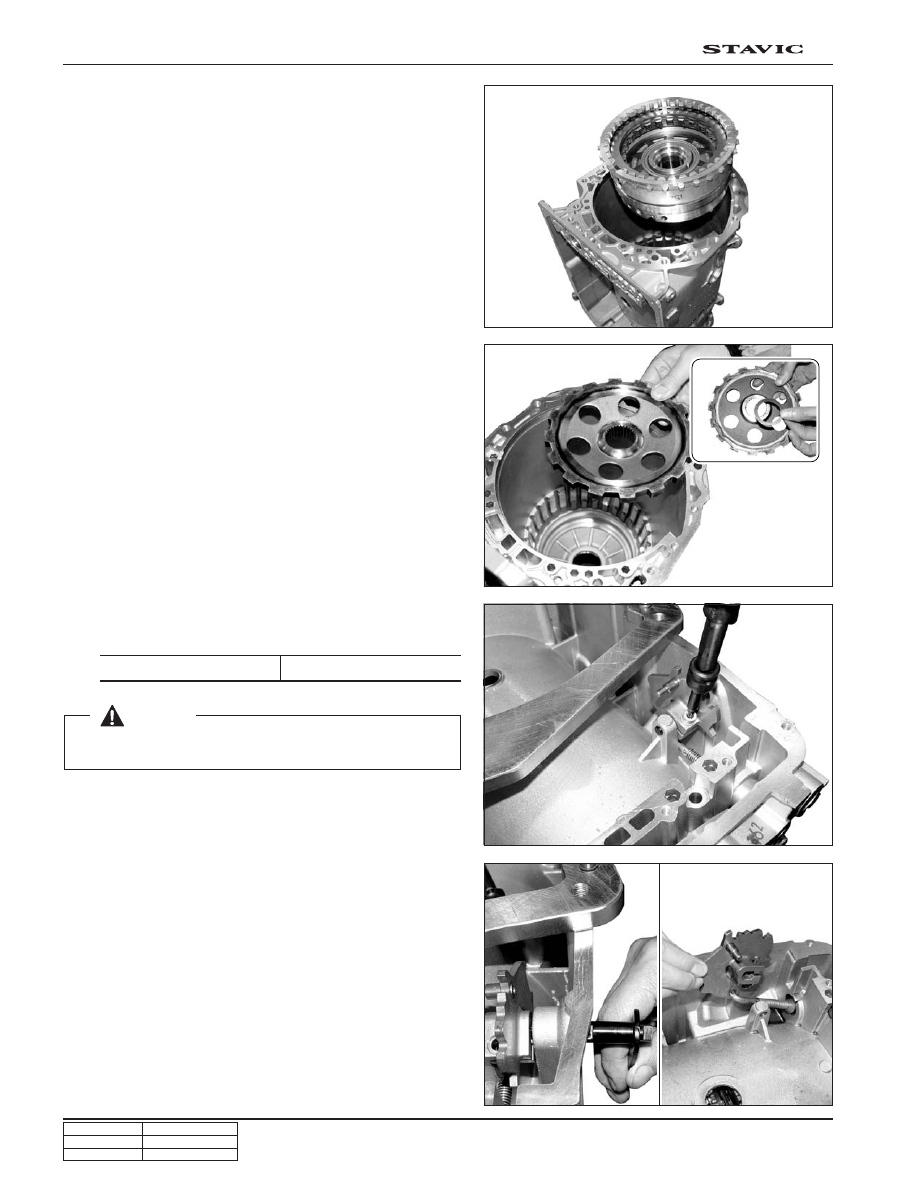

5. Remove the disc brake B2 from transmission housing.

6. Remove the parking lock gear.

7. Remove the fixing bolts for range selector lever.

Installation Notice

8. Remove the range selector lever, rod and detent plate.

Tightening torque

8 Nm

 [Notice]

Check the sealing ring for damage.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

105

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

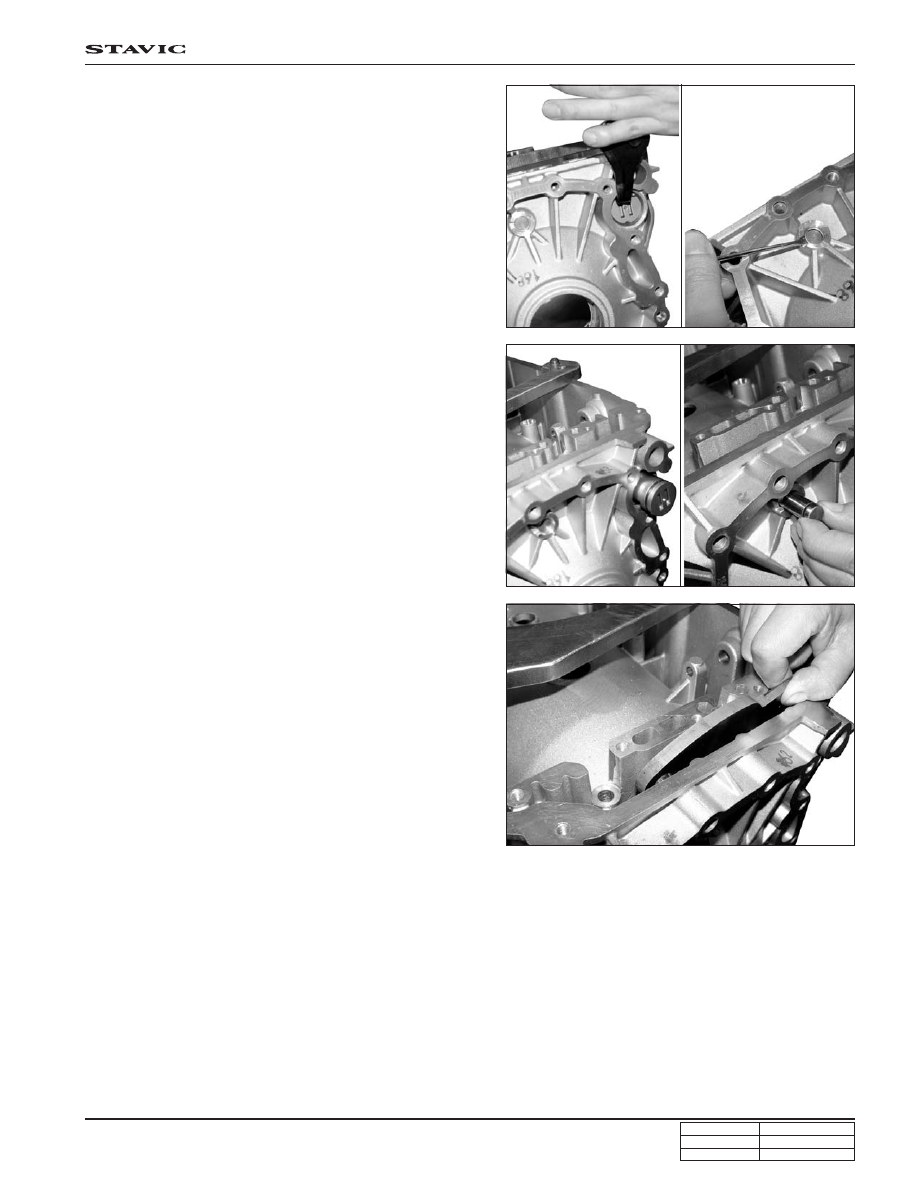

9. Remove the snap rings from parking lock pawl.

10. Remove the pin from transmission housing.

11. Remove the parking lock pawl from transmission housing.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

106

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

Clutch C1

Clutch C2

Clutch C3

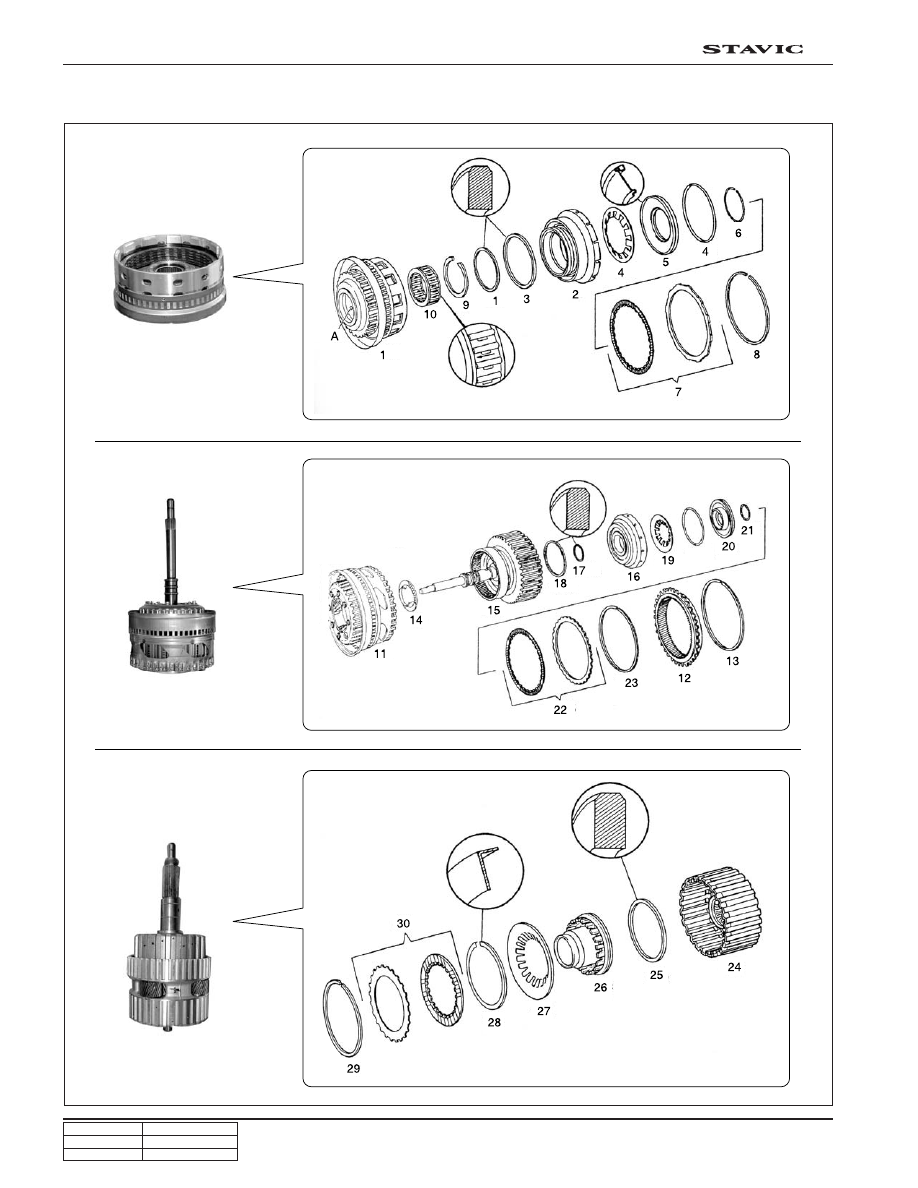

COMPONENTS OF EACH ASSEMBLY

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

107

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

 Clutch C1

1. Sealing ring in disc carrier

2. Piston

3. Sealing ring in piston

4. Return spring

5. Spring plate

6. Snap ring

7. Disc and steel plate

8. Snap ring

9. Snap ring

10. One-way clutch F1

A. Oil gallery in clutch C1

 Clutch C2

11. Front planetary gear set

12. Gear wheel

13. Snap ring

14. Thrust bearing

15. Clutch C2 and input shaft

16. Piston

17. Inner sealing ring in piston

18. Outer sealing in piston

19. Return spring

20. Spring plate

21. Snap ring

22. Disc and steel plate

23. Snap ring

 Clutch C3

24. Clutch C3

25. Sealing ring

26. Piston

27. Disc spring

28. Snap ring

29. Disc pack

30. Snap ring
