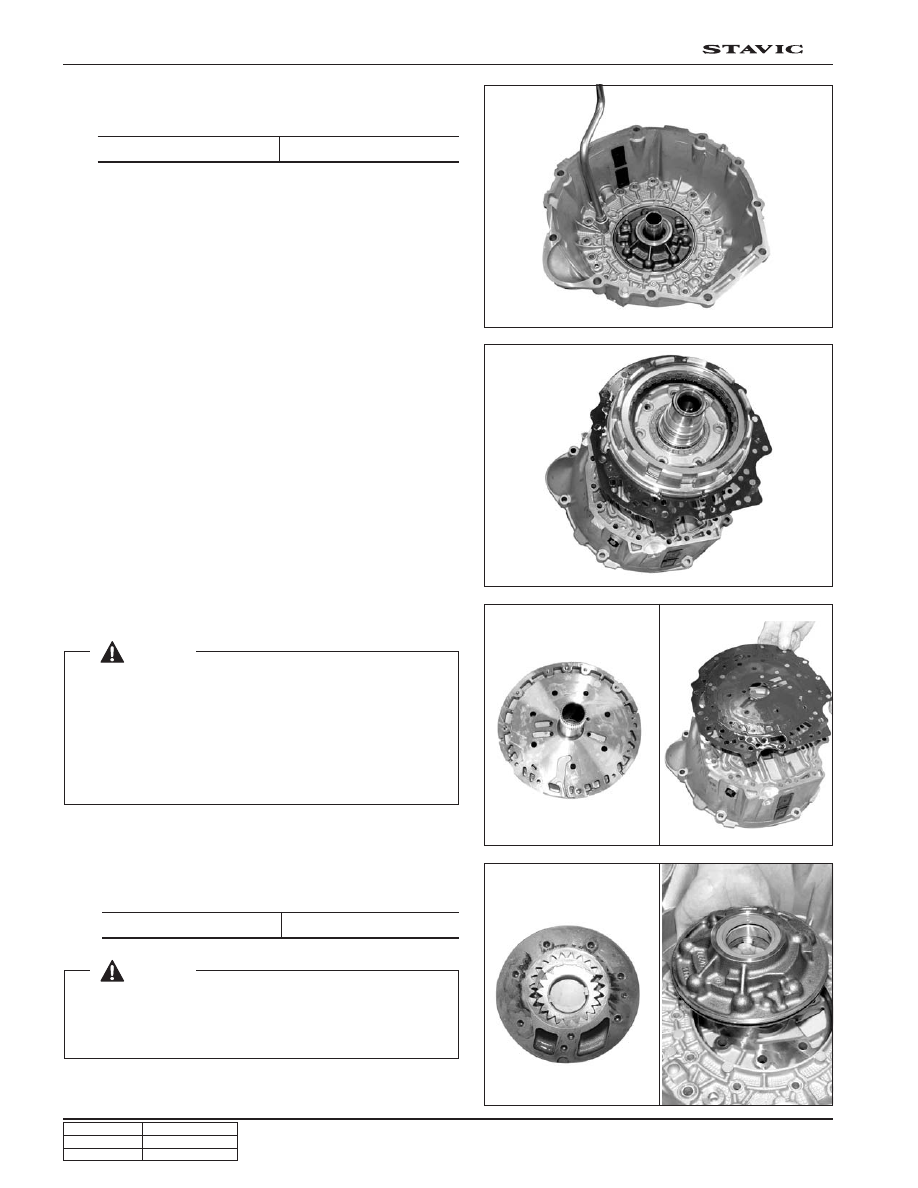

4-2. Remove the bolts in converter housing.

Installation Notice

4-3. Remove the brake B1 from converter housing.

4-4. Separate the plate from valve body.

Tightening torque

20 Nm

5. Unscrew the bolts and remove the oil pump.

Installation Notice

Tightening torque

8 Nm

 [Notice]

Install two bolts on the opposite side of oil pump housing
and tap the surface of oil pump with plastic hammer to
remove it from converter housing.

 [Notice]

•

Install two bolts on the opposite side of disc brake B1 and
tap the surface of disc brake B1 with plastic hammer to
remove it ftom converter housing.

•

Align the dowel pin (arrow) on disc brake B1 and groove
in converter housing when installation.

•

Apply the sealant on the socket bolts and tighten them.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

101

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

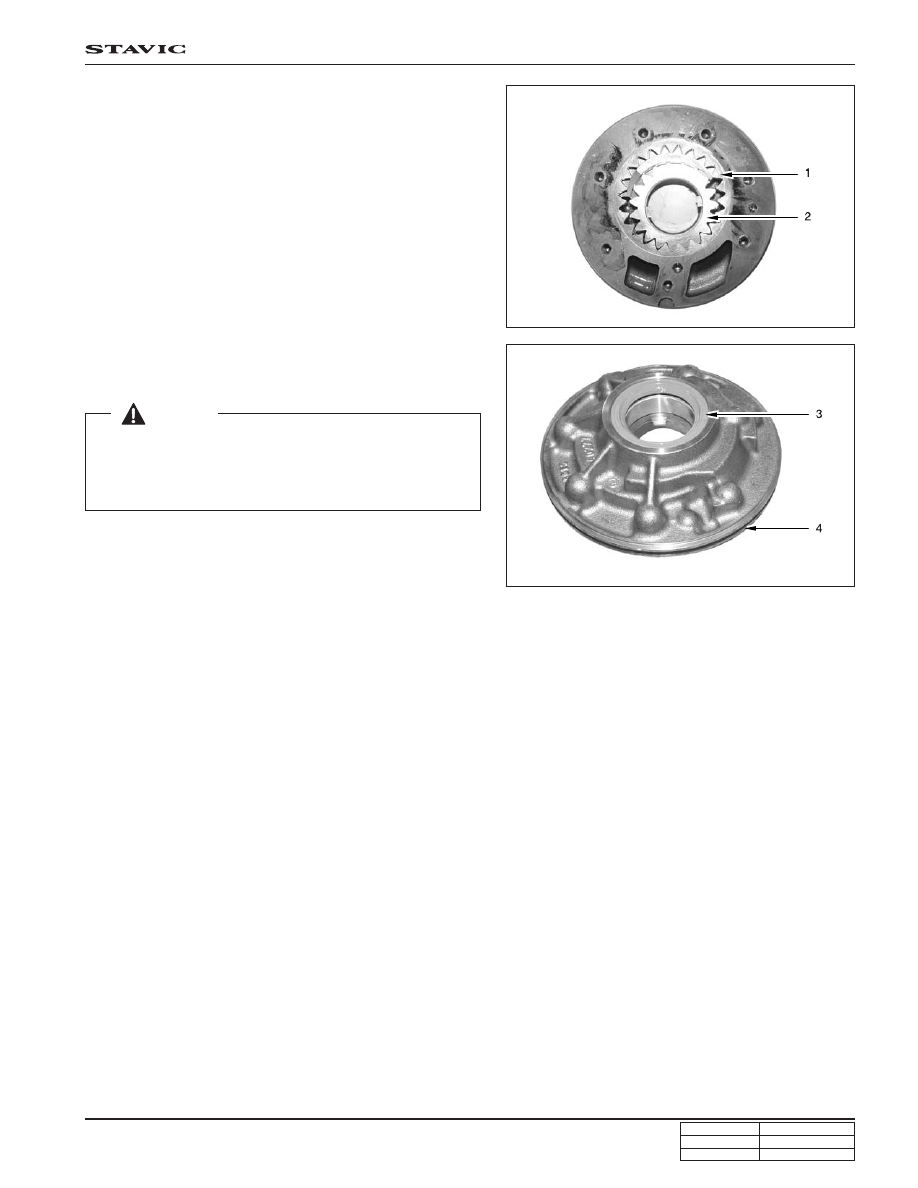

5-1. Remove the pump gears (1, 2) from pump housing.

5-2. Check the radial seal ring (3), and replace if necessary.

5-3. Replace the O-ring (4) with new one.

 [Notice]

•

Lubricate the pump gears (1, 2) before installation.

•

Place the pump gear (2) into pump housing and install the
pump gear (1) onto the pump housing chamber.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

102

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

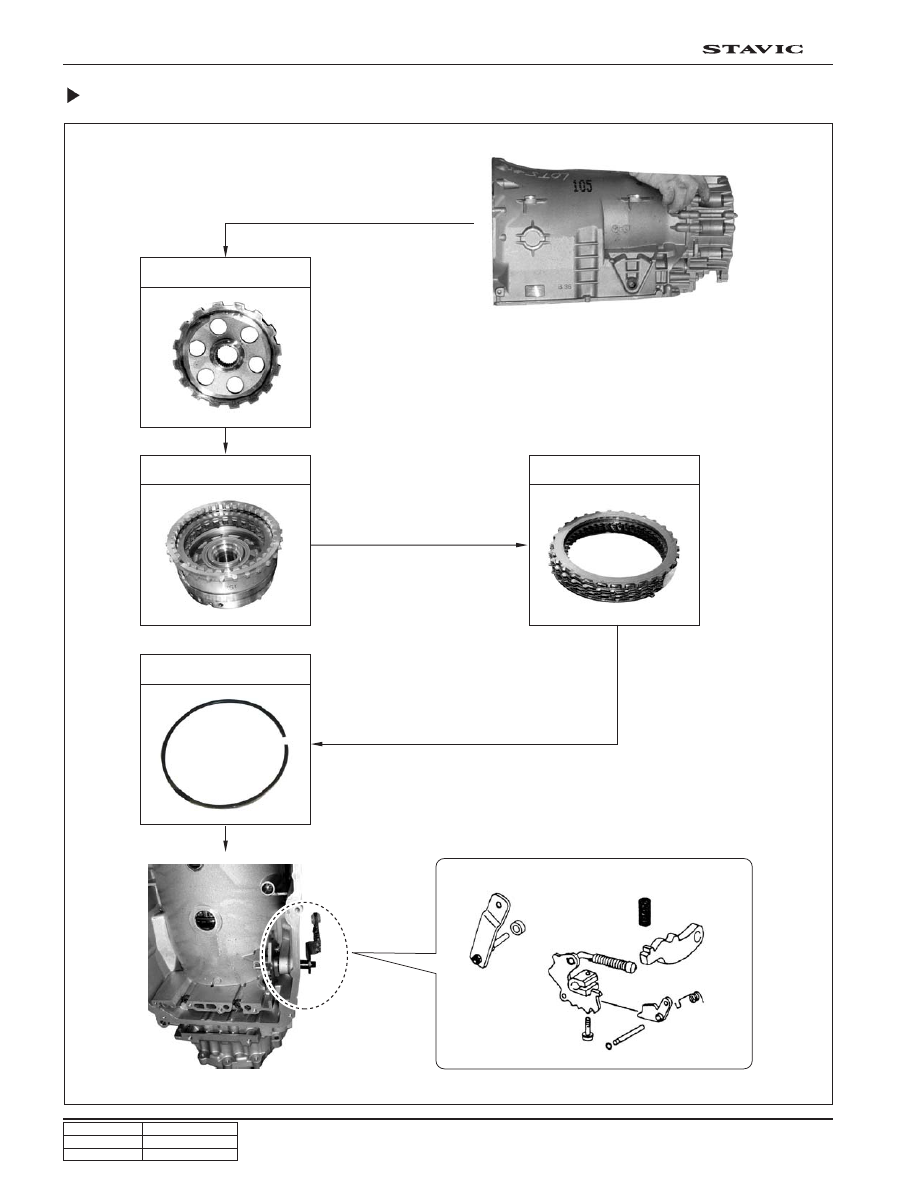

Snap ring

Brake B3

Brake B2

Parking lock gear

Components of selector lever

Transmission Housing Assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

103

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

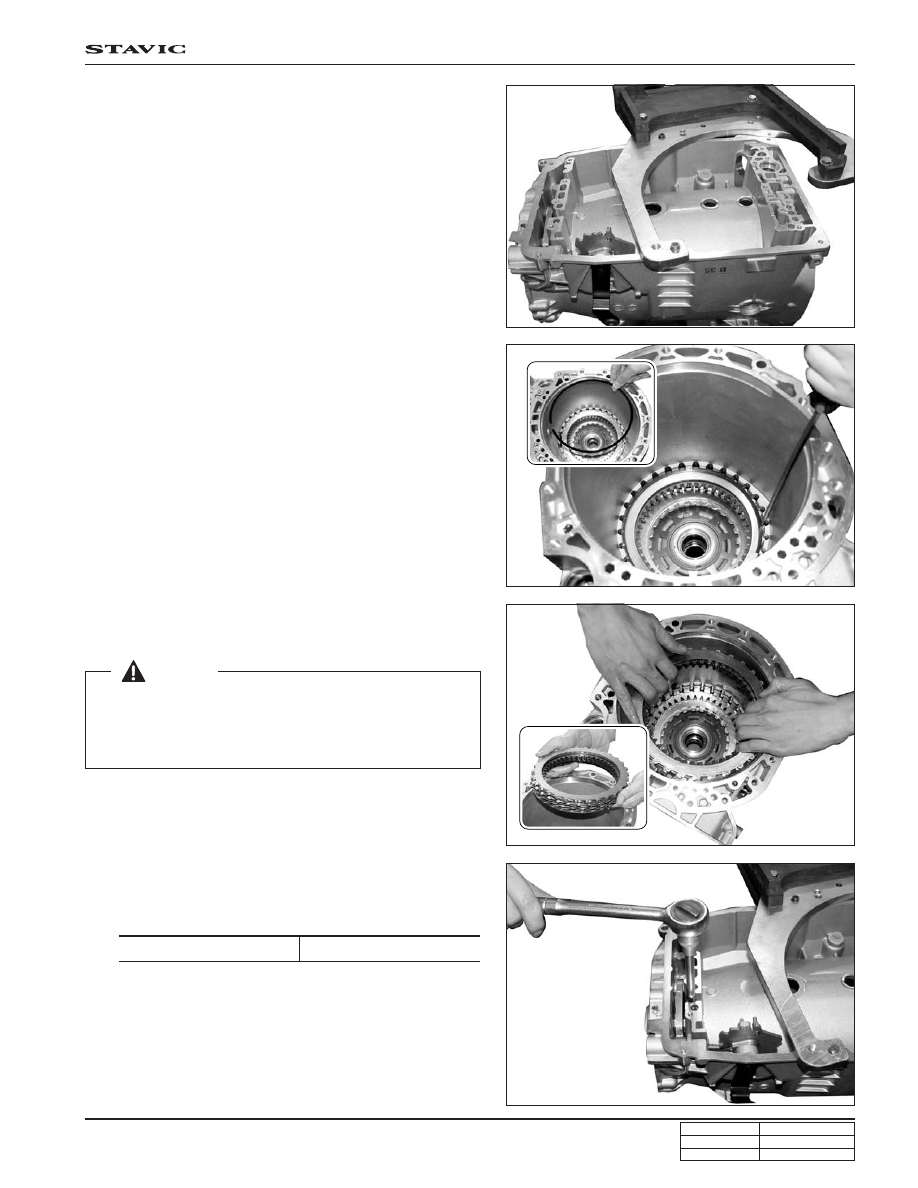

1. Install the transmission assembly on fixture stand.

Fixture stand  116 589 06 59 00

2. Remove the snap ring from transmission housing.

3. Remove the spring washer and disc pack B3 from

transmission housing.

4. Remove the fixing bolts for brake B2 from transmission

housing.

Installation Notice

 [Notice]

•

To make the removal easier, remove the disc pack B3 while
compressing it.

•

Check each disc for wear and burnt out.

Tightening torque

16 Nm
