SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 318

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

92

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

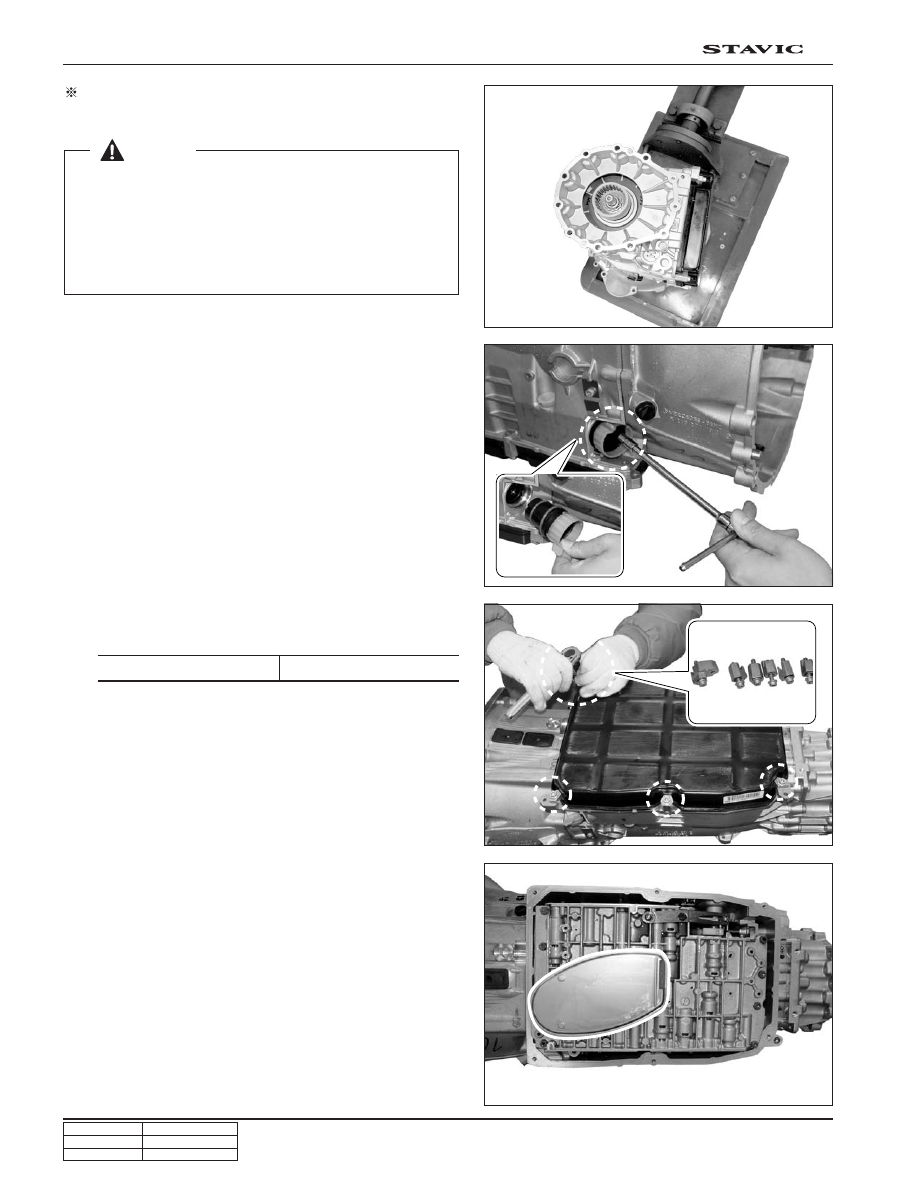

Preceding work:
Install the transmission on the fixture stand.

1. Unscrew the bolt and remove the guide bush (1).

(7 mm - 1EA)

2. Unscrew the oil pan bolts and remove the oil pan (6).

Installation Notice

3. Remove the oil filter.

Tightening torque

8 Nm

 [Note]

•

To eliminate unnecessary working time and process,
prepare general tools, special tools, and gaskets before
starting work.

•

The automatic transmission is very precise equipment.
Keep the transmission clean and tighten the bolts with
specified tightening torque.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

93

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

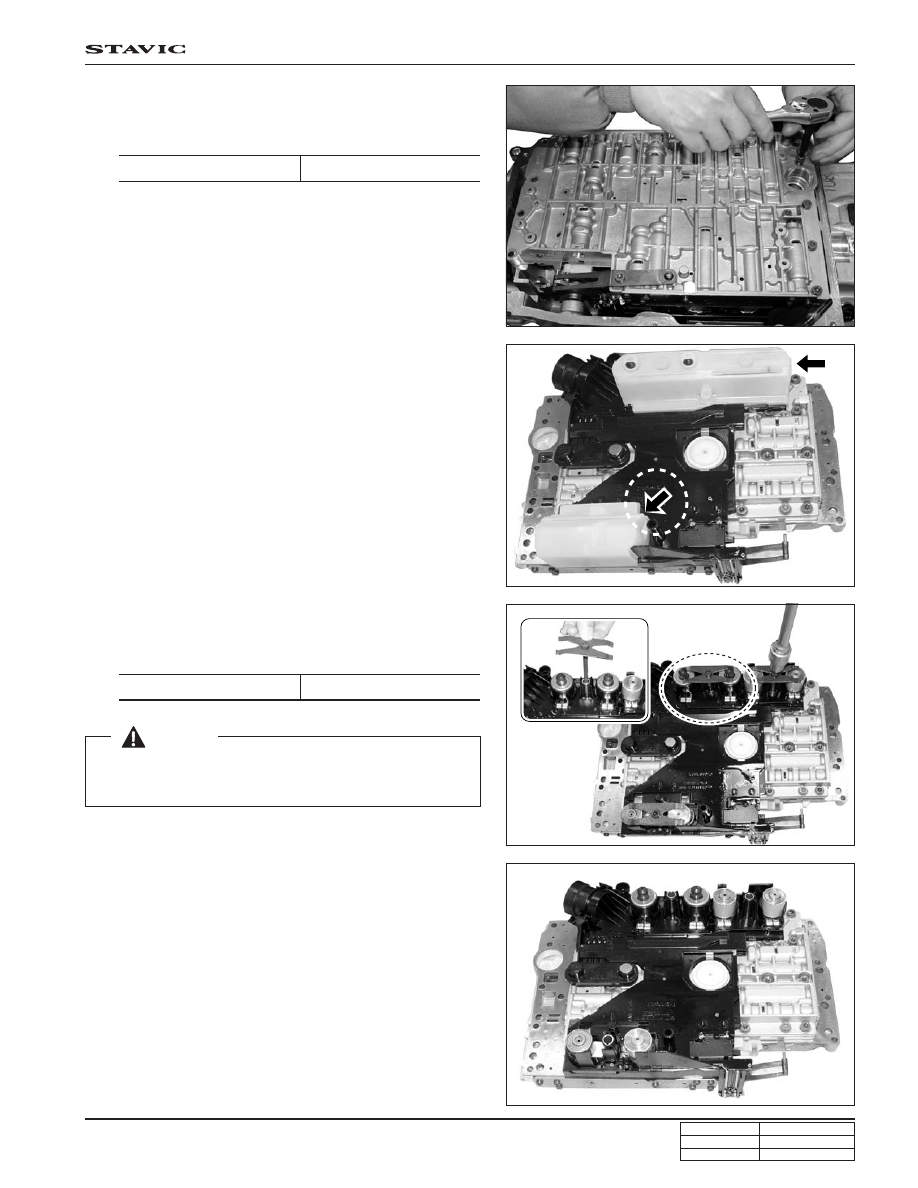

4. Unscrew the bolts and remove the valve body from

transmission housing.

Installation Notice

5. Disassembly and reassemblt the valve body assembly.

5-1. Remove the solenoid valve cap.

5-2. Unscrew the bolts on solenoid valve and remove the leaf

springs.

Installation Notice

5-3. Remove the solenoid valves from valve body.

 [Notice]

The socket bolts do not have same length. Be careful not to
mix up.

Tightening torque

8 Nm

Tightening torque

8 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

94

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

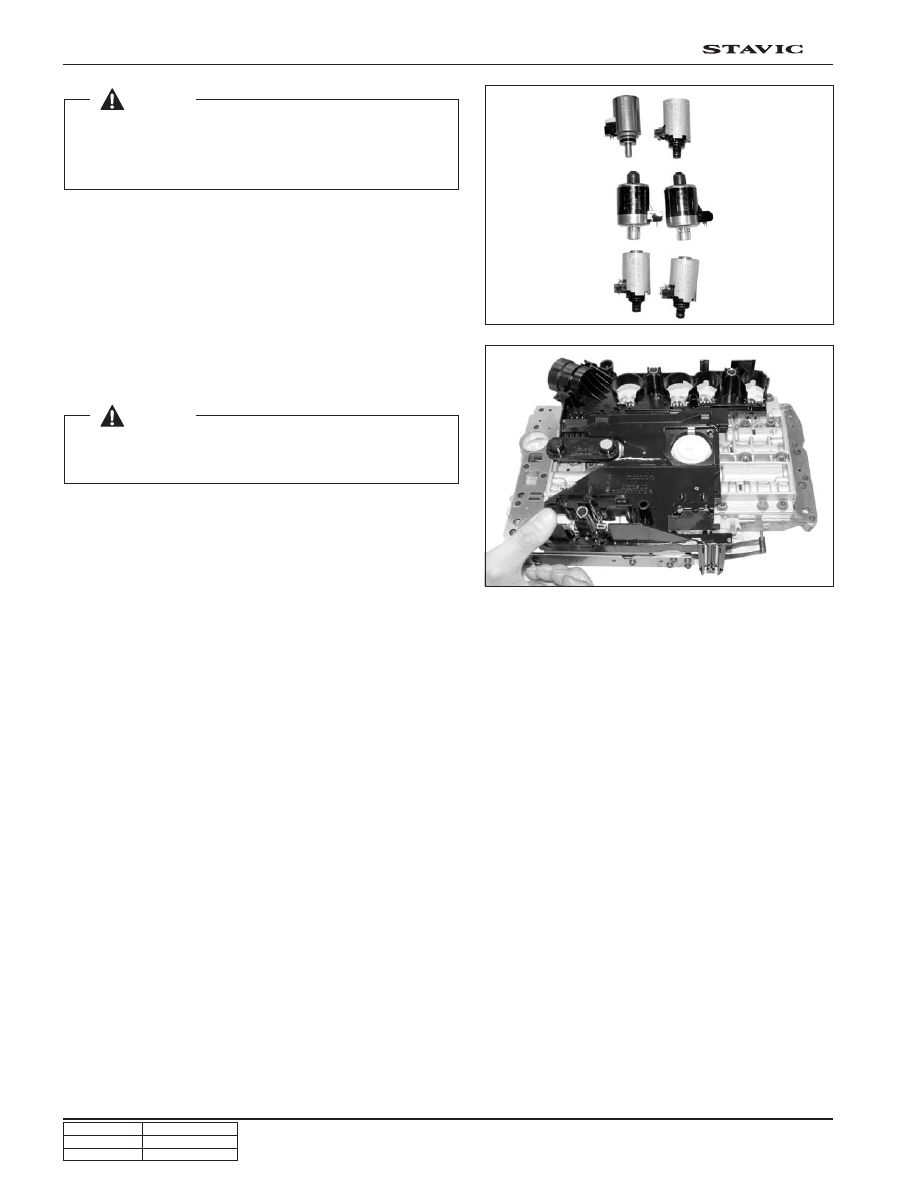

5-4. Remove the electronic control module (Y3/6) from shift

plate.

 [Notice]

1. Make sure to install the solenoid valves at correct

locations.

2. Check the O-rings, and replace if necessary.

 [Notice]

Correctly align the electronic control module onto the shift
plate by using two central pins when installing.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

95

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

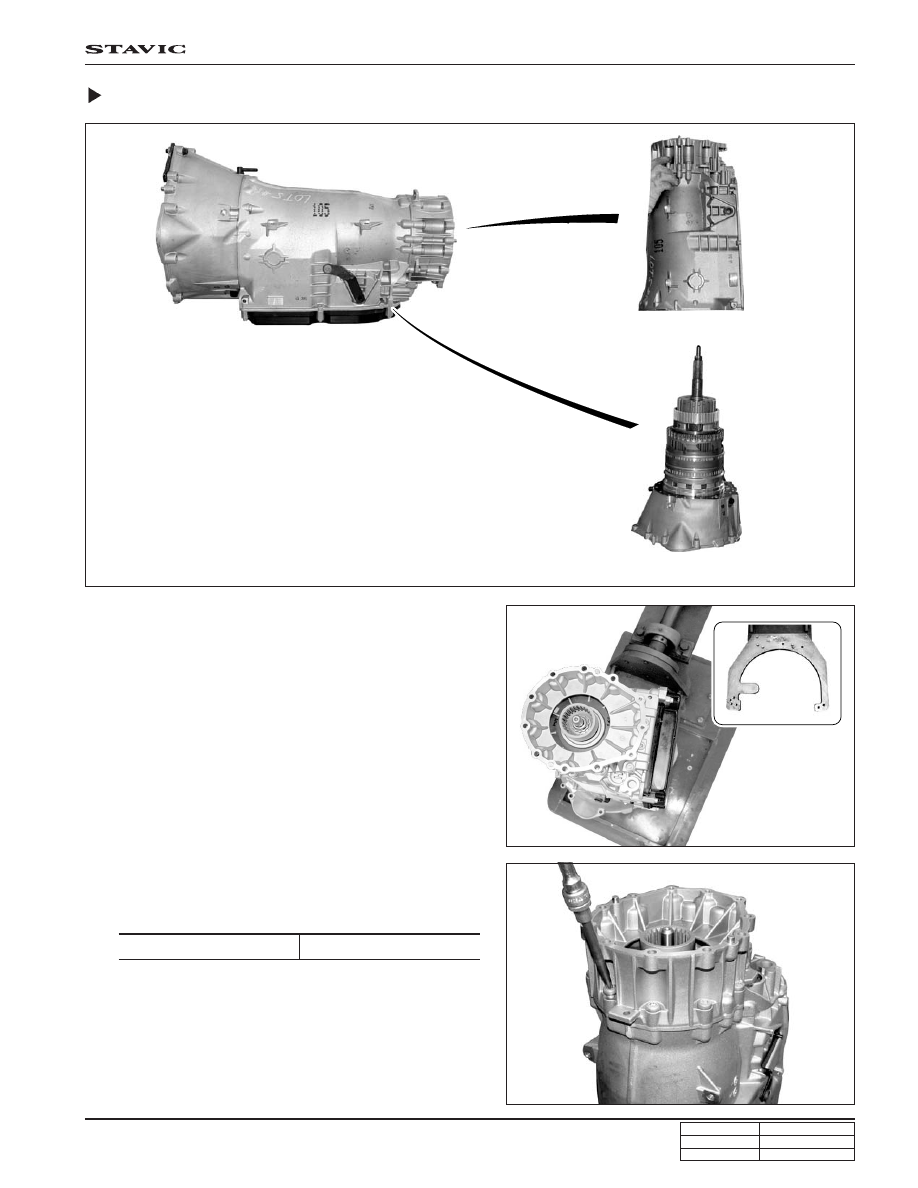

Transmission housing

Converter housing assembly

Converter Housing and Transmission Housing

1. Install the transmission assembly on the fixture stand.

Fixture stand  116 589 06 59 00

2. Remove the rear extension housing from transmission

housing.

Installation Notice

Tightening torque

30 ~ 35 Nm
