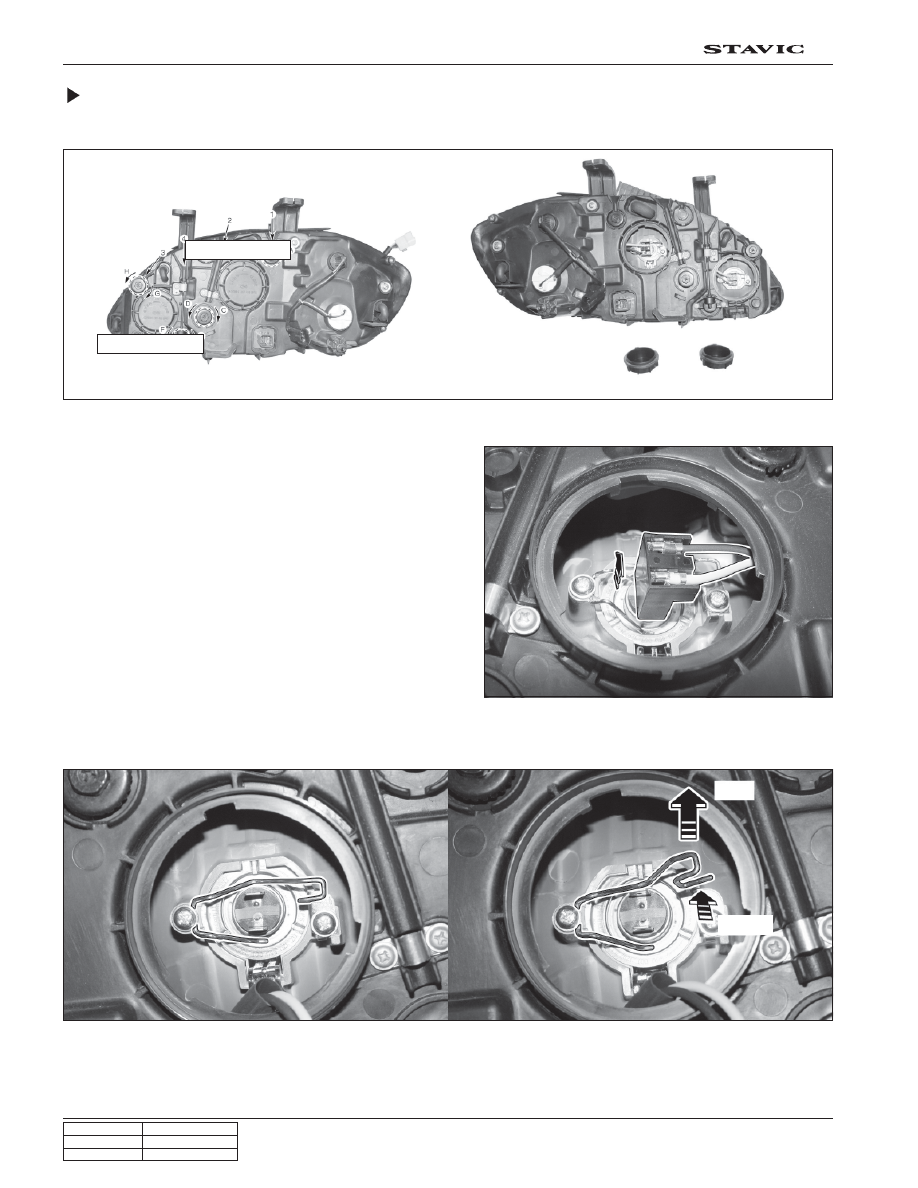

Replacement of Headlamp Bulb

1. Remove the headlamp dust cover.

High beam cover

Low beam cover

Push

2. Disconnect the headlamp bulb connector.

3. Push up the bulb clamp to remove it.

Remove

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

11

2I

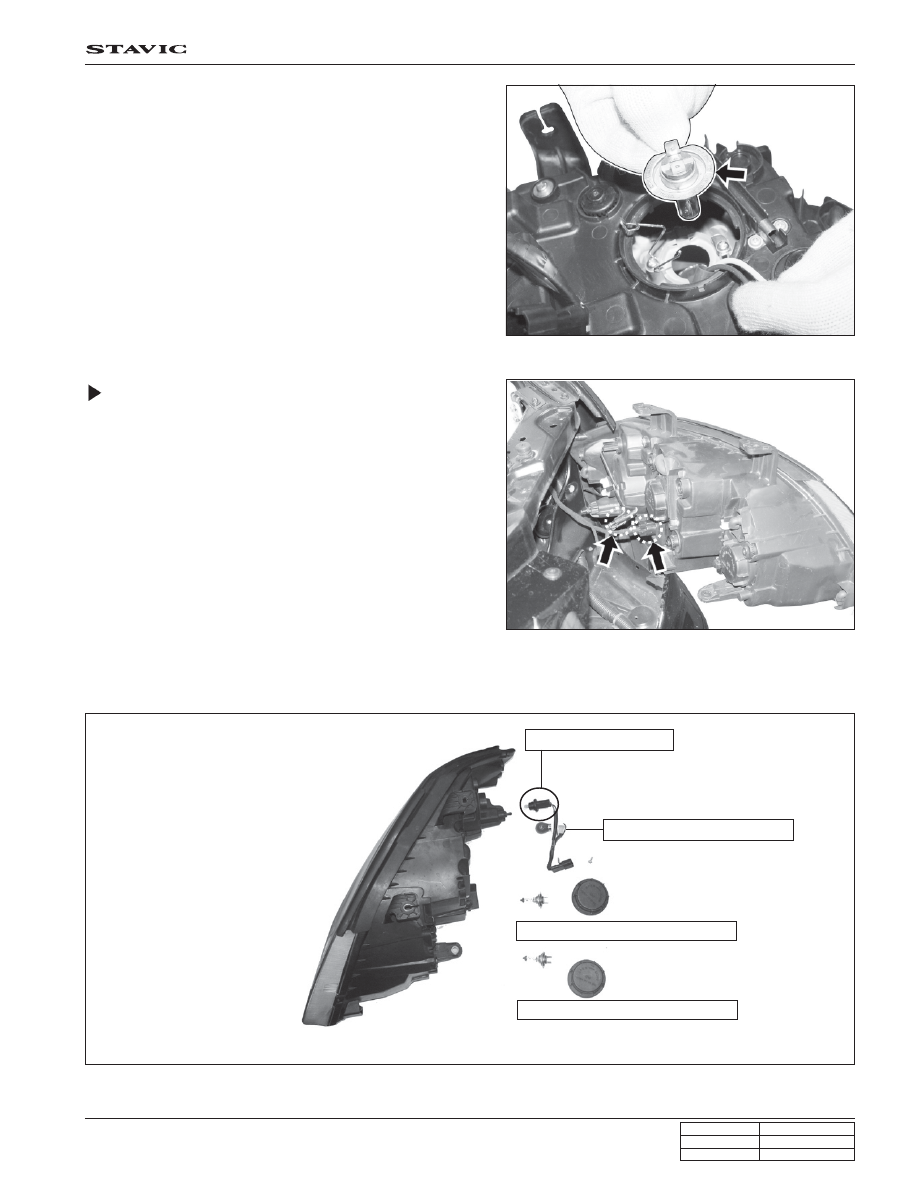

4. Remove the bulb and install new bulb with same

specifications.

Replacement of Tail Lamp/Turn
Signal Lamp

1. Disconnect the tail lamp/turn signal lamp connector from

the headlamp assembly.

2. Remove the tail lamp/turn signal lamp bulbs from the headlamp assembly and install new bulb with same

specifications.

Tail lamp bulb assembly

Turn signal lamp bulb assembly

Headlamp (low beam) bulb assembly

Headlamp (high beam) bulb assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

12

2I

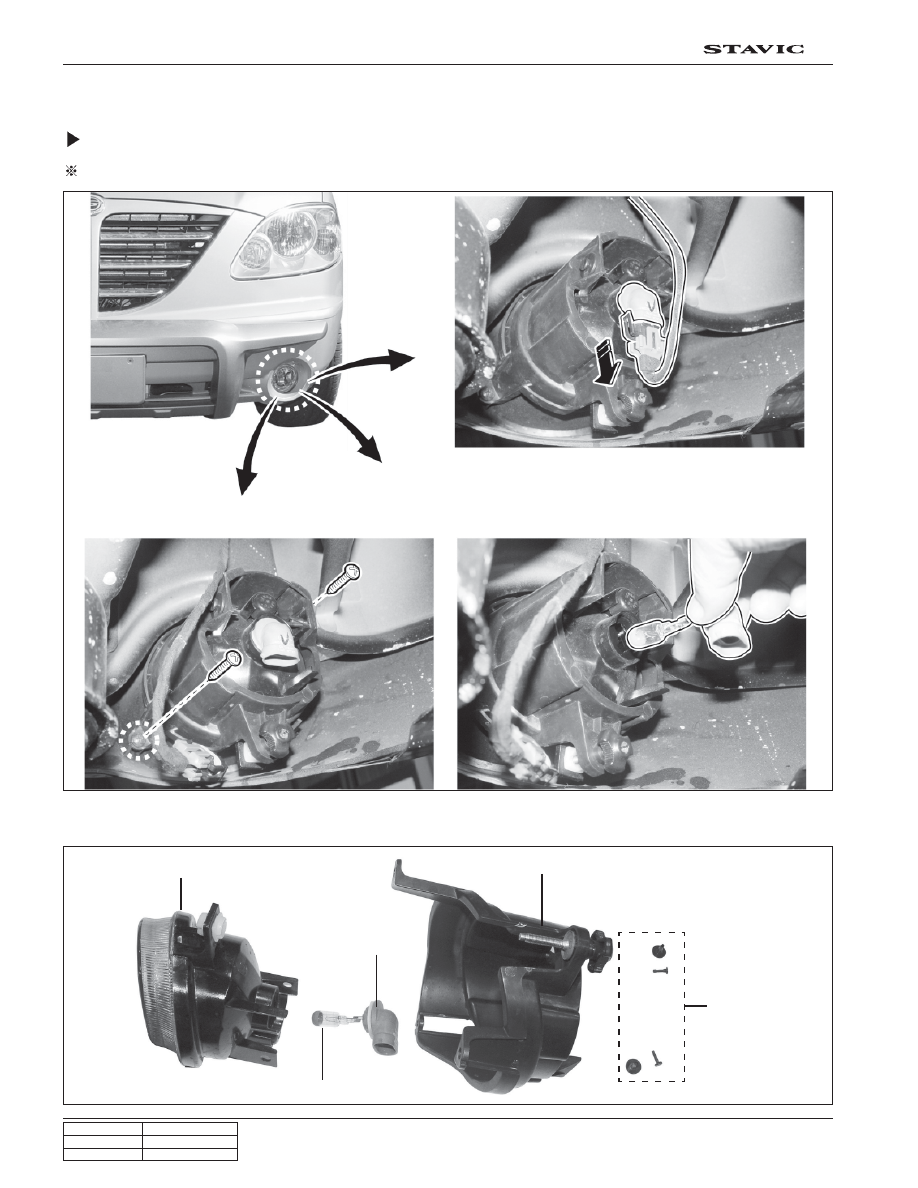

2) Fog Lamp Assembly

Removal and Installation of Fog Lamp Assembly

Preceding work: Disconnection of negative battery cable

1. Disconnect the fog lamp connector.

2. Remove the mounting screws (when removing the

assembly).

3. Remove the fog lamp bulb (when only removing

the bulb).

4. Remove the fog lamp assembly.

Lamp

Bulb

Bulb connector

Lamp cover

Mounting screws

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

13

2I

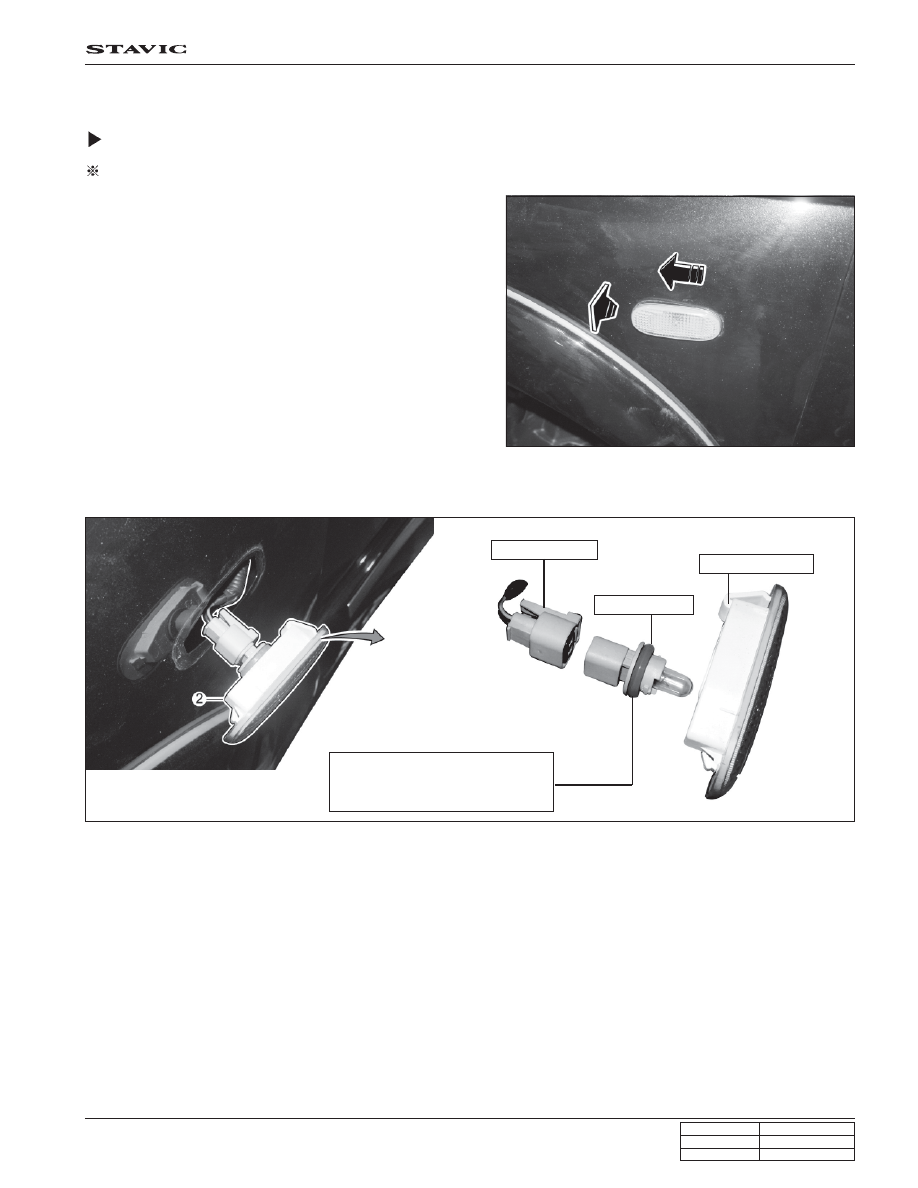

3) Side Turn Signal Lamp Assembly

Removal and Installation of Side Turn Signal Lamp

Preceding work: Disconnection of negative battery cable

2. Disconnect the connector and remove the lamp.

Bulb connector

Bulb assembly

Lamp assembly

Bulb cover rubber ring:

If the cover rubber ring is defective,

replace it with new one.

1. Push the turn signal lamp forward and pull in the rear

side of the lamp to separate.
