LAMP

STAVIC - 2004.09

2

2I

: one at each side (12V - 5W)

EXTERIOR LAMPS

1. LOCATIONS OF EXTERIOR LAMPS

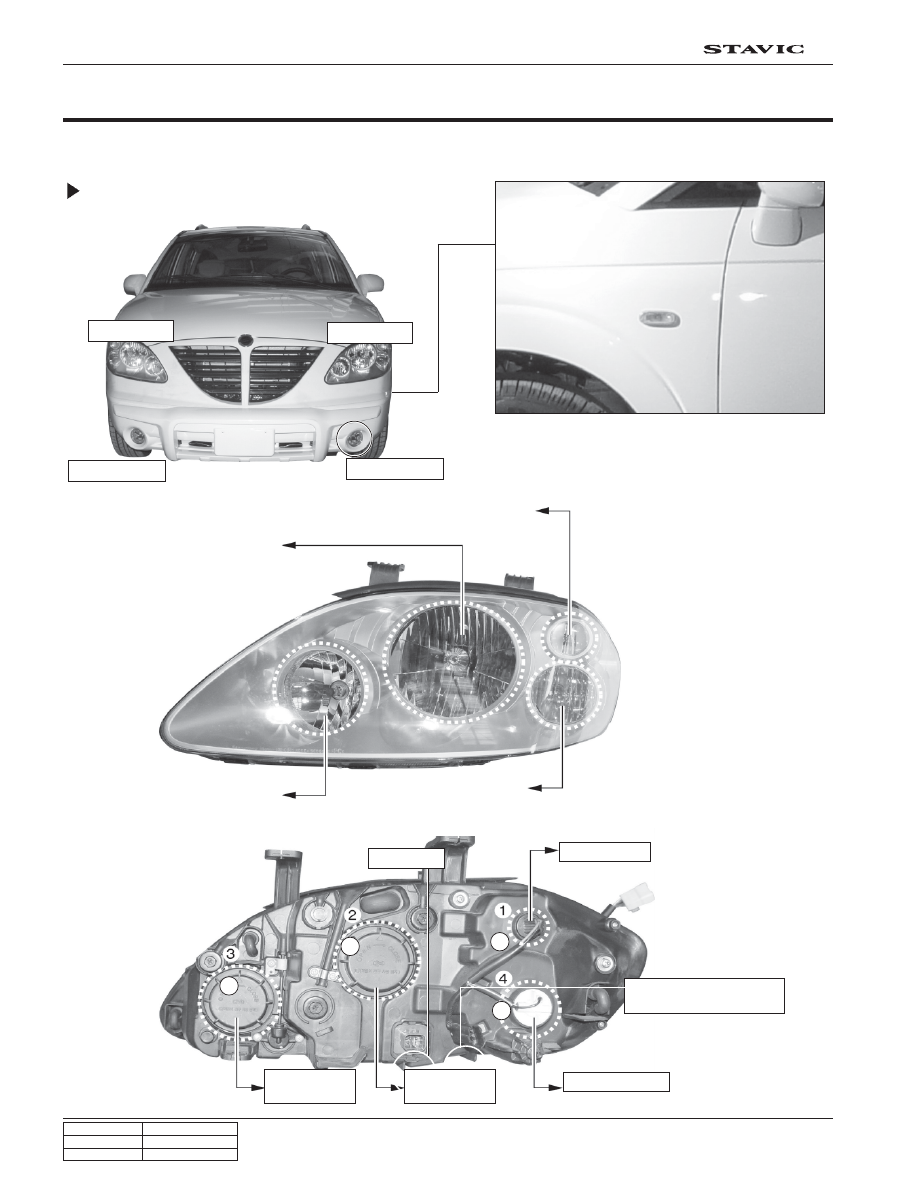

Front Lamps

Headlamp

Headlamp

Fog lamp (LH)

Fog lamp (RH)

Tail lamp:

one at each side (12V - 5W)

Low beam:

one at each side (12V - 55W)

High beam:

one at each side (12V - 55W)

Turn signal lamp:

one at each side (12V - 28W)

Side turn signal lamp:

one at each side (12V - 5W)

Tail lamp

Turn signal lamp

Headlamp

(High beam)

Tail lamp/Turn signal lamp

connector

Connector

5

2

3

4

Headlamp

(Low beam)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

3

2I

High mounted stop lamp
: center – 1 (12V – 5W)

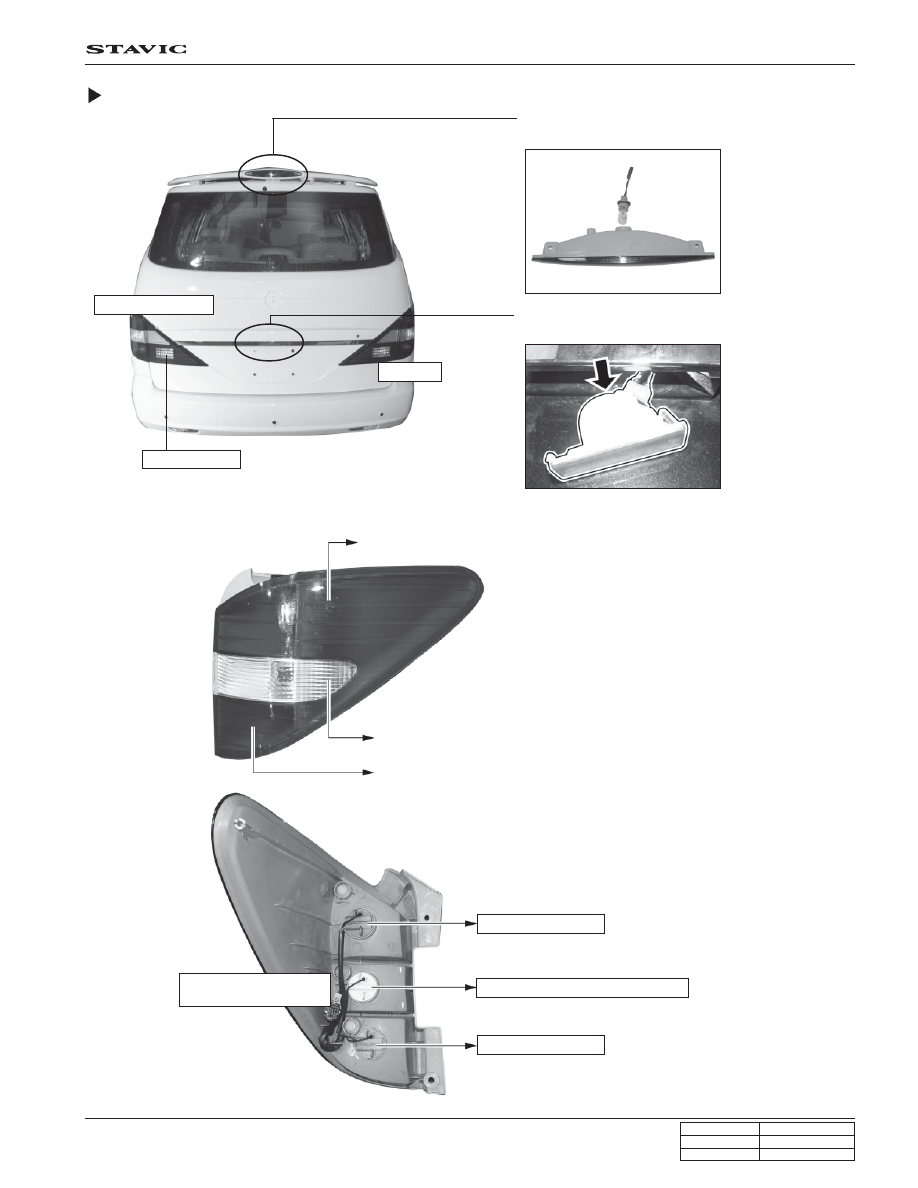

Rear lamp

Tail lamp assembly

License plate lamp
: center – 2 (12V – 5W)

Stop lamp: one at each side (12V - 8W)

Rear turn signal lamp: one at each side (12V - 27W)

Tail lamp: one at each side (12V - 8W)

Tail lamp assembly

connector

Stop lamp

Rear turn signal lamp/Rear fog lamp

Tail lamp

Rear Lamps

Rear fog lamp

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

4

2I

Adjustment of low beam

No.1 adjustment hole: Up and Down

No.2 adjustment hole: Left and Right

Adjustment of high beam

No.3 adjustment hole: Up and Down

No.4 adjustment hole: Left and Right

2. AIMING AND ADJUSTMENT OF FRONT LAMP

Headlamp Aiming

An approved beam setting device should be used for a
correct headlamp aiming.

Make sure to follow the operating instructions provided by
the manufacturer.

If not available to use the beam setting device, adjust the
headlamp aiming with a screen.

Headlamp aiming requirements:

- parking on a flat surface

- specified tire pressure

- one passenger (driver, 65 kg),

- spare tire and OVM tools loaded (unlade all other loads)

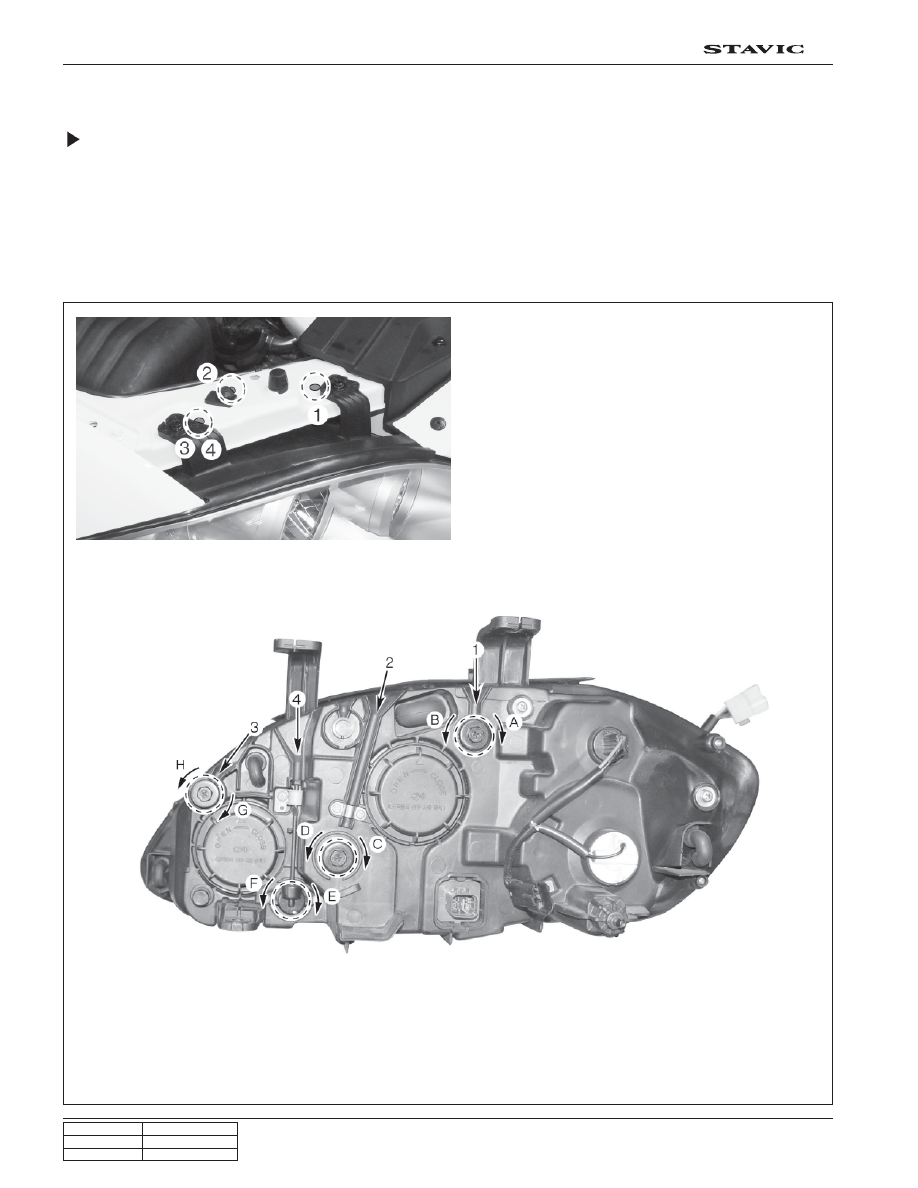

No.1 adjustment:

Direction A - Up

Direction B - Down

No.2 adjustment:

Direction C - Left

Direction D - Right

No.3 adjustment:

Direction E - Up

Direction F - Down

No.4 adjustment:

Direction G - Left

Direction H - Right

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

5

2I

Cautions During the Aiming
Procedures

The headlamp angle should be within the adjustment range
as shown in the figure.

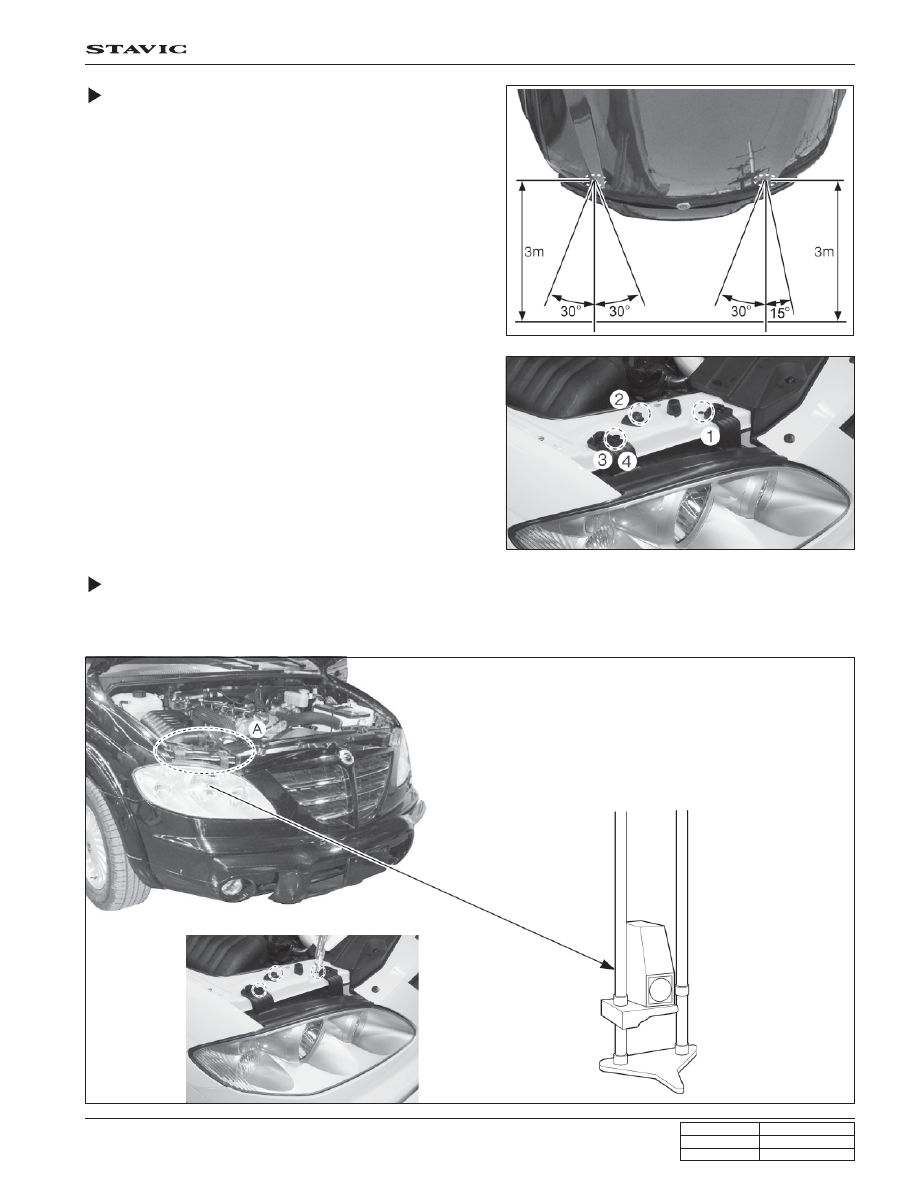

When using a beam setting device

1. Align the vehicle and beam setting device according to the operating instructions provided by the manufacturer.

2. Adjust the headlamp aiming by rotating the direction control levers (Up, Down, Left, Right) in turn with a screwdriver.

Adjust the headlamp aiming by rotating the direction control
levers (Up, Down, Left, Right) in turn with a screwdriver.
