SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 273





CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

14

2I

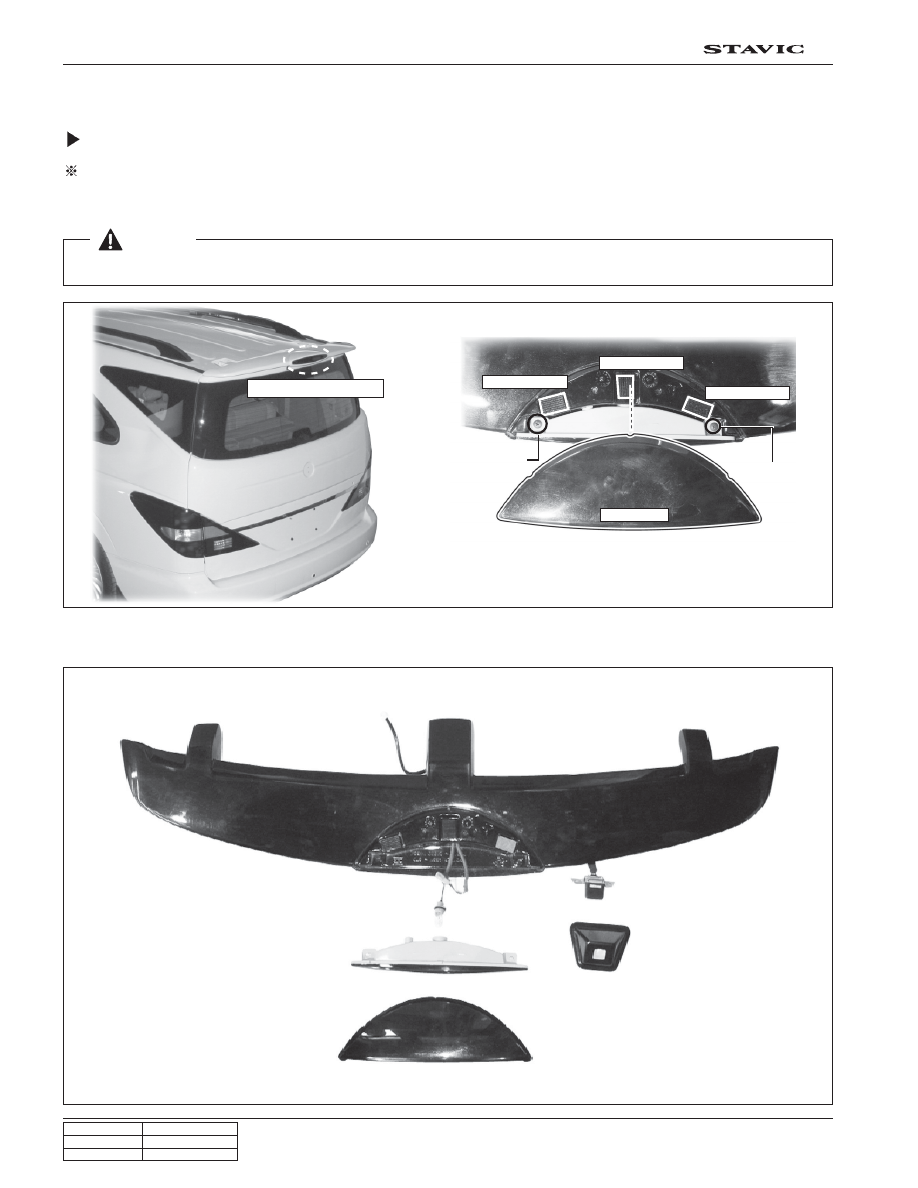

4) High Mounted Stop Lamp Assembly

Removal and Installation of High Mounted Stop Lamp

Preceding work: Disconnection of negative battery cable

1. Remove the high mounted stop lamp cover from the tailgate spoiler.

2. Unscrew the screws from the high mounted stop lamp, disconnect the lamp connector, and remove the lamp assembly.

Tailgate spoilera

Rearview camera

Rearview camera cover

High mounted stop lamp bulb

High mounted stop lamp

High mounted stop lamp cover

High mounted spoiler

Adhesive area

Lamp cover

Mounting screw

Adhesive area

Adhesive area

Mounting screw

Lamp

 [Notice]

Be careful not to damage the installation surface when removing the tailgate spoiler.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

15

2I

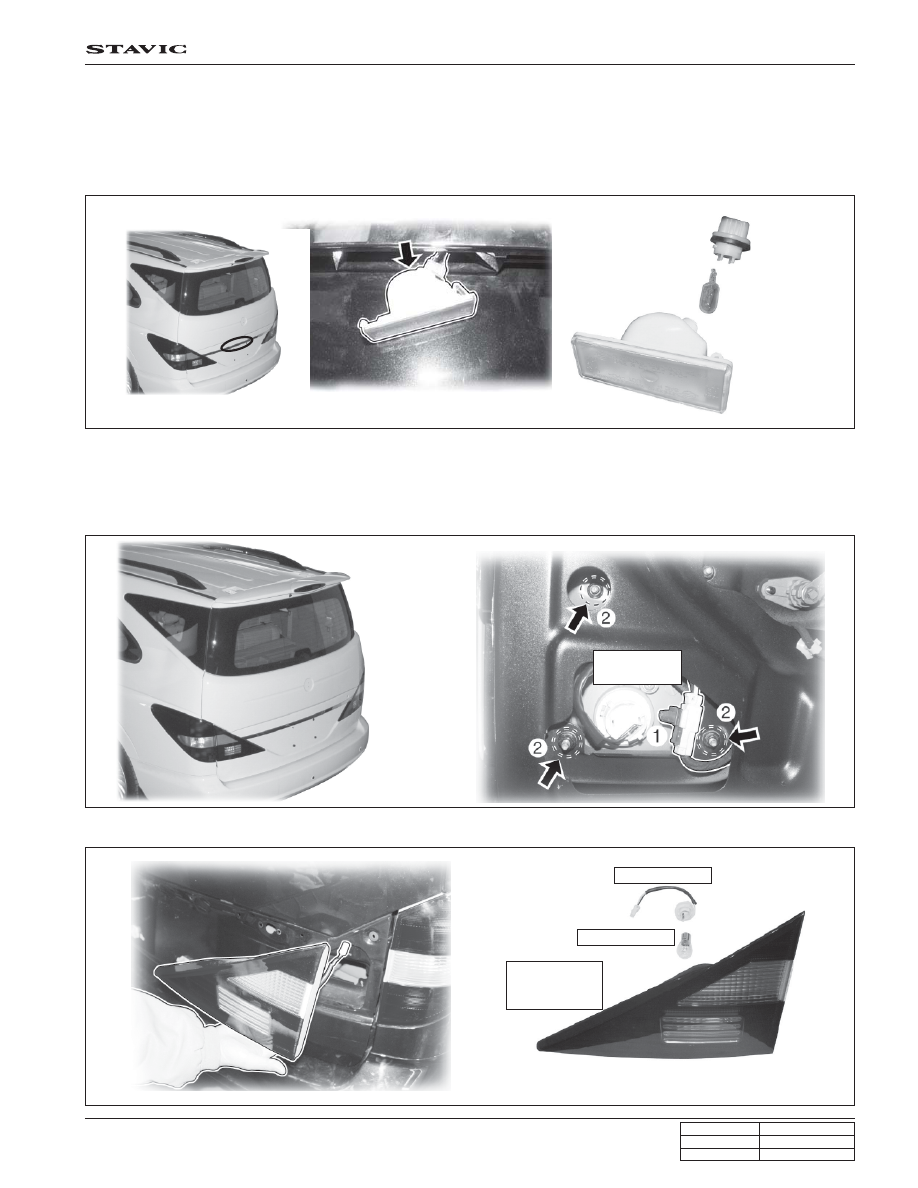

6) Tail Lamp (Back-up) Lamp Assembly (Rear Fog Lamp)

2. Disconnect the back-up lamp connector (1) and remove

the nuts (2) from the tail lamp (back-up lamp) assembly.

3. Remove the tail lamp (back-up lamp) assembly and pull out the bulb from the removed tail lamp assembly.

License plate
lamp assembly

Bulb connector

Bulb

Lamp

Fog lamp /

Back-up lamp

Bulb connector

Bulb connector

Tail lamp

(back-up lamp)

/ Fog lamp

5) License Plate Lamp Assembly

1. Remove the license plate lamp assembly from the tailgate rear garnish.

2. Remove the bulb connector from the removed lamp assembly and pull out the bulb from the bulb connector.

3. Replace the bulb with new one and install the assembled lamp assembly into the mounting hole.

1. Remove the tailgate inner trim.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

16

2I

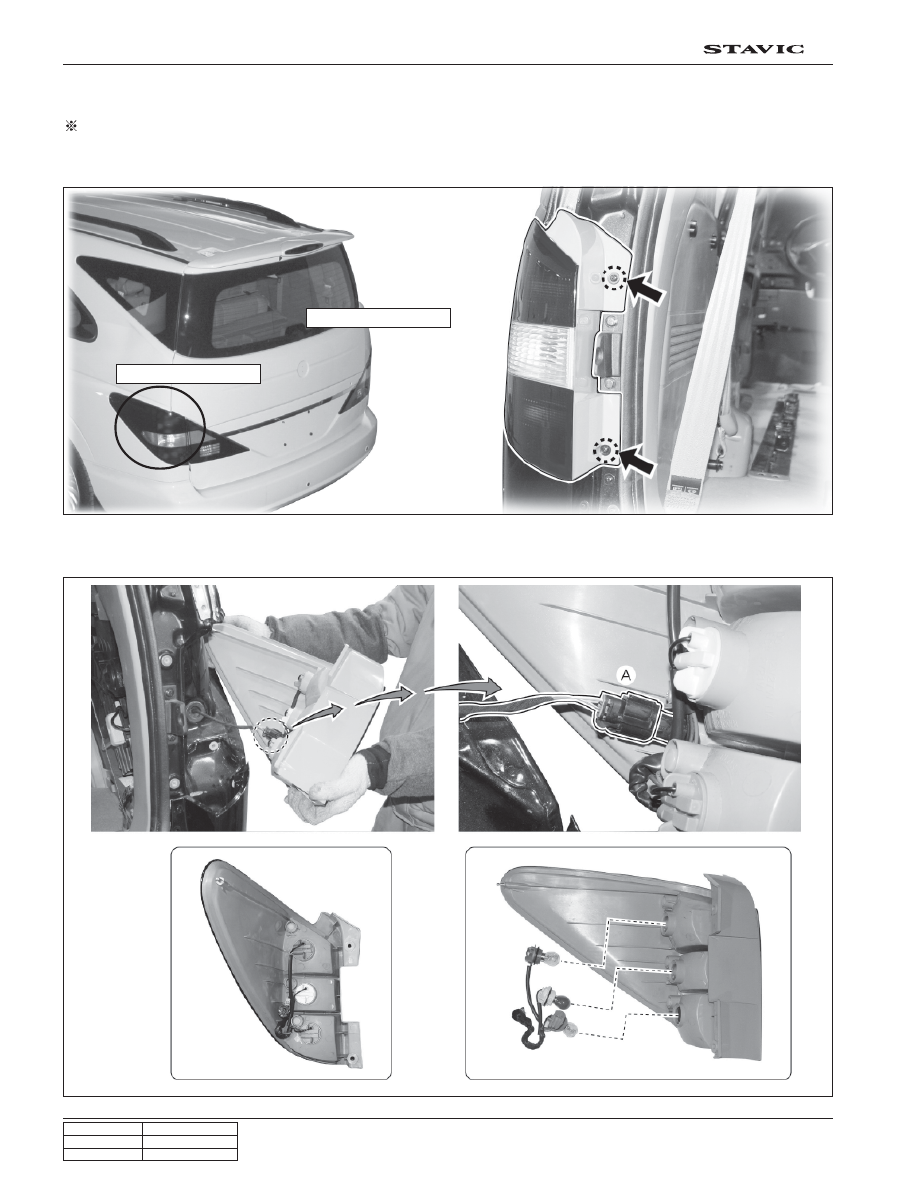

7) Tail Lamp Assembly

Preceding work: Disconnection of negative battery cable

1. Open the tailgate and remove two screws from the tail lamp assembly.

Tail lamp assembly (LH)

Tail lamp assembly (RH)

2. Disconnect the connector and remove the tail lamp assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

17

2I

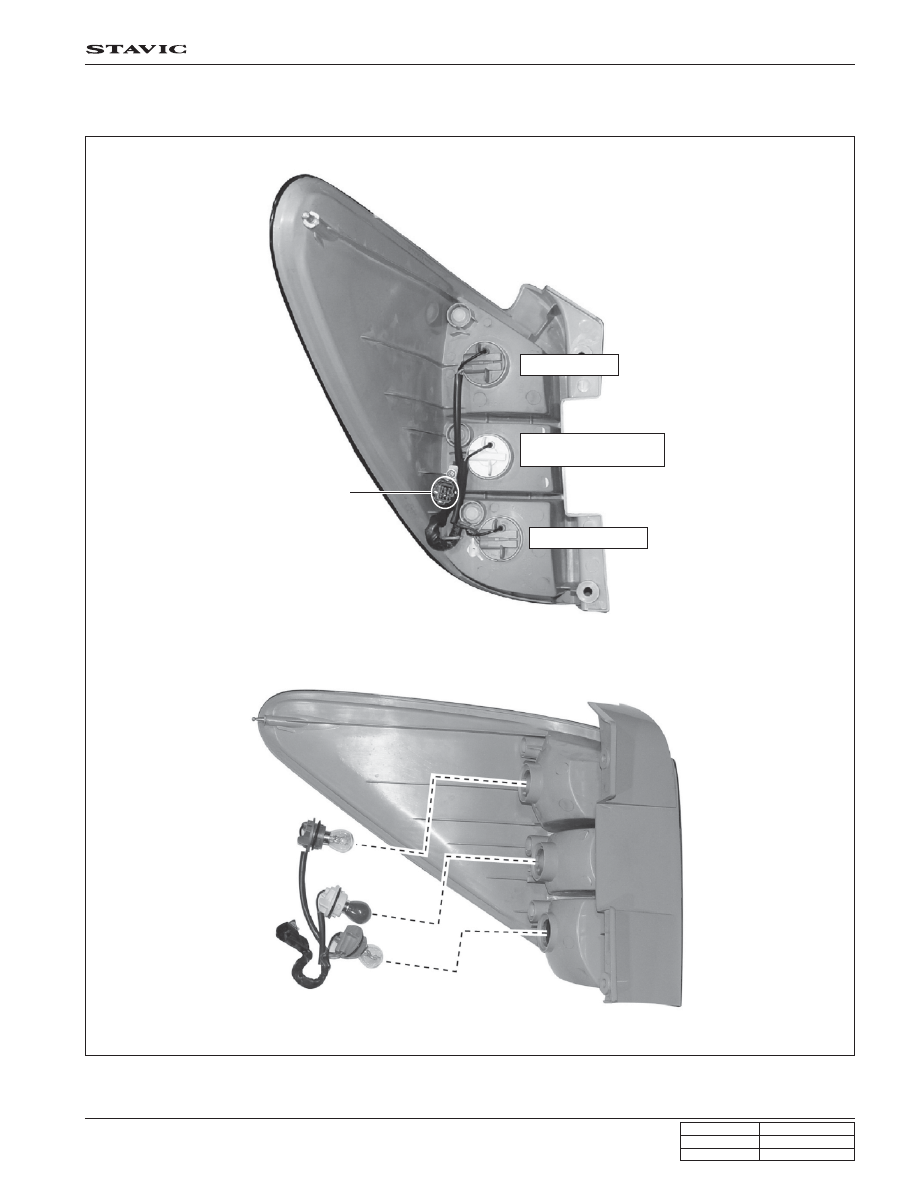

3. Remove the bulb connector by rotating it counterclockwise from the removed tailgate lamp assembly. Pull out the

bulb from the bulb connector and install the new bulb with same specifications.

Tail (stop) lamp

Rear fog lamp

/ Rear turn signal lamp

Tail (position) lamp

Bulb connector
