SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 256

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

Wiper blade

Wiper linkage

Wiper motor

2. REMOVAL AND INSTALLATION OF WIPER ASSEMBLY

1. Front Wiper Assembly

Preceding work: Disconnection of negative battery cable

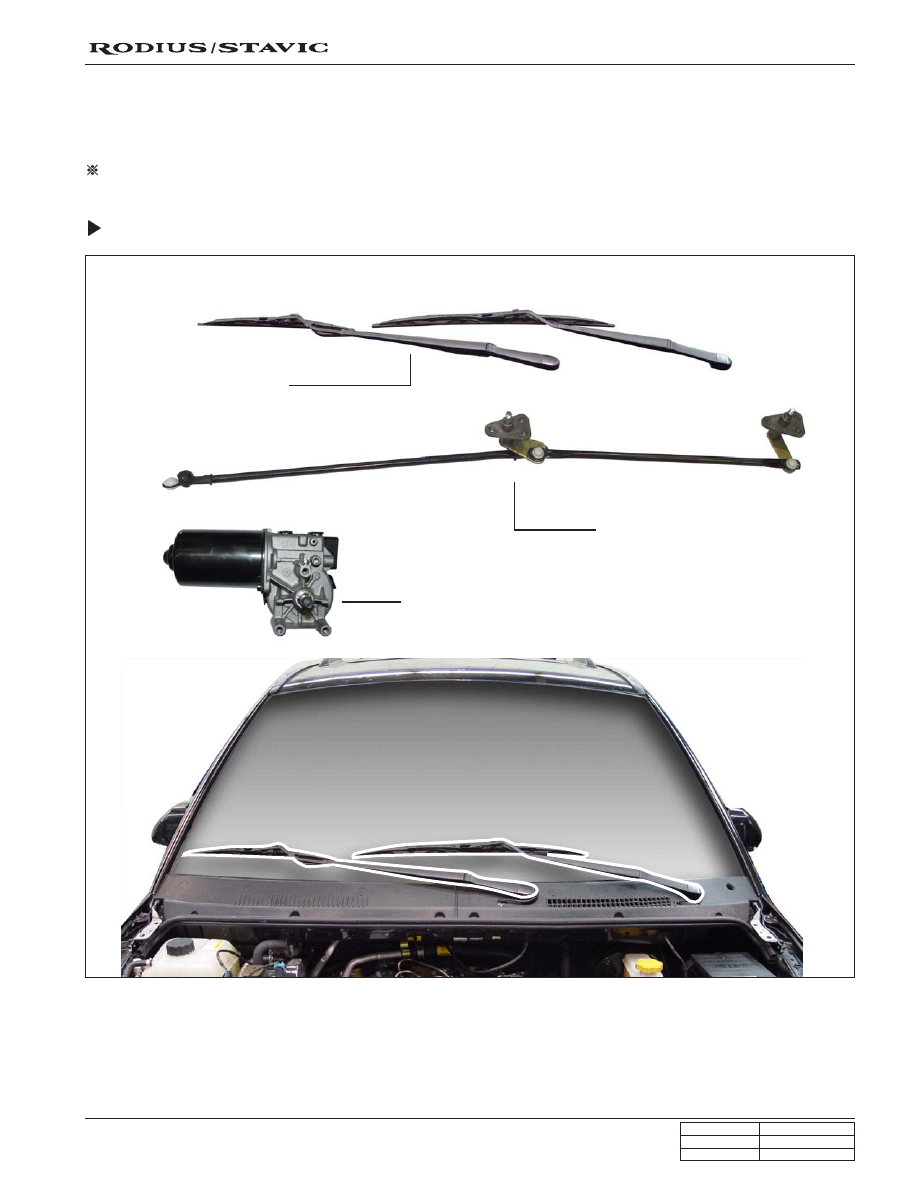

Components Locator

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

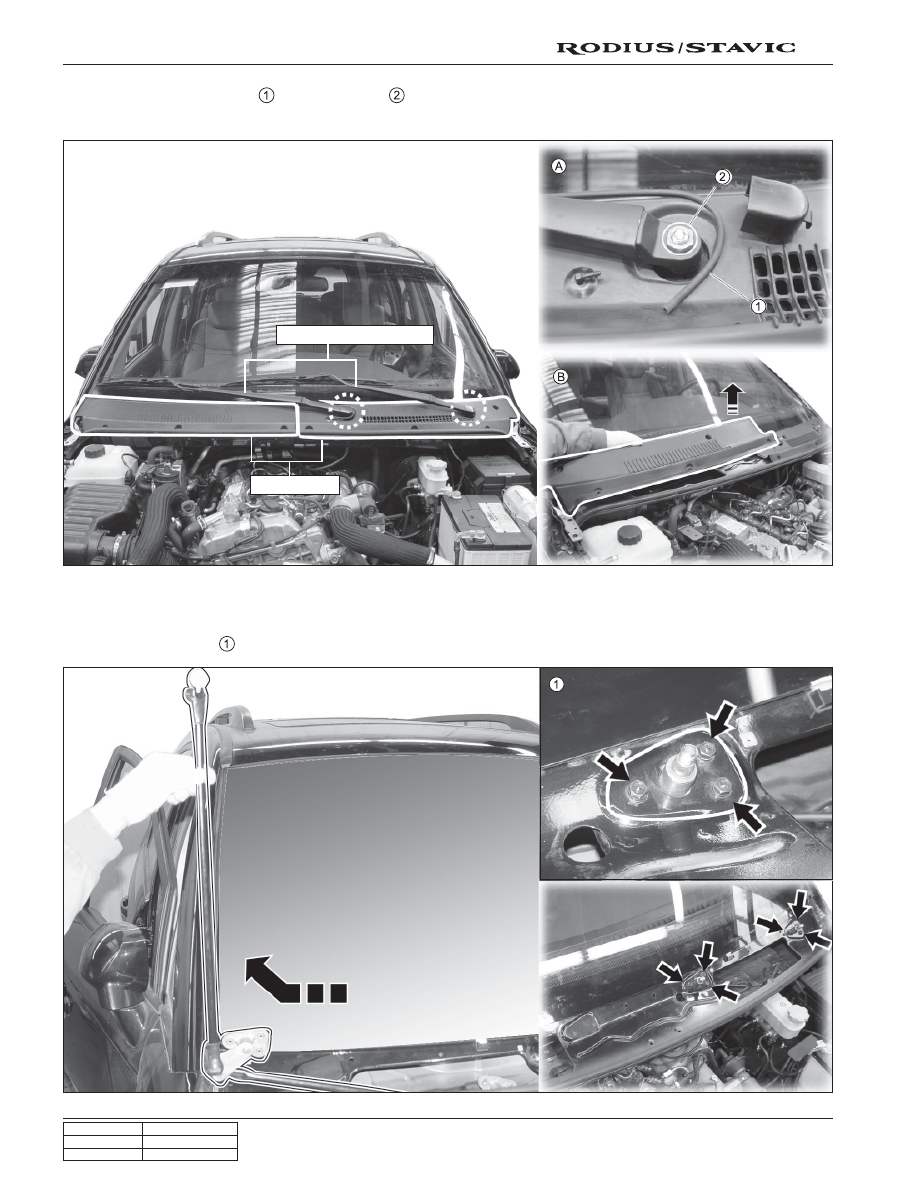

1. Detach the washer hose

, unscrew the nut

and remove the wiper blade assembly, and remove the hood cowl

grille.

2. Unscrew the bolts

and remove the wiper linkage assembly.

A. Wiper blade assembly

B. Cowl grill

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

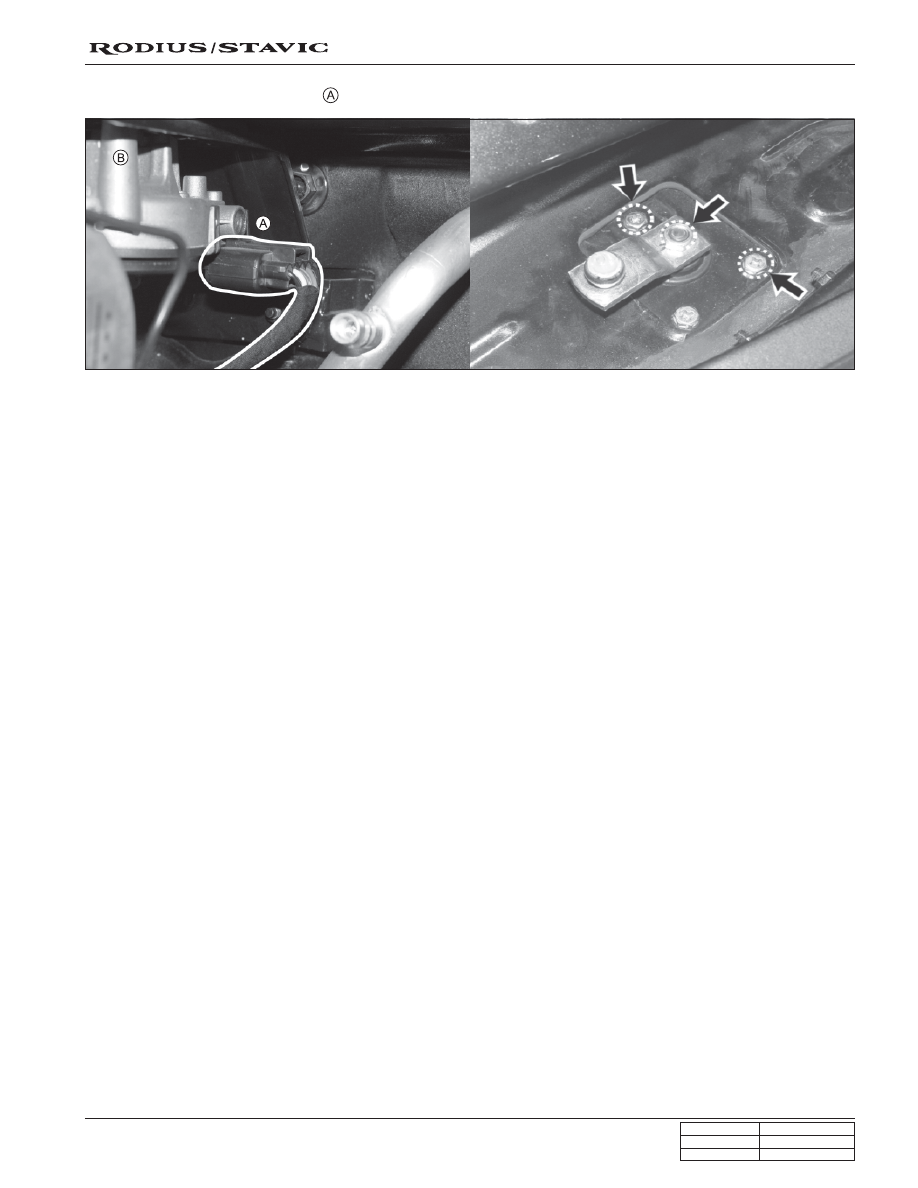

3. Disconnect B motor connector

. Unscrew two mounting bolts and two nuts and remove the wiper motor.

4. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

2. Rear Wiper Assembly

Preceding work: Disconnection of negative battery cable, removal of tailgate trim

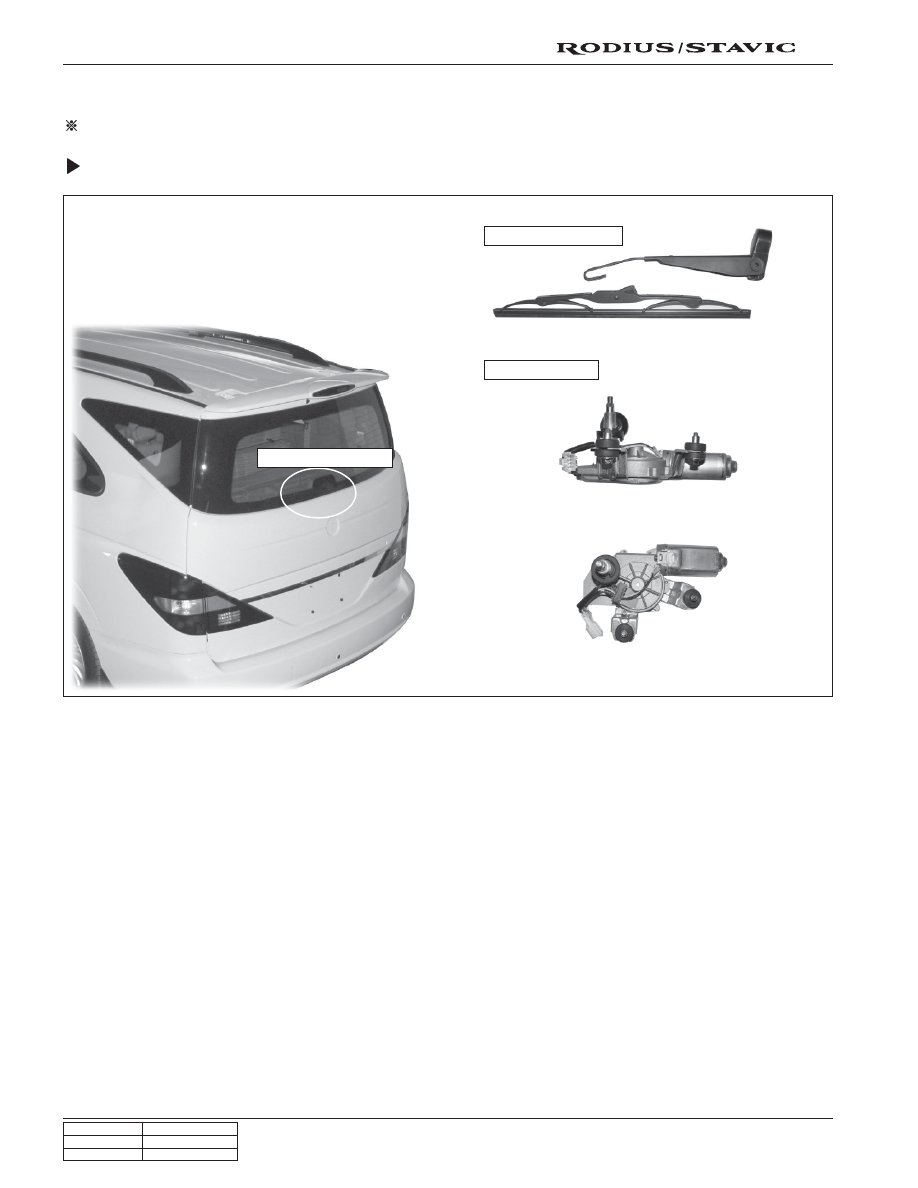

Components Locator

Rear wiper assembly

Wiper blade assembly

Rear wiper motor
