SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 255

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

30

2E

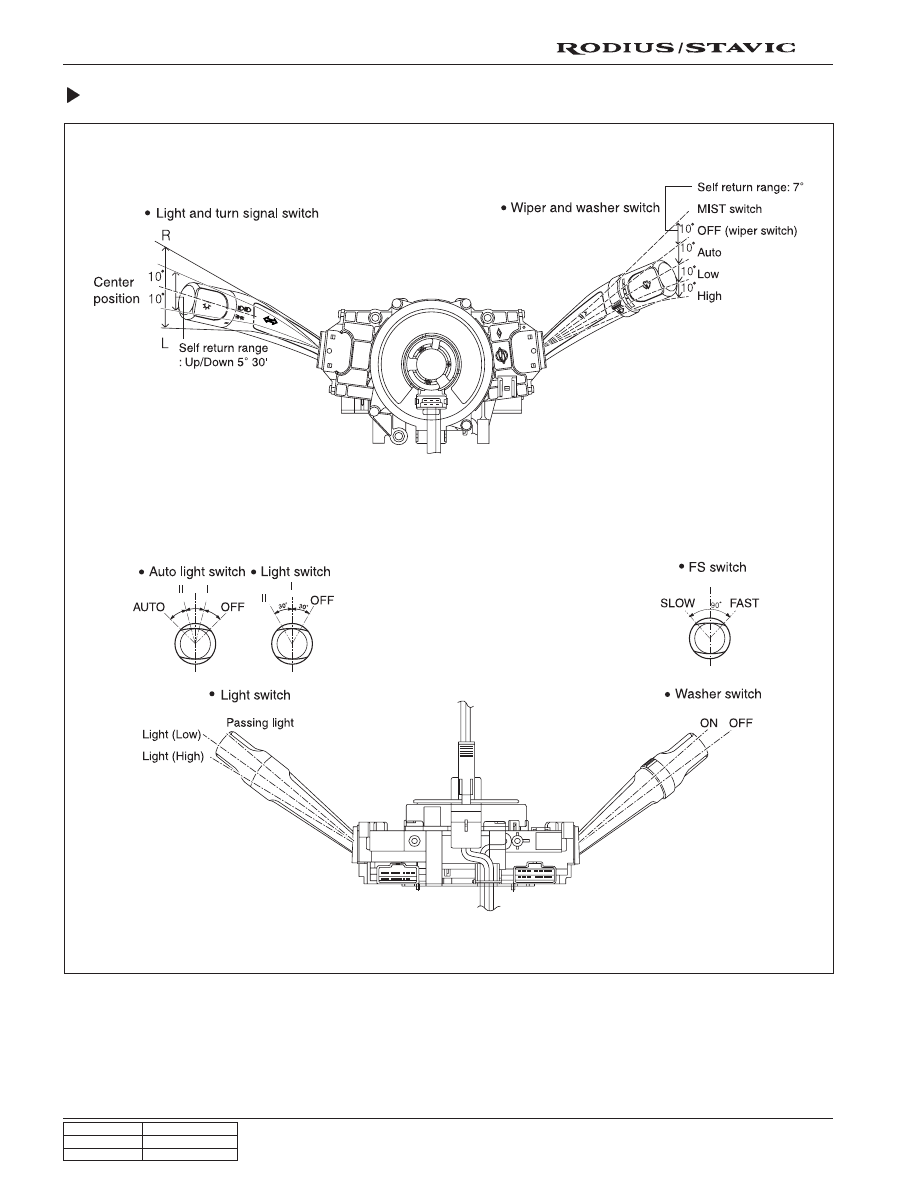

Multifunction Switch Operating Range

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

31

2E

Connector Pins and Designations of Multifunction Switch

1. Connector A

2. Connector A

4

3

11

9

10

2

1

5 6 7

8

15

14 16

22 21 17 20

18 19

Connector A

Connector B

Pin number

1

2

3

4

5

6

7

8

9

10

11

Descriptions

EB: Dimmer and passing ground

HL: Headlamp low beam

HU: Headlamp high beam

HS(2): Passing switch

TS: Tail lamp switch

HS(1): Headlamp switch

F/AUTO: Rear fog lamp

DEL: Light switch ground

TB: Flasher unit power

TL: Turn signal (LH) lamp switch

TR: Turn signal (RH) lamp switch

Pin number

14

15

16

17

18

19

20

21

22

Descriptions

LO: Low wiper speed

HI: High wiper speed

S: Wiper stop

AUTO(W): Intermittent wiper

INT(T): Intermittent WIPER

BWT: Intermittent power

W: Front washer switch

BW: Wiper and washer switch

MS: Low wiper speed (MIST switch)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

39

2E

WIPER AND WASHER ASSEMBLY

1. GENERAL

System Layout of Wiper and Washer

Wiper blade

assembly

Wiper motor and

linkage assembly

Washer motor and

washer fluid reservoir

Washer nozzle and

washer hose

Wiper blade

assembly

Wiper motor and

linkage assembly

Washer motor and

washer fluid reservoir

Washer nozzle and

washer hose

Rear wiper and washer assembly

Front wiper and washer assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

40

2E

Circuit Diagram

Specifications

Specifications

Rated voltage

Test voltage

Operating voltage range

Minimum operating voltage

Insulating voltage

Restraint test

Surrounding voltage range

Rated voltage

Operating voltage range

Operating temperature range

Reserving temperature range

Insulating voltage

Voltage drop

Test voltage

Acceptable load current

Torque

Voltage

Descriptions

Motor

Control

DC 12 V ± 0.3 V

DC 13.5 V ± 0.3 V

DC 10 ~ 15 V

Below DC 8 V

Over 1 m

Ω

Over 1.1 Km

Below 14 A

-40°C ~ +80°C

DC 12 V

DC 9 ~ 16 V

-30°C ~ +80°C

-40°C ~ +90°C

Over 1 m

Ω

Below 0.5 V

(terminals between 5-7, 6-8, 5-8, 6-7 @ 5 A)

14.0 ± 0.5 A

Maximum 10 A

Voltage

controller

Relay 1

Relay 2

Wiper motor
