SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 254

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

26

2E

4. Remove the door trim.

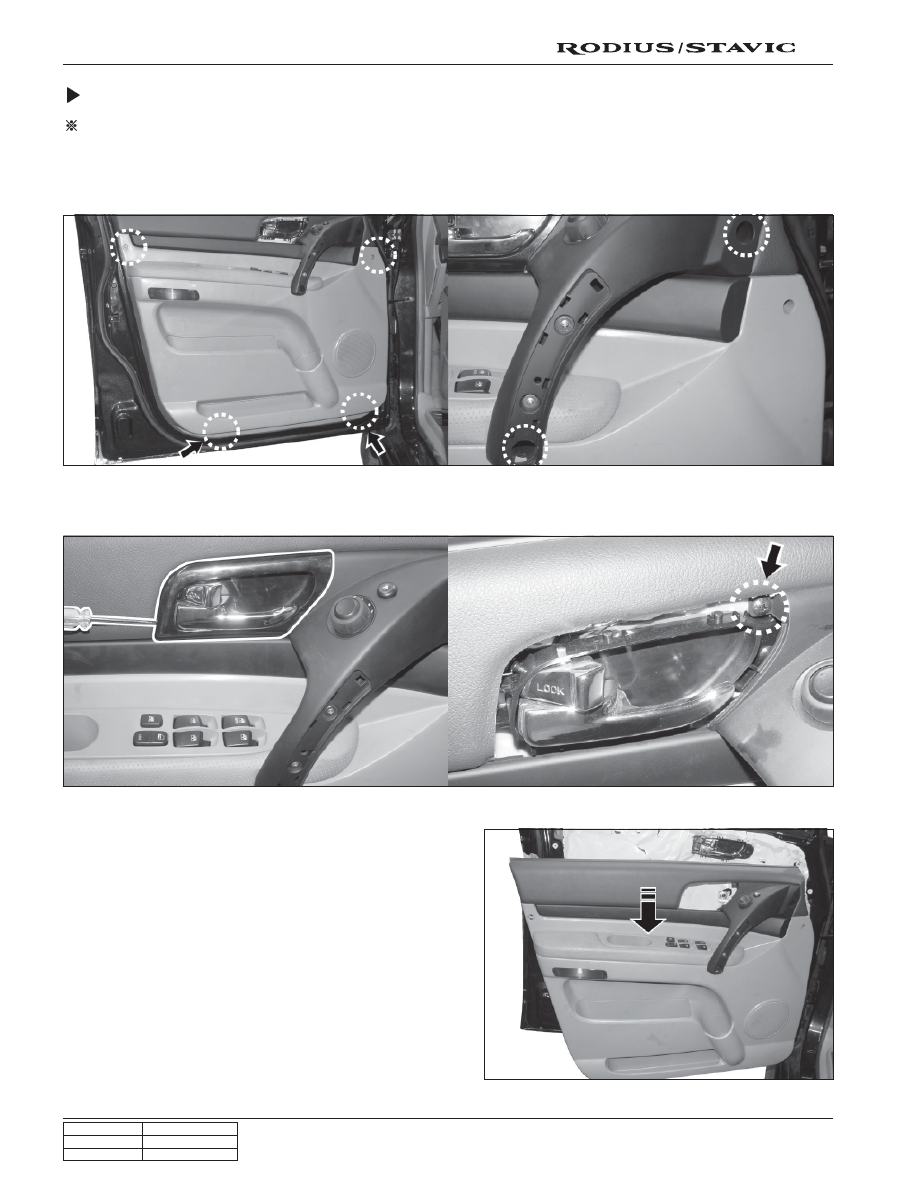

Removal of Outside Rearview Mirror Switch

Preceding Work: Disconnection of negative battery cable

1. Remove the screws (arrows) from the door trim.

2. Remove the door armrest grip cover and unscrew the screw.

3. Pry off the door lever cover and remove the mounting screws.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

27

2E

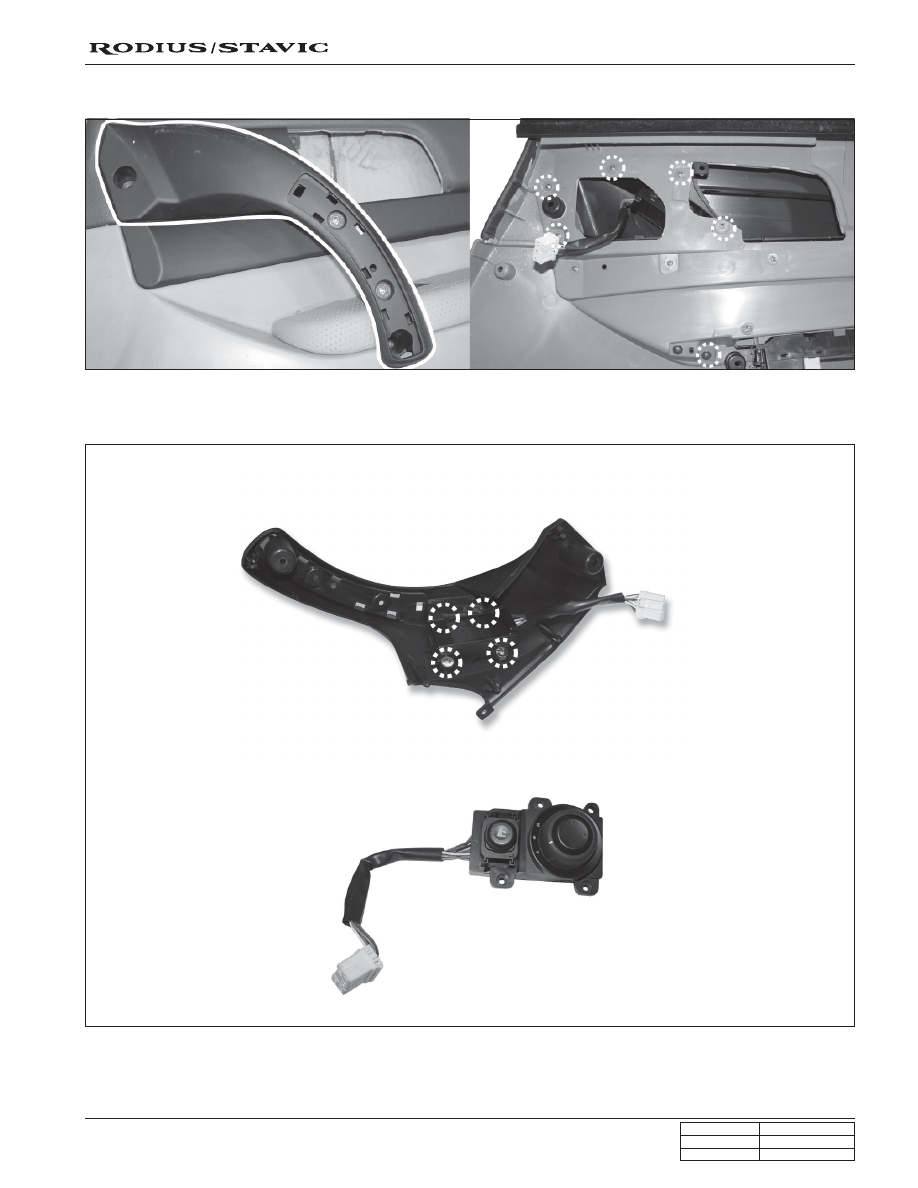

5. Unscrew the bolts and remove the door grip from the removed door trim.

6. Unscrew the bolts and remove the outside rearview mirror switch from the door grip.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

28

2E

Driver side

Passenger side

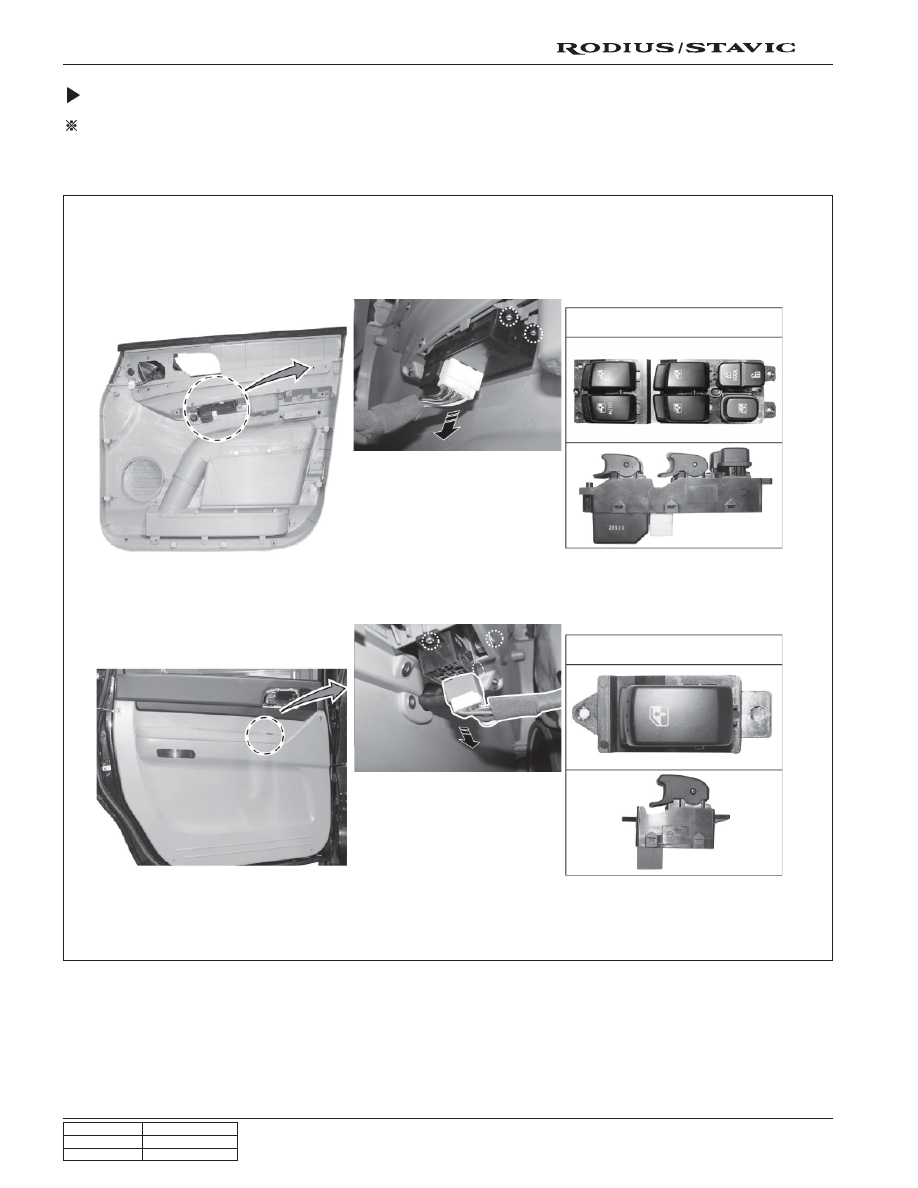

Removal and Installation of Window Switch

Preceding works: Disconnection of negative battery cable, Removal of door trim

Unscrew the screws and remove the window switch from the removed door trim.

Switch

Switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

29

2E

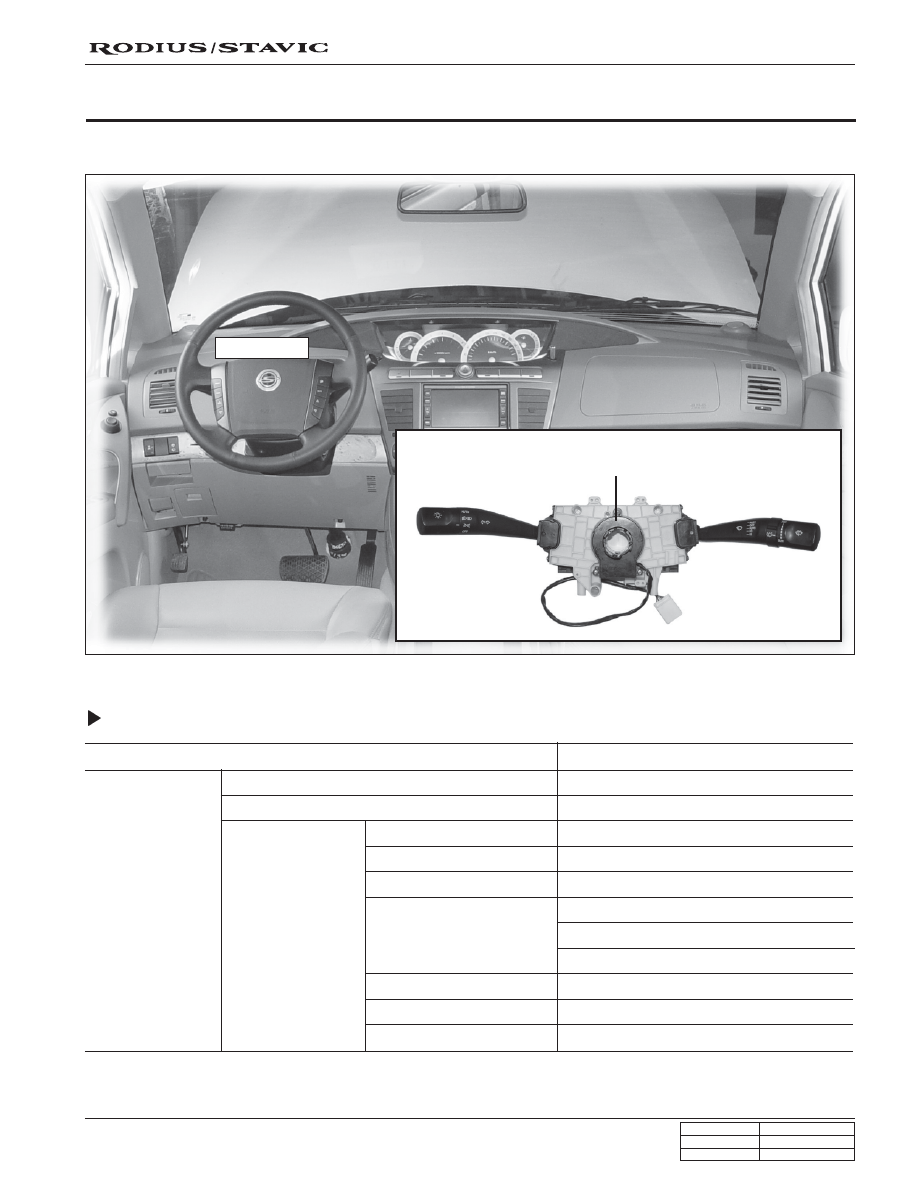

MULTIFUNCTION SWITCH

1. MULTIFUNCTION SWITCH

Specifications

Descriptions

Specifications

Multifunction

switch

Rated voltage

Operating temperature range

Rated load

Light switch

Dimmer and passing switch

Turn signal switch

Wiper switch

Washer switch

Intermittent wiper switch

MIST switch

Steering wheel

DC 12V

-30°C ~ +80°C

Turn on: 1 A (relay load)

Hi/Low/Passing: 0.3 A (relay load)

6.6 ± 0.5 A (lamp load)

Low: 5 A, Hi: 7 A (motor load)

AUTO: 0.22 ± 0.05 A (relay load)

Fixed: max. 28 A (motor load)

4 A (motor load)

Max. 25 mmA

5 A (motor load)

Light switch

Wiper/washer

s w i t c h

Steering wheel
angular sensor
