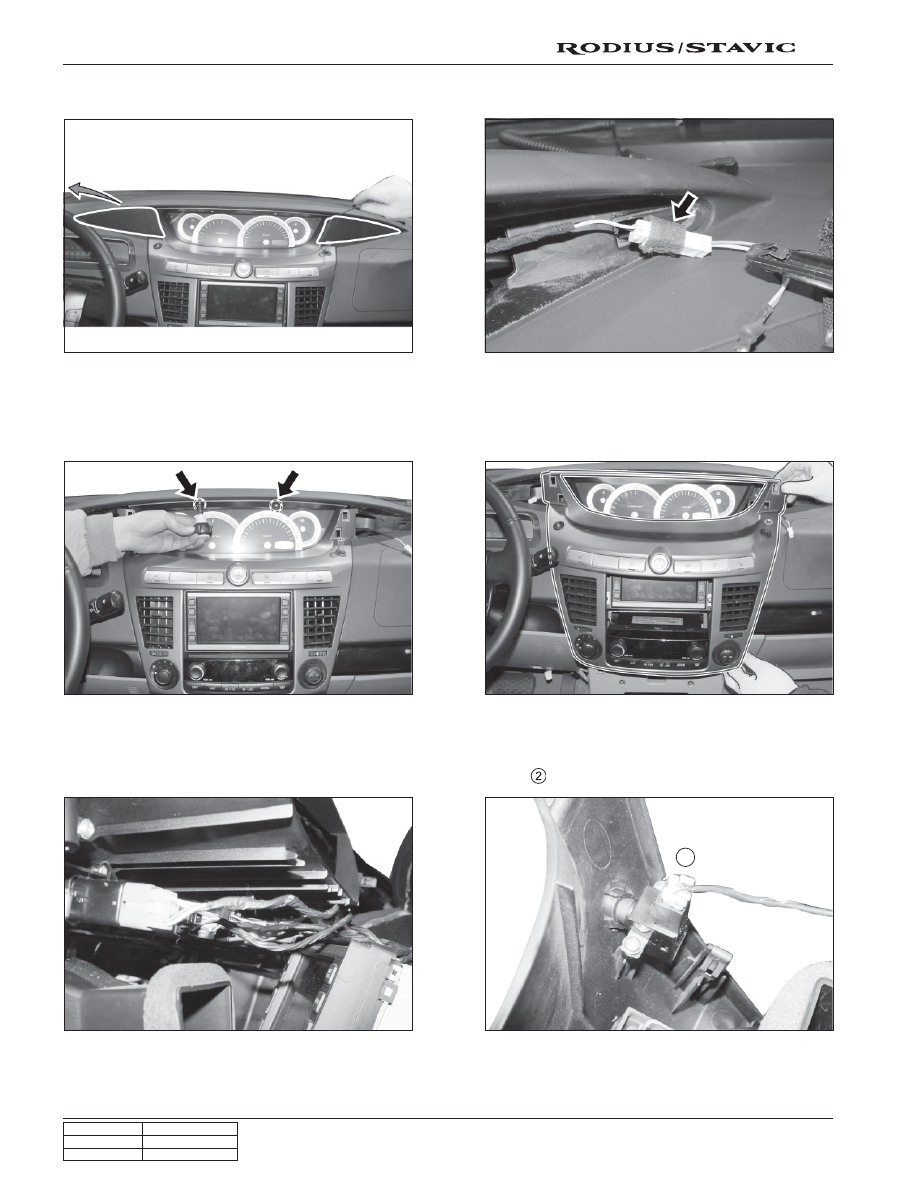

4. Carefully pull out the center speakers and disconnect the connectors.

5. Remove the screws and take out the front cover from the instrument panel.

6. Disconnect all switch connectors including TRIP switch connector

 during removal of the front cover.

2

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

15

2E

• Disconnect the air conditioner connector.

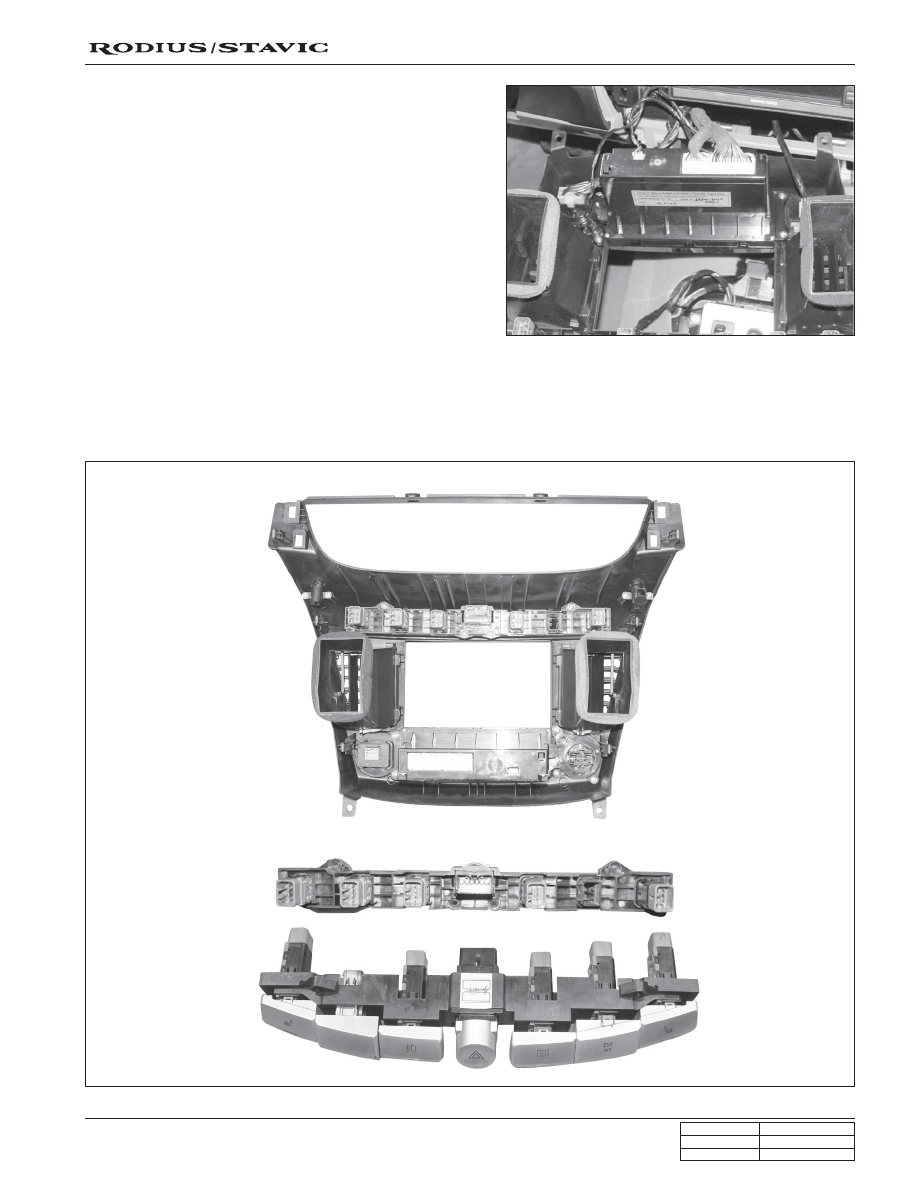

7. Remove the center switch cover and pull out the switches from it.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

16

2E

4WD SWITCH, REAR WIPER/WASHER SWITCH

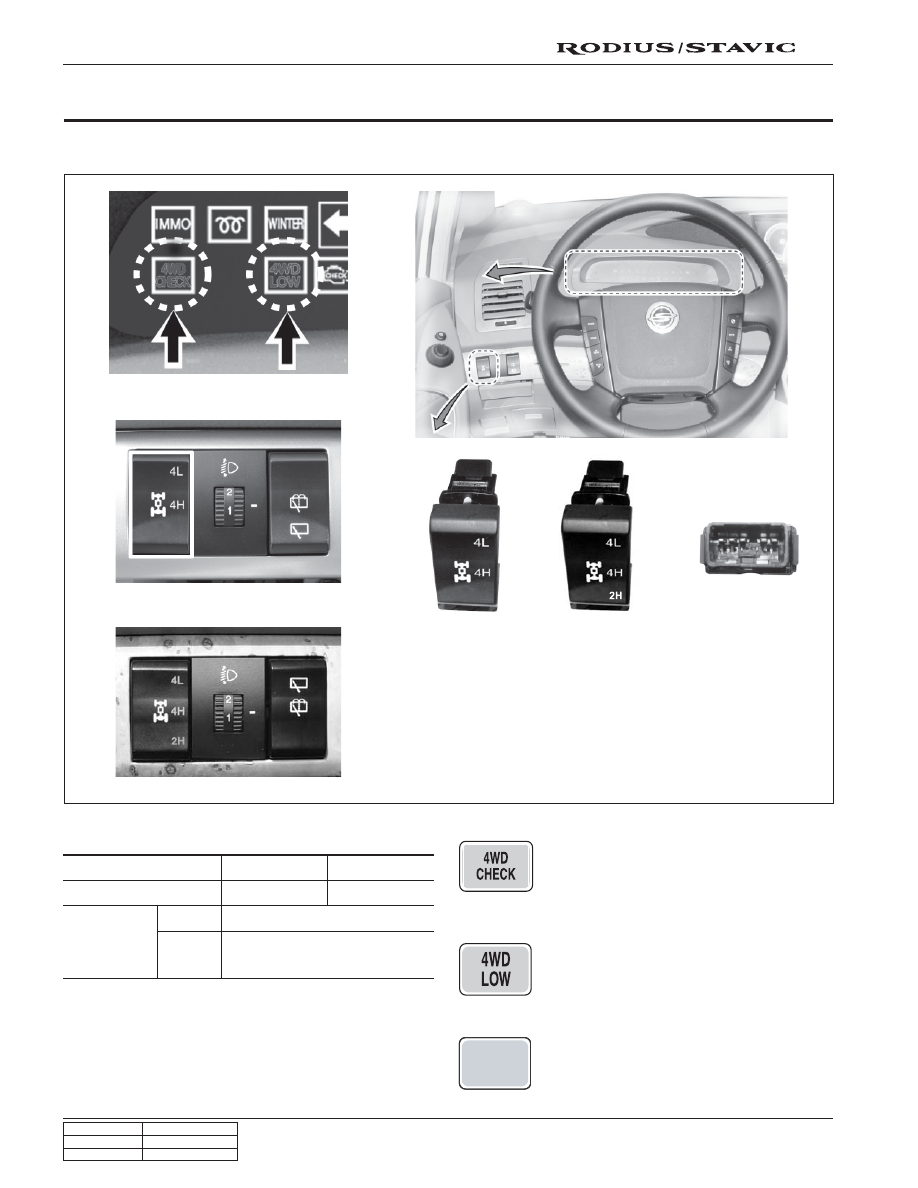

1. 4WD SWITCH

Driving Mode Change

Type

Driving mode

Requirement

Neutral (A/T), Clutch signal (M/T)

Stationary

4WD CHECK Warning Light

This warning light comes on when the
4WD system is defective.

4WD LOW indicator

This indicator blinks during mode changes
(4H

↔

 4 L), then goes off after completion.

TOD

P/Time

TOD

P/Time

Part time

4H

↔

 2H

↔

 4L

Gear

Vehicle
speed

TOD

4H

↔

 4L

4WD

HIGH

4WD HIGH indicator

This indicator blinks during mode changes
(4H

↔

 4 L), then goes off after completion.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

17

2E

Connector Terminals and Circuit

Rated capacity :

wiper - DC 12V, 3.0A

washer - DC 12V, 3.8A

The rear wiper operates with a specific speed when
pressing this switch. It stops when pressing the switch
again.

The washer fluid is sprayed when pressing the switch.
And, the wiper operates when pressing the switch
over 0.6 seconds.

2. REAR WIPER/WASHER SWITCH
