SWITCH

RODIUS/STAVIC - 2005.07

6

2E

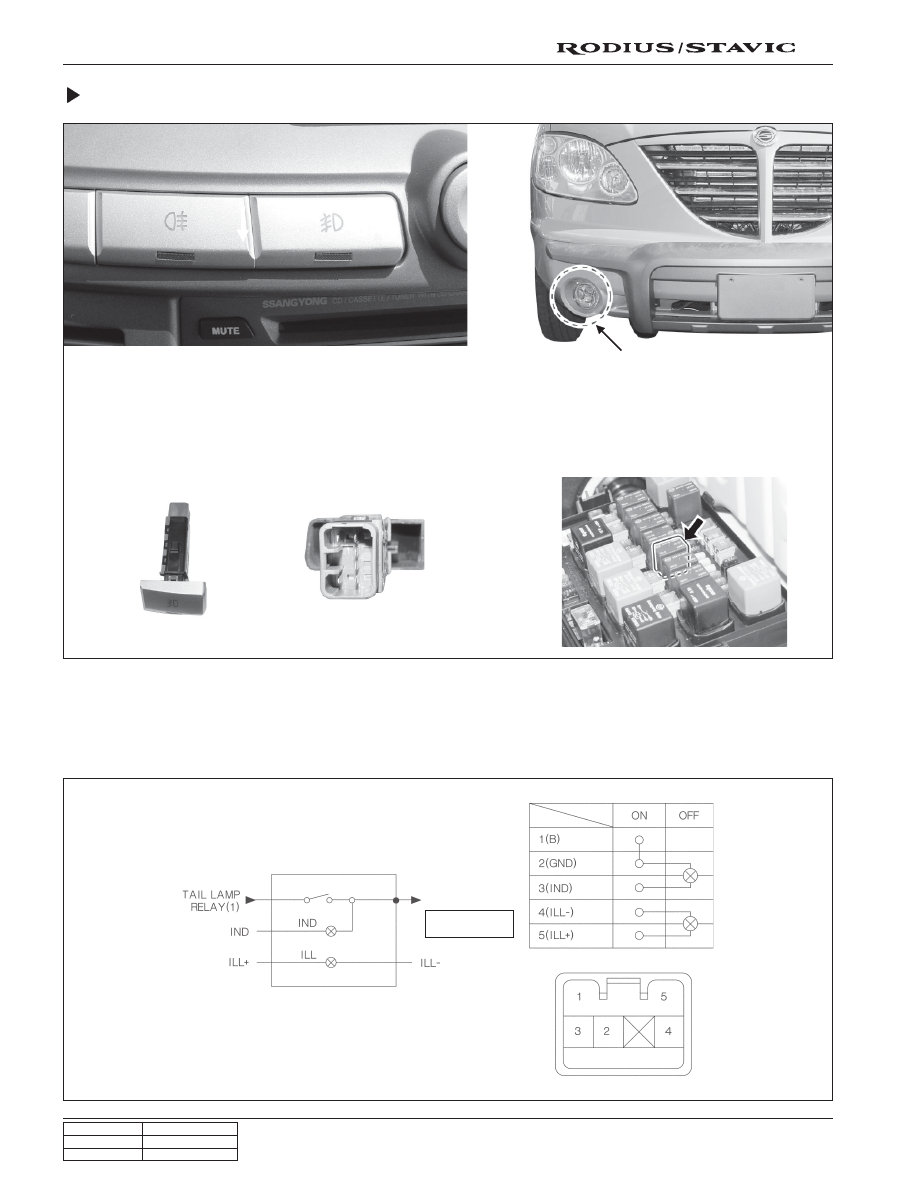

Fog lamp

Fog Lamp Switch

• The fog lamp with indicator comes on when pressing the fog lamp switch while the light switch is “ON”. It goes off

when pressing the switch again.

Connector Terminals and Circuit

Rated capacity: DC 12V, 1A

Fog lamp switch

Fog lamp connector

Fog lamp relay

Fog lamp relay

Engine compartment

fuse and relay box

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

7

2E

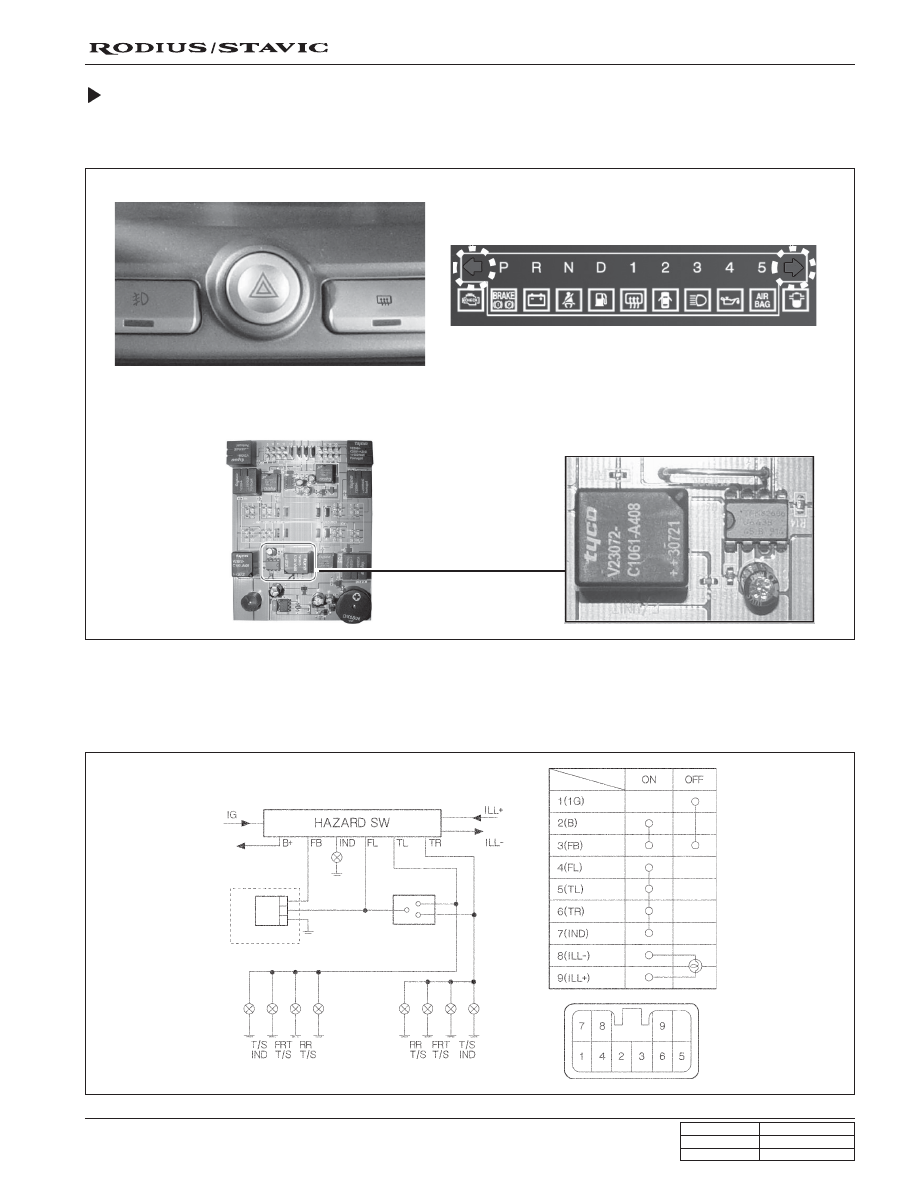

Hazard Warning Flasher Switch

The hazard warning flasher switch is connected to the turn signal lamp circuit. The hazard warning flasher unit is
integrated into the ICM box. If the flasher unit is defective, should replace the ICM box assembly.

• The hazard warning indicators on the indicator display, both turn signal lamps, and both side repeaters blink when

pressing the hazard warning flasher switch.

Connector Terminals and Circuit

Flasher unit (in ICM box)

Indicator lamp

Left side

lamps

Flasher unit

ICM box

Turn signal lamp

switch

Right side

lamps

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

8

2E

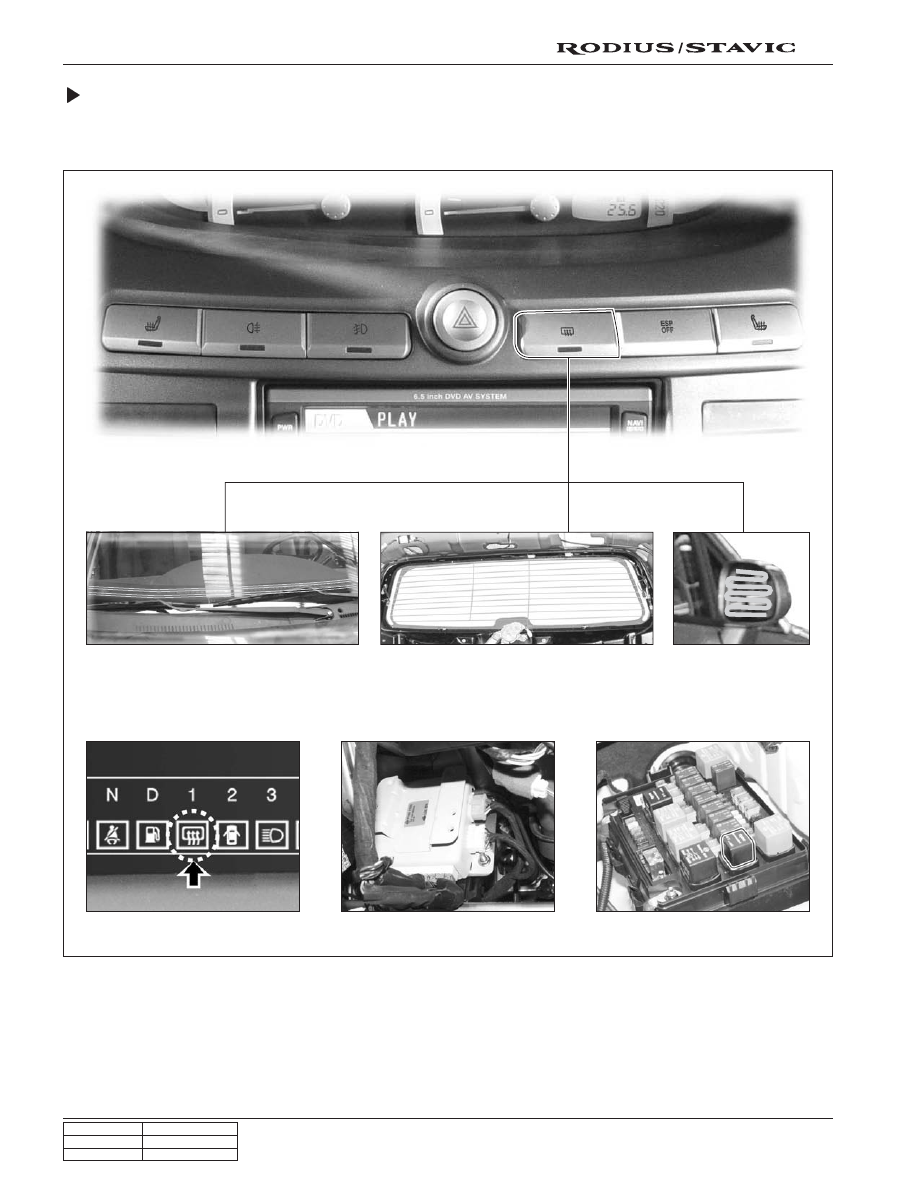

Defogger Switch

The windshield, tailgate glass, and outside rearview mirrors have heated wire. STICS controls the defogger relay in the
engine room fuse and relay box.

Defogger indicator

STICS

Defogger relay and fuses

Comes on during operation

Controls the heated glass

In the engine compartment

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

9

2E

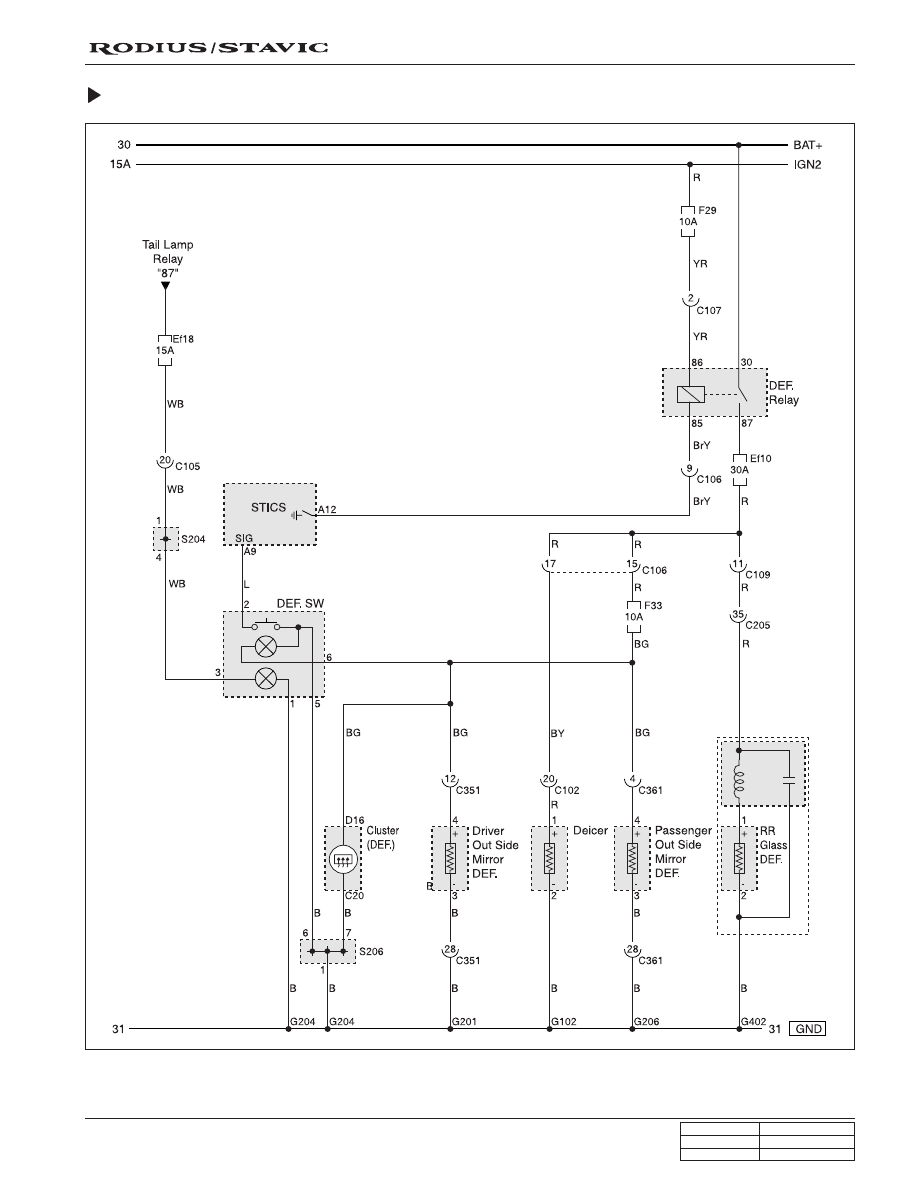

Circuit Diagram

The defogger switch is connected to STICS. The STICS controls the tailgate heated glass windshield glass and
outside rearview mirror heated glass according to the switch operations while the engine is running.
