SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 250

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

10

2E

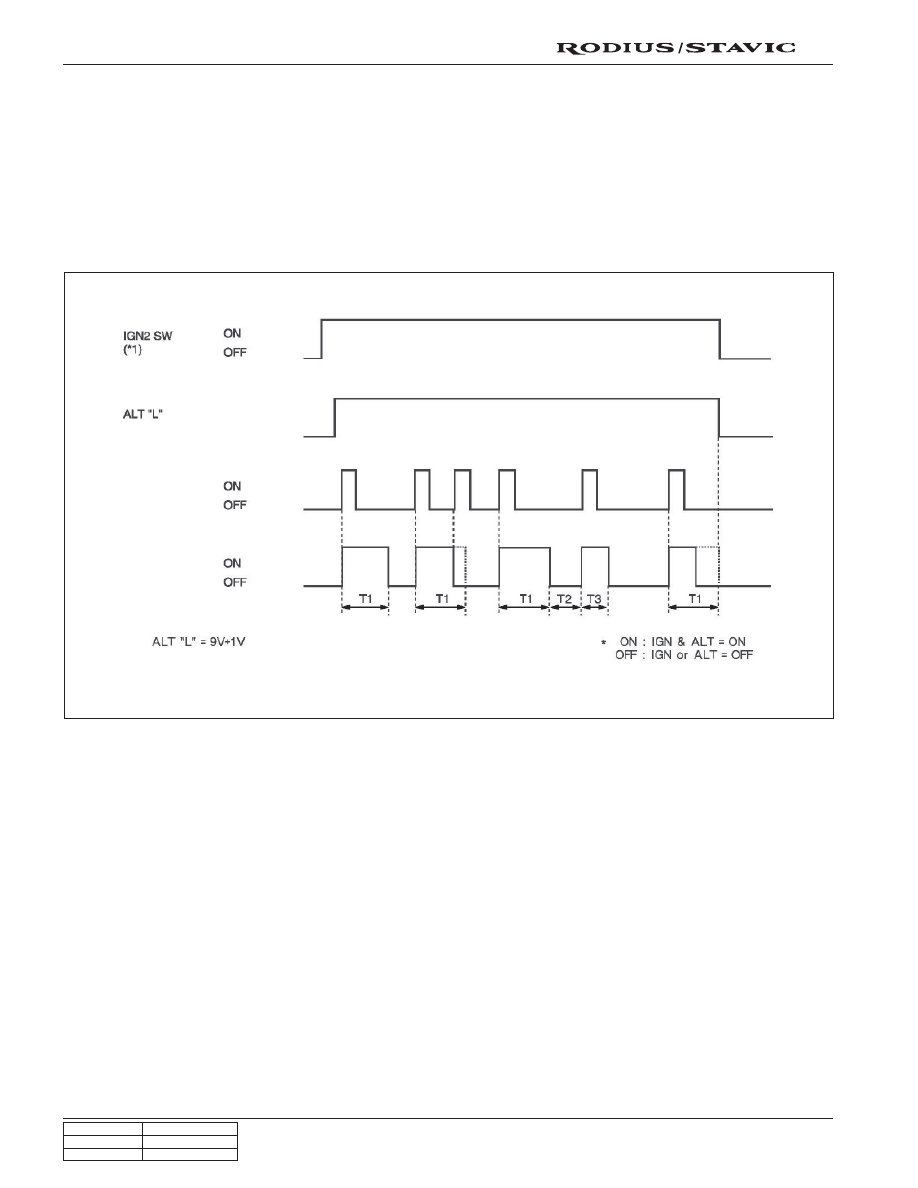

Tailgate Heated Glass, Windshield Glass and Outside Rearview Mirror Heated Glass (controlled by
STICS)

1. Defogger relay operates for 12 minutes when turning on the defogger switch while the engine is running.

2. If the defogger switch is pressed again during the operation, the operation stops.

3. If the defogger switch is pressed again within T2 (10 minutes) after completion of the first operation (T1), the

defogger system operates for 6 minutes just for once.

4. The defogger is not available when the ignition switch is in “OFF” position or the alternator is not running.

T1: 12 min.        T2: within 10 min.     T3: 6 min.

OVER 9 V

BELOW 9 V

DEFOG SW

DEFOG
RELAY

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

11

2E

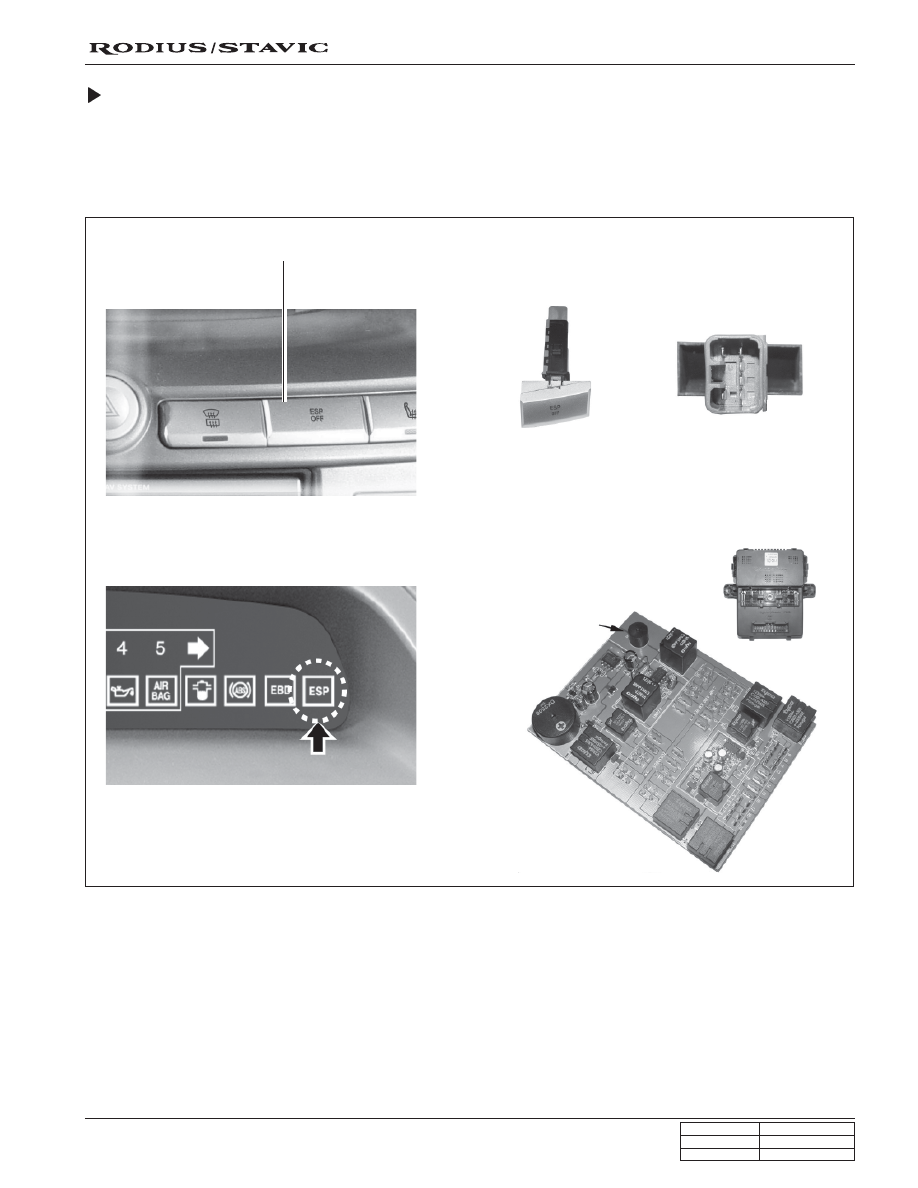

• When the ESP warning light comes on

The lamp comes on when the vehicle posture control function is cancelled by pressing ESP

OFF

 switch or ESP

related system is defective.

• When the ESP warning light blinks and the alarm sounds

It means the ESP function is operating while the vehicle is driving under extremely unstable conditions.

ESP

OFF

 Switch

If the driving wheels are slipping on the snowy or icy road, the engine rpm may not be increased even when depressing
the accelerator pedal, and accordingly, the vehicle may not be started off. In this case, stop the ESP function by
pressing the ESP

OFF

 switch. When the ESP

OFF

 switch is pressed, the ESP function stops and the vehicle is driven

independently from the sensor outputs. However, the ABS function is still activated.

ESP

OFF

 switch

ESP indicator and warning light

ESP operation alarm buzzer

ICM box

ESP

OFF

 switch and connector

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

12

2E

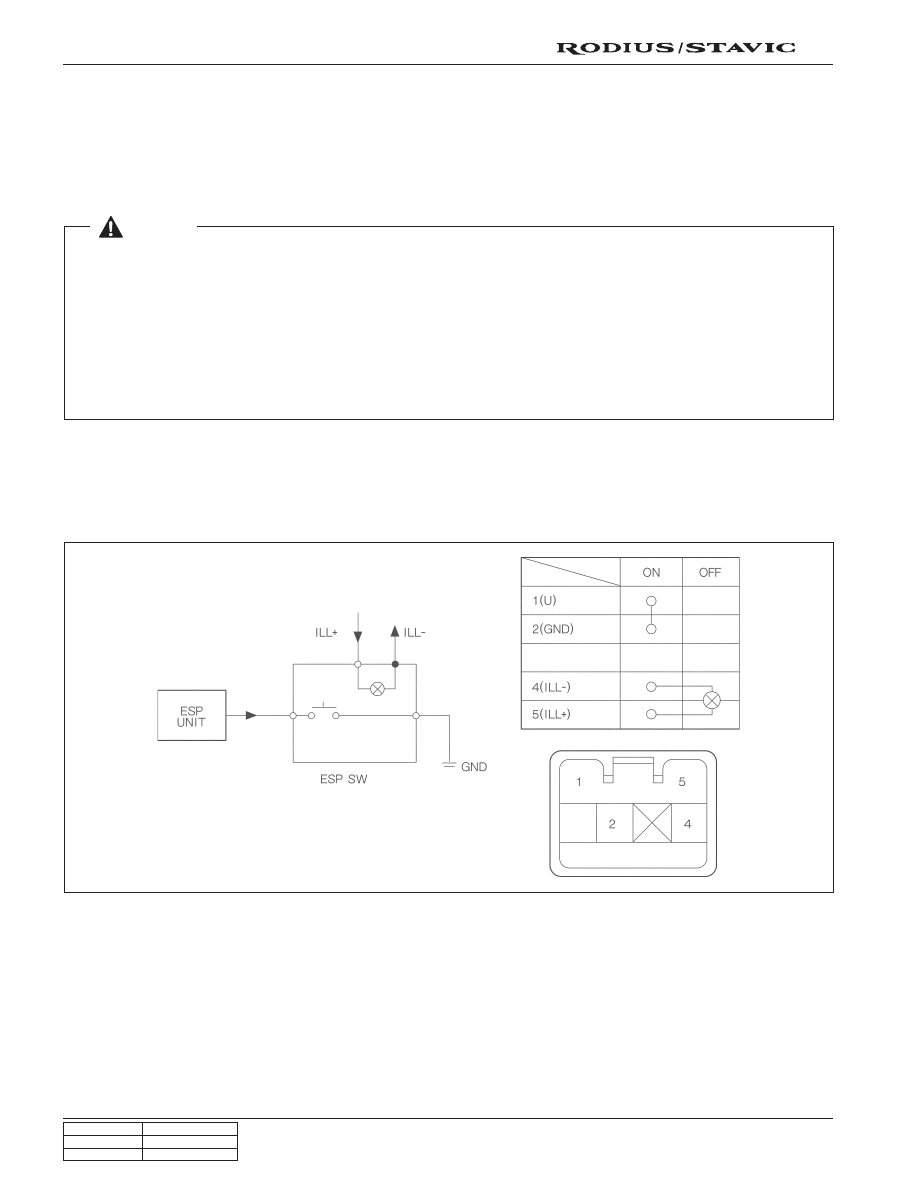

Resuming the ESP function by using ESP

OFF

  switch

The ESP function will be resumed if pressing the ESP

OFF

 switch on the center switch panel again shortly when the ESP

function is cancelled (when the ESP warning light comes on). At this moment, the ESP warning light in the indicator
display goes off and the ESP function is resumed.

Connector Terminals and Circuit

Rated capacity: DC 12 V, 1 A

 [Notice]

- The ESP system deactivates when stopping the engine. It will be resumed when the engine is started again.

- If the vehicle is controlled by ESP during driving, the ESP

OFF

 switch will not work.

- If the ESP warning light comes on, the ESP related system is defective. At this moment, the ABS works in a basic way.

- If the ESP warning light and the ABS warning light come on simultaneously, both ESP and ABS system are not working.

- If the ESP warning light blinks and the alarm sounds, it means that the vehicle stability is controlled by the ESP function

when the vehicle stability is extremely unstable.

- If the ESP function operates while driving, the indicator lamp blinks and the alarm sounds with the interval of 0.1

second.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

13

2E

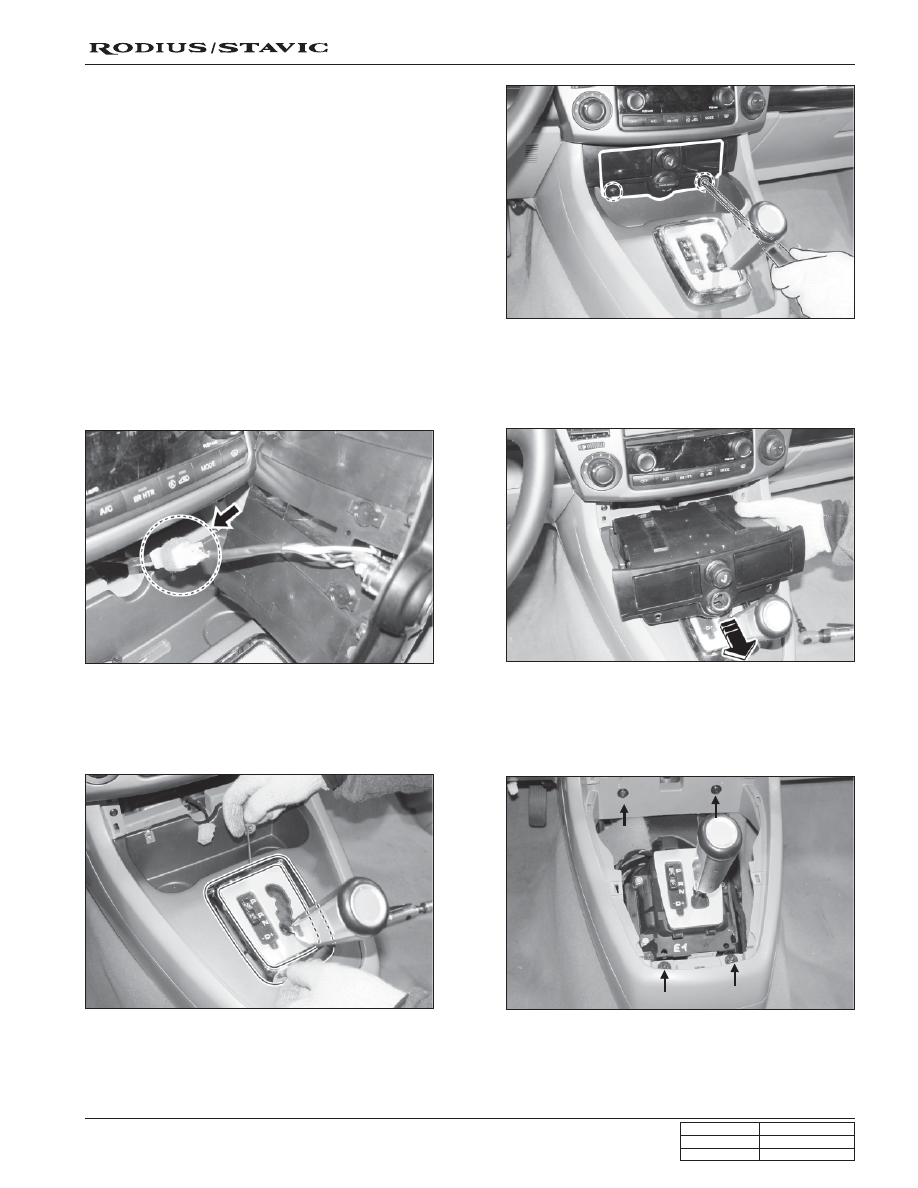

2. Pull out the front cup holder, disconnect the cigarette connector and the power socket connector, and remove the

front cup holder.

3. Carefully pry off the chrome coated cover from the selector lever cover, unscrew the screws and remove the

selector lever cover.

Removal and Installation of Center
Switches

1. Remove the screws from the front cup holder.
