SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 246

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

40

2E

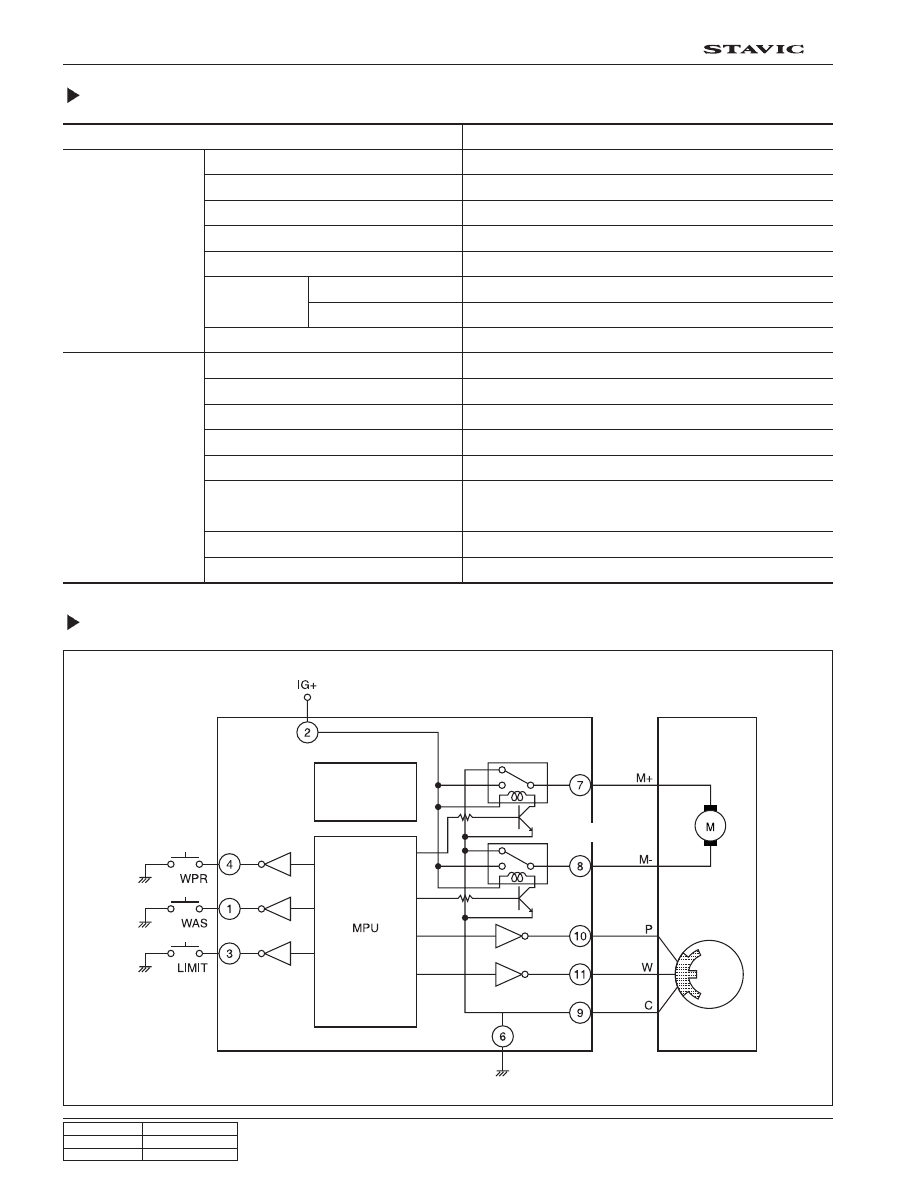

Circuit Diagram

Specifications

Specifications

Rated voltage

Test voltage

Operating voltage range

Minimum operating voltage

Insulating voltage

Restraint test

Surrounding voltage range

Rated voltage

Operating voltage range

Operating temperature range

Reserving temperature range

Insulating voltage

Voltage drop

Test voltage

Acceptable load current

Torque

Voltage

Descriptions

Motor

Control

DC 12 V ± 0.3 V

DC 13.5 V ± 0.3 V

DC 10 ~ 15 V

Below DC 8 V

Over 1 m

Ω

Over 1.1 Km

Below 14 A

-40°C ~ +80°C

DC 12 V

DC 9 ~ 16 V

-30°C ~ +80°C

-40°C ~ +90°C

Over 1 m

Ω

Below 0.5 V

(terminals between 5-7, 6-8, 5-8, 6-7 @ 5 A)

14.0 ± 0.5 A

Maximum 10 A

Voltage

controller

Relay 1

Relay 2

Wiper motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

41

2E

Wiper blade

Wiper linkage

Wiper motor

2. REMOVAL AND INSTALLATION OF WIPER ASSEMBLY

1. Front Wiper Assembly

Preceding work: Disconnection of negative battery cable

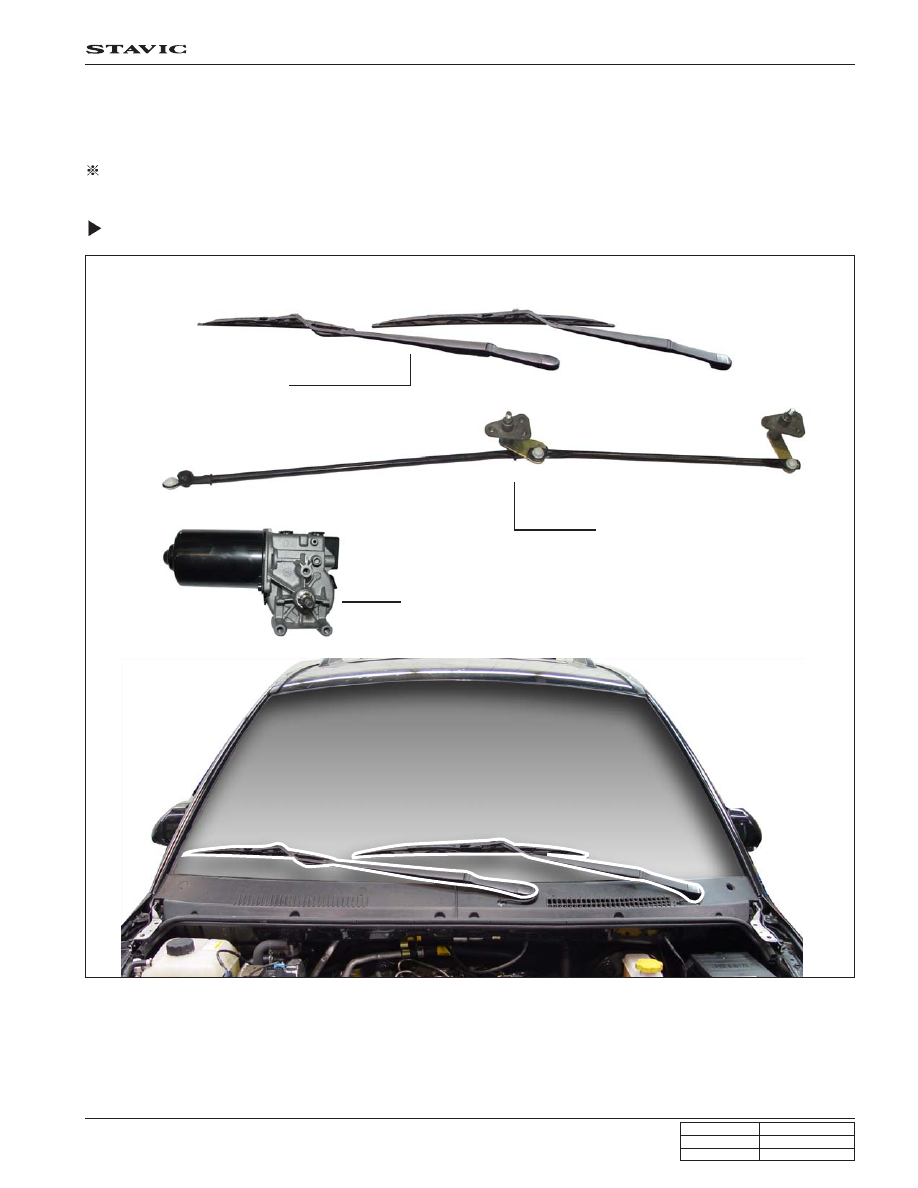

Components Locator

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

42

2E

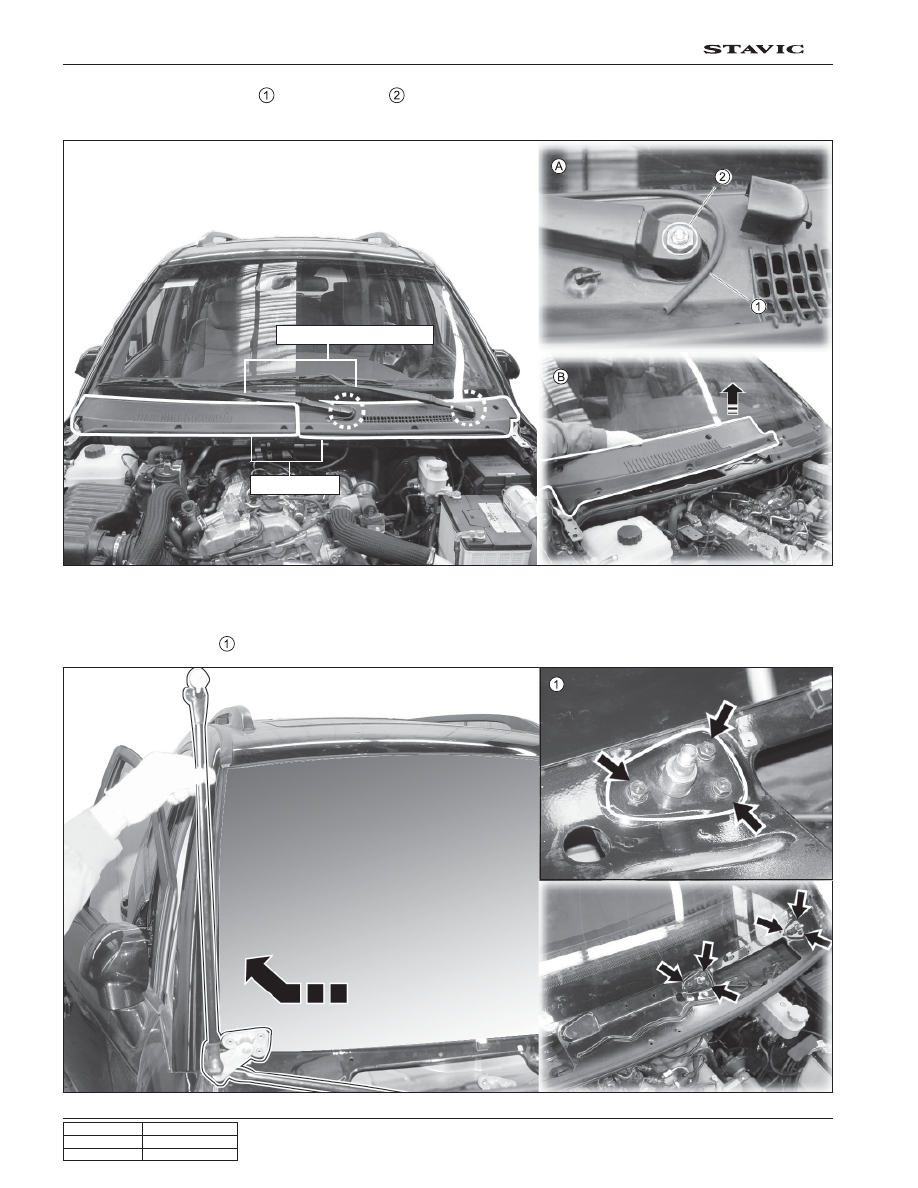

1. Detach the washer hose

, unscrew the nut

 and remove the wiper blade assembly, and remove the hood cowl

grille.

2. Unscrew the bolts

 and remove the wiper linkage assembly.

A. Wiper blade assembly

B. Cowl grill

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

43

2E

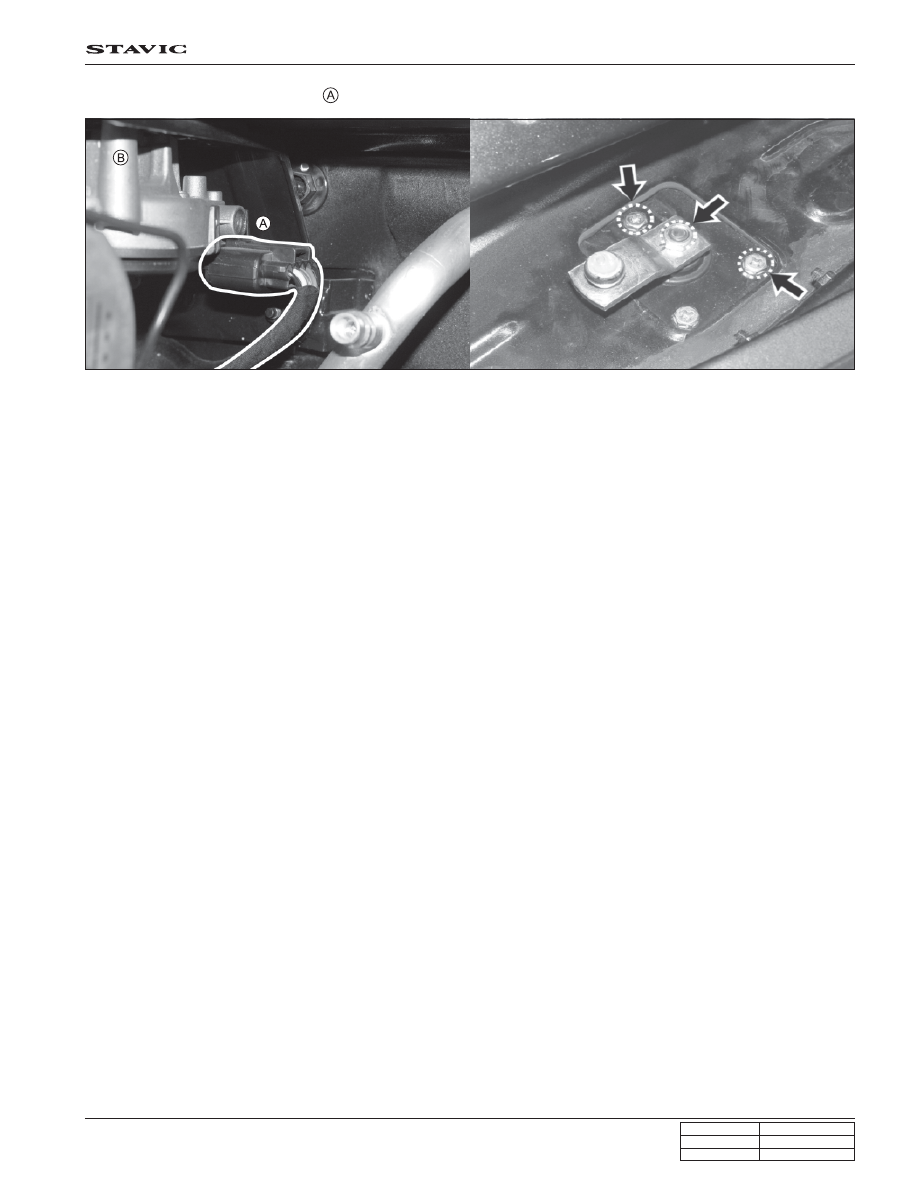

3. Disconnect B motor connector

. Unscrew two mounting bolts and two nuts and remove the wiper motor.

4. Install in the reverse order of removal.
