SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 244

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

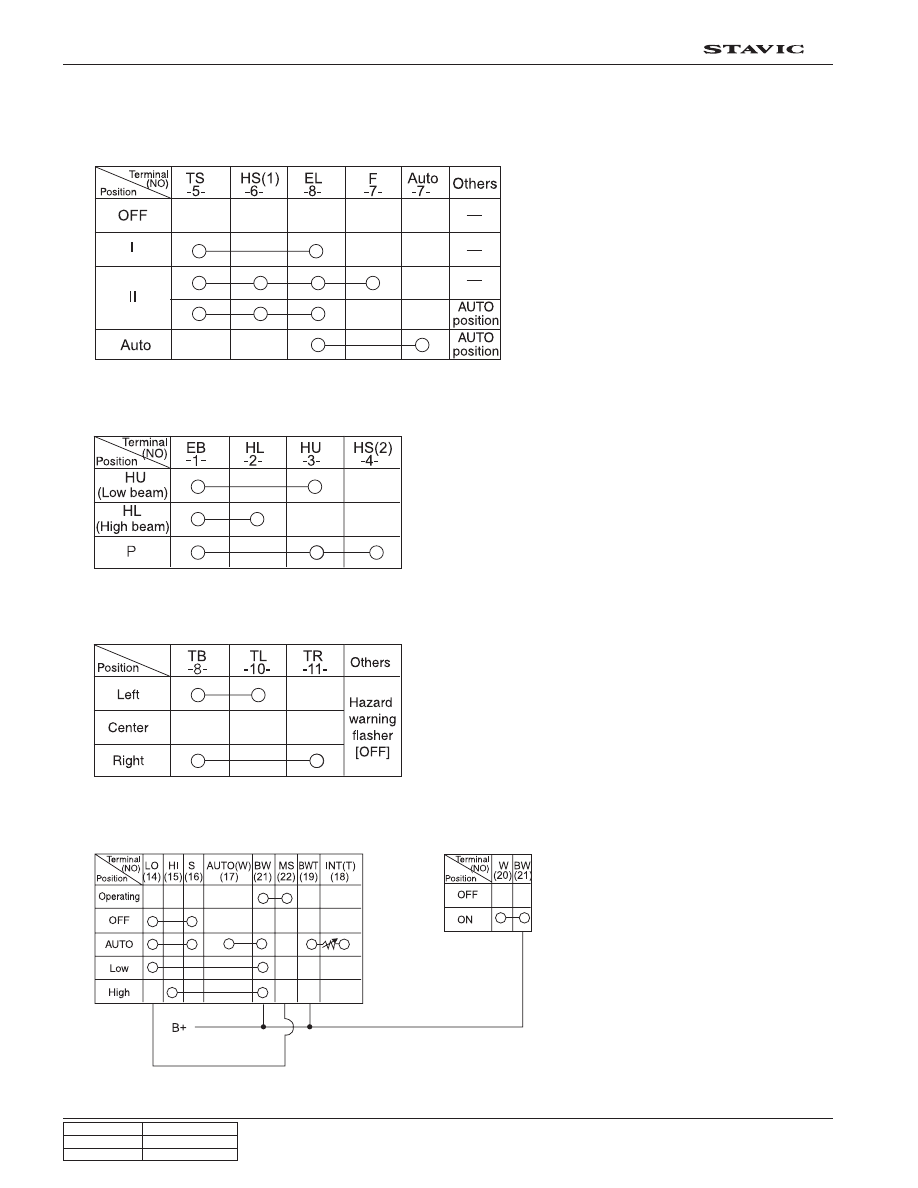

Multifunction switch connector

1) Light switch and auto light switch

2) Dimmer and passing switch

3) Turn signal lamp switch

4) Wiper and intermittent switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

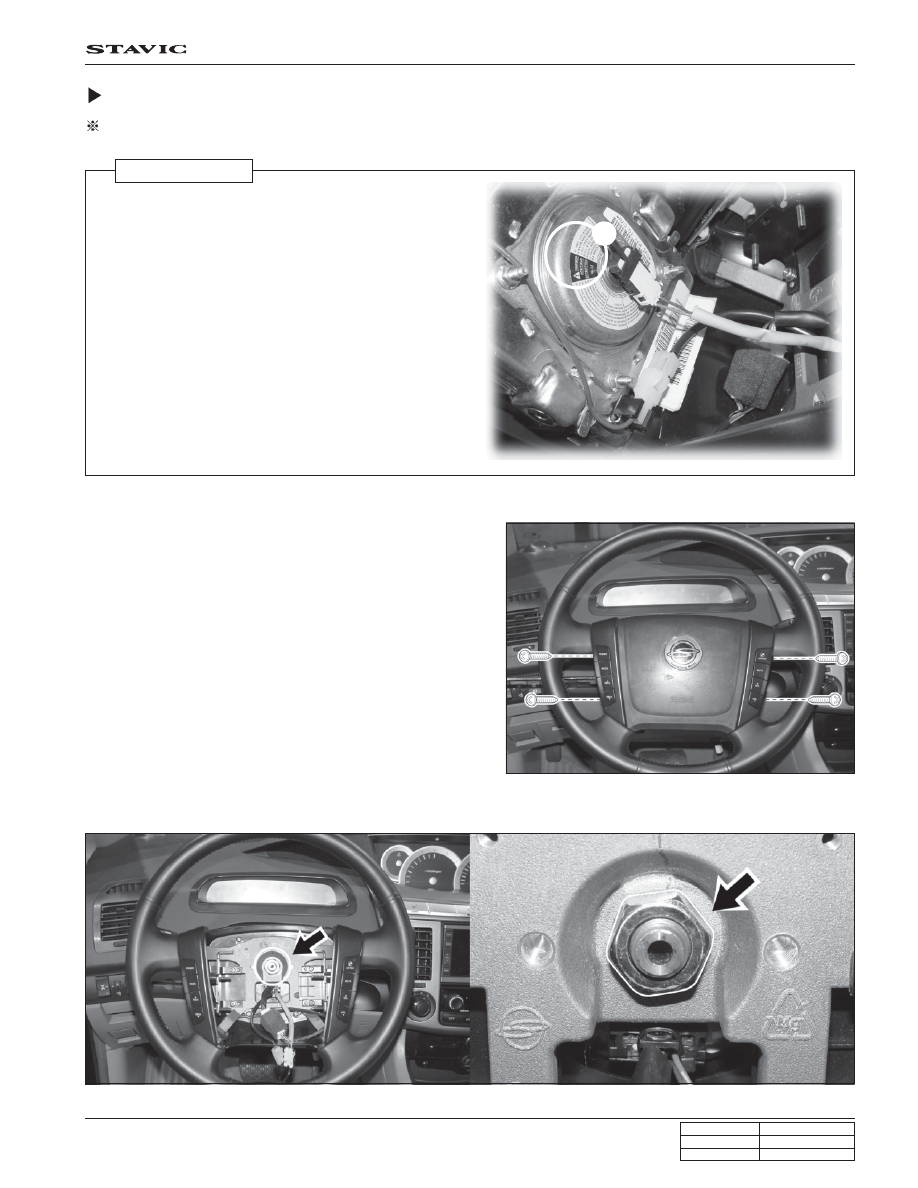

1. Be careful not to drop or shock the air bag module

during removal procedures.

2. Lift up the hook when disconnecting the air bag

contact coil connector.

Cautions

1. Place the steering wheel to the straight forward direction.

Unscrew the screws at both sides and remove the horn
pad (air bag module).

2. Put an installation mark on the steering wheel and nut and remove the steering wheel.

Removal and Installation of Multifunction Switch Assembly

Preceding work: Disconnection of negative battery cable

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

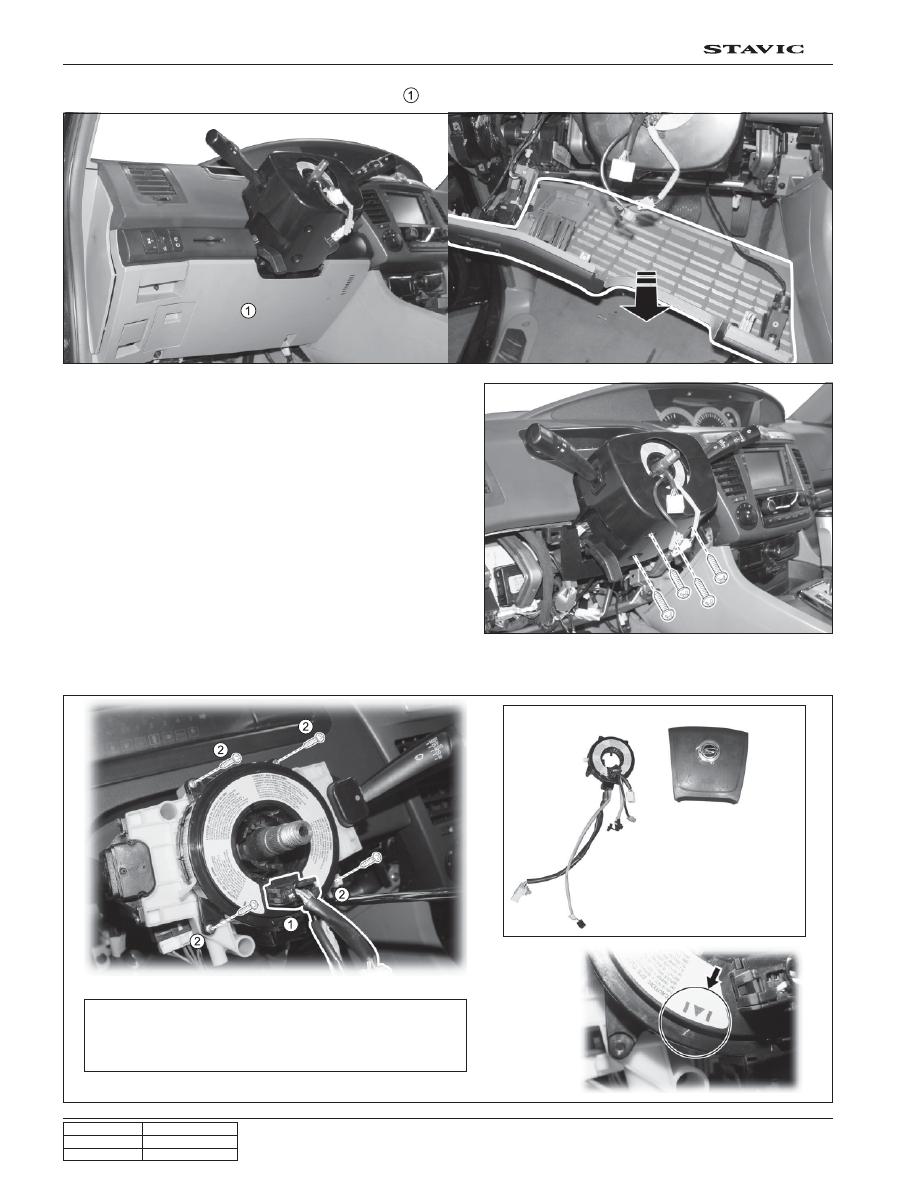

3. Remove the driver side instrument lower panel

4. Unscrew the screws from the steering column cover and

remove the upper and lower covers.

5. Disconnect the multifunction switch connector. Unscrew the screws from the air bag contact coil, and remove the

air bag contact coil assembly.

* For installation, align the steering wheel to the

installation mark and tighten the nut to the
specified tightening torque.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

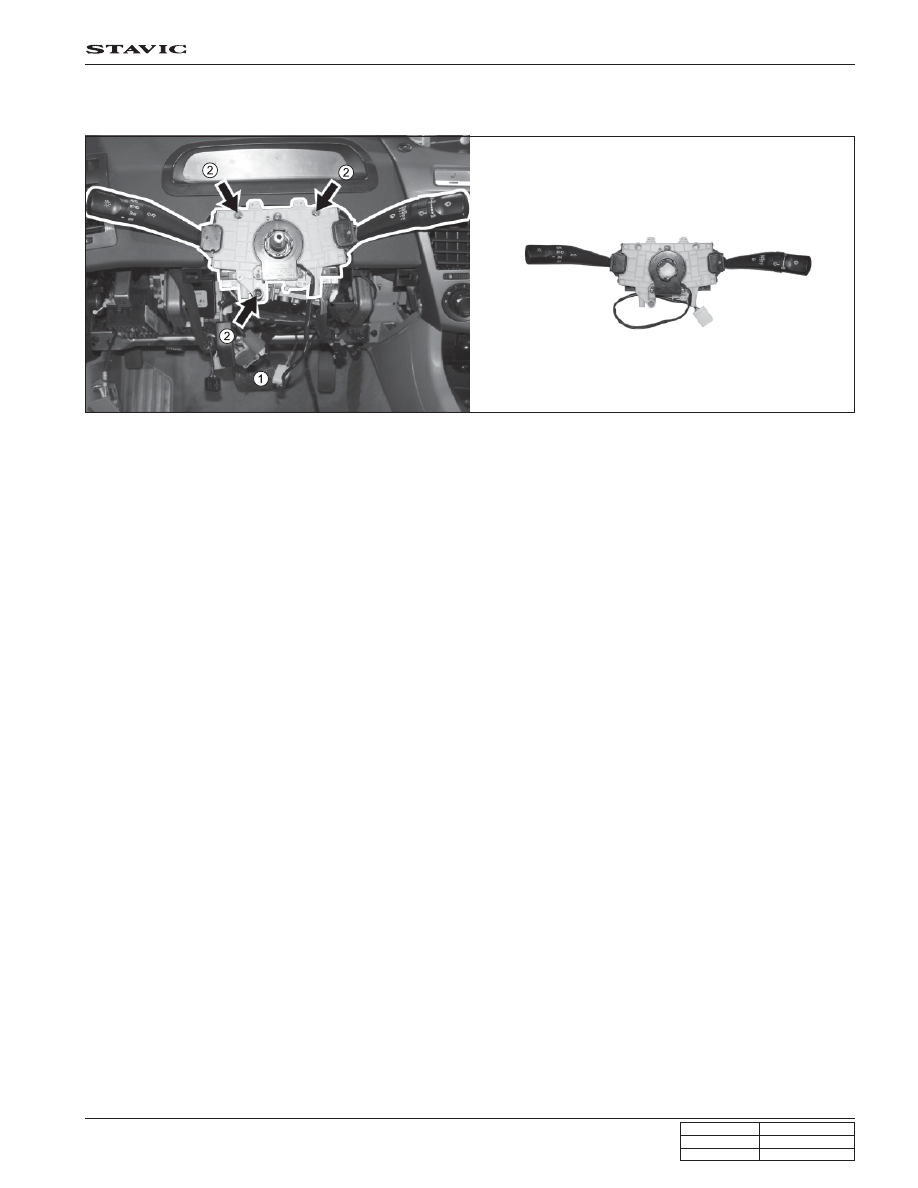

6. Disconnect the steering wheel angular sensor connector. Unscrew the screws and remove the multifunction switch

assembly.
