SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 245

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

36

2E

Specifications

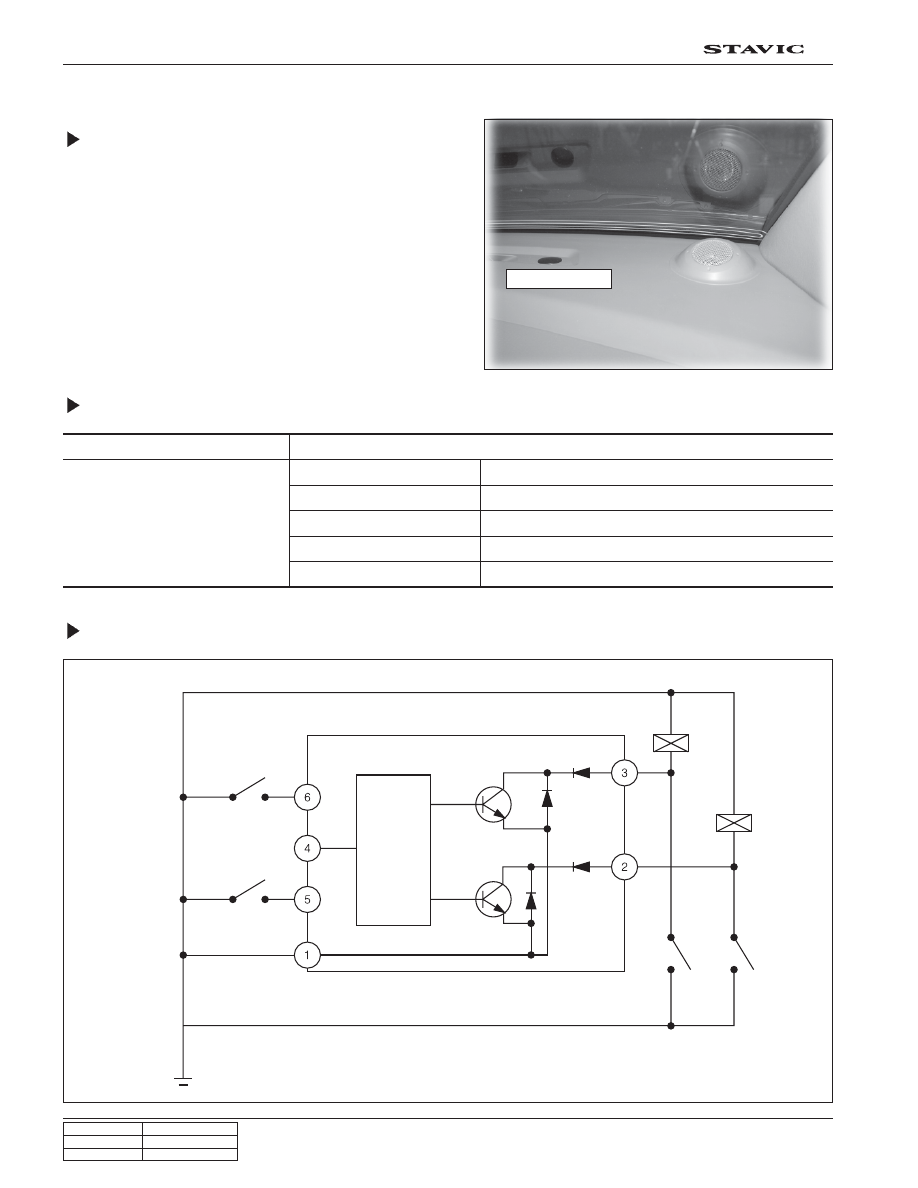

Input / Output Circuit Diagram

2. AUTO LIGHT SENSOR

Overview

The auto light control is a system that turns on/off the tail
lamps and headlamps automatically. The auto light sensor is
installed on the instrument panel (passenger side). This sen-
sor detects the ambient brightness and automatically turns
on and off the tail lamps and headlamps while the light switch
is in AUTO position without light switch operations. The sys-
tem turns on and off the lamps when passing through the
tunnel during day driving and getting dark due to fog, rain or
snow.

Auto light sensor

Description

Auto light sensor unit

Specifications

Operating voltage

Load

Operating temperature

Storage temperature

Location

9 ~ 16V

Max. 200 mA (relay load)

-30°C ~ +85°C

-40°C ~ +120°C

on instrument panel (passenger side)

Battery   12V

Ignition switch

Auto light switch

Control

circuit

Headlamp
switch

Headlamp
relay

Tail lamp

relay

Tail lamp

switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

37

2E

Auto Light Sensor Unit Terminals

ON

OFF

Tail lamp ON condition

30.5 ± 5(LUX)

60.5 ± 5(LUX)

Operation delay time

0.5 ± 0.1 second

3 ± 1 second

Headlamp ON condition

8.9 ± 3(LUX)

17.2 ± 3(LUX)

Lamp

Brightness

Auto light operating conditions

Switch functions

1. Turn the ignition switch to “ON” position and turn the multifunction switch in order of OFF

→ tail lamp → headlamp

→ AUTO.

2. Turn on and off the light switch.

3. Turn the light switch to “AUTO” position. At this moment, the tail lamps and headlamps come on and off automatically

when the brightness of light that reflected on the photodiode in the auto light sensor is the same as voltage that is
set by software in CPU.

4. When operating the tail lamp and headlamp switch manually again, the lamps comes on and off according to the

switch operations not by brightness of light that detected by sensor.

5. When the ignition key is removed, tail lamps and headlamps go off.

Turning on conditions

1. System power supply

2. Tail lamp relay

3. Headlamp relay

4. Brightness detecting sensor

5. Auto light switch

6. System ground

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

38

2E

However, the tail lamp and headlamp should be within ON and OFF ranges.

T1: 3 ± 1.0 sec   T2: 500 ± 100 msec

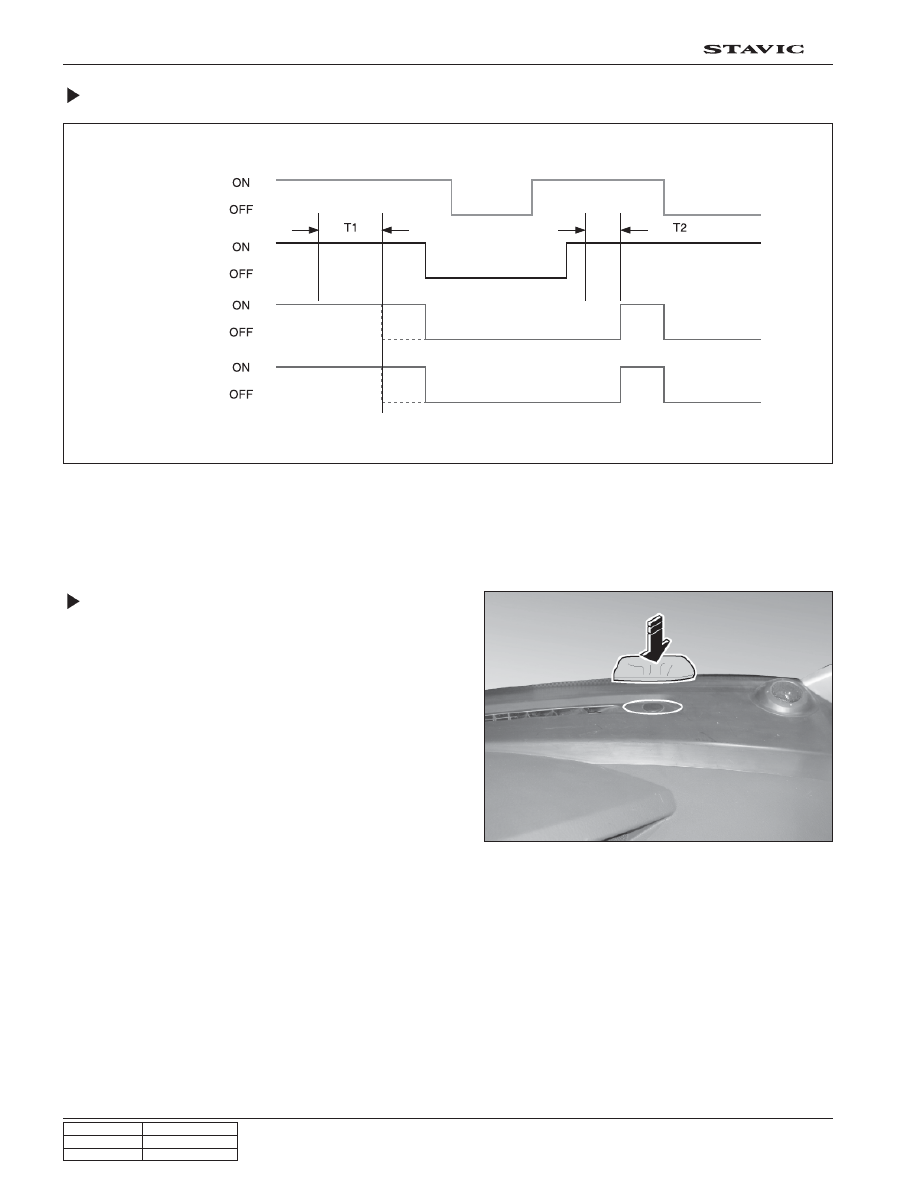

Operational Characteristics

IGN SW

AUTO light SW

Tail lamp

Headlamp

Within OFF range

Within ON range

Inspection

Position the multifunction switch to “AUTO” position and cover
the auto light sensor on the instrument panel (passenger side)
with a cloth to block the light coming from outside and then
check the auto light functions.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

39

2E

WIPER AND WASHER ASSEMBLY

1. GENERAL

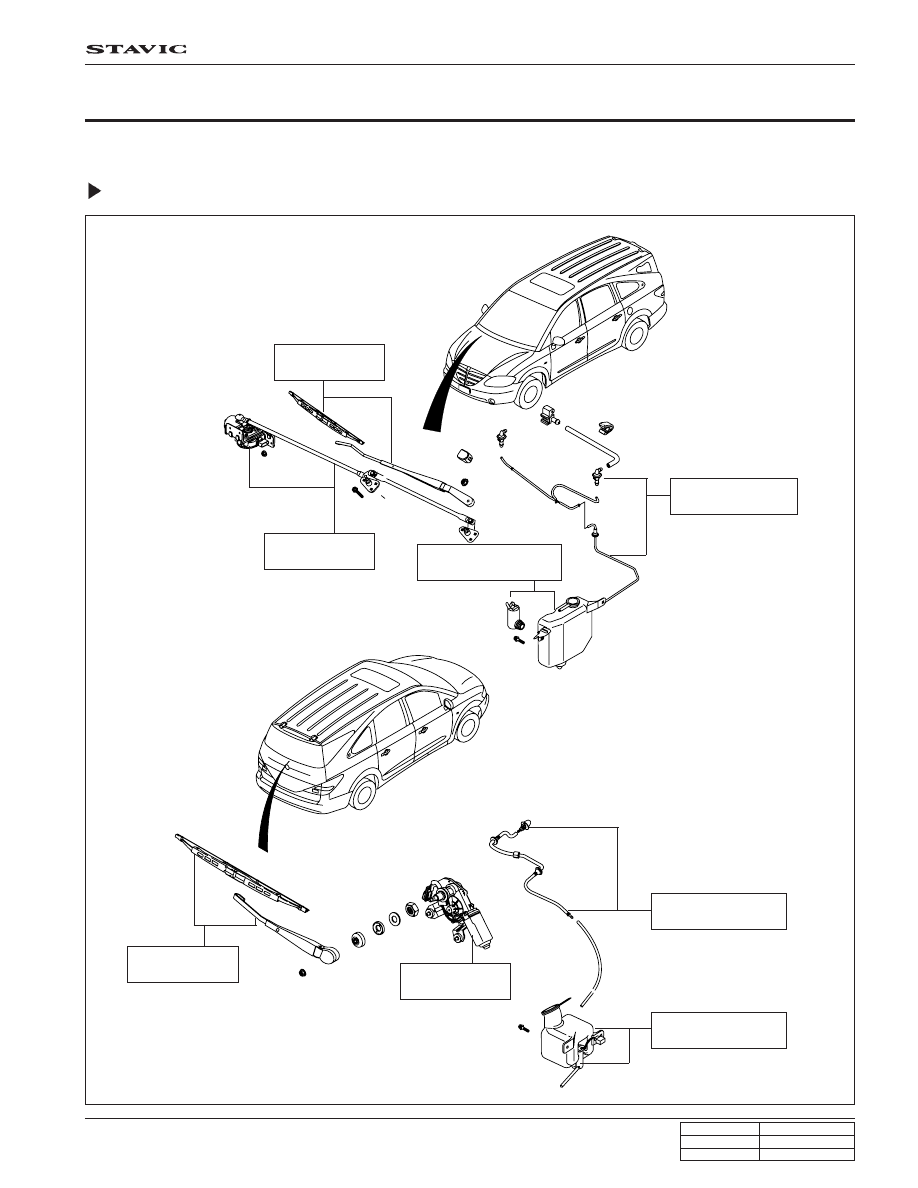

System Layout of Wiper and Washer

Wiper blade

assembly

Wiper motor and

linkage assembly

Washer motor and

washer fluid reservoir

Washer nozzle and

washer hose

Wiper blade

assembly

Wiper motor and

linkage assembly

Washer motor and

washer fluid reservoir

Washer nozzle and

washer hose

Rear wiper and washer assembly

Front wiper and washer assembly
