DI10-19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

5. In “MULTI CALIBRATION” screen, select the relevent

model.

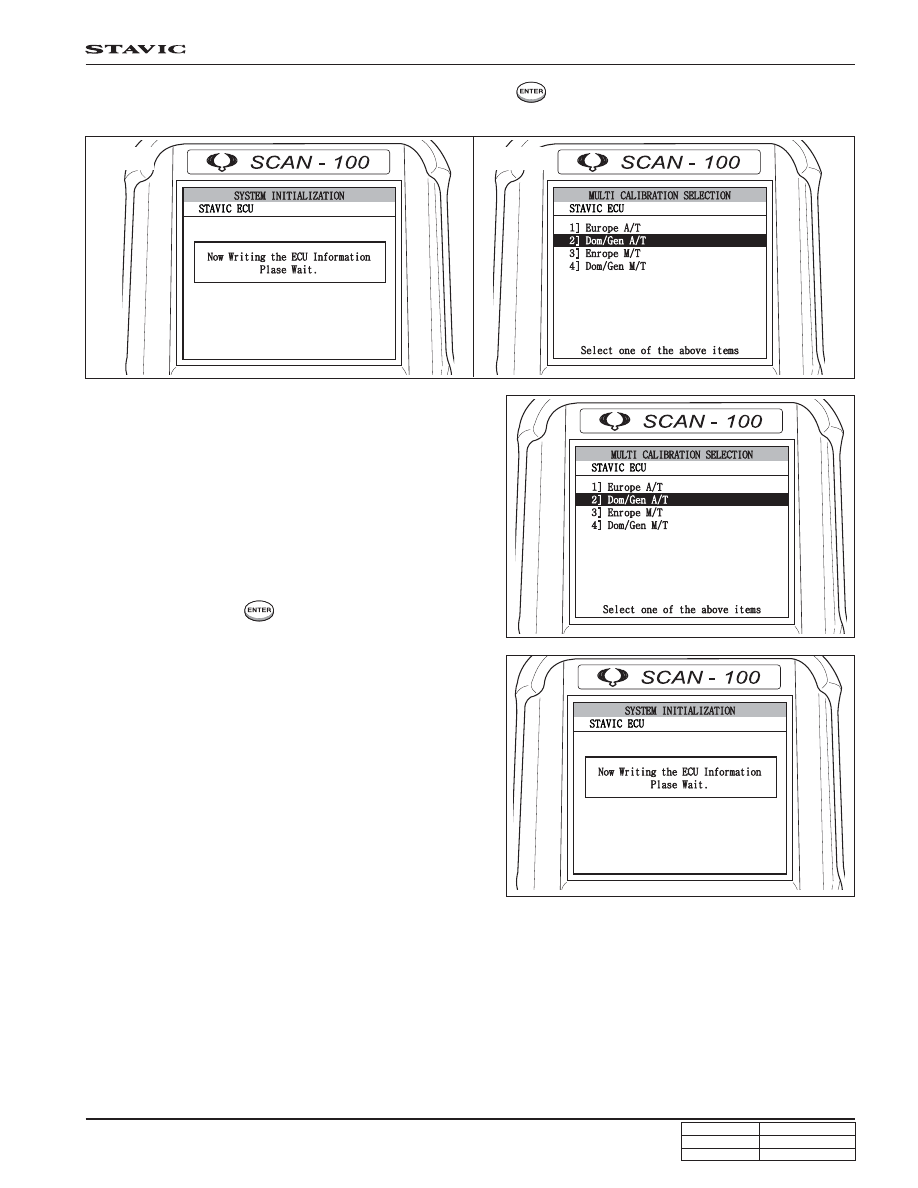

4. If you turn the ignition switch to “ON” position and press “

”, the message as shown in figure 1 (system

initialization) appears, and then “MULTI CALIBRATION” screen (figure 2) is displayed.

figure 1

figure 2

6. When you press “

”, the processing message as

shown in figure appears.

DI10-20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

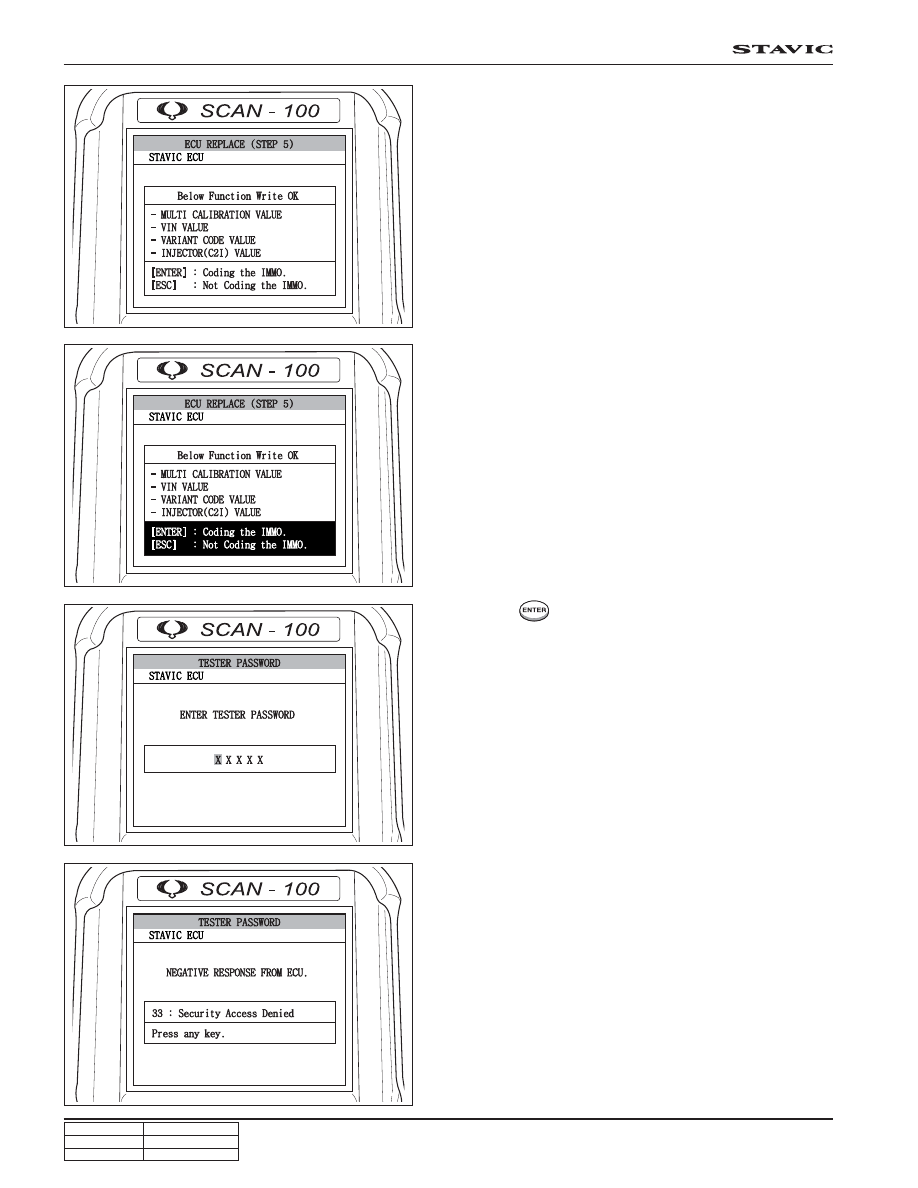

7. If the multi calibration is completed successfully, “ECU

REPLACE (STEP 5) screen is displayed.

Backup data:

- Multi calibration value

- VIN value

- Variant code value

- Injector (C2I) value

8. In immobilizer equipped vehicle, the immobilizer coding

should be done after completed the multi calibration.

9. Press “

” and enter the user password.

10. If the password is invalid, the “access denied” screen as

shown in figure is displayed.

DI10-21

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

11. If the password is valid, an immobilizer coding is started.

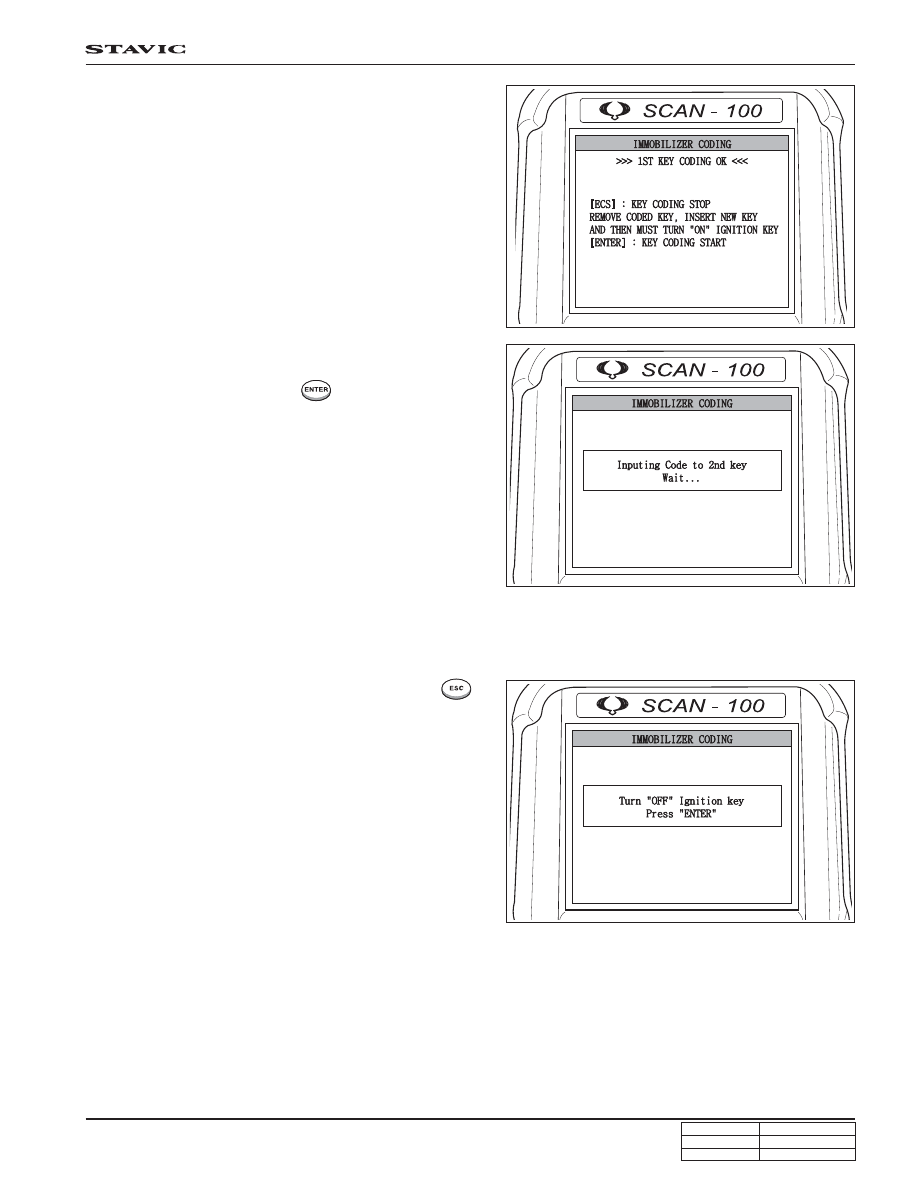

12. If you want to code for additional keys, remove the first

key from key switch and insert the second key. Turn it
to “ON” position and press “

” to proceed.

13. You can code up to five keys with same manner.

14. When the immobilizer coding is completed, press “

”.

The completion message as shown in figure appears.

DI10-22

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

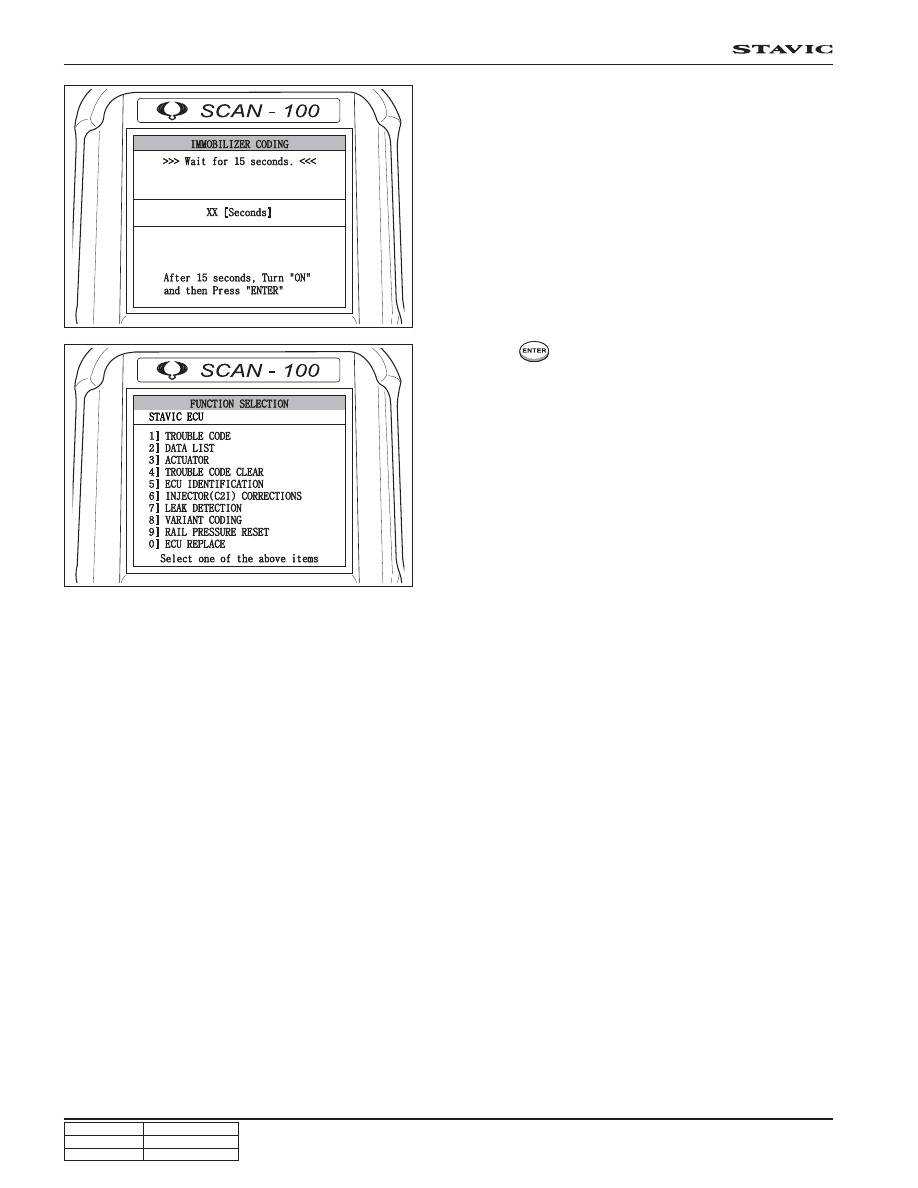

15. When you turn the ignition key to “OFF” position, the

message screen as shown in figure is displayed. Wait
for 15 seconds and turn the ignition key to “ON” position.

16. Press “

” to return to “MAIN MENU” screen.
