4. If the trouble has been change to “H (History trouble code)”

code, press “

” key to go back to “FUNCTION

SELECTION” screen. In this screen, select “4] TROUBLE
CODE CLEAR” and press “

”.

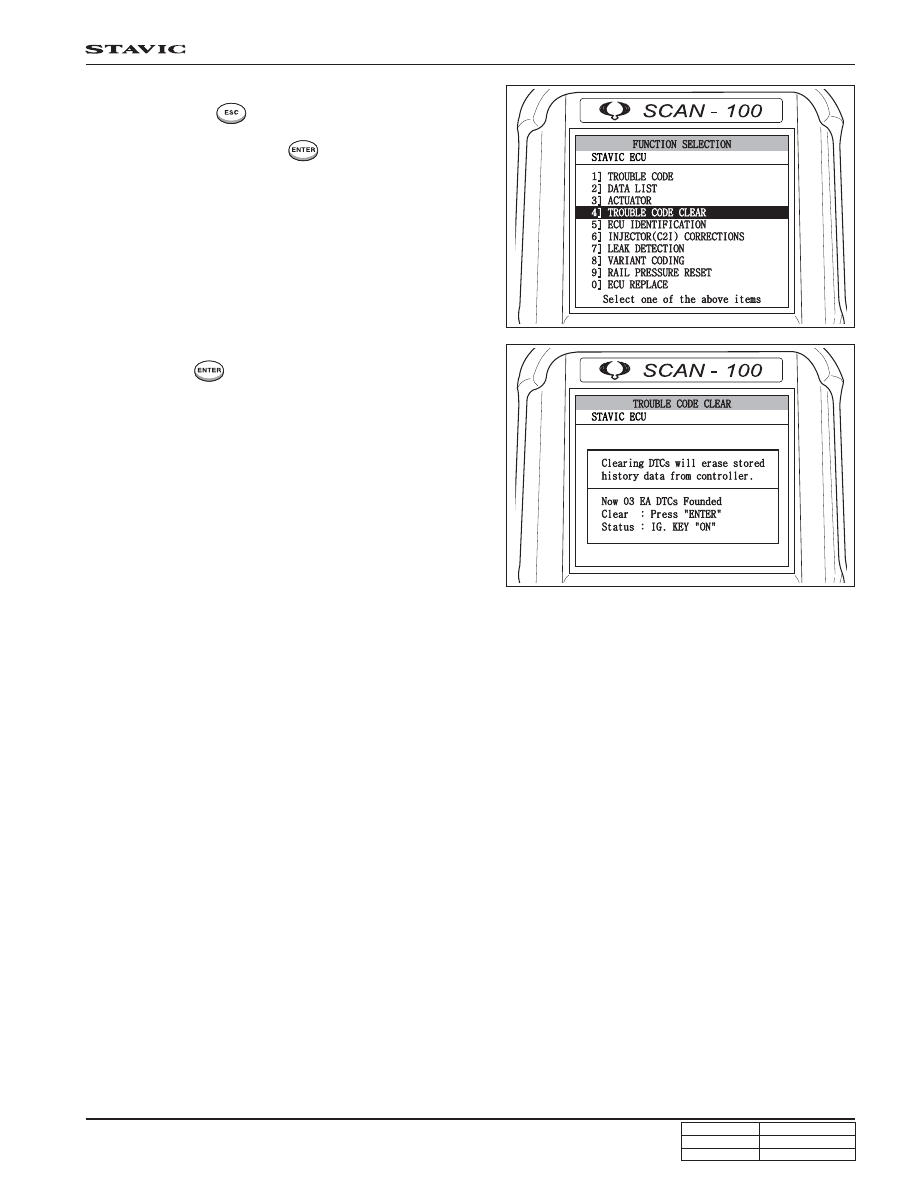

5. The “TROUBLE CODE CLEAR” screen is displayed. If

you press “

”, only the history trouble codes will be

cleared.

Note

•

Current trouble codes will not be cleared.

•

Check the trouble codes after clearing the trouble
codes.

DI10-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

ECU Identification

Preceding Work: Perform the “Entering Diagnosis Pro-
cedures”

1. Select “5] ECU IDENTIFICATION” and press “

” in

“FUNCTION SELECTION” screen.

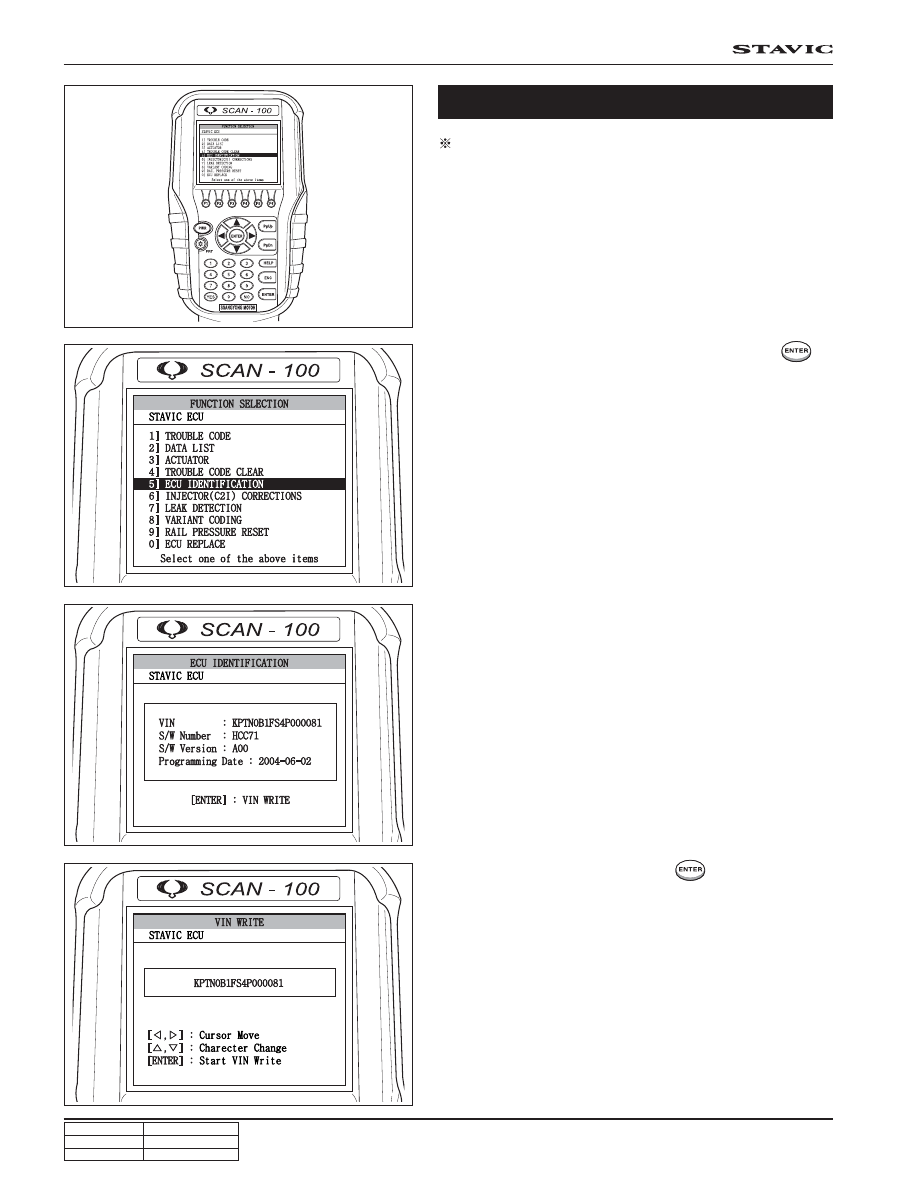

2. The “ECU IDENTIFICATION” screen that shows the VIN,

ECU software number, ECU software version and
programming date is displayed.

3. If you replaced the ECU, press “

” to input the vehicle

identification number.

DI10-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

Injector (C2I) Corrections

Preceding Work: Perform the “Entering Diagnosis Pro-
cedures”

Notice

If the injector/ECU has been replaced or the injector system
defective is suspected, go to C2I Coding item and check
the injector and coded injector C2I value.

1. Select “6] INJECTOR (C2I) CORRECTIONS” and press

“

” in “FUNCTION SELECTION” screen.

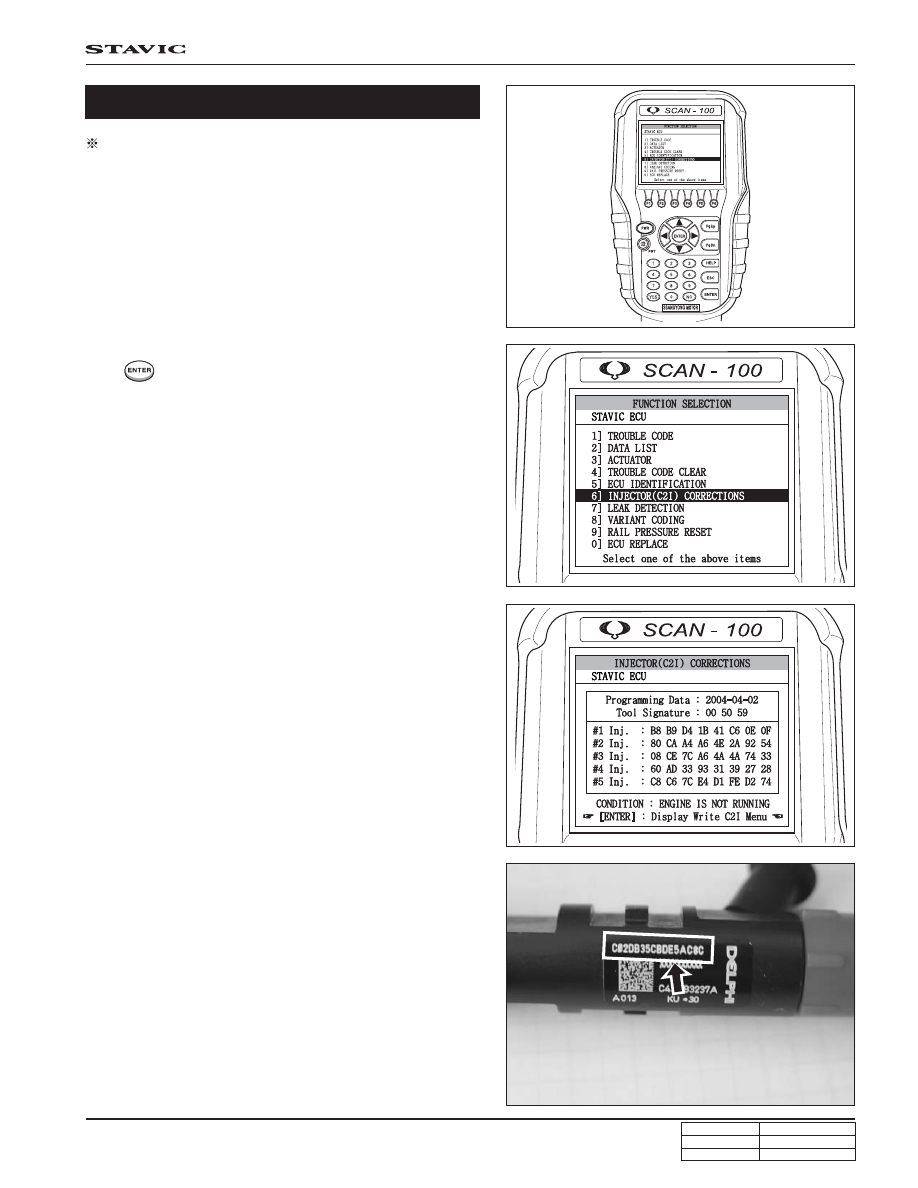

2. The “INJECTOR (C2I) CORRECTIONS” screen that shows

current C2I coding values of #1 to #5 injector is displayed.

3. If you replaced the ECU, enter the C2I value of the relevant

injector.

Note

•

The C2I value of replacing injector is recorded in
the label.

•

C2I coding number: 16 digits (ex, B1 B9 D4 1B 43
C6 0E 4F)

DI10-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

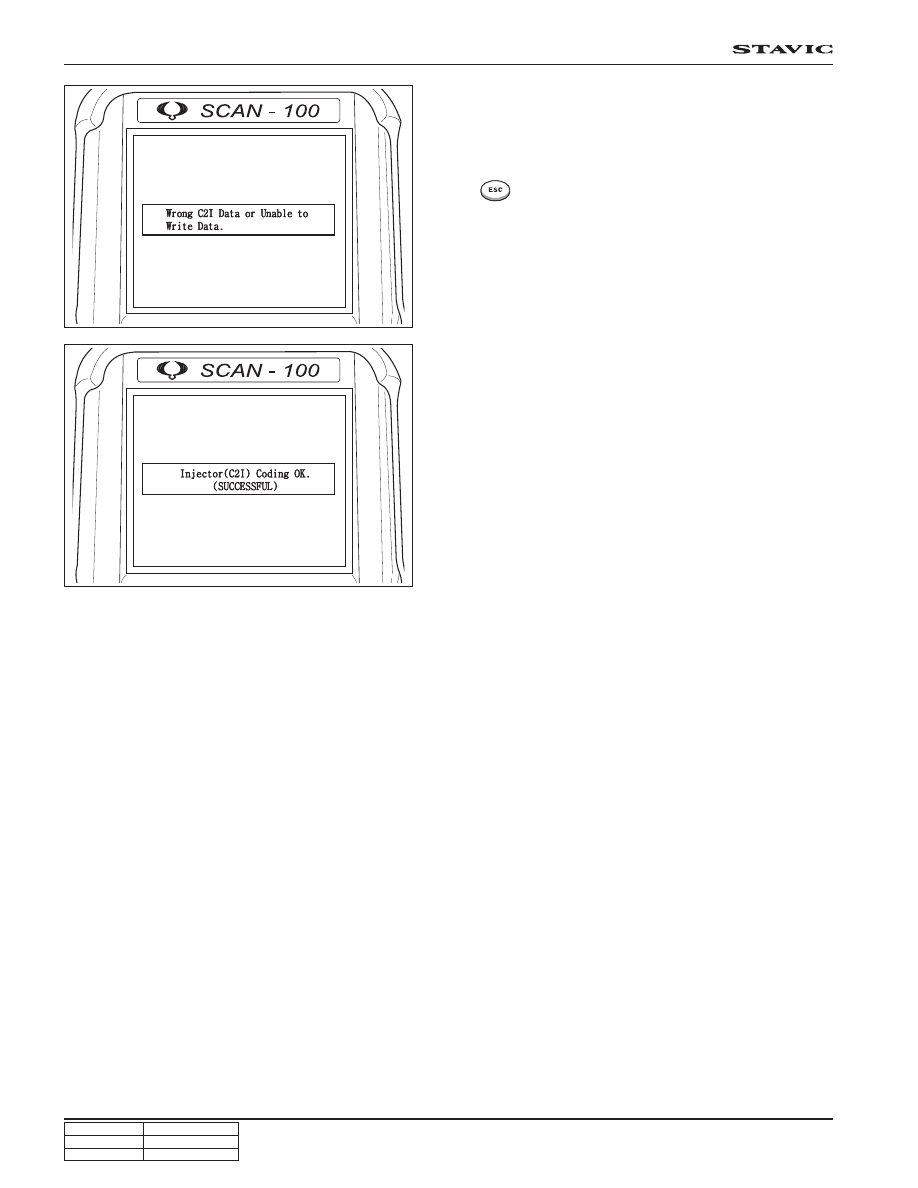

3-1. If you enter the invalid C2I value of the relevant injector,

the message as shown in figure appears with alarm sound.

Note

If you want to go back to previous screen, press
“

” key. You can see the previous C2I value.

3-2. If you enter the valid C2I value of the relevant injector, the

message as shown in figure appears with alarm sound.
