07-3

4110-01

Top view

Side view

Front view

Rear view

1910

1790

3060

4990

1570

1570

1. DIMENSIONS

Unit: mm

Major Dimensions

▶

07-4

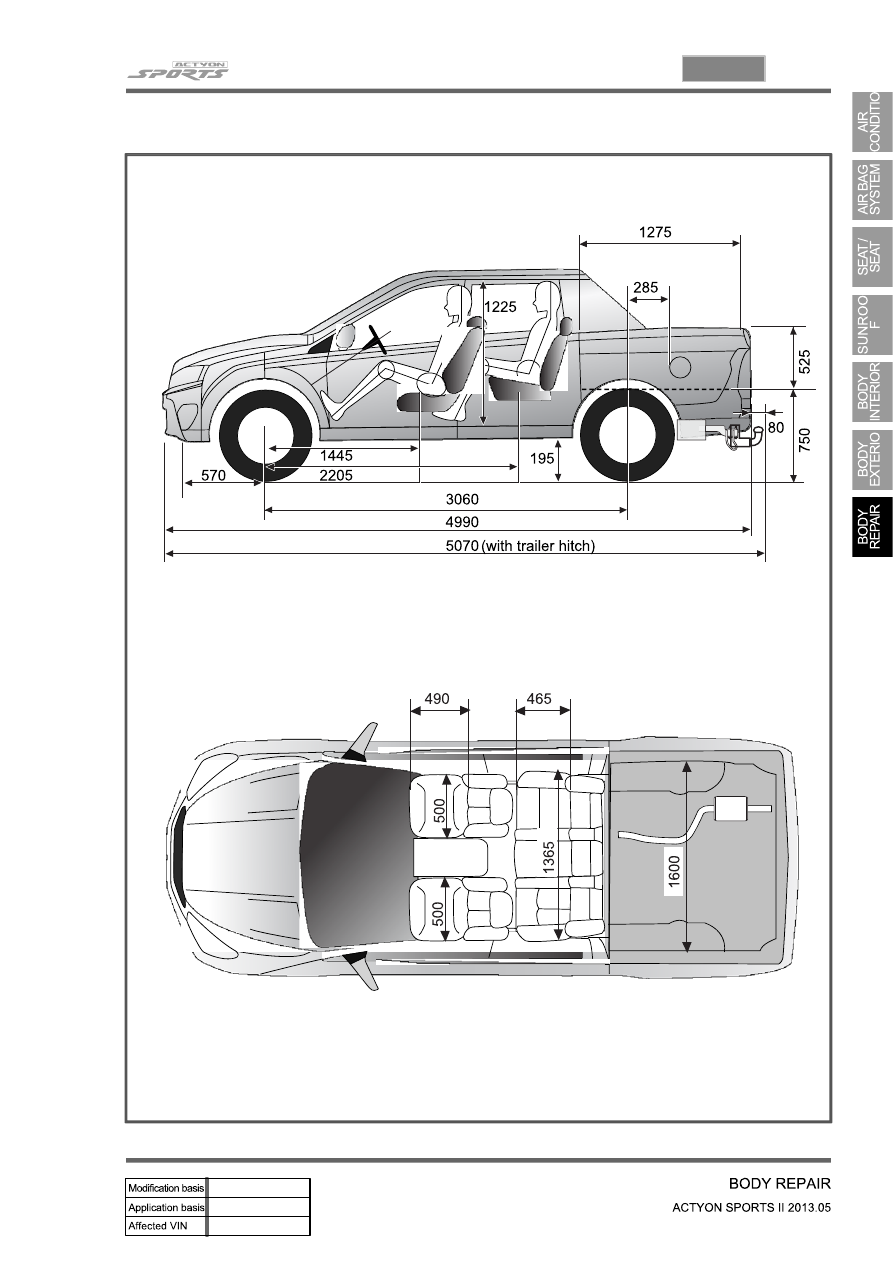

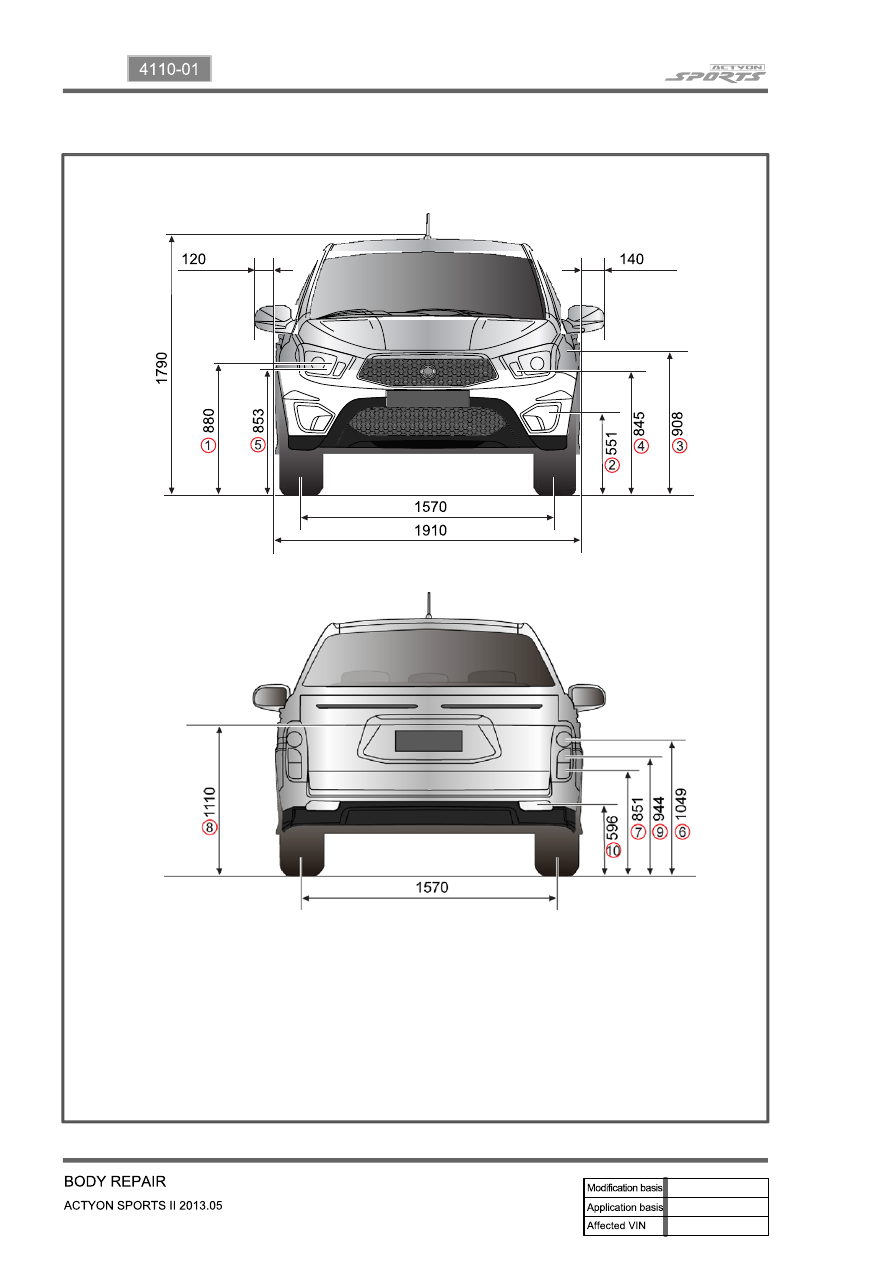

Detailed Dimensions

▶

Unit: mm

Headlamp

Front fog lamp

Side repeater

Front turn signal lamp

Position lamp

1.

2.

3.

4.

5.

Stop/Tail lamp

Back-up lamp

License plate lamp

Rear turn signal lamp

Reflector

6.

7.

8.

9.

10.

07-5

4110-01

Unit: mm

07-6

2. LIFTING POINTS

Lifting point

Lifting point
