Seat belt reminder

2) Seat Belt Reminder & Pretensioner

In addition to securing the occupants to the seat, the seat belt has the seat belt reminder and the

pretensioner which retracts the seat belts while the air bags are deployed and the load limiter which

protects the seat belt from being retracted excessively.

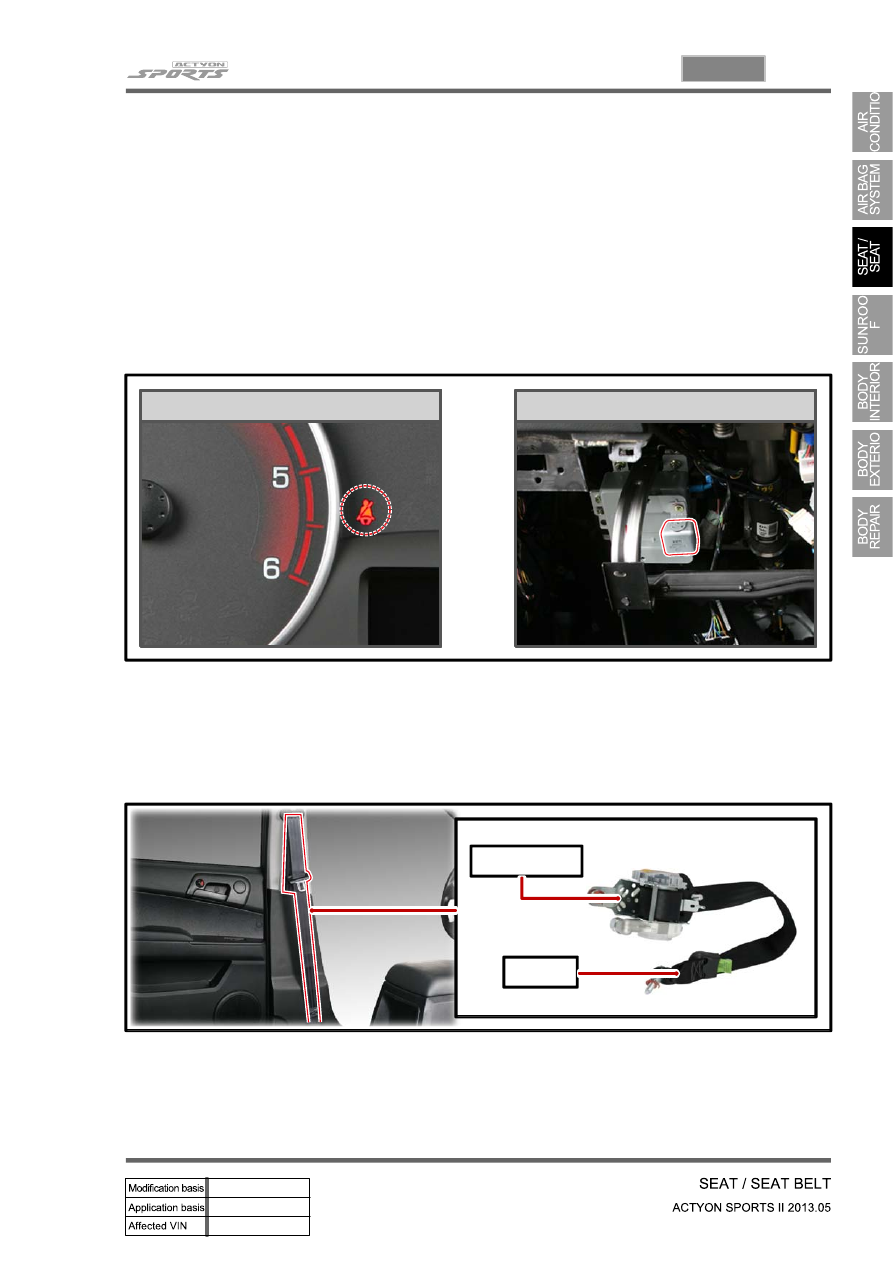

Driver's seat belt reminder

▶

The STICS detects if the seat belt is fastened or not using a signal from the driver's seat belt switch. The

seat belt reminder flashes and the chime sounds when the seat belt is not fastened.

The seat belt reminder stops its operation as soon as the seat belt is fastened.

Chime

Pretensioner

▶

It is installed on the driver and passenger LH/RH B-pillar and the pretensioner is installed in it, which

retracts the seat belt when the air bag is deployed in case of the front impact to secure the occupant to

the seat.

Anchor

Pretensioner

04-3

7340-00

1. SPECIFICATIONS

2. CAUTIONS WHEN WORKING

Wear clean work clothes and gloves.

Replace and wash the gloves frequently.

Any unauthorized modification or operational test is not allowed since the sunroof motor and control

unit are preset at the factory.

Take care not to drop the sunroof assembly when removing it and do not keep it right up.

1.

2.

3.

4.

Operating voltage

9 ~ 16 V

Operating current (open & close)

Max. 6 A

At no load

Max. 2 A

Leakage current

Max. 1 mA or less

Roof motor operating speed (at opening and closing)

1.2 ± 0.5 sec./100 mm

Motor overload stop conditions

Current for up to 26 A and torque (load)

for up to 8.3 Nm

Opening amount

230 ± 3

Vertical/horizontal tolerance for sunroof glass panel

± 2 mm/± 2.5 mm

3. CAUTIONS FOR OPERATION

Even though the sunroof can be operated when the engine is not running, operating the sunroof

repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is

running.

When the sunroof operation is completed, release the switch. Keeping pressing the switch can result

in malfunction.

Especially in winter, never operate the sunroof if operation areas are iced. Wait until melted.

Make sure that the sunroof is completely closed when leaving the vehicle. Leaving the vehicle with the

sunroof open result in a theft. In addition, rain or snow can get into the vehicle through the open

sunroof.

When the sunroof is fully open, wind buffeting symptom can be worse. In this case, try to adjust the

sunroof position manually or open the sunroof until the wind buffeting is disappeared

Parts of the body can be trapped in the sunroof and can be struck by passing objects. Do not stick

hands, head or anything else out of the openings.

Remove any dirt and foreign material stuck on the edge of the sunroof glass periodically.

Noise can occur due to friction when operating the sunroof.

-

-

-

-

-

-

04-4

TILT

OPEN

Sunroof switch

1. SYSTEM LAYOUT

Sunroof assembly

Sunroof motor &

control unit

04-5

7340-00

2. OPERATING PROCESS

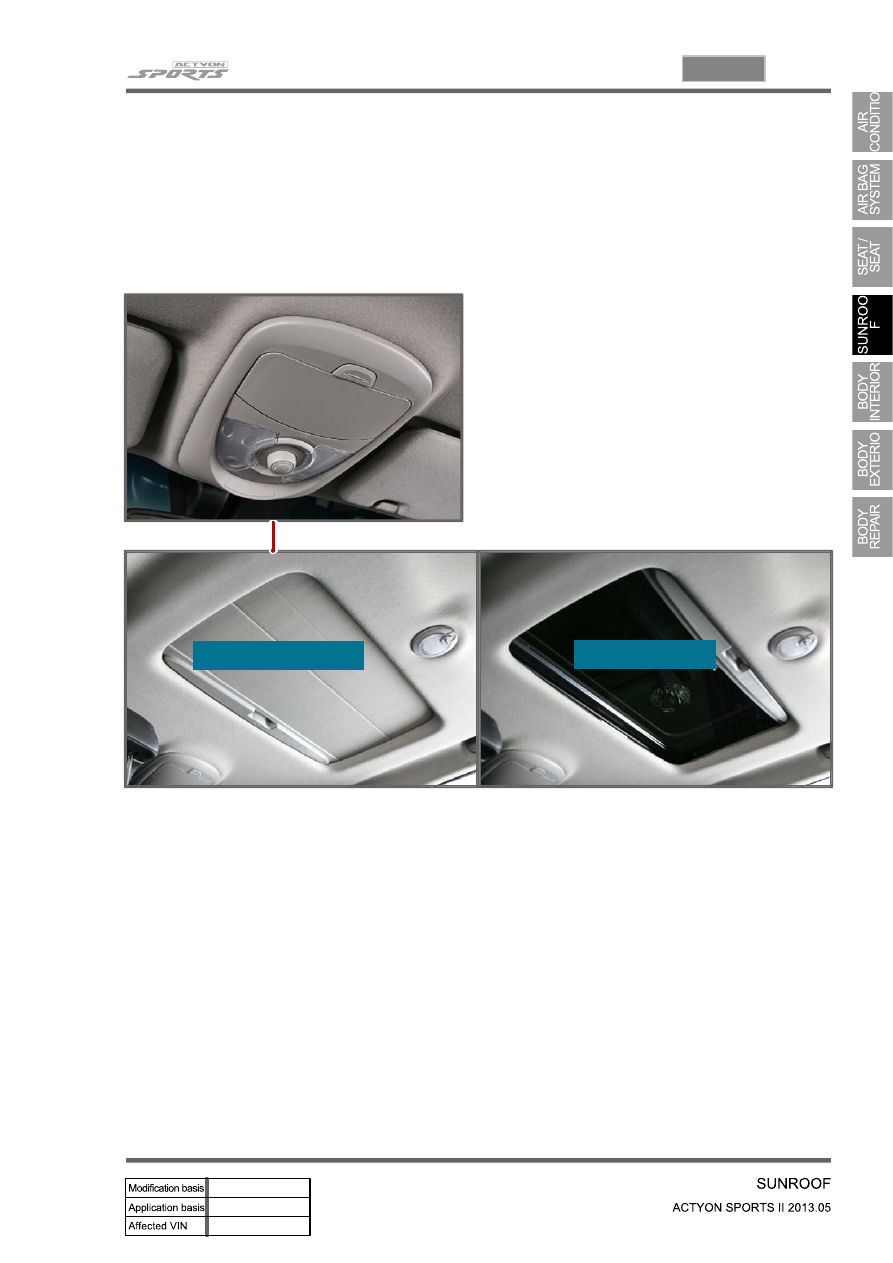

1) Sunroof Switch

This can be closed or open manually to block sunlight when the sunroof function is not in use.

The sunroof glass can be open automatically and can be tilted by the switch operation.

The sunroof switches are included in the overhead console switches and consists of the TILT,

CLOSE and OPEN switches.

CLOSE

OPEN

▷

▷

Sun shade blind

Sunroof glass

Sunroof operation switch

▶

Closes the sunroof.

Opens the sunroof.

Sunroof glass

▶

Roller blind

▶
