SsangYong Actyon Sports II. Manual - part 99

04-10

No.

Symbol

Item

24

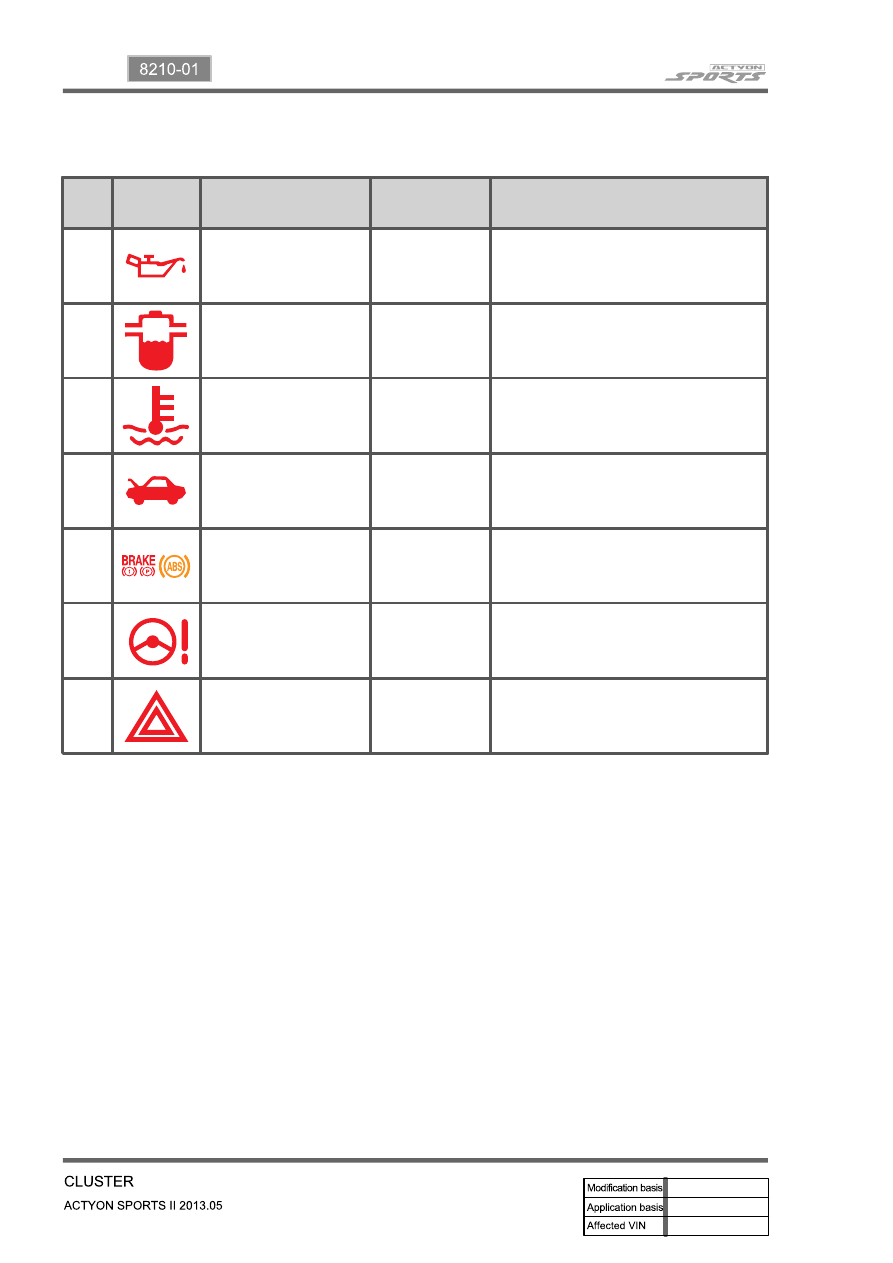

Engine oil pressure
warning lamp

25

Water separator
warning light

26

Engine coolant
overheat warning light

27

Engine hood open
warning lamp

28

EBD warning light

29

SSPS warning lamp

30

Hazard warning lamp

Power

Turning ON condition

IGN

Signal input

IGN

IGN ON/ CAN signal input

IGN

IGN ON/ CAN signal input

IGN

Switch ground

IGN

CAN signal input

IGN

Digital input

IGN

Switch to High

04-11

8210-01

2. CONFIGURATION

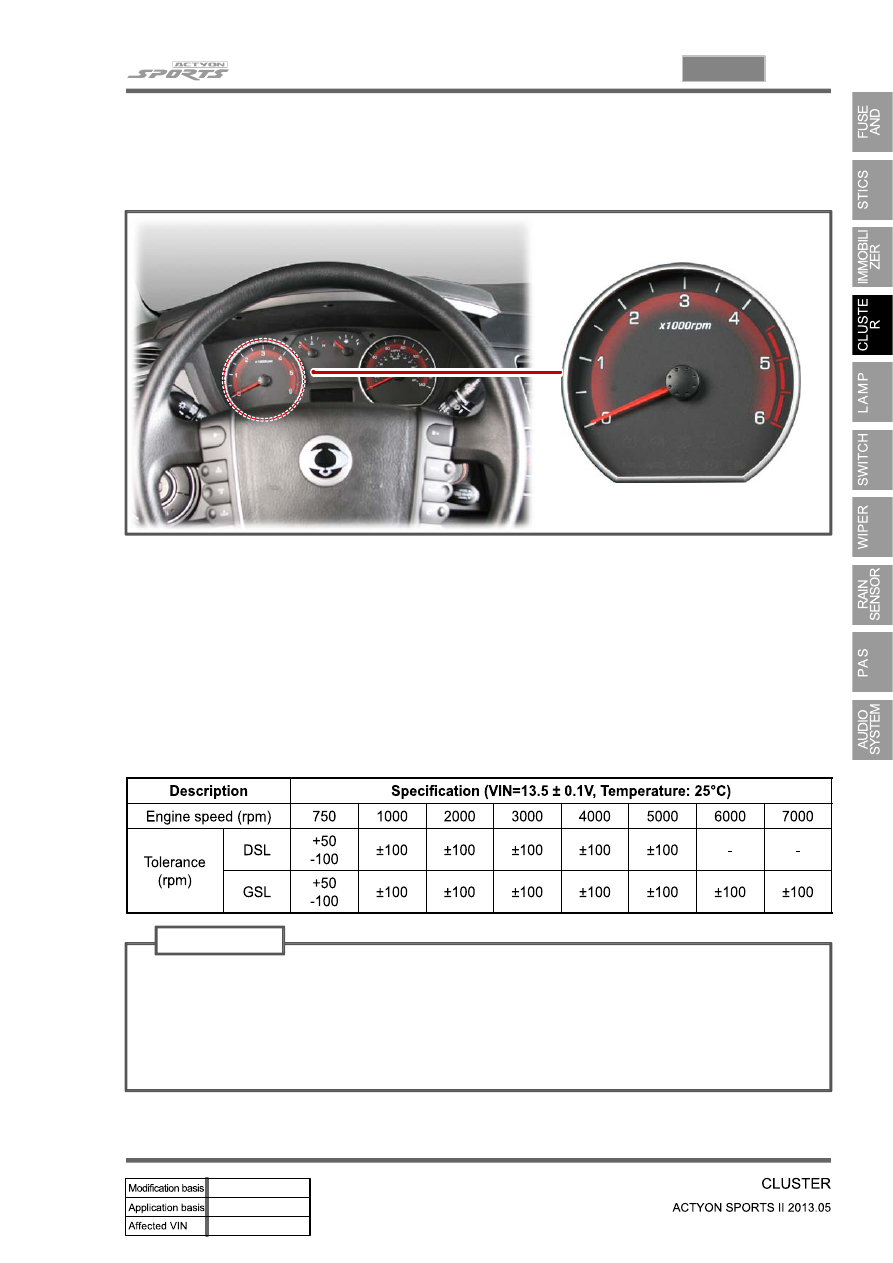

1) RPM Gauge

The tachometer indicates engine speed in revolutions per minute. Multiply 1,000 to the current number,

then it will be the current number of engine revolutions.

Under the normal engine operating temperature, the proper idling speed is 700 ~ 800 rpm. The red zone

(danger rpm range) starts from 4,500 rpm.

Connect the tachometer for tune-up test and start the engine.

Eliminate the hysteresis by tapping the tachometer.

Compare the values on the tester and tachometer and replace the tachometer if the tolerance is

excessive.

1.

2.

3.

If the tachometer (engine rpm gauge) pointer vibrates or stops moving at a certain range, or abnormal

noises are heard from the tachometer, the tachometer may have a malfunction. If you have reason to

suspect that the reading from the tachometer differs from the actual engine speed (rpm), connect a

diagnostic device and compare the value on tachometer with the reading from the diagnostic device.

Check Method

04-12

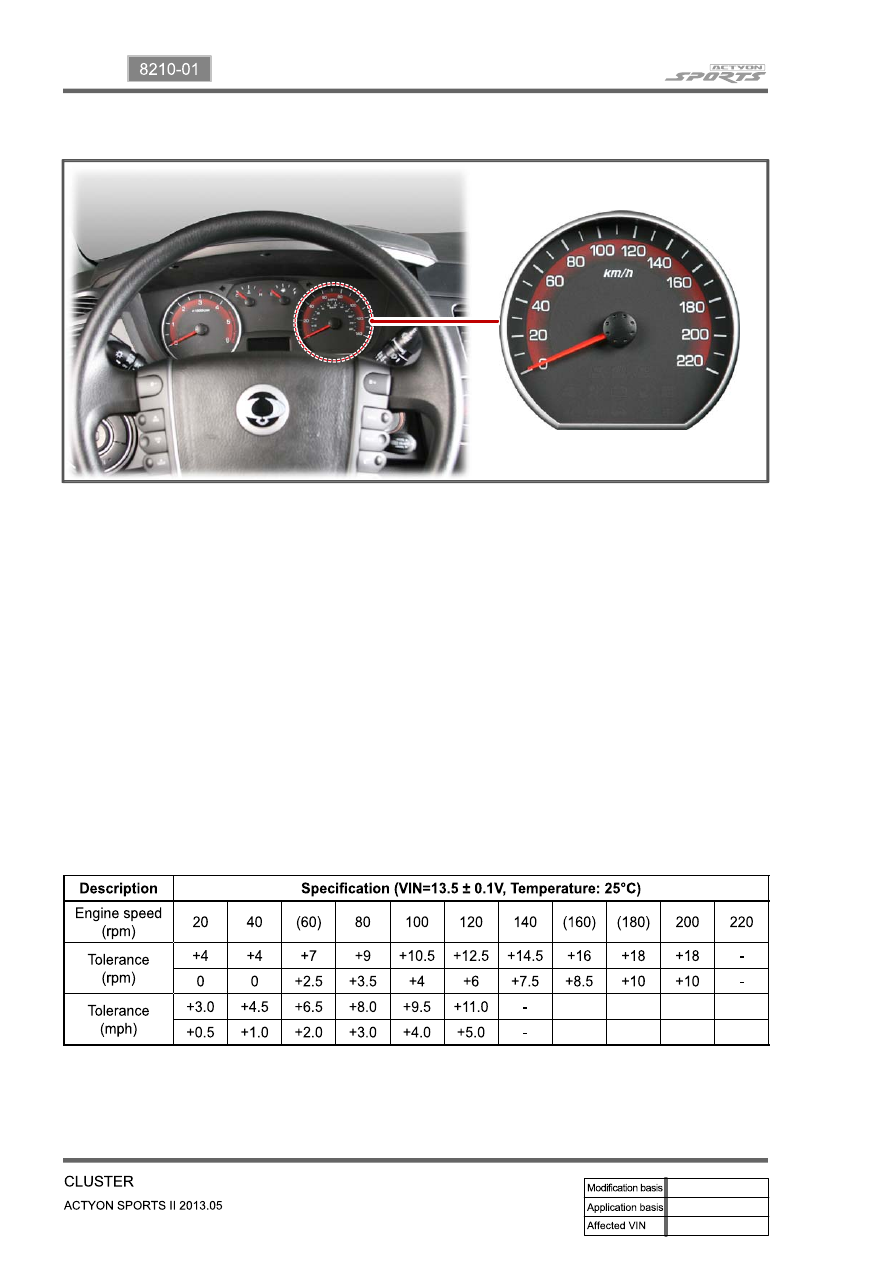

2) Speedometer Gauge

The speedometer indicates the vehicle speed by calculating the signals from the rear left and rear right

wheel speed sensors through ABS or ESP unit. (For the vehicle without ABS or ESP, the signals are

received from the EMS)

If the speedometer gauge vibrates, stops at a certain range or makes an abnormal noise, there could be

defectives in speedometer. However, these symptoms also could be occured when the tire has

uneven wear, different tire inflation pressures or different tire specifications.

Perform the speedometer test regarding the tolerance as described. However, it is not similar simple

work in field due to lack of measuring conditions such as test equipment and preciseness.

Check the allowable tolerance of the speedometer and operations of the trip odometer by using

a tester.

Check if the speedometer pointer is shaking and the abnormal noise sounds.

Eliminate the hysteresis by tapping the speedometer.

1.

2.

3.

04-13

8210-01

The allowable tolerance increases when the tires are worn or the tire pressure is out of specified

range.

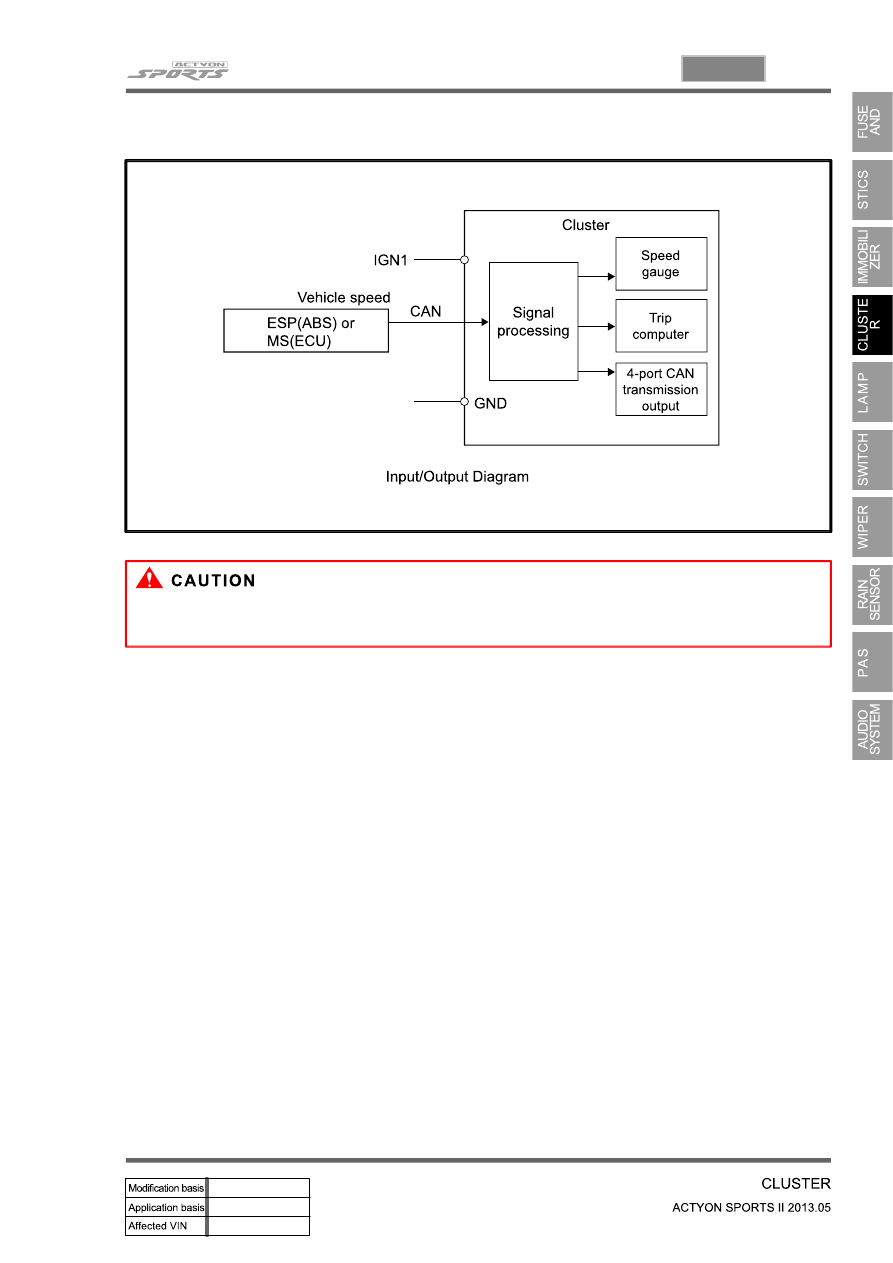

Speed Input from ESP(ABS) or MS(ECU)

▶
