SsangYong Actyon Sports II. Manual - part 97

03-13

7010-06

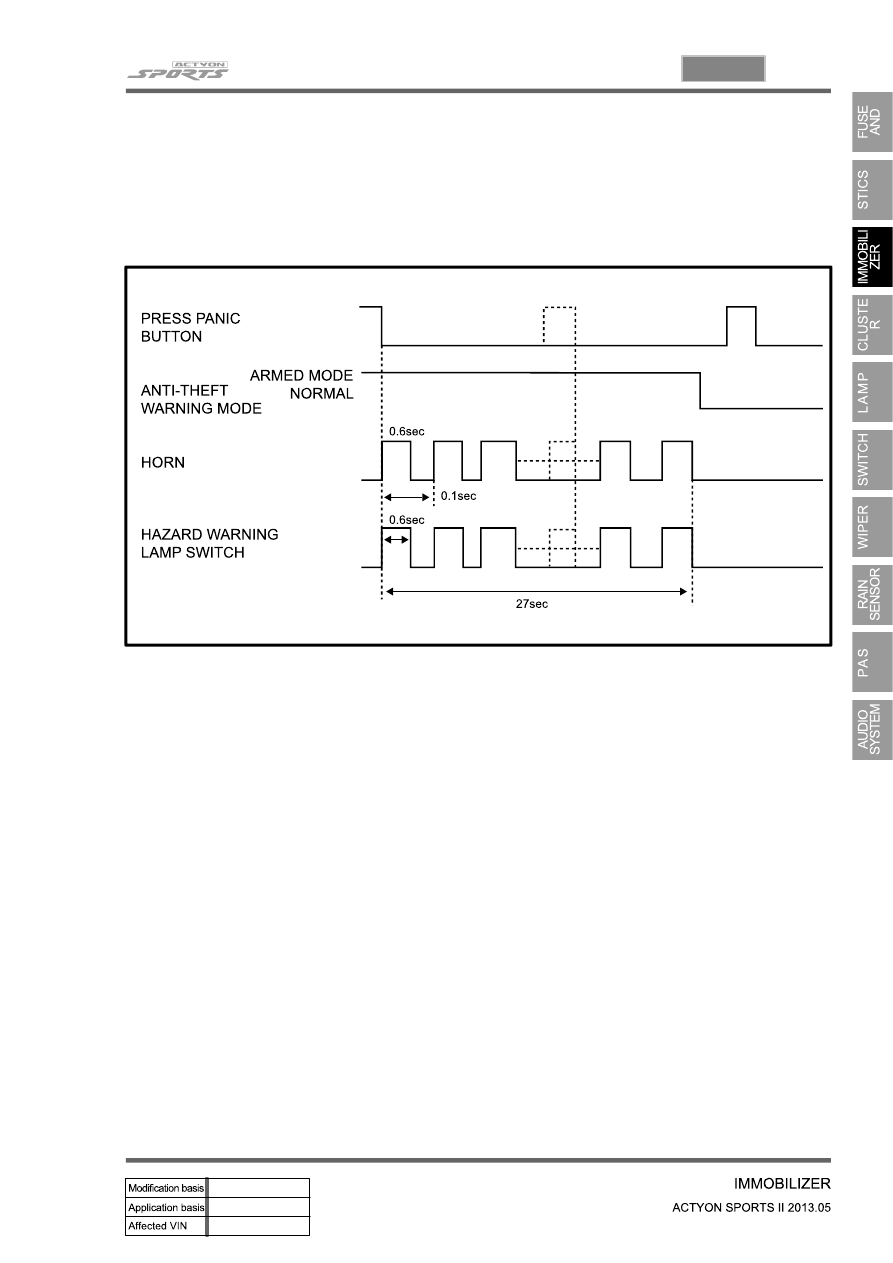

3) Remote Panic

When pressing and holding the PANIC button on the remote control key for more than 2 seconds,

the panic function is activated.

The vehicle activates the panic alarm by using the horn for 27 seconds when receiving the panic

message from the remote control key.

1.

2.

04-3

8210-01

1. SPECIFICATIONS

Item

Specification

Rated voltage

DC 13.5 V

Operating voltage

DC 9 V ~ 16 V

Checking voltage

DC 13.5 V

Operating temperature

-30℃ ~ +80℃

Storage temperature

-40℃ ~ +85℃

Illumination color

Dial

White

Pointer

Red

LCD

Red

Displays on Instrument
Cluster

Warning and indicator

lamp

1 blue indicator

13 red indicators

7 green indicators

8 yellow indicators

Gauge

Vehicle speed

Fuel level

Engine coolant temperature

Engine speed (rpm)

LCD display

Driving distance

Trip meter

Gear position display

Gear position display in
A/T(Left hand of LCD
display)

A/T vehicle

P, R, N, D, 1, 2, 3, 4, 5, 6

M/T vehicle

R

04-4

SSPS system-specific information reflected to instrument cluster

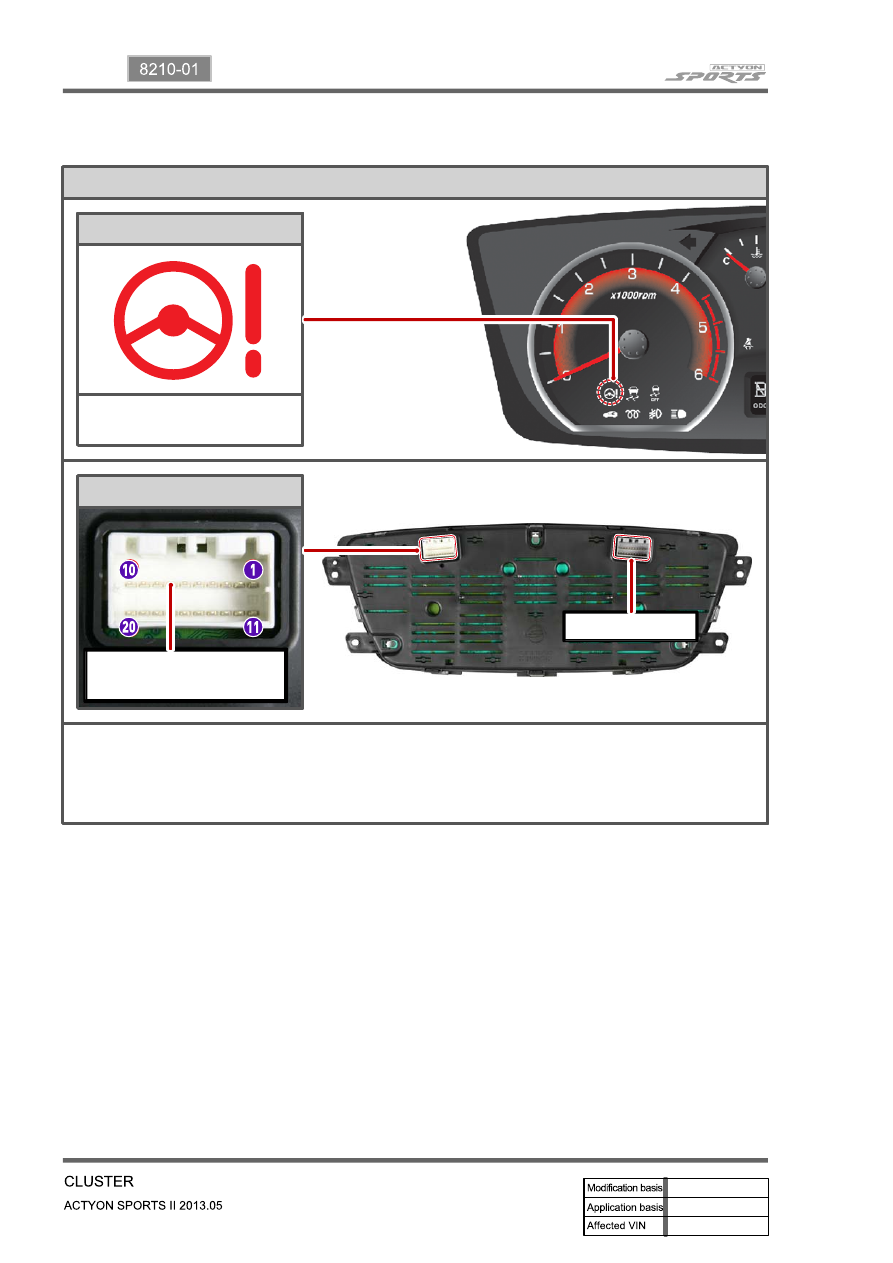

2. MAJOR CHANGES

SSPS warning lamp (red) added to lower left corner of the instrument cluster due to introducing of

SSPS (Speed Sensing Power Steering) system

No. 7 terminal (SSPS system malfunction signal) added to sub-connector at rear of instrument

cluster

-

-

SSPS warning lamp

Comes on when fault occurs in
SSPS system

Sub-connector

Main connector

SSPS system malfunction

signal (No. 7 terminal)

04-5

8210-01

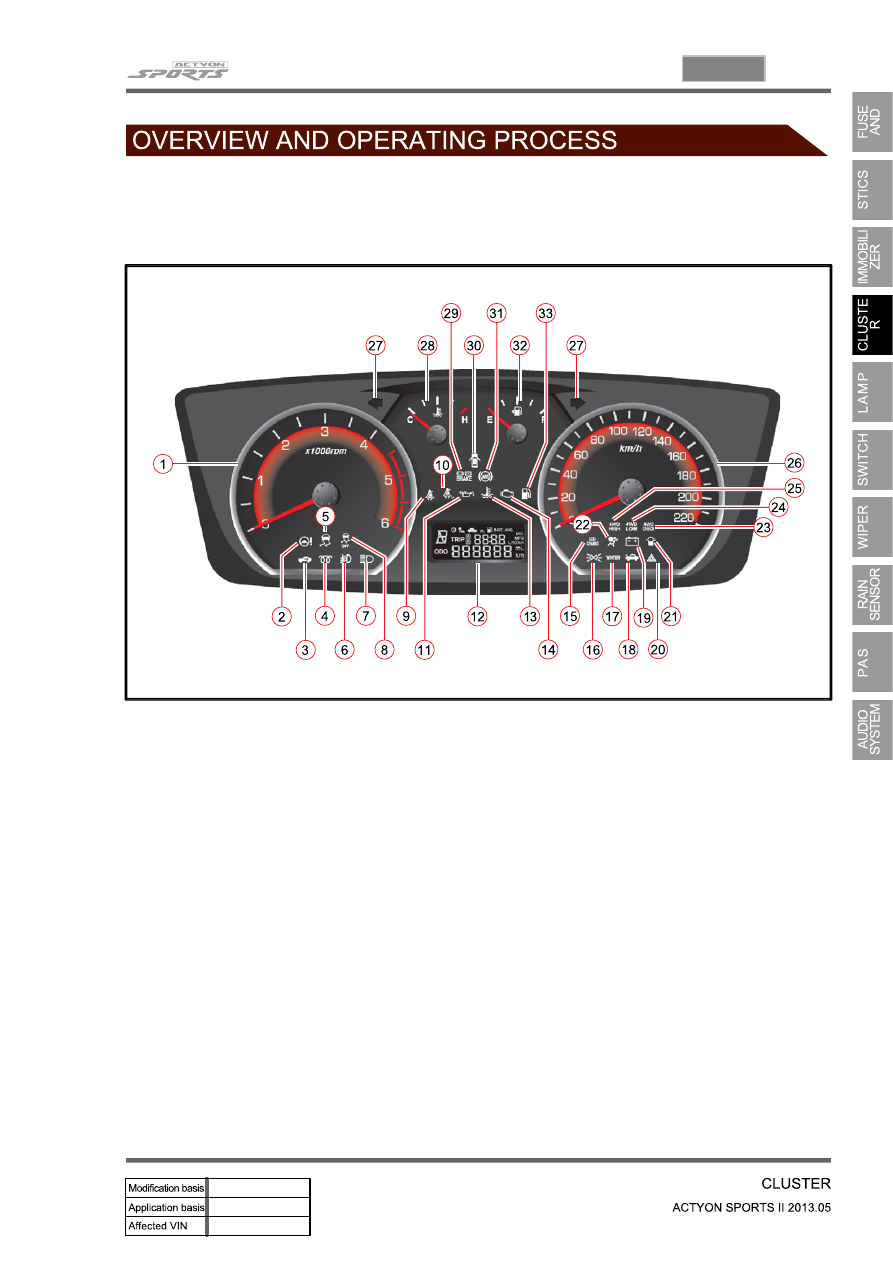

1. DESCRIPTIONS OF INDICATOR DISPLAY

Tachometer

SSPS warning light

Immobilizer indicator

Glow indicator

ESP indicator/warning light

Front fog light indicator

High beam indicator

ESP OFF indicator
Seat belt reminder (driver’s seat)
Seat belt reminder (passenger’s seat)

Engine oil pressure warning light

LCD Display

Engine overheat warning light

Engine check warning light

Auto cruise indicator

Light indicator

Winter mode indicator

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

Engine hood open warning light

Battery charge warning light

Hazard Indicator

Water separator warning light

Air bag warning light

4WD CHECK warning light

4WD LOW indicator

4WD HIGH indicator

Speedometer

Turn signal indicator

Coolant temperature gauge

Brake warning light

Door ajar warning light

ABS warning light

Fuel gauge

Low fuel level warning light

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

It sends and receives information to/from each unit through CAN communication line. The LCD display

and separate ESP ON/OFF indicator are newly added.
