SsangYong Actyon Sports II. Manual - part 98

04-6

Main connector (gray)

Sub connector (white)

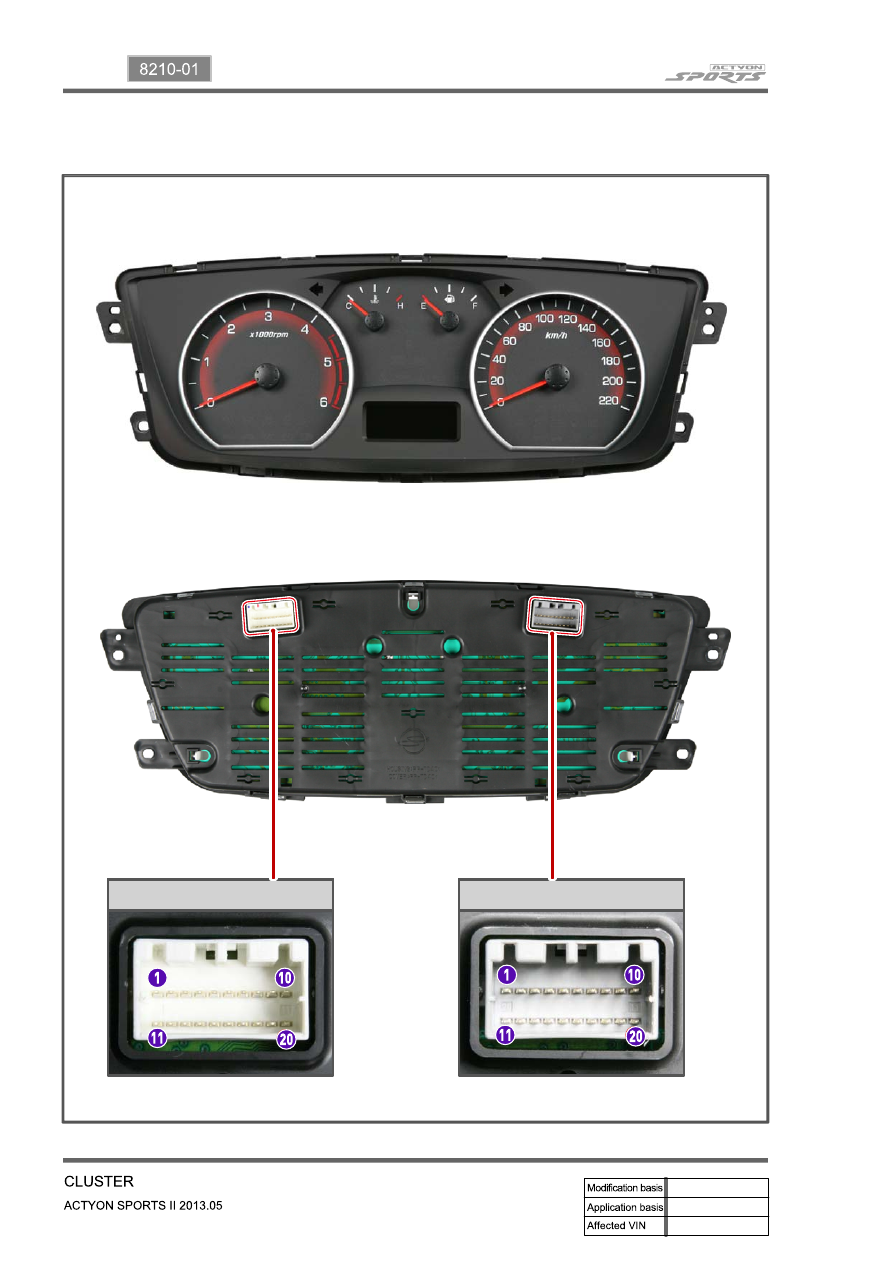

System Layout

▶

Front view

Rear view

04-7

8210-01

Sub connector - 20-pin

(white)

Connector Pin Arrangement

▶

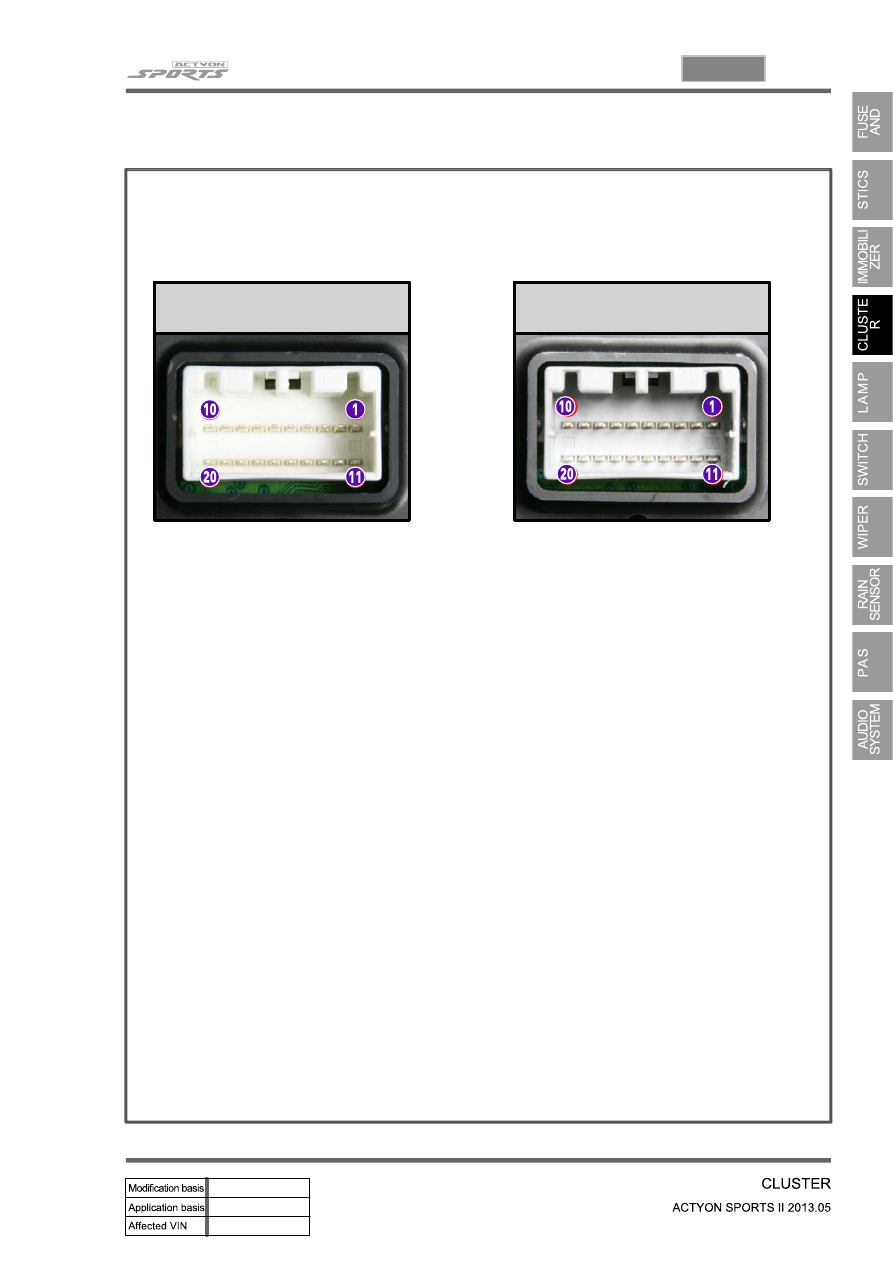

The connector pin sections illustrated below are viewed from the front of the instrument cluster. The

arrangement of the pins is the same for both the main connector and the sub connector.

1. IGN2+

2. CHARGE(ALT)

3. -

4. HAZARD

5. FRONT FOG

6. -

7. SSPS

8. PASSENGER SEATBELT

9. HOOD OPEN

10. -

11. -

12. PARKING BRAKE INPUT

13. OIL PRESSURE

14. TURN LEFT

15. HIGH BEAM+

16. TURN RIGHT

17. HIGH BEAM-

18. DRIVER SEATBELT

19. AIRBAG

20. -

1. B+

2. -

3. DOOR OPEN

4. CHECK ENGIN (GSL ONLY)

5. -

6. ILL+

7. BUZZER OUTPUT

8. 4P OUTPUT

9. -

10. -

11. IGN1+

12. GND

13. FUEL GND

14. CAN HIGH

15. CAN LOW

16. MT R INPUT

17. MT N INPUT

18. RESET/MODE SW

19. FUEL INPUT

20. -

Main connector - 20-pin

(gray)

04-8

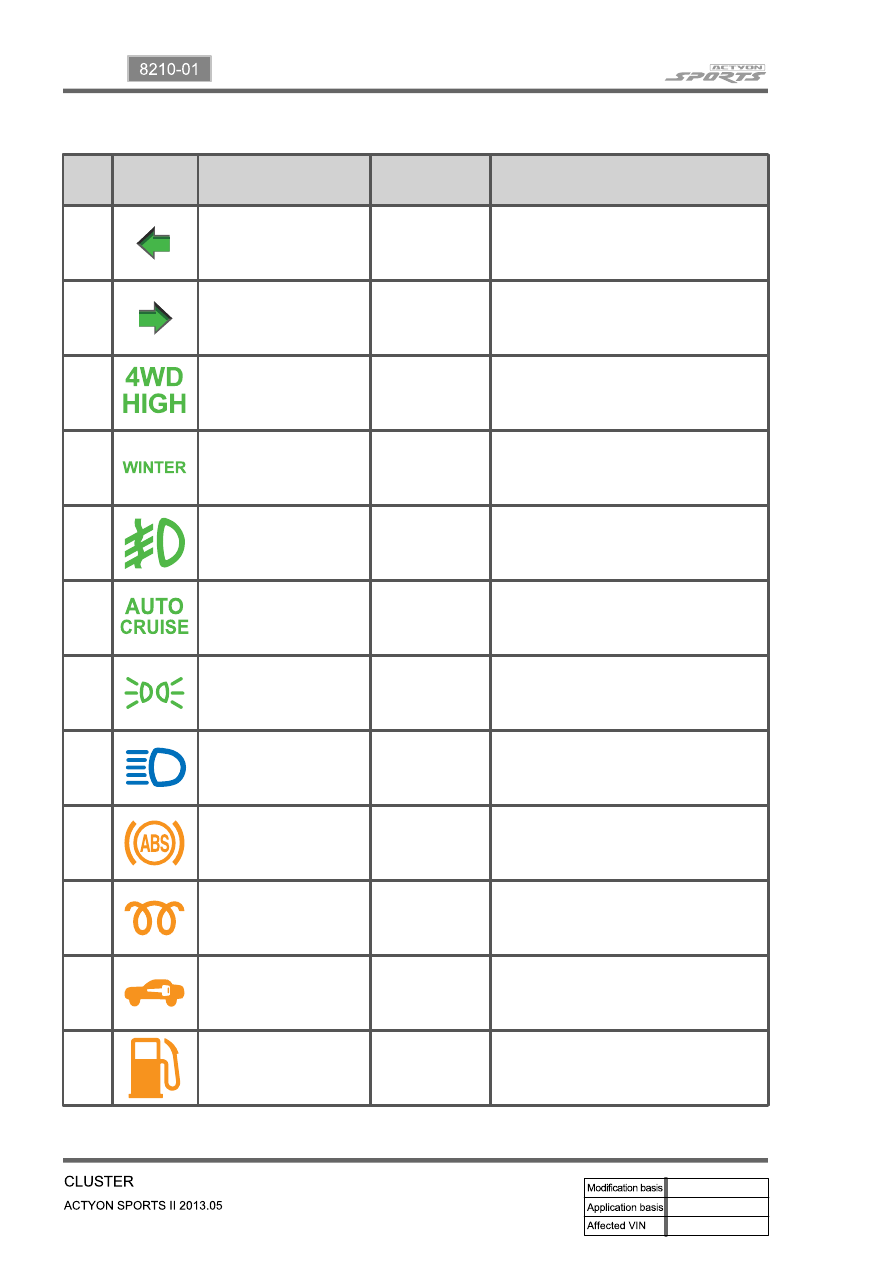

Indicators on Instrument Cluster

▶

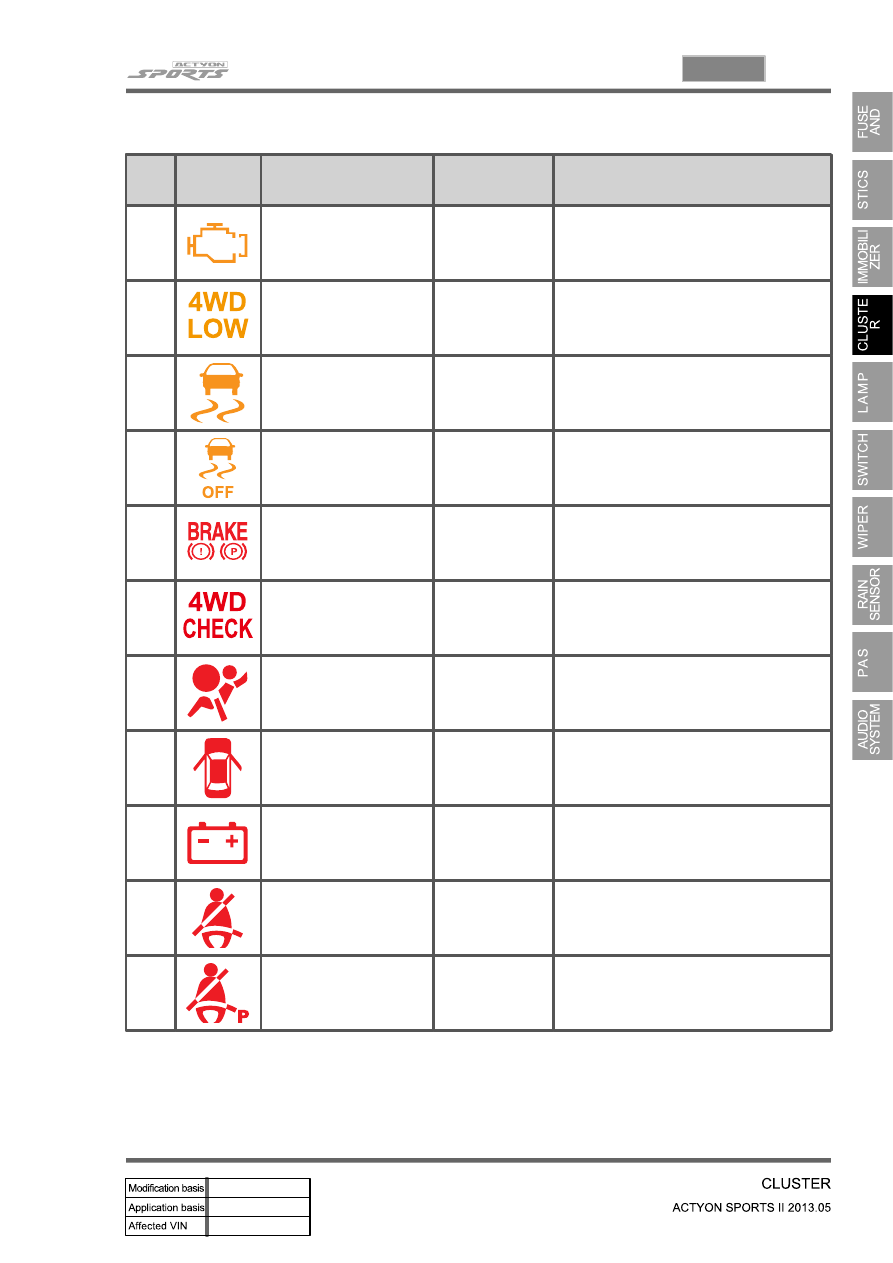

No.

Symbol

Item

1

Turn signal lamp-L

2

Turn signal lamp-R

3

4WD HIGH indicator

4

Winter mode indicator

5

Front fog lamp
indicator

6

Cruise control
indicator

7

Light illumination
indicator

8

High beam indicator

9

ABS warning lamp

10

Glow indicator

11

Immobilizer indicator

12

Low fuel level warnig
light

Power

Turning ON condition

Multifunction

switch

When activating switch

Multifunction

switch

When activating switch

IGN

IGN ON/ CAN signal input

IGN

IGN ON/ CAN signal input

Fog lamp

relay

When activating switch

IGN

IGN ON/ CAN signal input

BATT

Tail lamp ON

Headlamp

high beam

relay

When activating switch

IGN

IGN ON/ CAN signal input
(ABS, EBD)

IGN

IGN ON/ CAN signal input

IGN

IGN ON/ CAN signal input

IGN

When analog inputting fuel level

04-9

8210-01

Power

Turning ON condition

IGN

IGN ON/ CAN signal input

IGN

IGN ON/ CAN signal input

IGN

IGN ON/ CAN signal input
(ESP & buzzer activated)

IGN

IGN ON/ CAN signal input

IGN

IGN ON, CAN signal input (EBD)

IGN

IGN ON/ CAN signal input

IGN

Signal input

BATT

When door opened

IGN

Charge system fault

IGN

Switch input

IGN

Switch input

No.

Symbol

Item

13

Engine check warning
lamp

14

4WD LOW
indicator

15

ESP indicator/ warning
light

16

ESP OFF indicator

17

Brake warning light

18

4WD CHECK
indicator

19

Air bag warning lamp

20

Door ajar waning light

21

Charge warning lamp

22

Seat belt warning light
(driver)

23

Seat belt warning light
(passenger)
