MANUAL TRANSMISSION  5B-11

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

SHIFT CONTROL CABLE

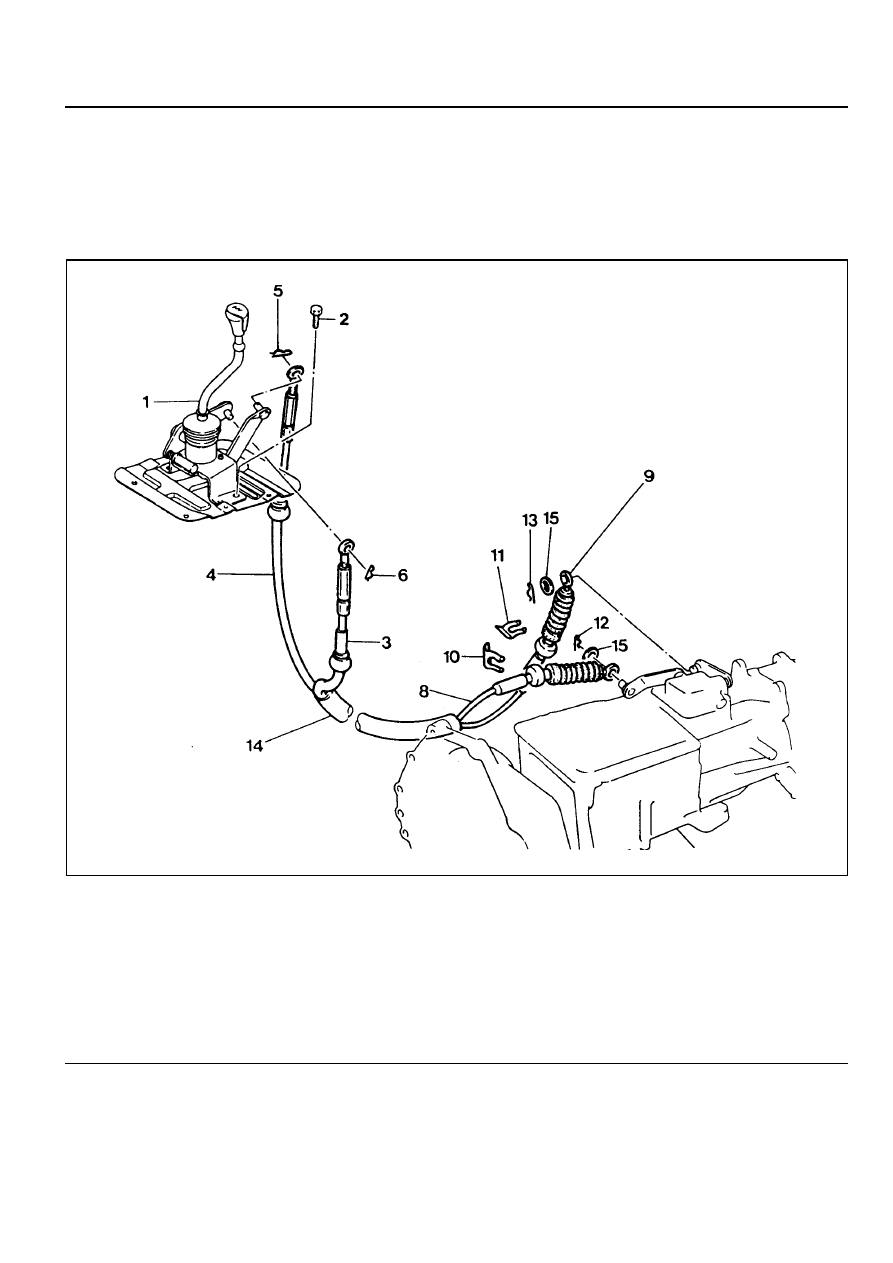

1 Shift Lever Assembly
2 Bolt ...................................................... 20-30 Nm
3 Select Cable
4 Shift Cable
5 Snap Pin
6 Snap Pin
7 Transmission
8 Shift Cable

9 Select Cable

10 Clip

11 Clip

12 Snap Pin
13 Snap Pin
14 Protector
15 Washer

5B-12  MANUAL TRANSMISSION

Removal & Installation Procedure

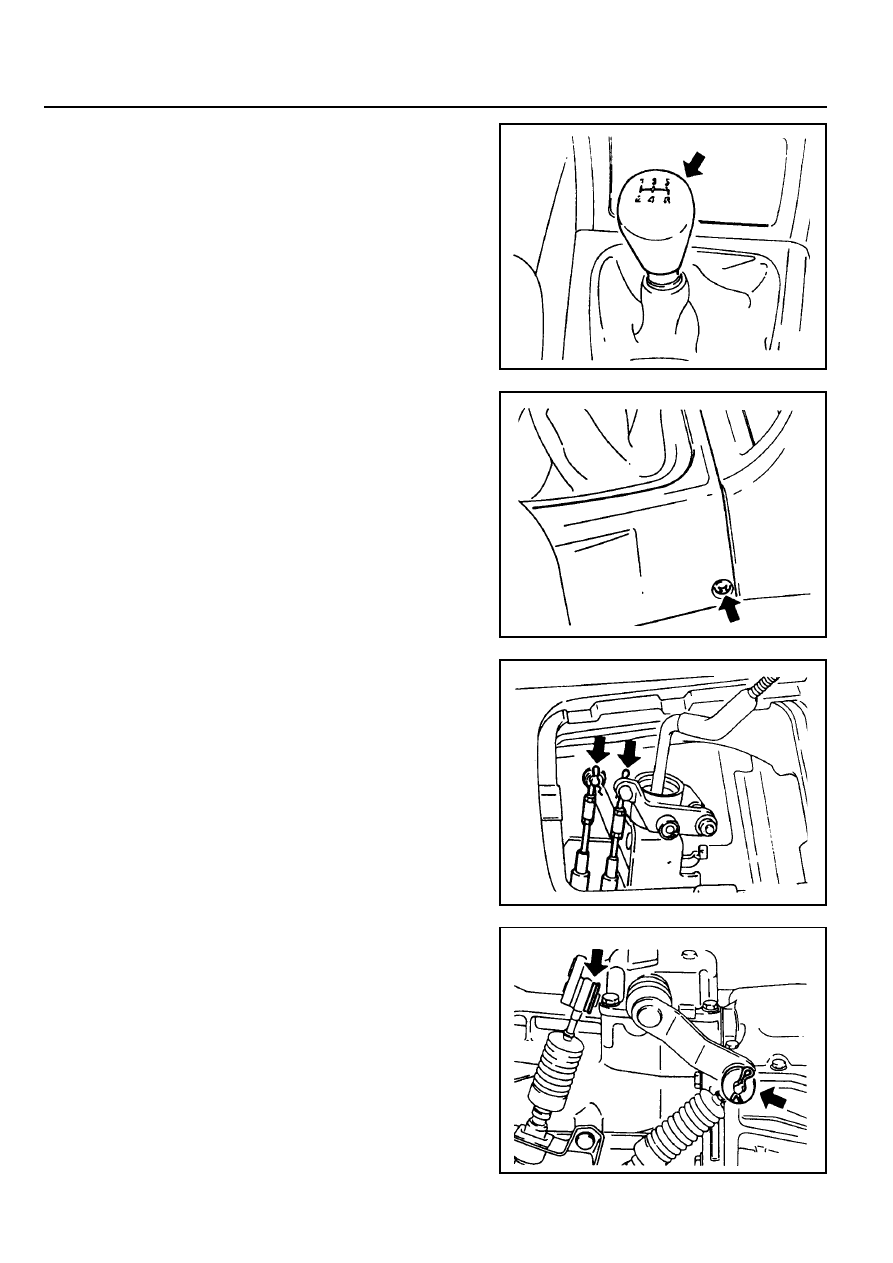

1. Position the shift lever in neutral and remove the knob.

2. Remove the screw from the console box side and remove

the shift lever cover.

3. Disconnect the cables by removing the snap pins from the

control cable connections to the select lever and shift lever.

4. Remove the shift lever an cable mounting snap pin and

washer of the select lever.

MANUAL TRANSMISSION  5B-13

5. Pull out the clip from the bracket and remove the shift cable

and select cable.

6. Installation is reverse order of the removal.

Inspection Procedure

1. The shift lever should be positioned in neutral.

2. Apply liquid gasket on the cable contact surface.

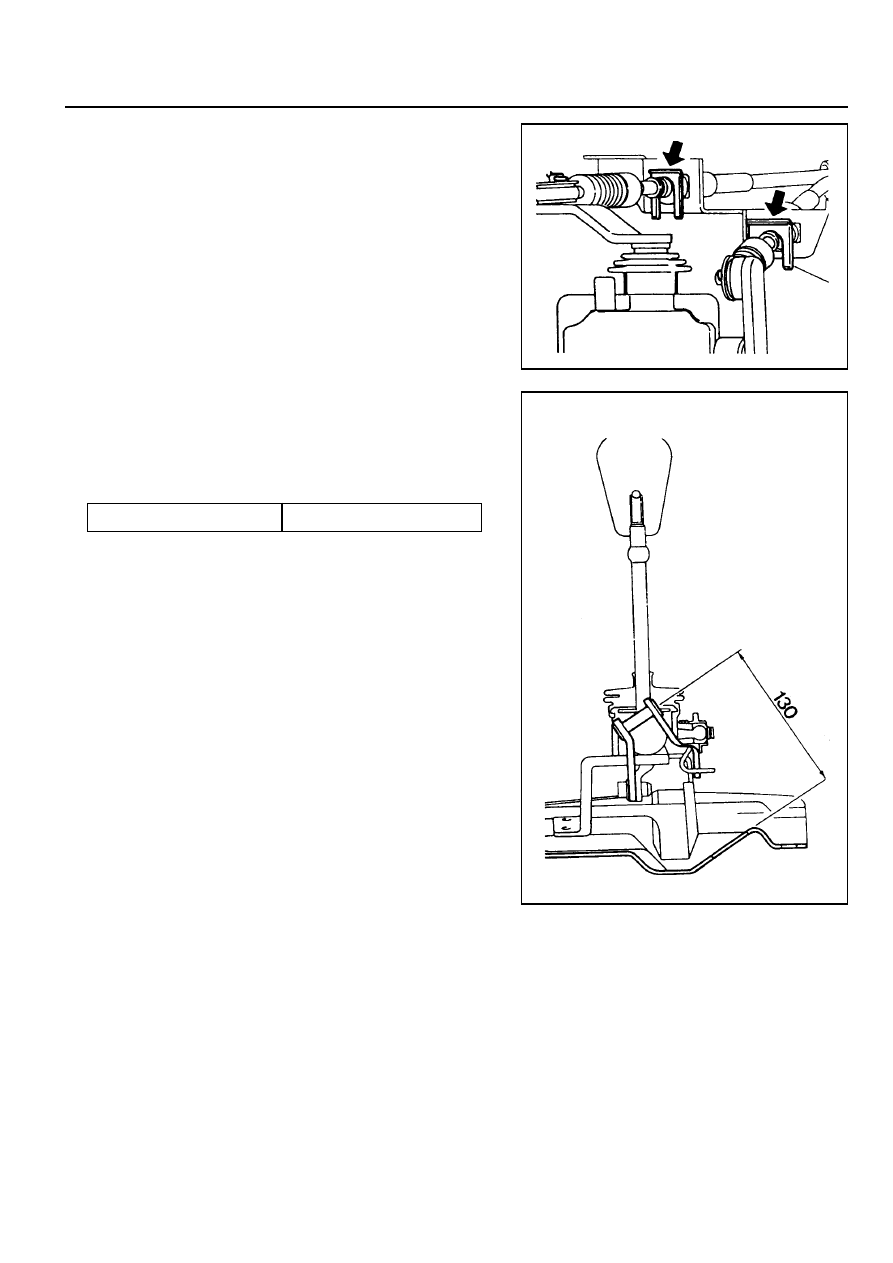

3. Keep 130 mm between the center of the cable end-eye

and floor.

Notice

If necessary, adjust the adjust nut.

Standard

130 mm

5B-14  MANUAL TRANSMISSION

TRANSMISSION

Preceding Work : Removal of the shift control cable

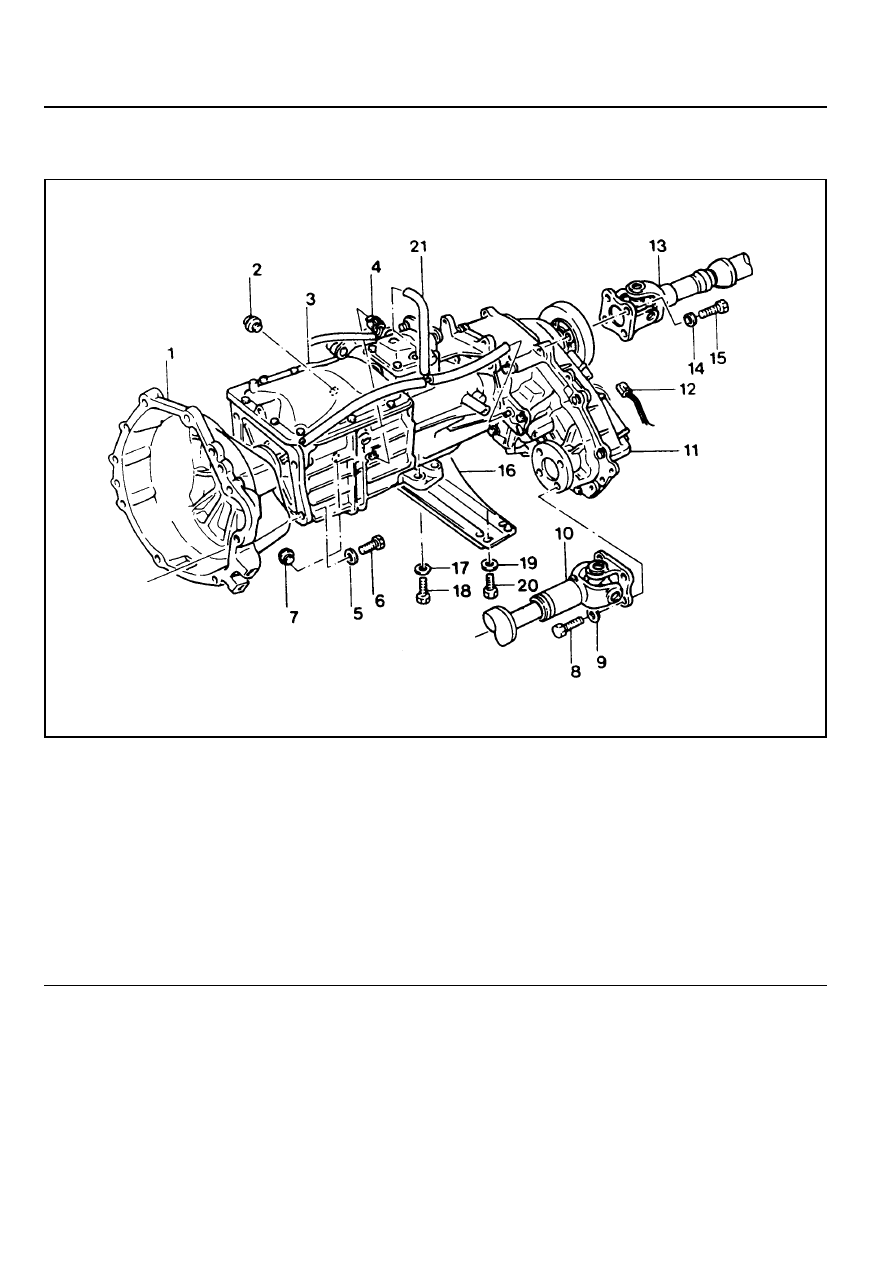

1 Clutch Housing
2 Oil Filler Plug ............................................ 25 Nm
3 Transmission Assembly
4 Back-up Switch
5 Washer
6 Bolt ...................................................... 77-87 Nm
7 Oil Drain Plug ............................................ 25 Nm
8 Bolt ...................................................... 81-89 Nm
9 Washer

10 Front Propeller Shaft

11 Transfer Case Assembly

12 Speedometer Cable
13 Rear Propeller Shaft
14 Washer
15 Bolt ...................................................... 70-80 Nm
16 Cross Member
17 Washer
18 Bolt ...................................................... 21-35 Nm
19 Washer
20 Bolt ...................................................... 62-93 Nm
21 Breather Hose
